CD-305 | Cantek | Finishing Equipment

  • Power:
    230/460V 3PH
  • Description

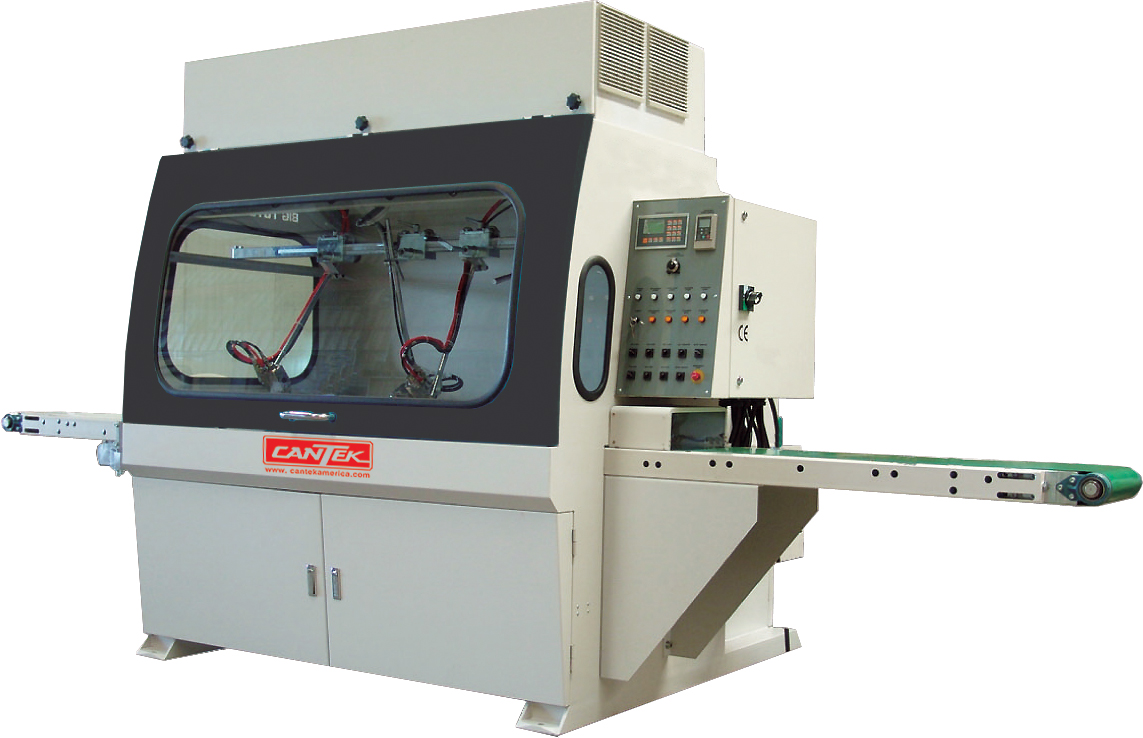

    The Cantek CD305 auto linear spraying machine allows the automatic in line spraying of lacquers & stains on mouldings, picture frames, door, window & furniture components up to 305mm wide.  The wide spraying booth contains 6 spray guns that are automatically timed by photocells to minimize material usage and waste. A PLC control system, equipped with LCD display, checks all the machine functions and setup.

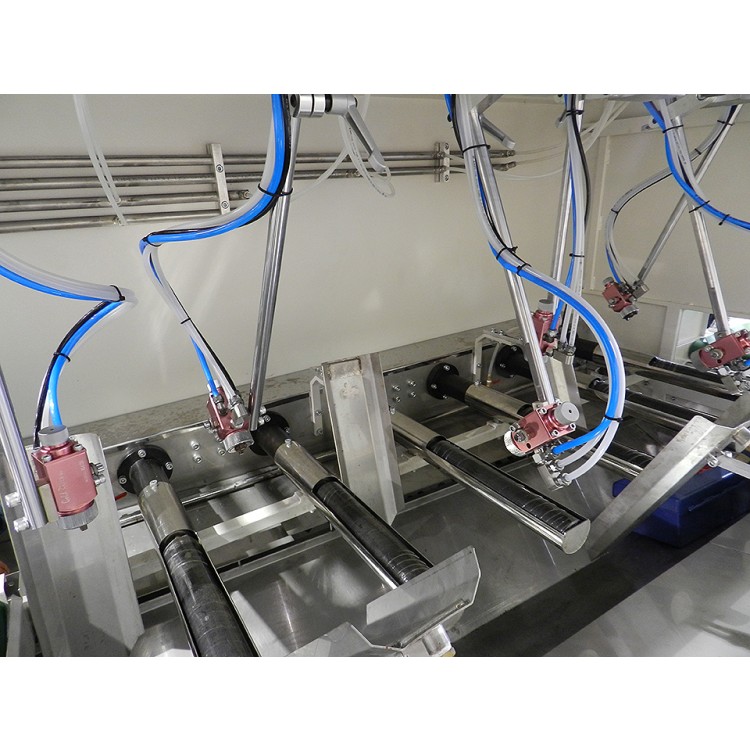

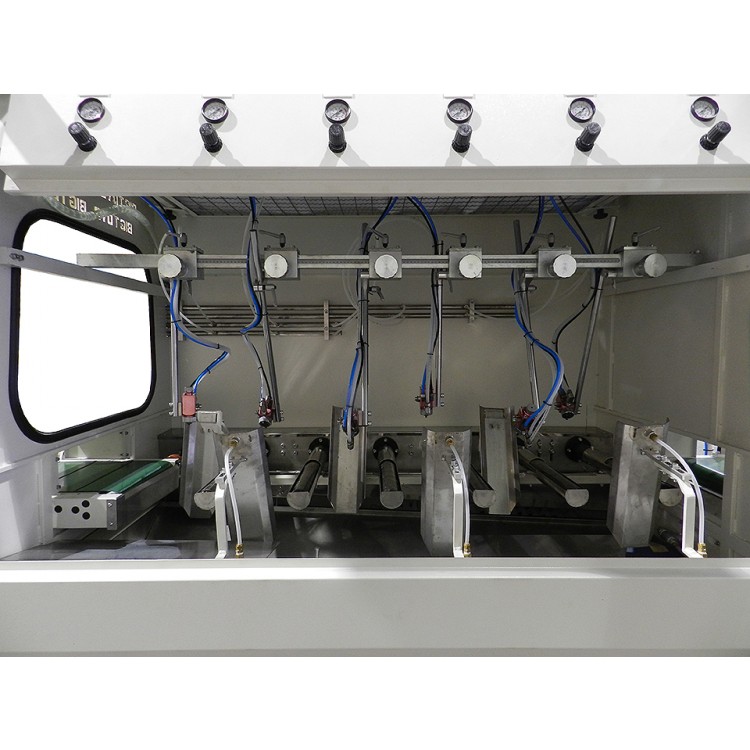

    •6 High Quality, Gold River Spray Guns which are controlled by individual air pressure regulators

    •PLC control for easy operation and set up

    •Fast spraying processing for profile strips & edges

    •The spray guns are controlled by photocell sensor for auto spray time and amount of spray – saves material

    •Easy cleaning of guns with independent valve systems

    •Internal components manufactured out of stainless steel

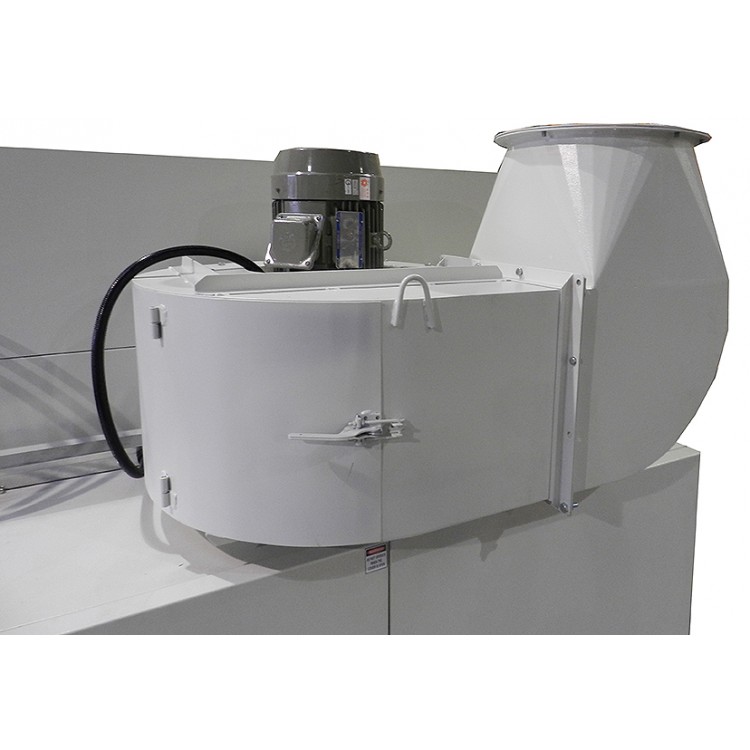

    •Powerful collection fan for air purification through filter

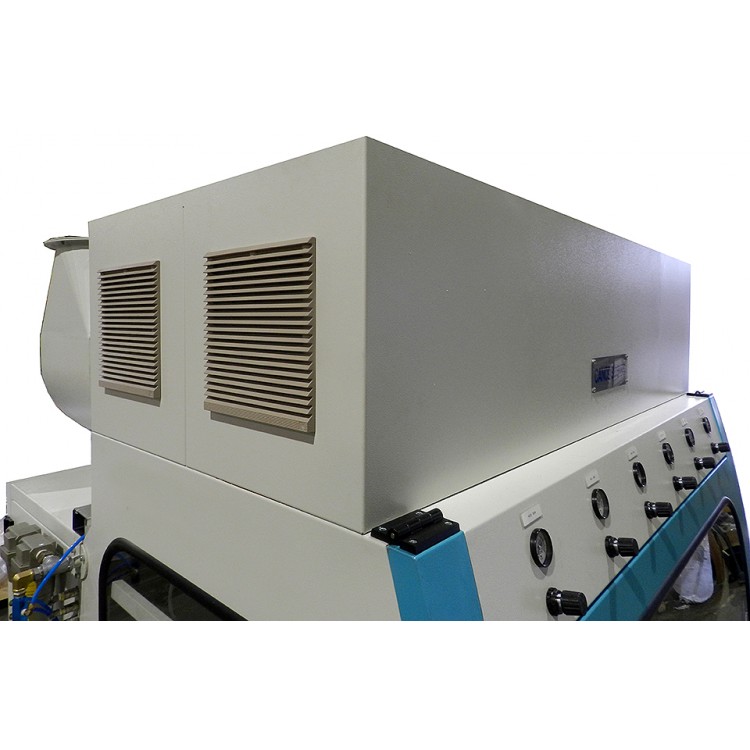

    •Totally enclosed Cabinet to minimize pollution with forced air unit

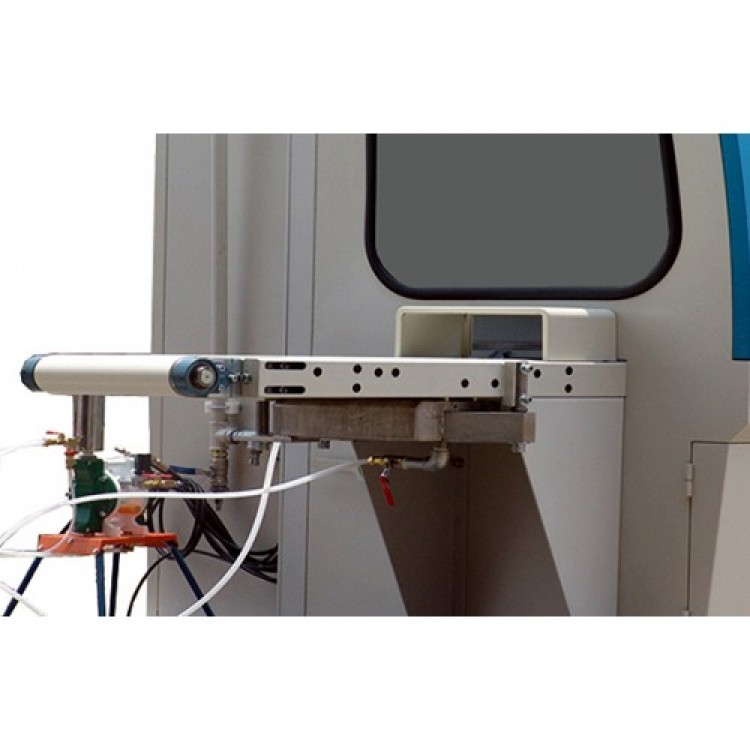

    •Paint recycling unit included for collecting and reusing overspray.

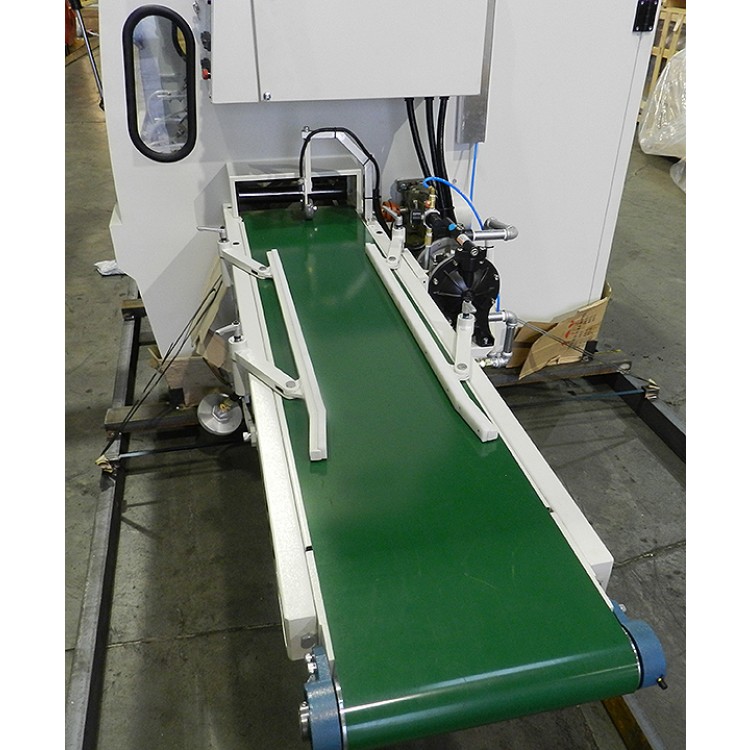

    •Variable feed speed control from 33~100 FPM (higher feed speed available upon request)

    •Convenient rack & pinion lateral adjustment of the spray guns

    •Paper filters are used on both sides of roller conveyer which is in the spray chamber & a fiber glass filter is used on the back side of spray chamber to ensure a clean machine & clean air

    •Machine can be used for water based or UV coating material (solvent based product)

  • Specs

    Max. Width 12″ (305mm)

    Max. Thickness 3.54″ (90mm)

    Max. Length Infinite

    Min. Length 21.65″ (550mm)

    Feed Speed 33~100+ FPM (10M~30M/min)

    Feed Motor 1 HP

    Exhaust Fan Motor 5 HP

    Electrics 230/460 or 575/3/60 to CSA/UL Standards (specify)
