TIGER 400-600-800-1000 | Weima | Shredders

  • Description

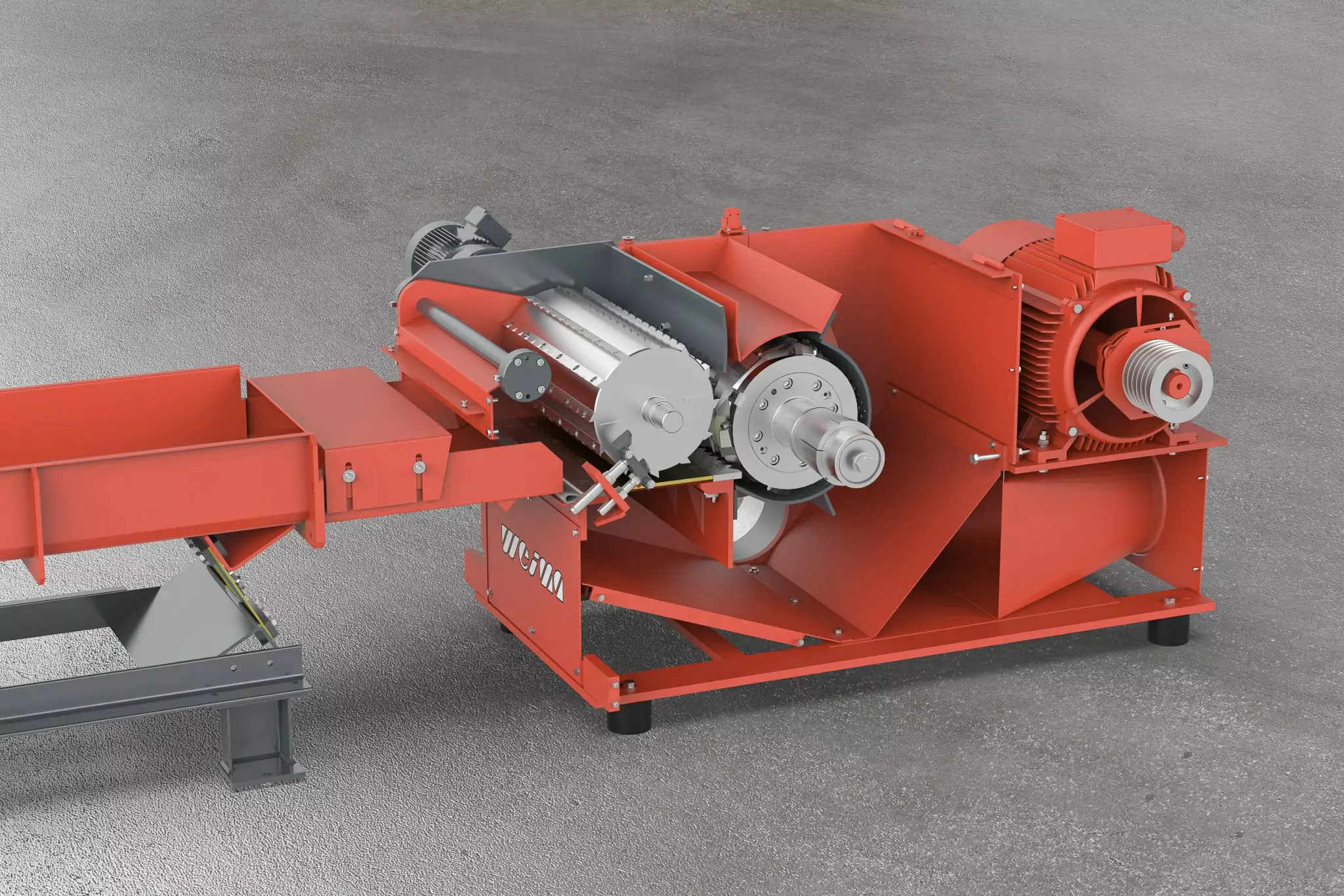

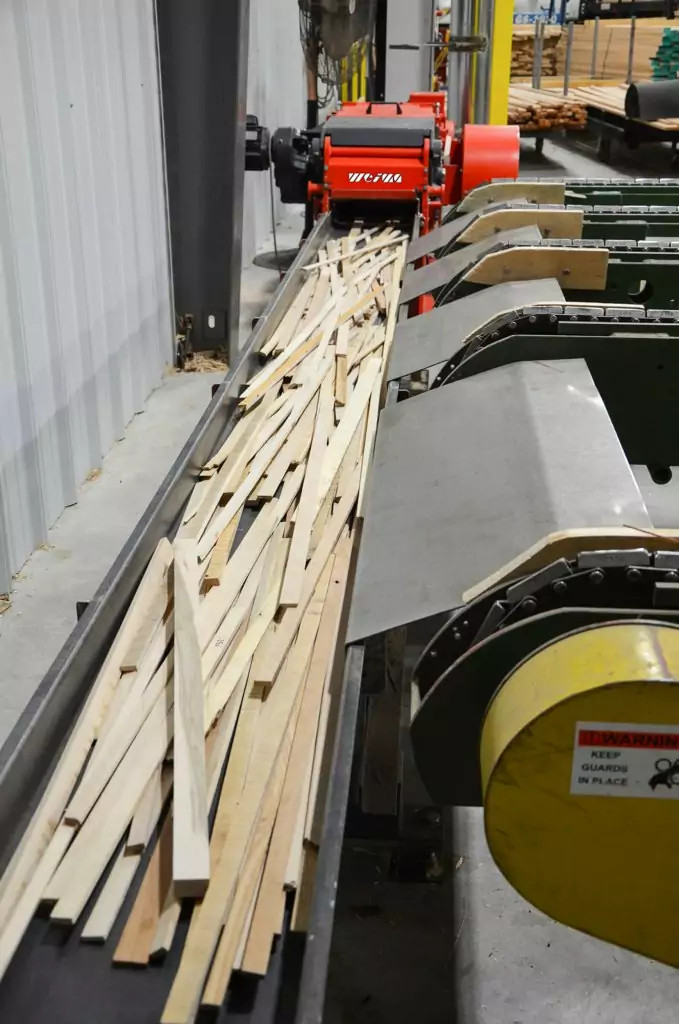

    The biggest difference between classic shredders and horizontal shredders is the material infeed. Instead of a hydraulic ram, an extra-long vibrating conveyor is used – with a decisive advantage: It is ideal for feeding particularly long waste such as strips, battens, squared timber, profiles, pipe material, or other linear waste. While horizontal shredders are usually placed next to the machine and can be fed manually, they come with everything necessary for fully automated production operation. They are extremely compact and robustly built. These machines are equipped for easy integration thanks to state-of-the-art data interfaces, and they are very user-friendly to maintain. The horizontal single-shaft shredder series includes the Beaver, Tiger, and Leopard machines. These wood shredders are perfect for the shredding of linear wood waste. This shredder is great for turning solid wood waste into chips. The shredded material is placed into a vibratory infeed conveyor that is the same width as the machine itself. This conveyor feeds the material consistently into the shredder. Horizontal shredders are known within the wood industry and are found in many woodworking shops. In addition to its compact design, the WEIMA horizontal shredders have a low rotor speed, which helps with noise control. This makes it possible for the machine to be placed directly near the woodworking machine rather than under it for the processing of MDF and solid wood.

  • Specs

    Tiger 400|Tiger 600|Tiger 800|Tiger 1000 Rotor Diameter (mm)|368|368|368|368

    Rotor length (mm)|400|600|800|1000

    Power (hp)|15/18.5|22/30/37|30/37/45|30/37/45

    Rotor Knives|22|32|44|44

    Connection diameter (in/mm)|200/300|200/300|200/300|250/300

    Weight (approx. kg)|1600|2100|2600|3500
  • Download

Videos of Horizontal Shedder

WEIMA WLH Tiger 400 shreds long wood boards and rippings
