R130 SERIES | Ritter | Boring Machines

  • Description

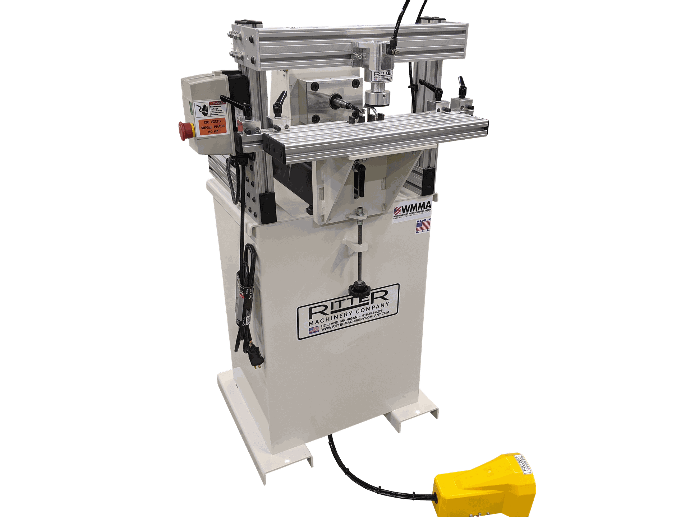

    Designed for a dedicated and accurate boring center with single, double or triple spindle boring capability. Stile and rail boring set-up features help eliminate costly mistakes, rejected parts and increase production efficiency. The workpiece is held firmly against the table by a pneumatic clamp, and there is full adjustability of the index stops, bed height, and depth of cut. The R130 series features three different models; R130; R131, and R132. Please see the specs tab to check out the differences in these three models.

  • Specs

    SPECS THAT APPLY TO ALL MODELS •0.75 HP Spindle Drive Motor, TEFC

    •0-2″ Adjustable Boring Depth

    •(4) Material Positioning Stops

    •2″ Bore Clamping Cylinder

    •Foot Actuated Boring Cycle

    •3450 RPM Spindle Speed

    •6″ X 20″ Table Area

    •Tooling Not Included

    Technical Data and Specifications:

    Electrical: 110/120V, 60Hz, 20A

    Air: 2 CFM at 80 – 100 PSI

    Work Height: 40″

    Footprint: 24″ x 24″

    Shipping Weight: 381 LBS

    Shipping Dimensions: 38” X 38” X 55” R130 ONLY •Single spindle head

    •7/16-14 Female Threaded Collet R131 ONLY •Triple Spindle Gear Driven Drill Head

    •1″ Spindle Spacing

    •7/16-14 Female Threaded Collets (2) L/H (1) R/H R132 ONLY •Triple Spindle Gear Driven Drill Head

    •32mm Spindle Spacing

    •10mm Bored Female Collets With Set Screw Lock
