BM-301 | Cantek | Boring Machines

  • Power:
    230 3PH 2HP 7AMPS
  • Description

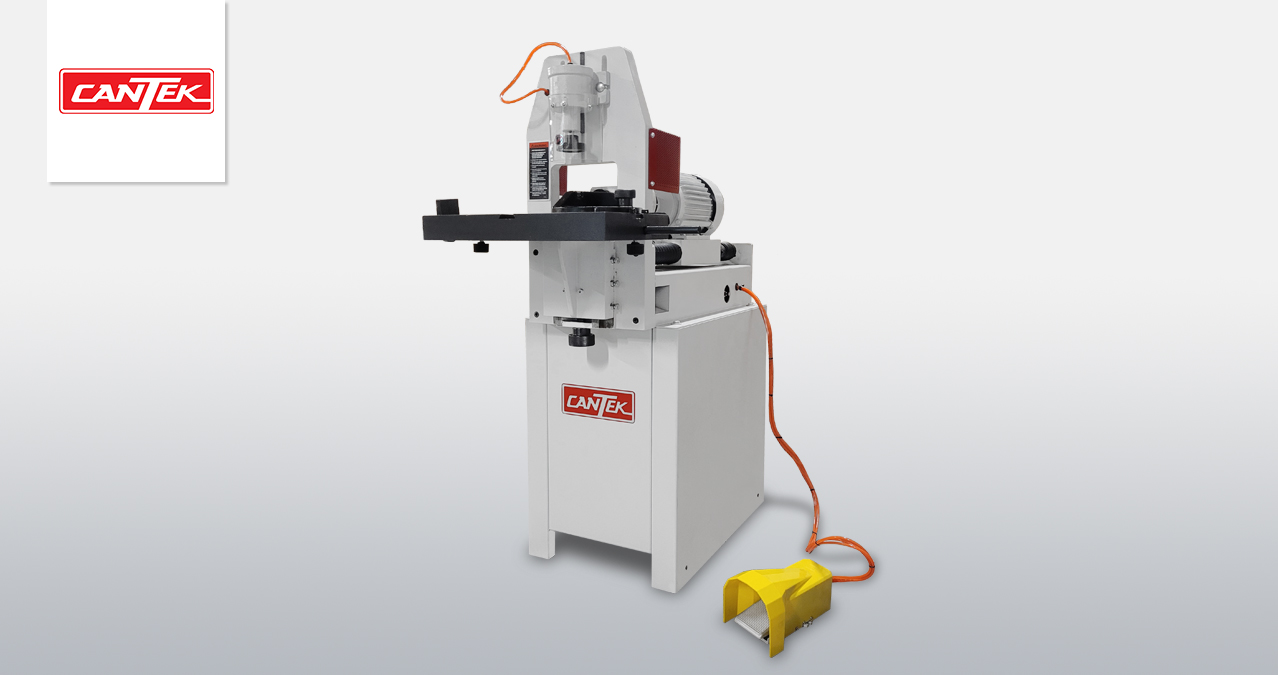

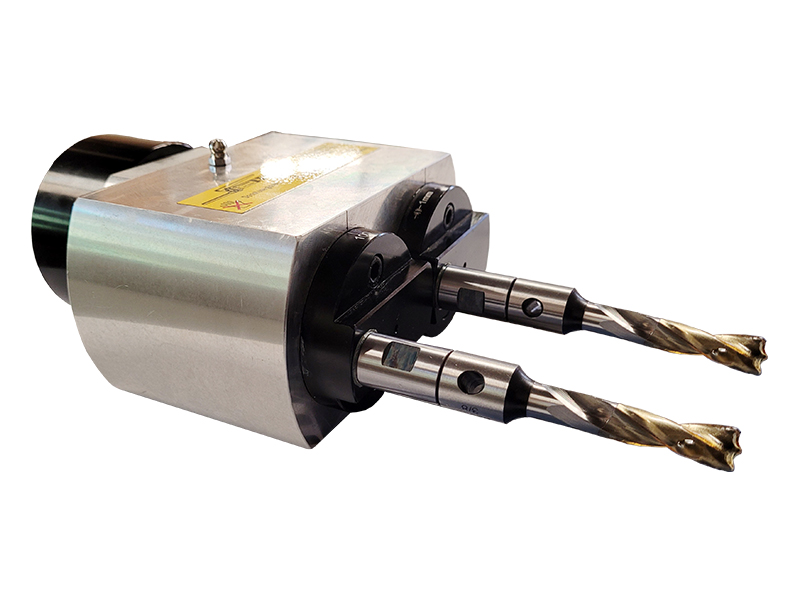

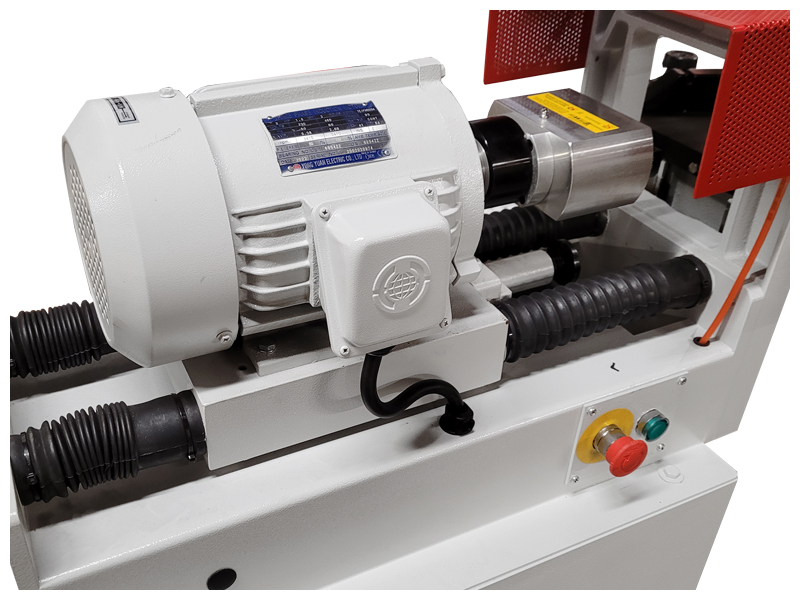

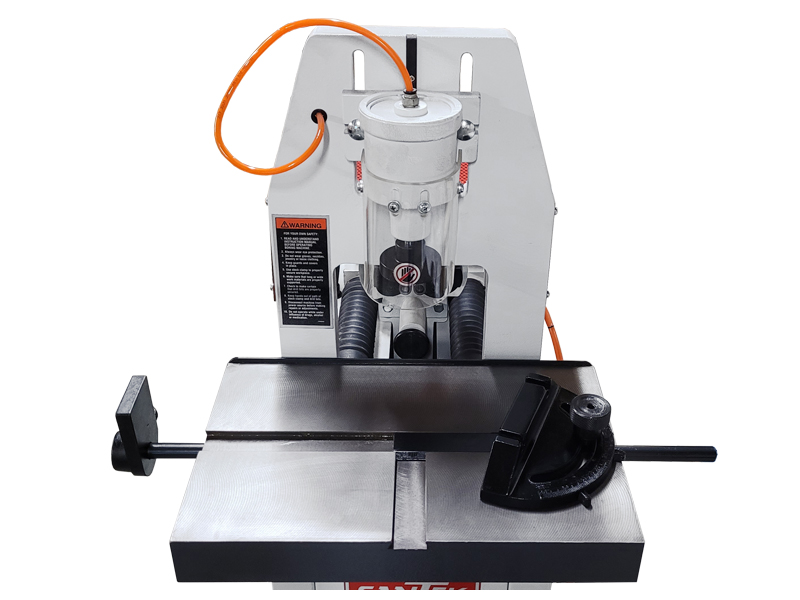

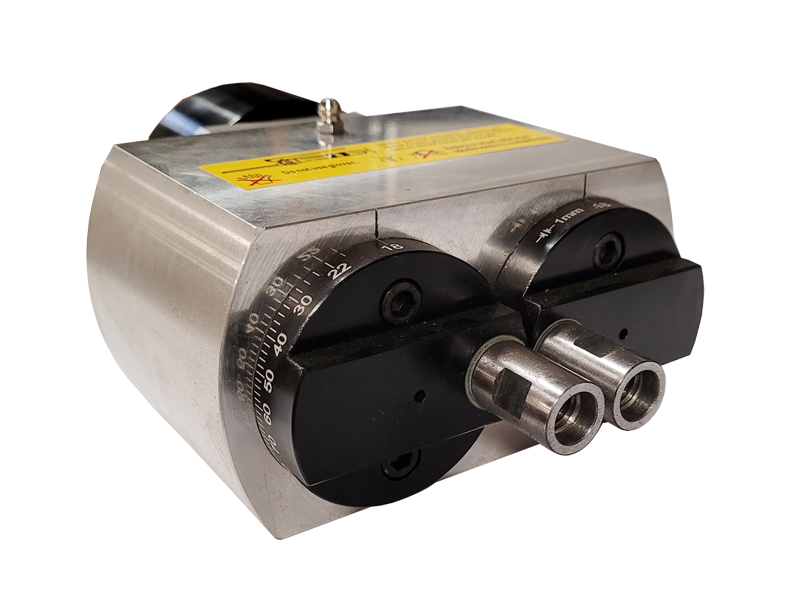

    Whether you are drilling horizontal holes for door or furniture components the Cantek BM301 Horizontal Boring Machine is a great choice.  With its two spindle drilling head with adjustable drill centers from 0.71”~3.93” centers (18~100mm), you can conveniently drill dowel hoes with ease. The drilling assembly and table are made from cast iron for maximum rigidity and durability. The unit is mounted to a fabricated steel base for optimal functionality. The drilling cycle is controlled by a pneumatic cylinder and is actuated by a foot pedal for operator convenience. The drilling speed is adjustable for optimal cycle speeds. The drilling head is driven by a powerful 2HP direct drive motor. A pneumatic clamp ensures the work piece is held firmly during drilling operations.

  • Specs

    Number of drills 2 spindles

    Adjustable drill spacing 0.71”~3.93” centers

    Maximum drill stroke 4”

    Drill bit shank 7/16”-14 Threaded Shank (Both Right Hand Only)

    Table size 15.75” x 10”

    Motor 2HP (230/3/60 = 6.3 amps)

    Spindle speed 3450 RPM
  • Download

Videos of Horizontal Boring Machine

Cantek BM301 Horizontal Boring Machine
