HP5D | Pillar | Boring Machines

  • Power:
    230/460V 3PH
  • Description

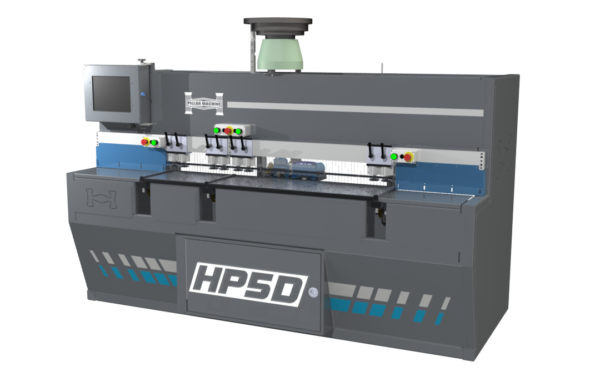

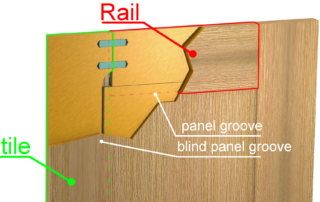

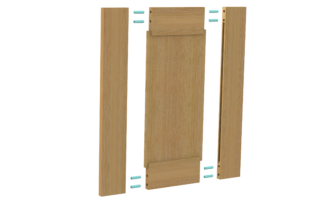

    The HP5D is designed to machine parts used in TFL (thermally fused laminate), TFM (thermally fused melamine), paper wrapped, vinyl wrapped or thermofoil doors. The model HP5D is a horizontal point to point bore and dowel insertion and panel groove machining center. It is designed to CNC position a drill spindle, bore a hole, then CNC position the dowel inserter, inject glue or water (for pre-glued dowels), and insert the dowel into the hole. As well as cut a panel groove in the center section of the inside edge of the door stile and the entire inside edge of the door rail material.

  • Specs

    •3 HP high frequency 18,000 RPM direct drive routing spindle for horizontal boring

    •7 HP high frequency 18,000 RPM direct drive routing spindle mounted vertically for panel grooving

    •X Axis CNC control for positioning

    •15″ industrial color touchscreen for creating and selecting programs

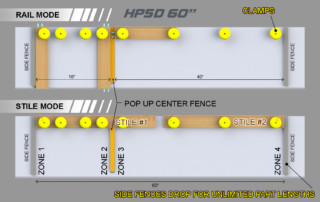

    •4 zones

    •4 clamp units

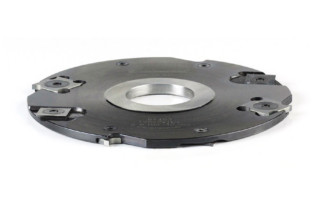

    •Panel Grooving Tooling

    •Digital mechanical readouts for height and depth

    •60″ work zone

    •Heavy duty 2000 lb. frame

    •1″ thick machined aluminum work surface covered with a 3M maintenance free non-slip surface

    •Our standard sealed glue injecting system injects glue or water with little to no maintenance.

    •Small footprint to conserve floor space

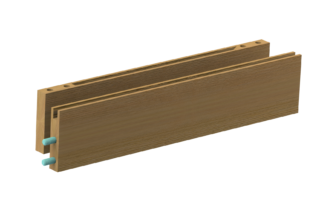

    •Our “protrusionator” dowel inserter allows for adjustment of dowel protrusion.
