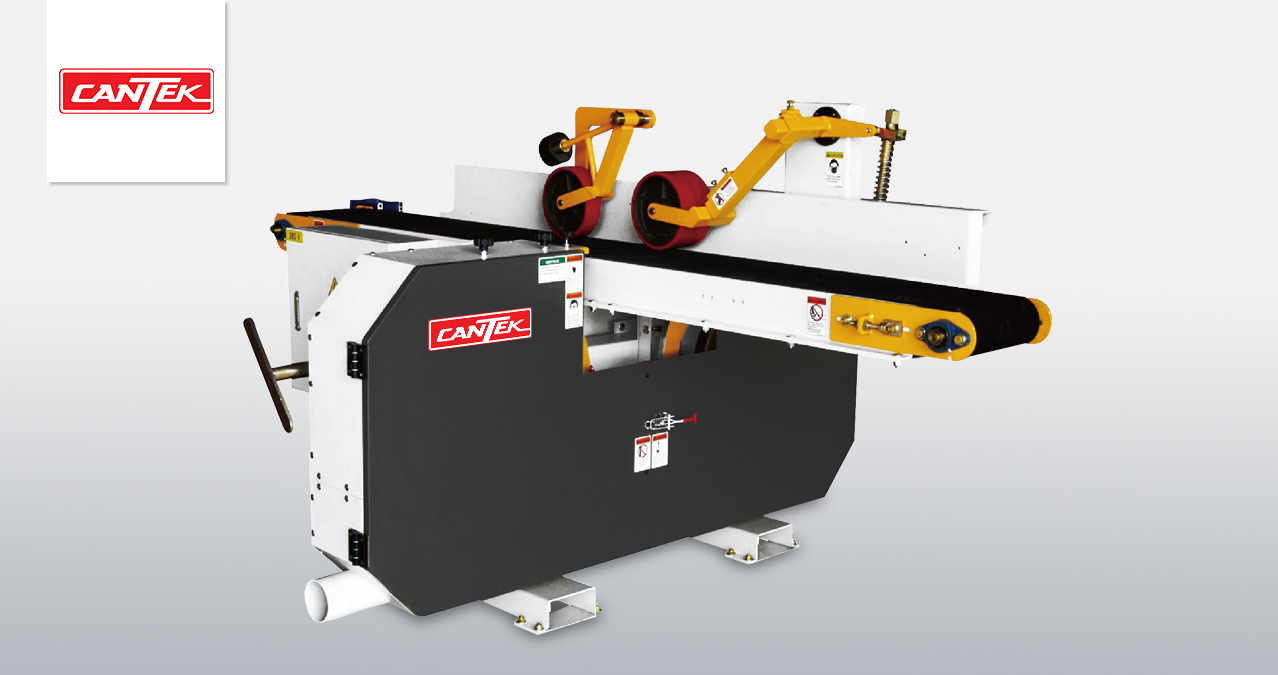

HR12E | Cantek | Resaws

  • Power:
    230V 3PH 22HP 60AMPS
  • Description

    The powerful yet economically priced Cantek HR12E horizontal resaw can produce a cut up to 11.8” wide and 4.92” thick.  Capable of handling material from 11.8” wide to 9.8” thick. The powerful 20HP motor makes easy work of even hard to cut wood material.  The thin kerf 1” wide blade achieves optimum cut quality while maximizing material yield. The user-friendly controls and operation make will allow your resawing operation to get up to speed quickly.  It is economically priced for the small to mid-sized operation looking to improve their efficiency and material yield.

  • Specs

    Max. Input board size (W x T) 11.8” x 9.8″

    Distance from blade to conveyor table 0.15” – 4.92” (4 – 125mm)

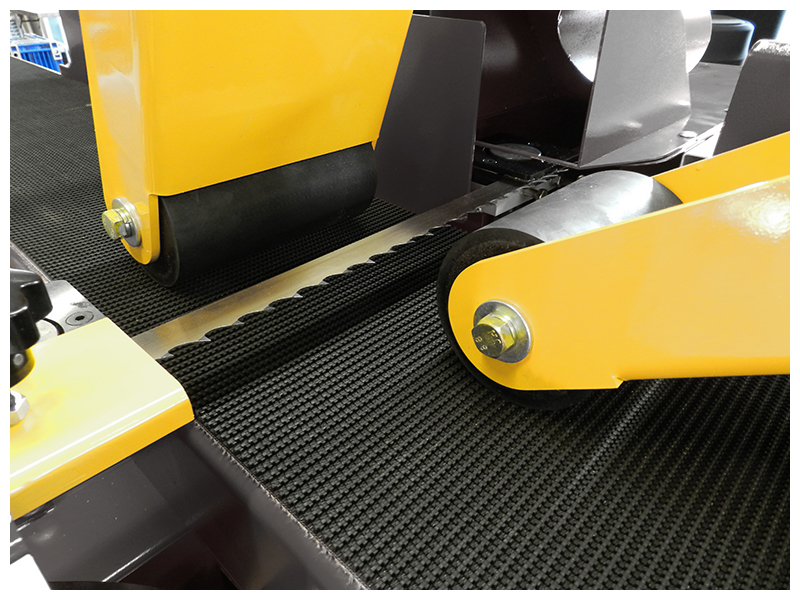

    Conveyor belt size 11.2” x 215.3”

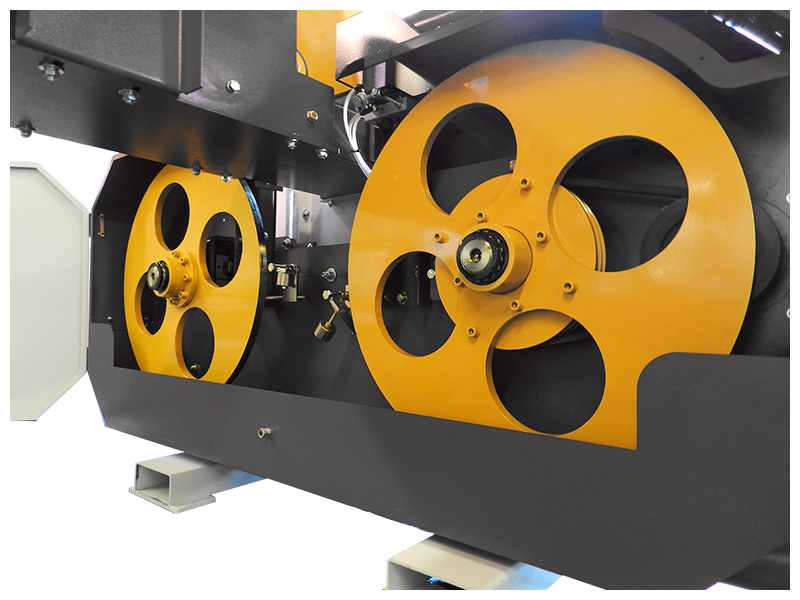

    Diameter of saw wheel 28” (dia) x 1” (W)

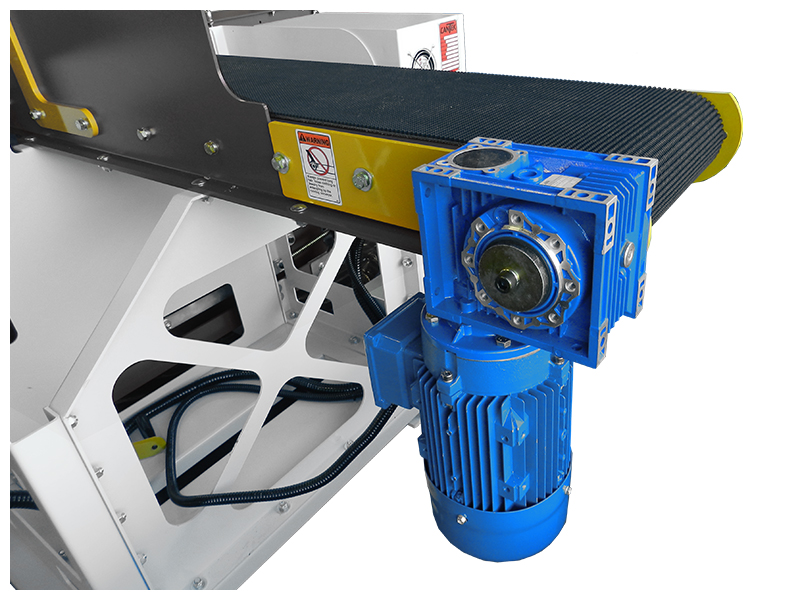

    Variable feed speed 16 – 82 FPM

    Saw blade dimensions 168” (L) x 1”

    Main motor 20 HP

    Tolerance +/- 0.0039″

    Feed motor 2 HP

    Electrical requirements 230/3/60 = 60.8 FLA

    Dust Hood 4” x 4 pcs.

    Machine with Conveyor weight 2464 lbs

    Machine shipping dimensions 86” x 45” x 45”

    Machine shipping weight 1980 lbs

    Conveyor shipping dimensions 113” x 22” x 28”

    Conveyor shipping weight 550 lbs
