Description

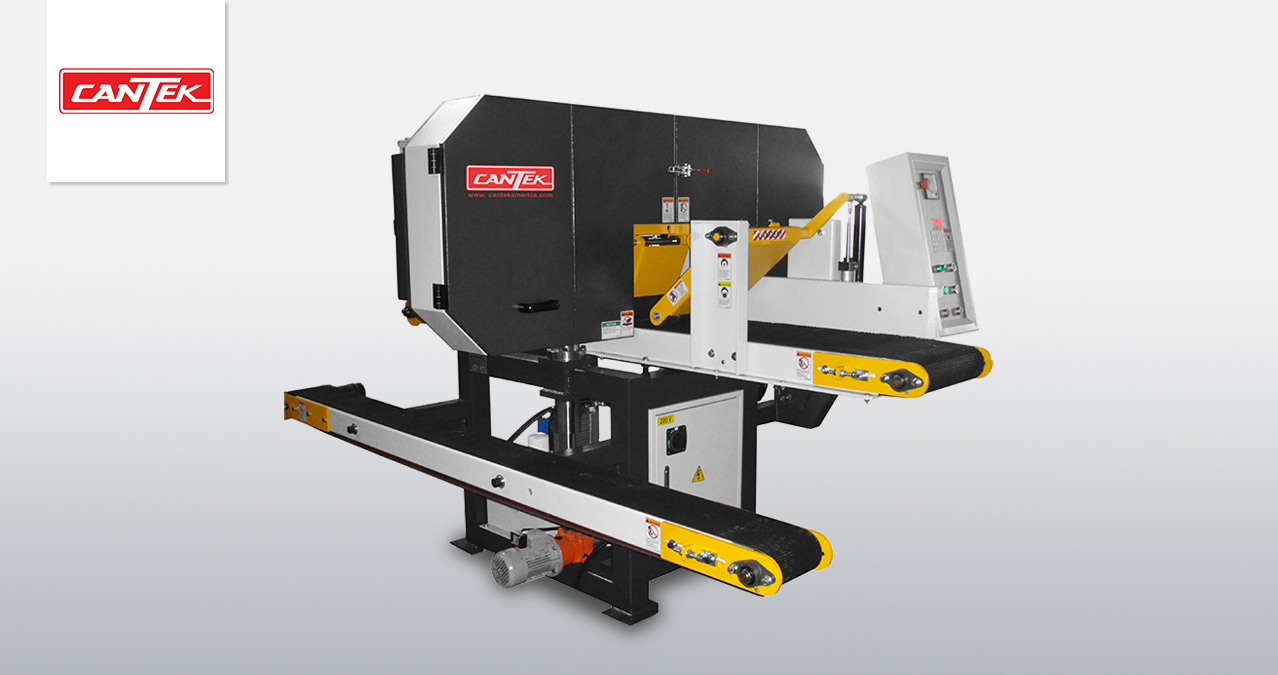

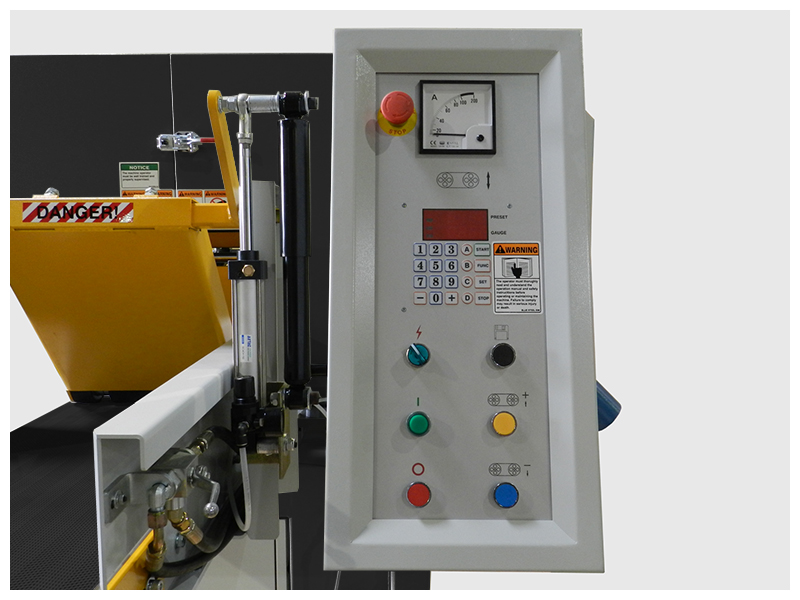

The Cantek HR400PB Horizontal Band Resaw is a heavy-duty resaw with a robust machine design capable of resawing large timbers with precise results. With its powerful 30HP variable speed saw motor and variable speed hydraulic feed system the HR400PB can be optimized for any job. Equipped with a large cutting capacity up to 15 ¾” wide and up to 9.8” thick. The saw assembly is raised and lowered electronically using a digital input controller for precise thickness setting. All controls are conveniently located next to the infeed conveyor for operator convenience.
-
Specs
Max. working capacity (W x H) 15 3/4″ x 9.8″
Distance from blade to conveyor 0.157″ ~ 9.8″

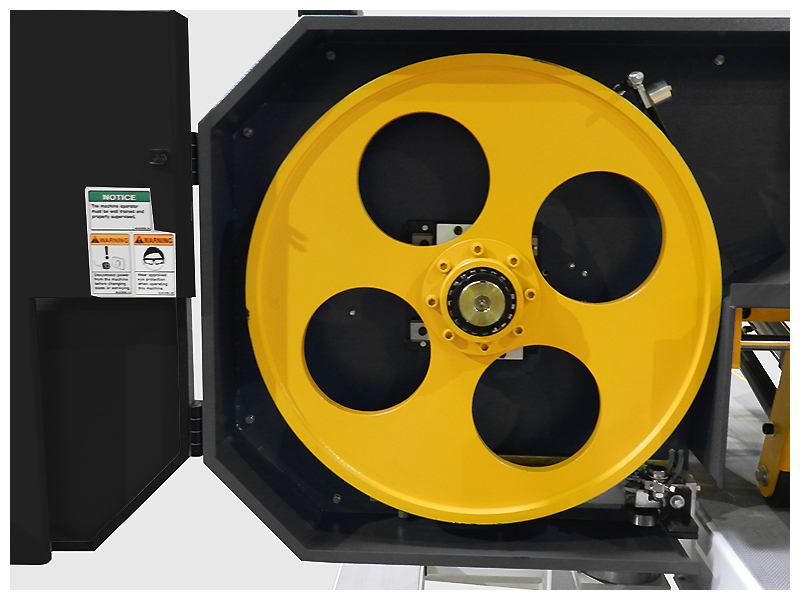

Saw wheel diameter 28″
Saw wheel width 2″
Feed speed: variable 13~90 FPM
Saw wheel motor 30 HP
Dust hood outlet 4″ x 2
Saw blade size 180″ x 2″
Conveyor belt size 15.16″ x 215.4″
Elevation motor 1/4 HP
Electrics 460/3/60 = 55 AMPS (575V & 230V optional)
Machine dimensions (LxWxH) 110″ x 85″ x 74″
Shipping dimensions (LxWxH) 113″ x 89″ x 81″
Machine weight 3960 Lbs.
Shipping weight 4400 Lbs. -
