HR11-P | Cantek | Resaws

  • Power:
    230V 3PH 23.25HP 56AMPS
  • Description

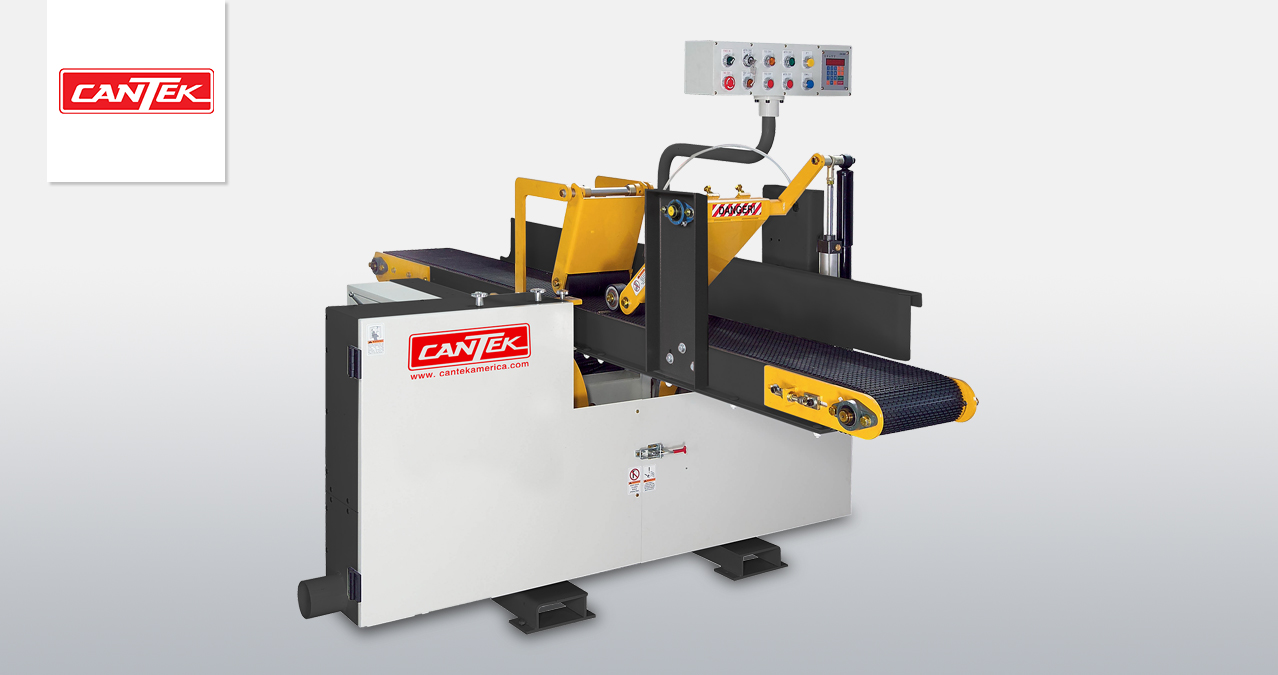

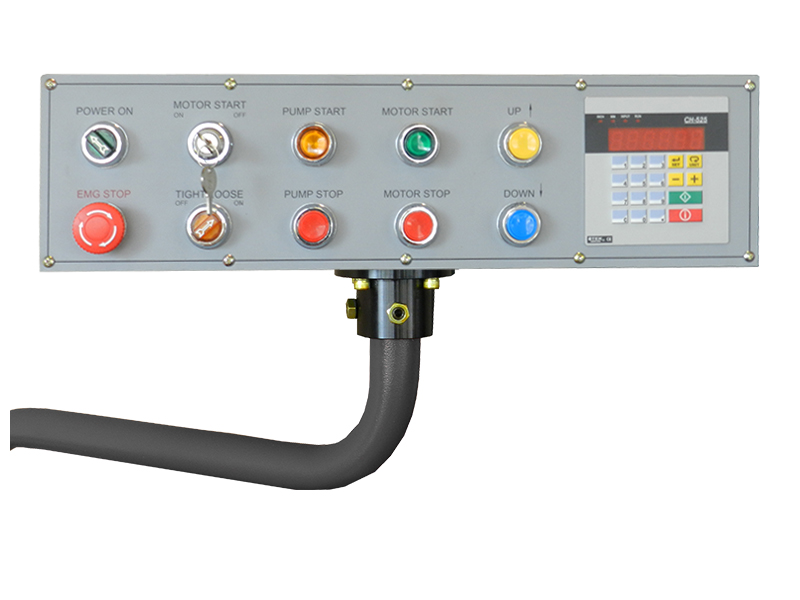

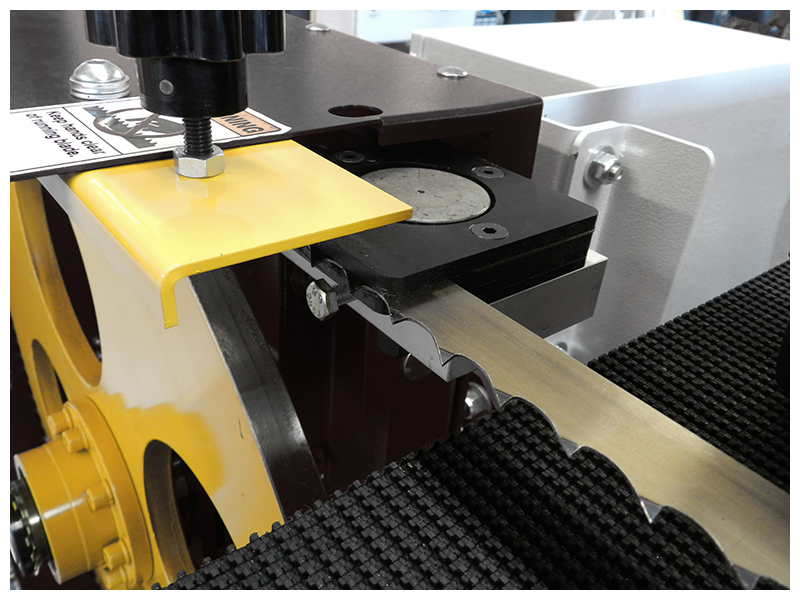

    The powerful yet economically priced Cantek HR11P Horizontal Band Resaw can produce a cut up to 11.8” wide and 4.92” thick.  Capable of handling material from 11.8” wide to 9.8” thick. The powerful 20HP motor makes easy work of even hard to cut wood material.  The thin kerf 1” wide blade achieves optimum cut quality while maximizing material yield. Equipped with motorized thickness adjustment with digital control for convenient blade height adjustment. The HR11P is economically priced for the small to mid-sized operation looking to improve their efficiency and material yield.

  • Specs

    Maximum input board size (WxH) 11.8″ x 9.8″

    Distance from blade to conveyor

    table 0.15″ – 4.9″

    Minimum working length 15.7″

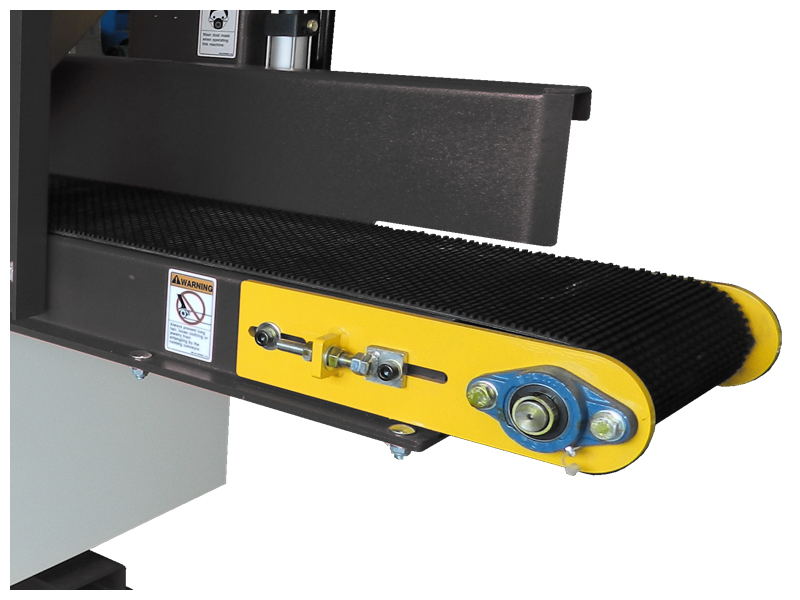

    Conveyor belt size 11.2” x 215.3”

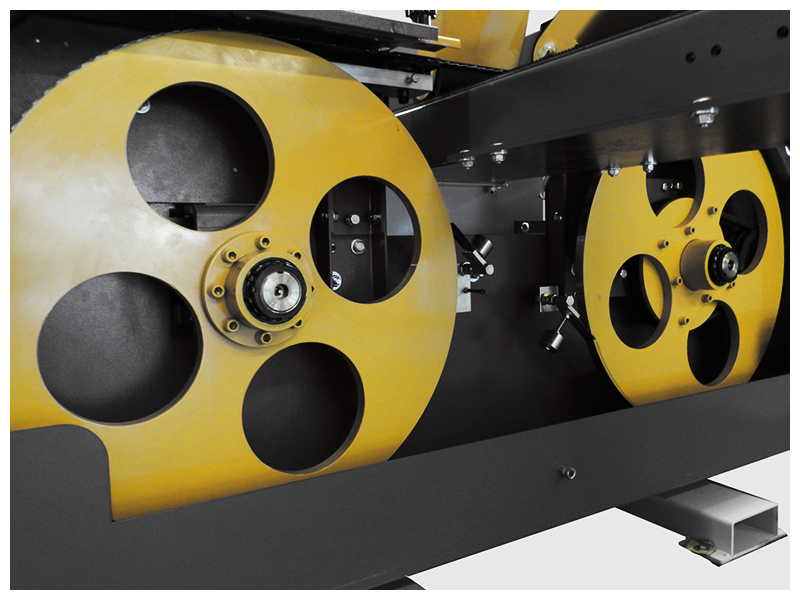

    Diameter of saw wheel 28″ dia x 1″ W

    Max. infeed speed 53 FPM

    Saw blade size (standard) 168” x 1” x 0.035″

    Tolerance +/- 0.0039″

    Main Motor 20 HP

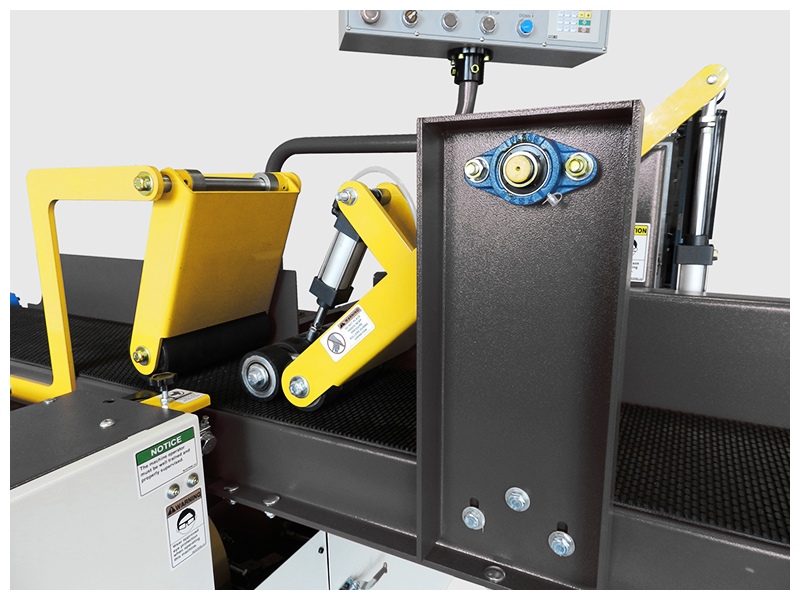

    Hydraulic System Motor (Feed) 3 HP

    Gear Box Motor (Blade Rise/Fall) ¼ HP

    Dust Hood 4” x 4 pcs.

    Machine weight 2438 lbs (1108 kgs)

    Shipping dimensions: Frame 85 ½” x 43 ½” x 44” (1983 lbs)

    Shipping dimensions: Conveyor 113” x 24 ½” x 30” (456 lbs)

    Electrical requirements 230/3/60 = 56 amps
