Description

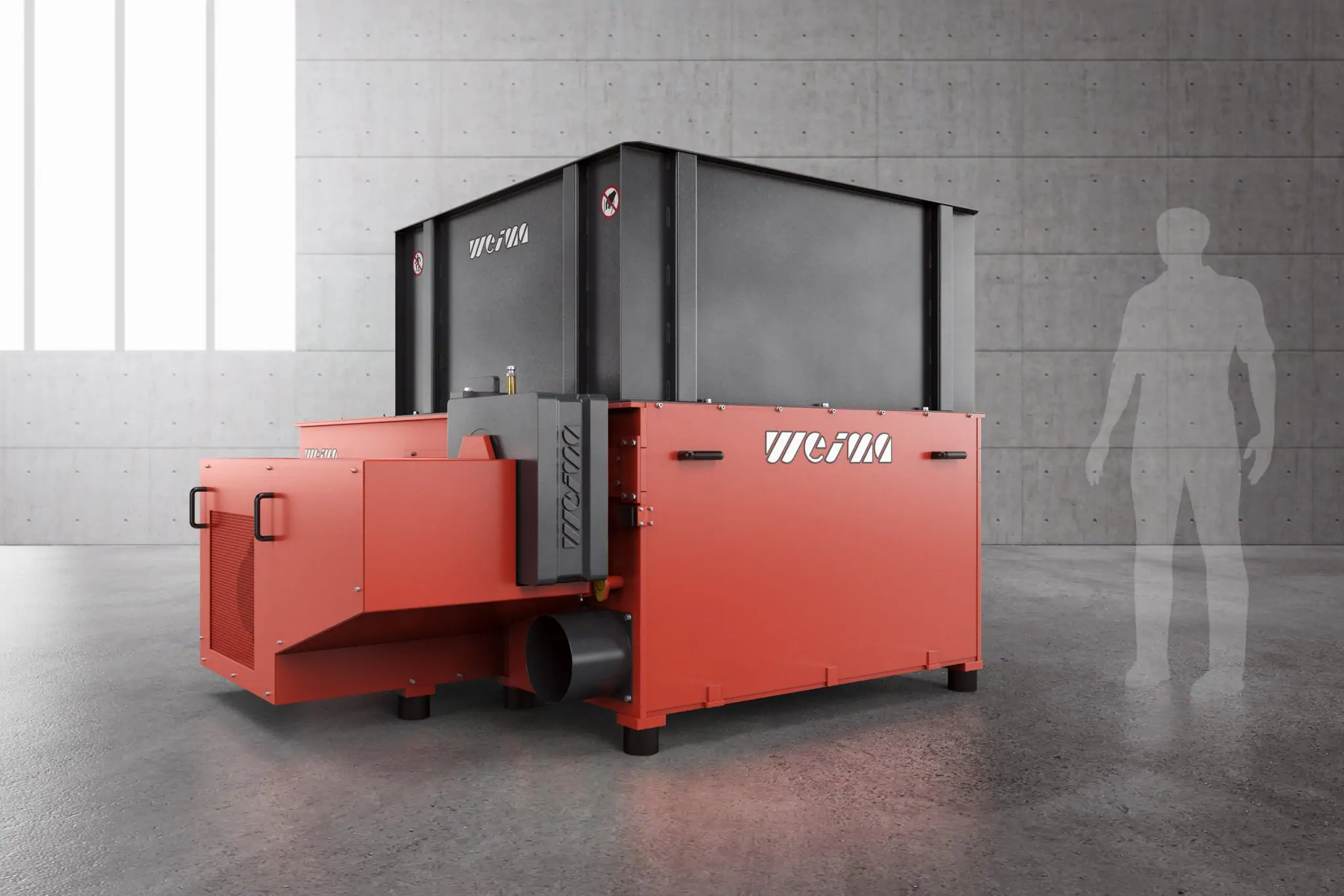

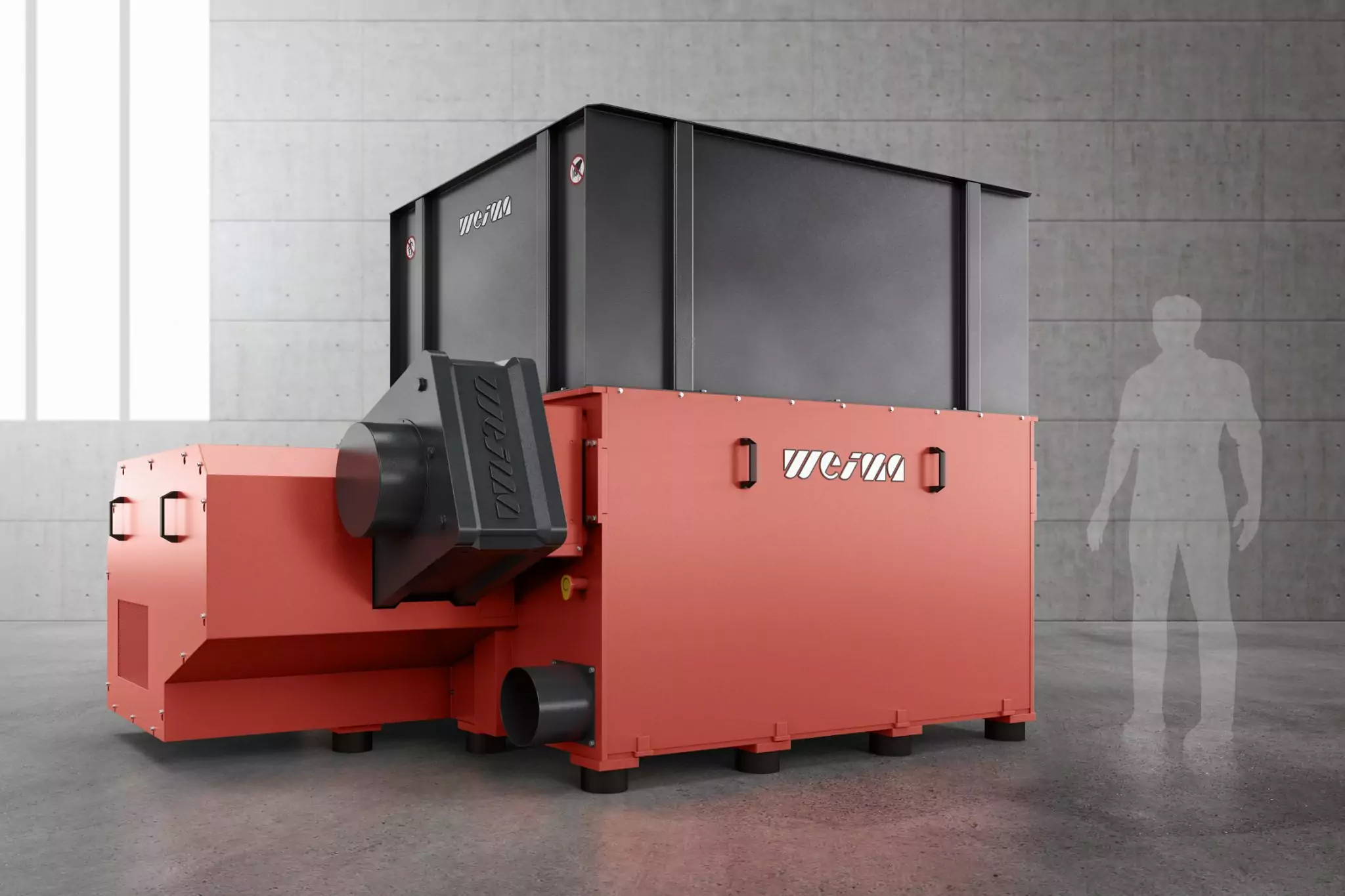

Shredding technology for waste made of wood, plastic or paper. The WL 10 single-shaft shredders have proven themselves to be the classic shredders for wood waste of all kinds, and can be found in thousands of woodworking shops all over the world. The shredded wood can be discharged into an air conveyor or onto a traditional conveyor.
-
Specs
WL 10 WL 15 WL 20
Rotor Diameter (mm) 370 *1 370 *1 370 *1
Rotor length (mm) 1000 1500 2000
Rotor Speed (rpm) 85 *2 85 *2 85 *2
Power (hp) 30 – 45 *3 37 – 75 *3 55 – 110 *3
Rotor Knives 52 *4 82 *4 110 *4
Available knife sizes (mm) 40 | 60 40 | 60 40 | 60
Fraction size (mm) 60 60 Jan-60
Connection diameter (in/mm 200 250 250
Infeed (mm) 1000×1200 1500×1520 2000×1500
Length (mm) 2100 2700 2700
Width (mm) 1890 *5 2420 *5 3100 *5
Height (mm) 1730 1730 1930
Weight (approx. kg) 3000 4800 5800
*1 dependent on flight circle
*2 dependent on specific drive configuration
*3 dependent on drive technology
*4 depending on machine configuration
*5 in standard configuration -
