MH-4 | Ideal Manufacturing | Shapers

  • Power:
    4.5HP 220-480V
  • Description

    The half-lapped joint consists of two pieces of material, the horizontal and vertical pieces that create a strong, interlocking joint. Regardless of the profiles chosen, the cut is the same, and changeover and tooling costs are reduced which increases your production efficiency. 3 Efficient Half Lap Joint Models

    Ideal Machine offers 3 different Half Lap Machine models to meet your specific shop needs.

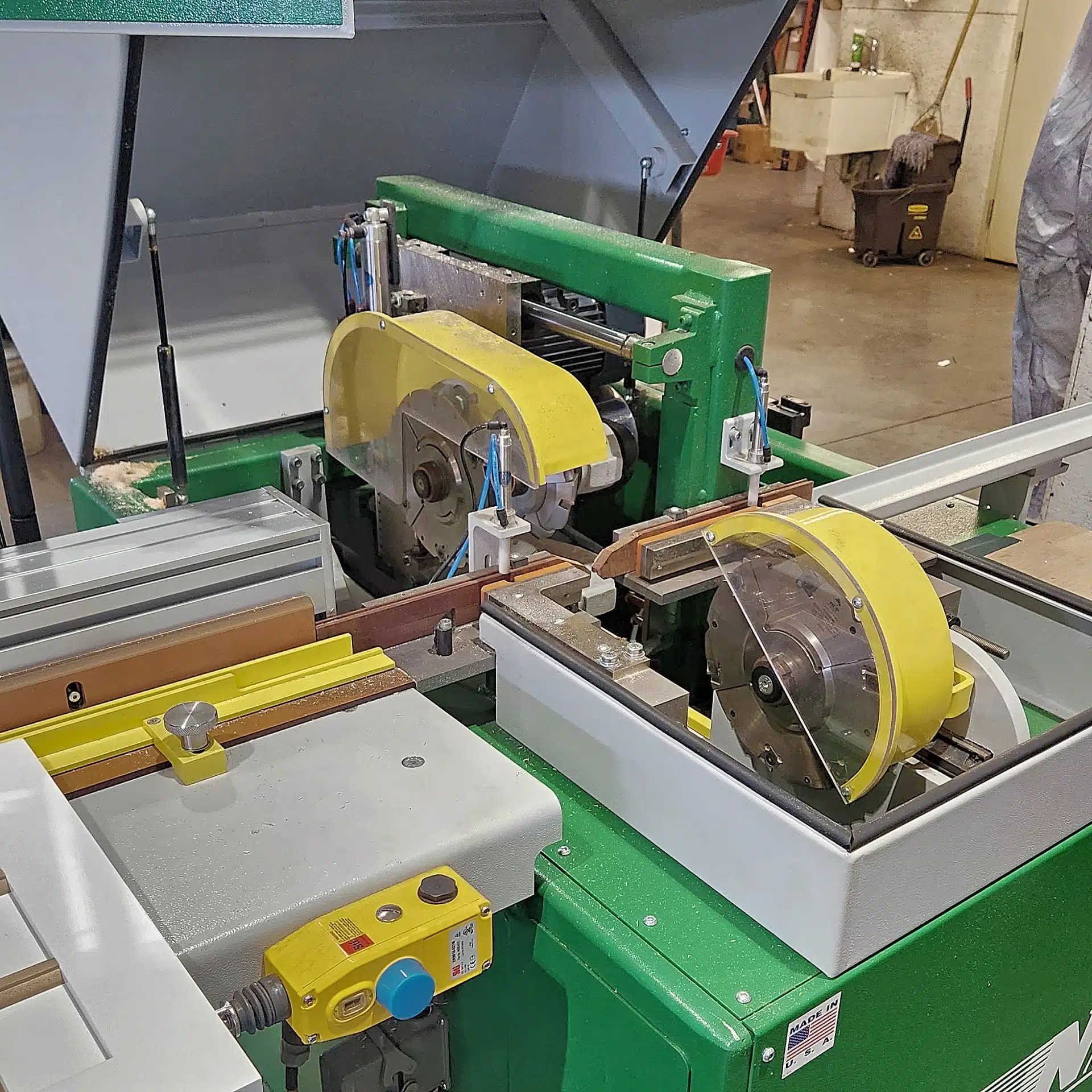

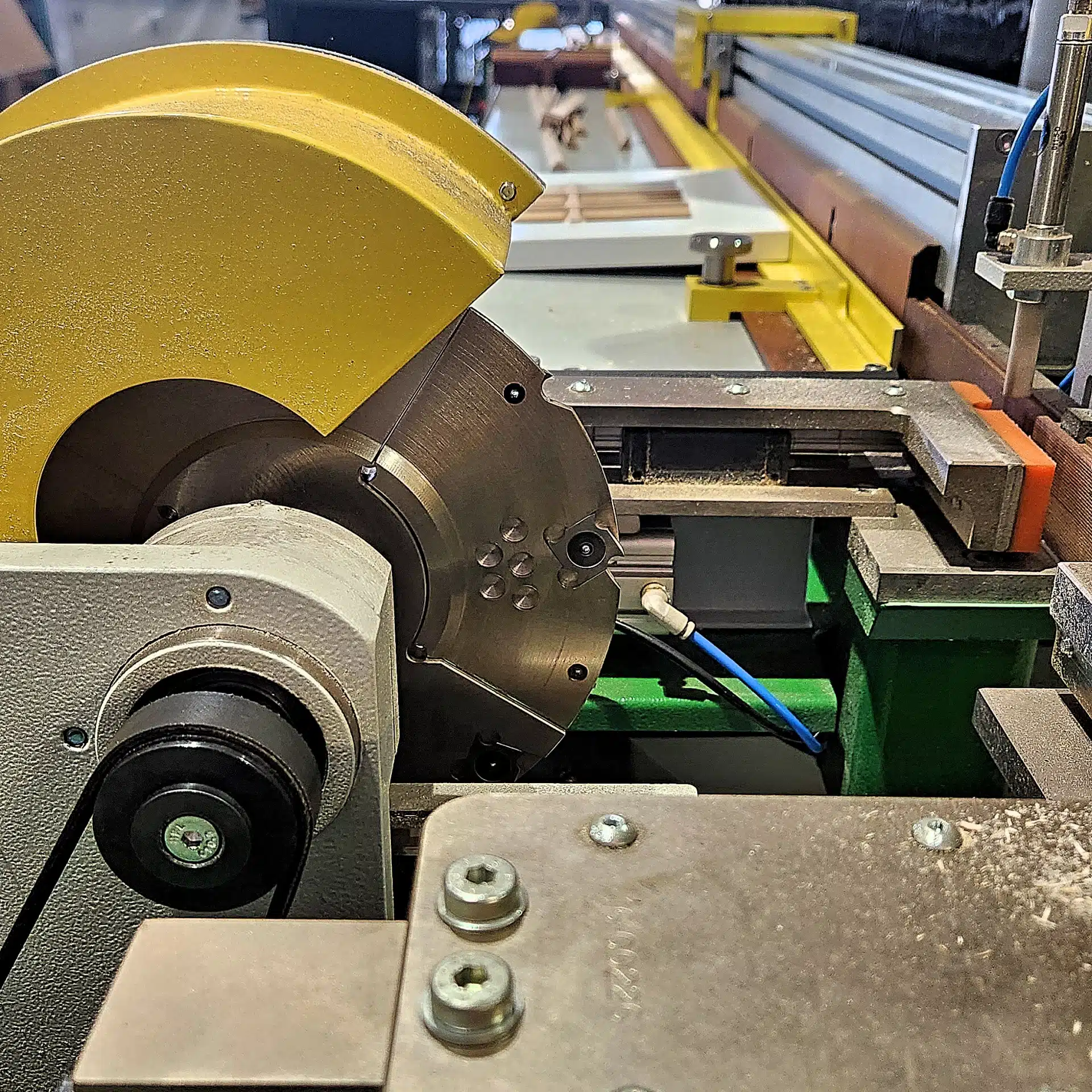

    The MH-4 is our manual half lap machine that requires the most from your operators.

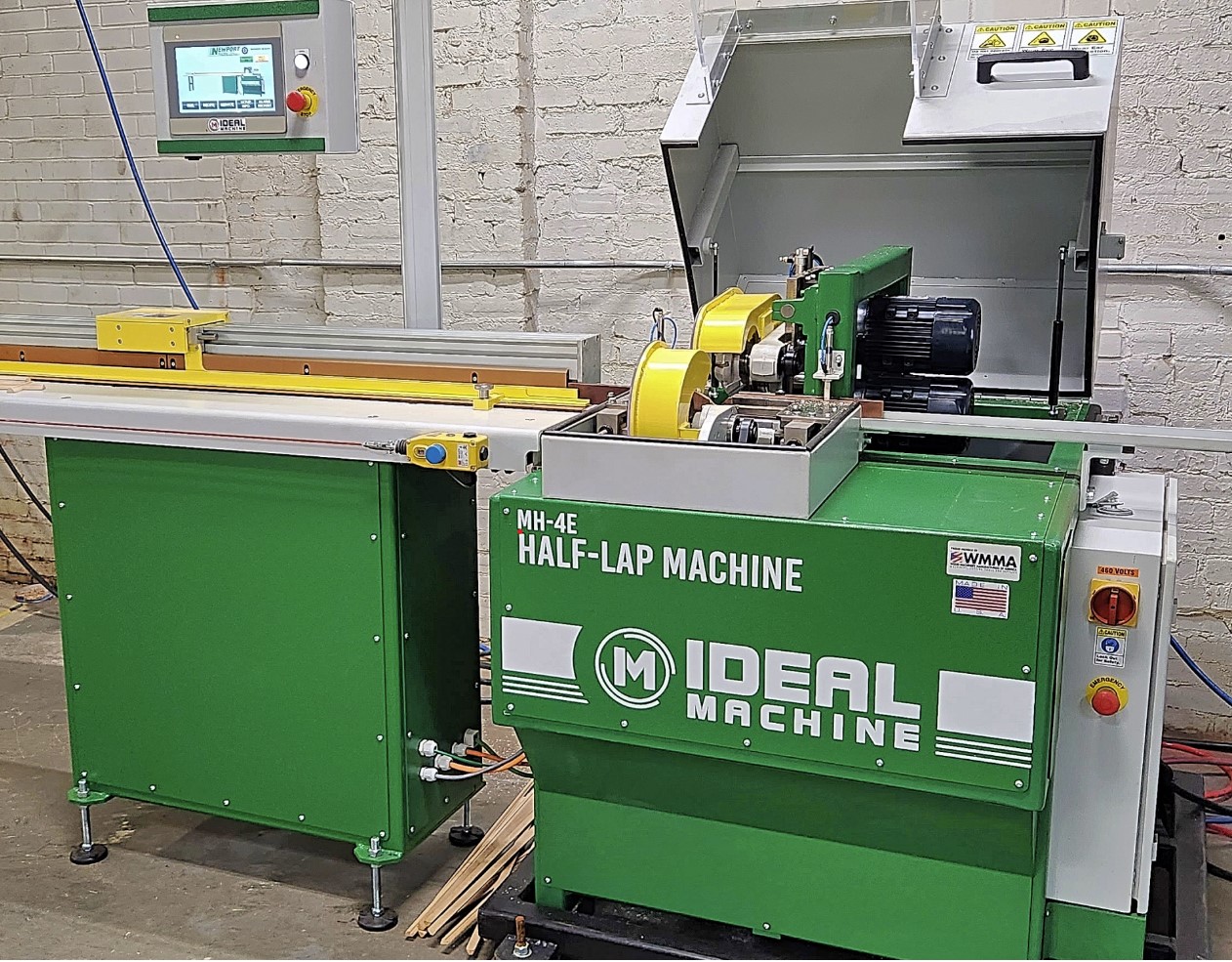

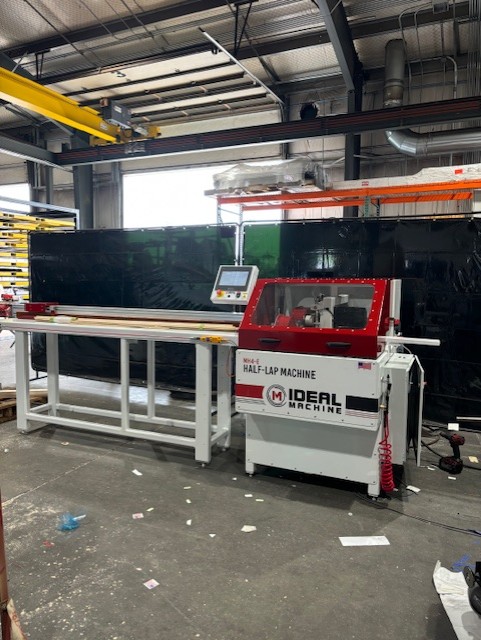

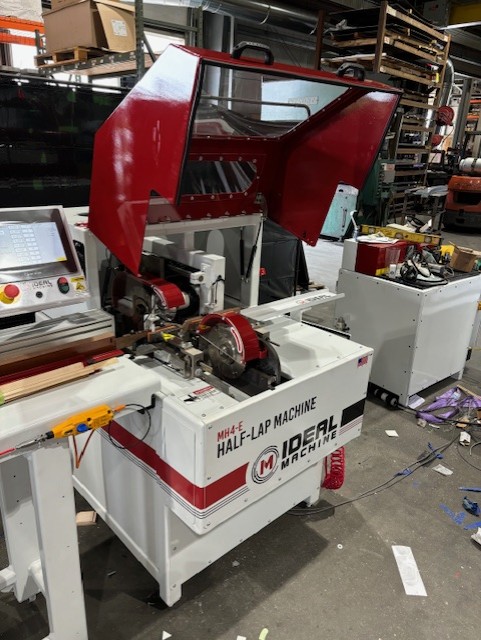

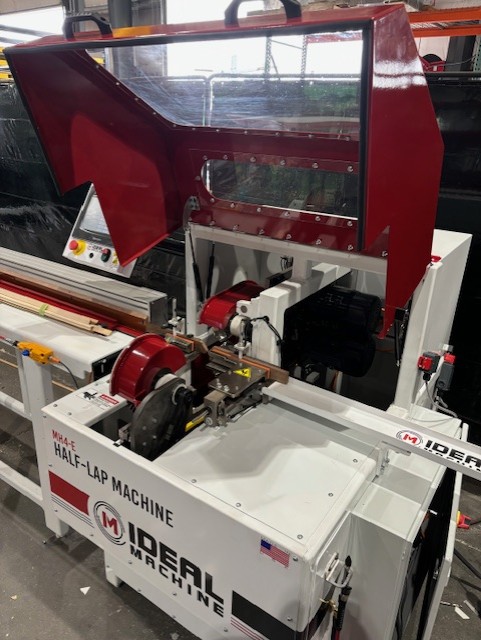

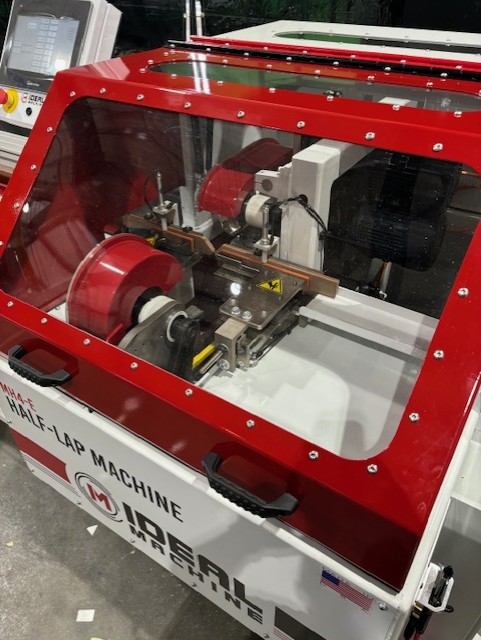

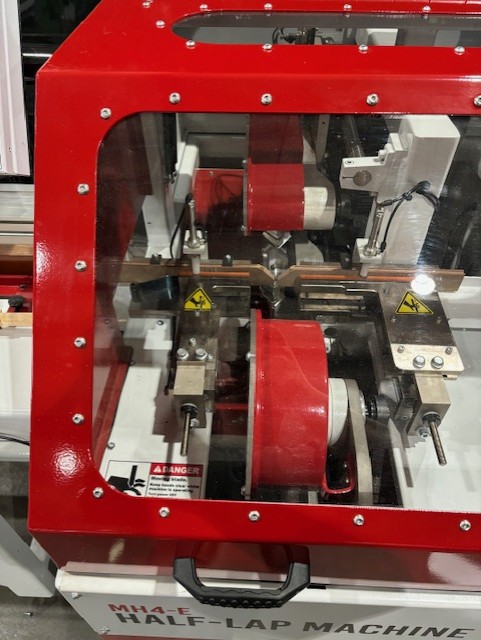

    The MH-4E half lap comes standard with an automatic material pusher which cuts down on the requirements of your operator.

    The MH-4ES half lap machine comes with an angle end saw that cuts a 45-degree cut on the ends of your half lapped pieces.

  • Specs

    •Motors: 3 @ 1.1Kw ea. (1.5HP ea.)

    •Voltage: 220-480 V

    •RPM: 6,200 RPM @ 60Hz

    •Air: 6 Bar (85 PSI)

    •Tooling: Insert Carbide

    •Dado: 200mm (7.875”)

    Profile: 140mm (5.500”)

    •Minimum Profile:

    •Wide: ¼”

    •High: ¼”

    Maximum Profile:

    •Wide: 1.5”

    •High: 1.5”

    Dust Collection: 6” Diameter

    Cycle Time: 4-6 Seconds

    (Tooling Not Included)
