Description

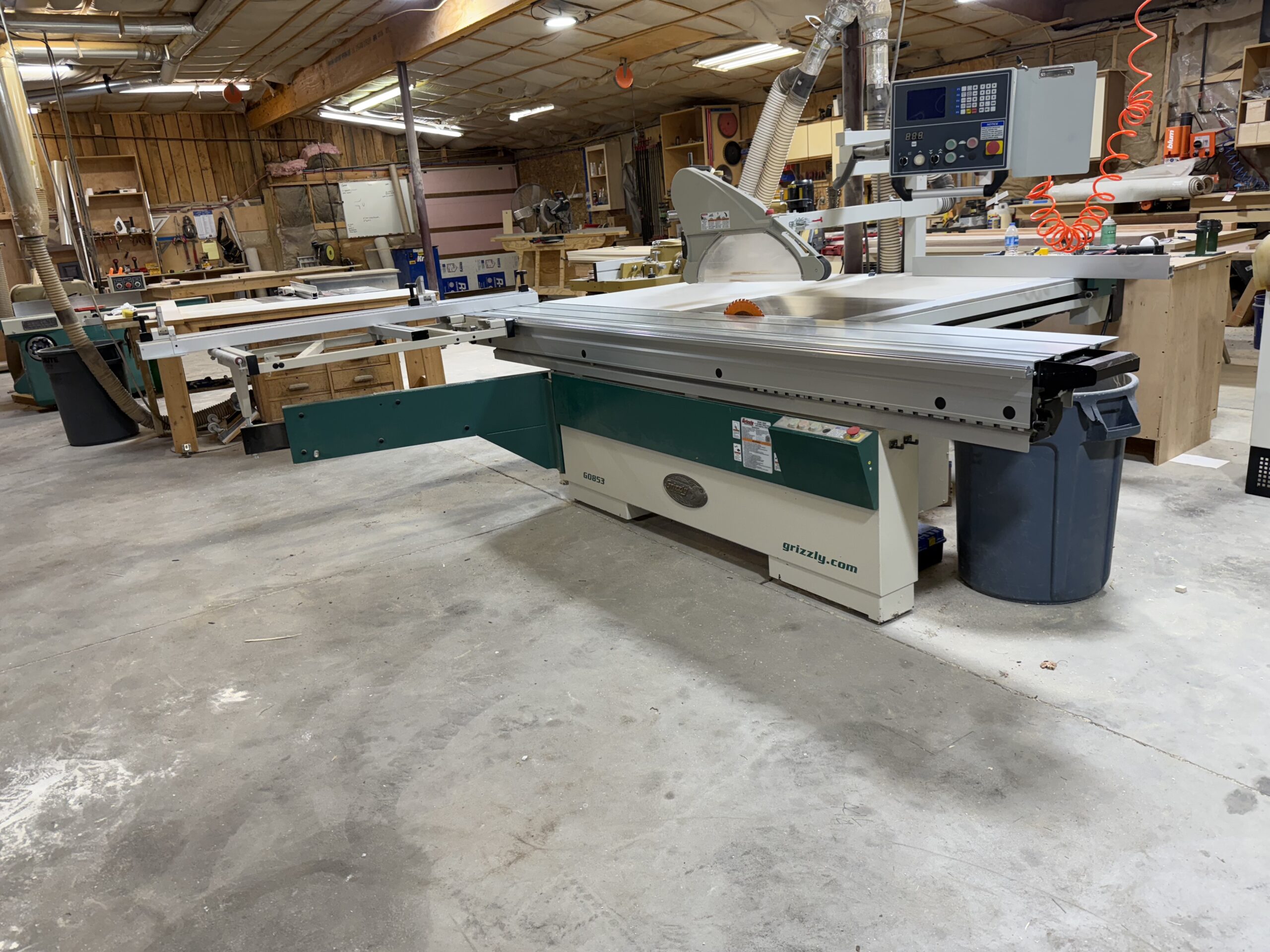

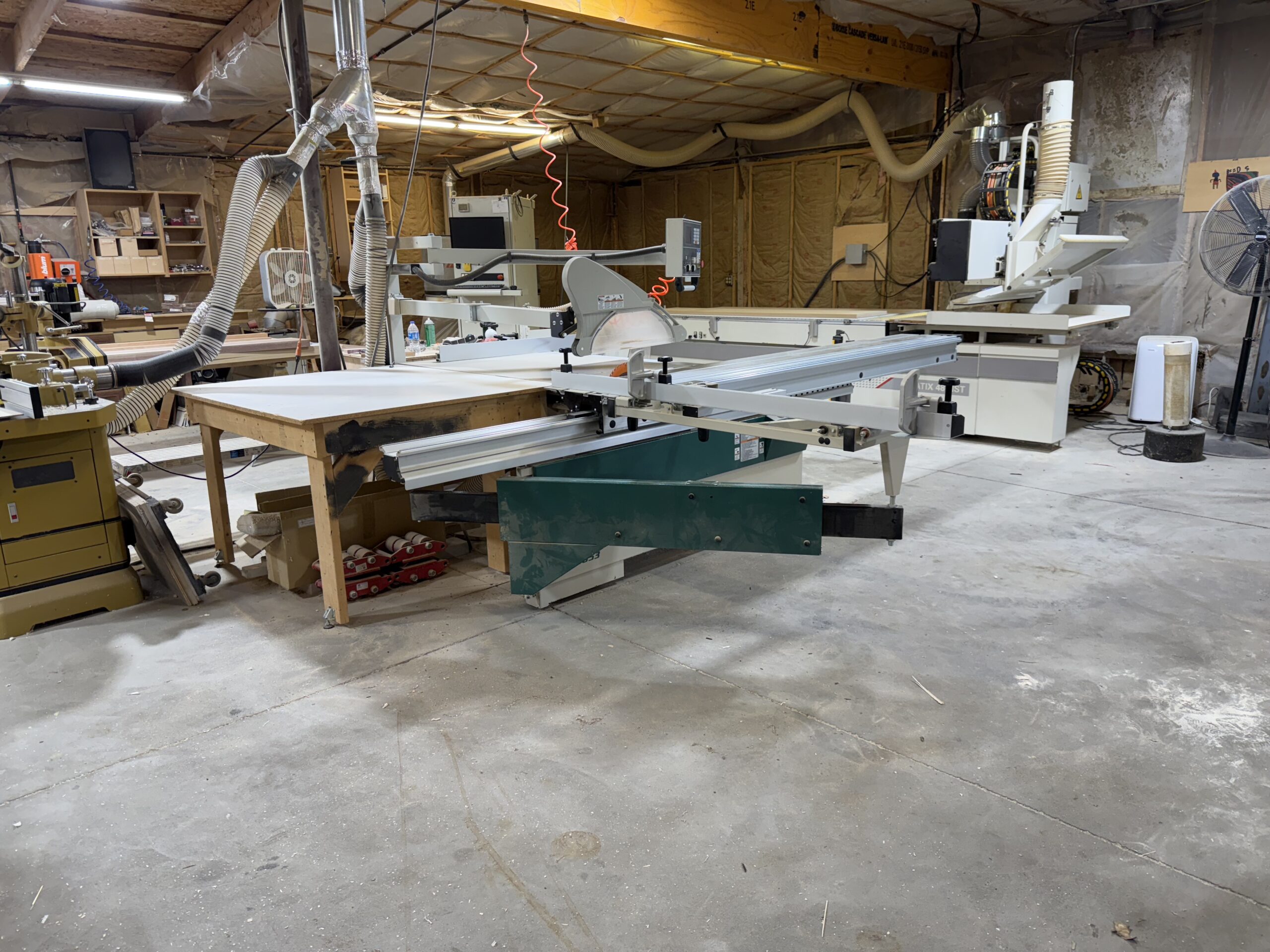

Was used minimally in a 2 man shop. We used cnc for most of our panel processing.

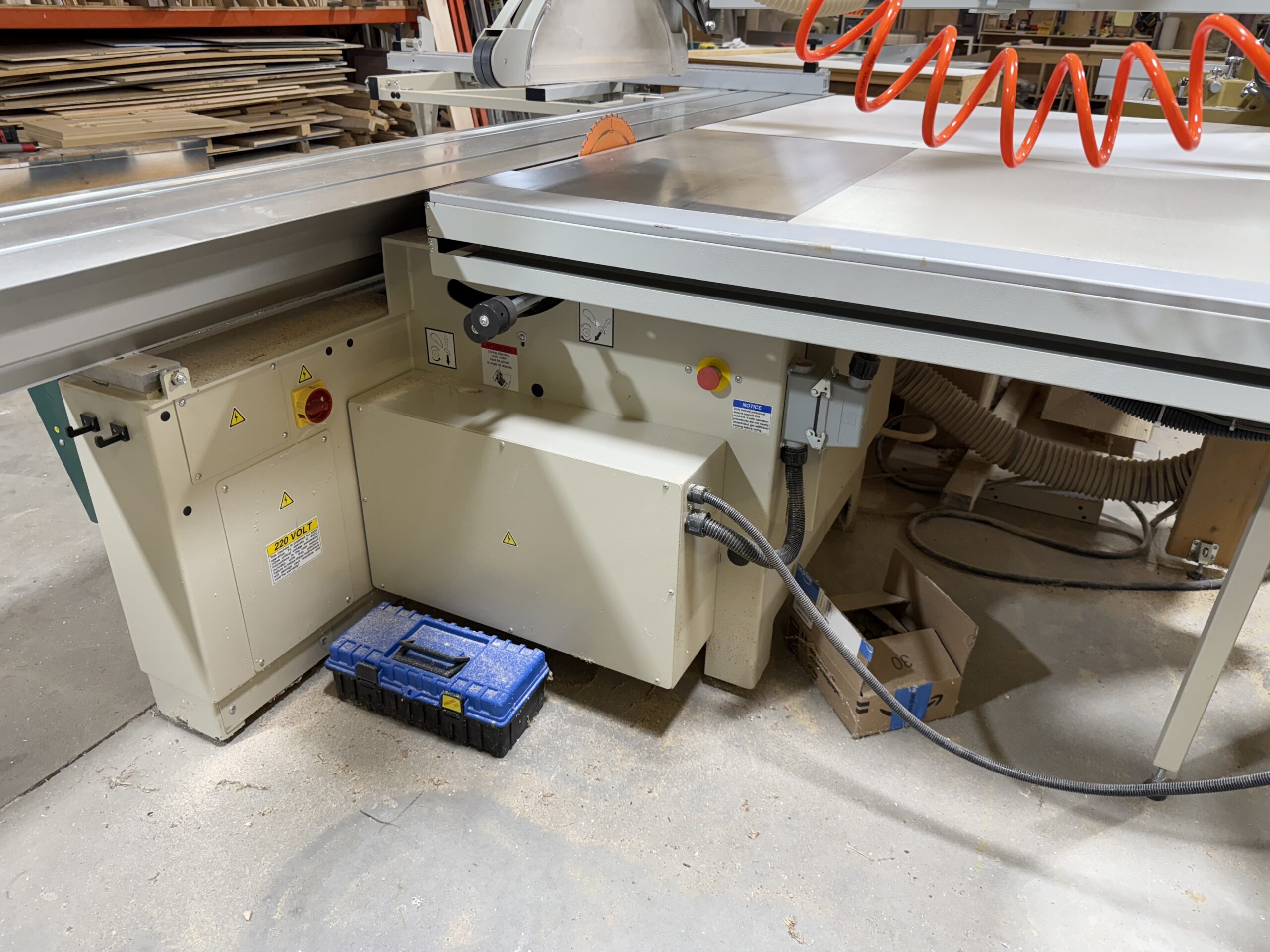

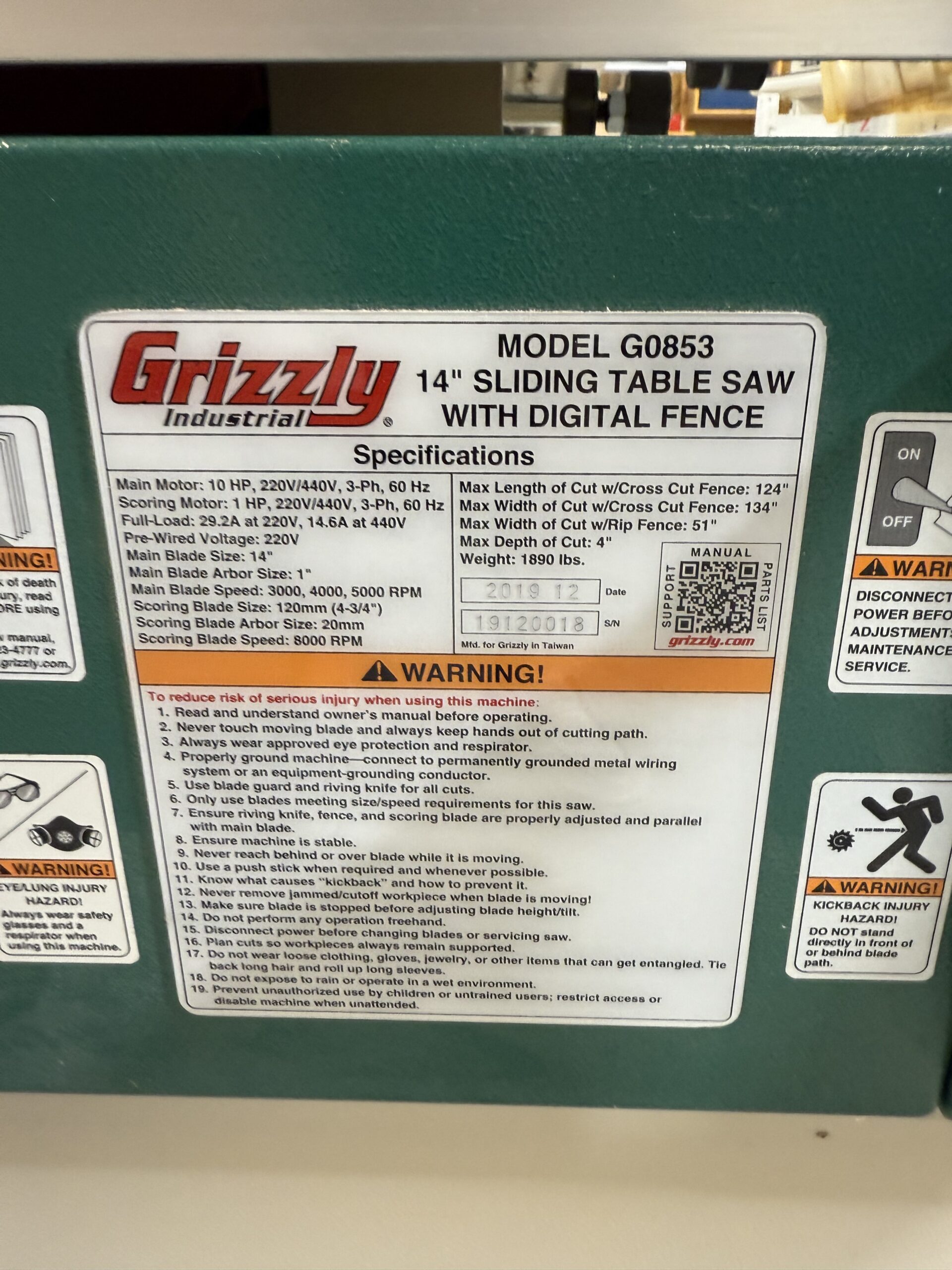

Main motor: 10 HP, 220V/440V* (prewired for 220V), 3-phase, 26A/13A
Scoring motor: 1 HP
Minimum circuit size: 40A @ 220V, 20A @ 440V
Rip capacity: 51″
Max. crosscut: 134″ W x 121″ L
Blade tilt: 0–45°
Max. depth of cut at 90°: 4″
Max. depth of cut at 45°: 2-3/4″
Main table size: 59″ x 68″
Sliding table size: 15-5/8″ x 126″
Main blade size: 14″/12″
Main blade arbor: 1″
Main blade speed: 3000, 4000, 5000 RPM
Scoring blade size: 4-3/4″
Scoring blade speed: 8000 RPM
Dust port sizes: 4″, 5″
Floor space required: 271″ W x 205″ D
Footprint: 75″ x 37″
Overall size: 133″ W x 147″ D x 66″ H
Approximate shipping weight: 2176 lbs.
FEATURES:

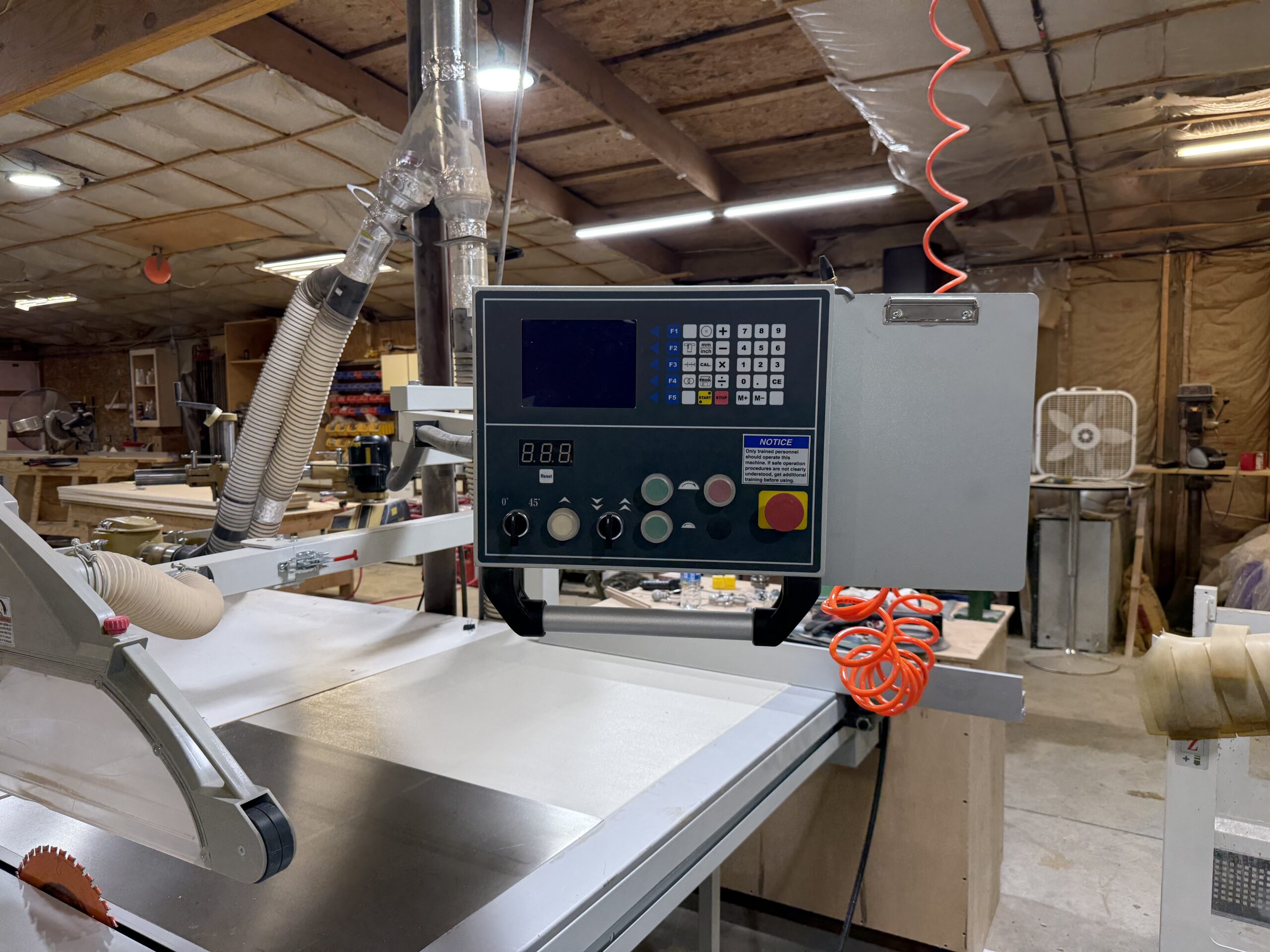

Digital controls for main blade height and tilt plus rip fence adjustment

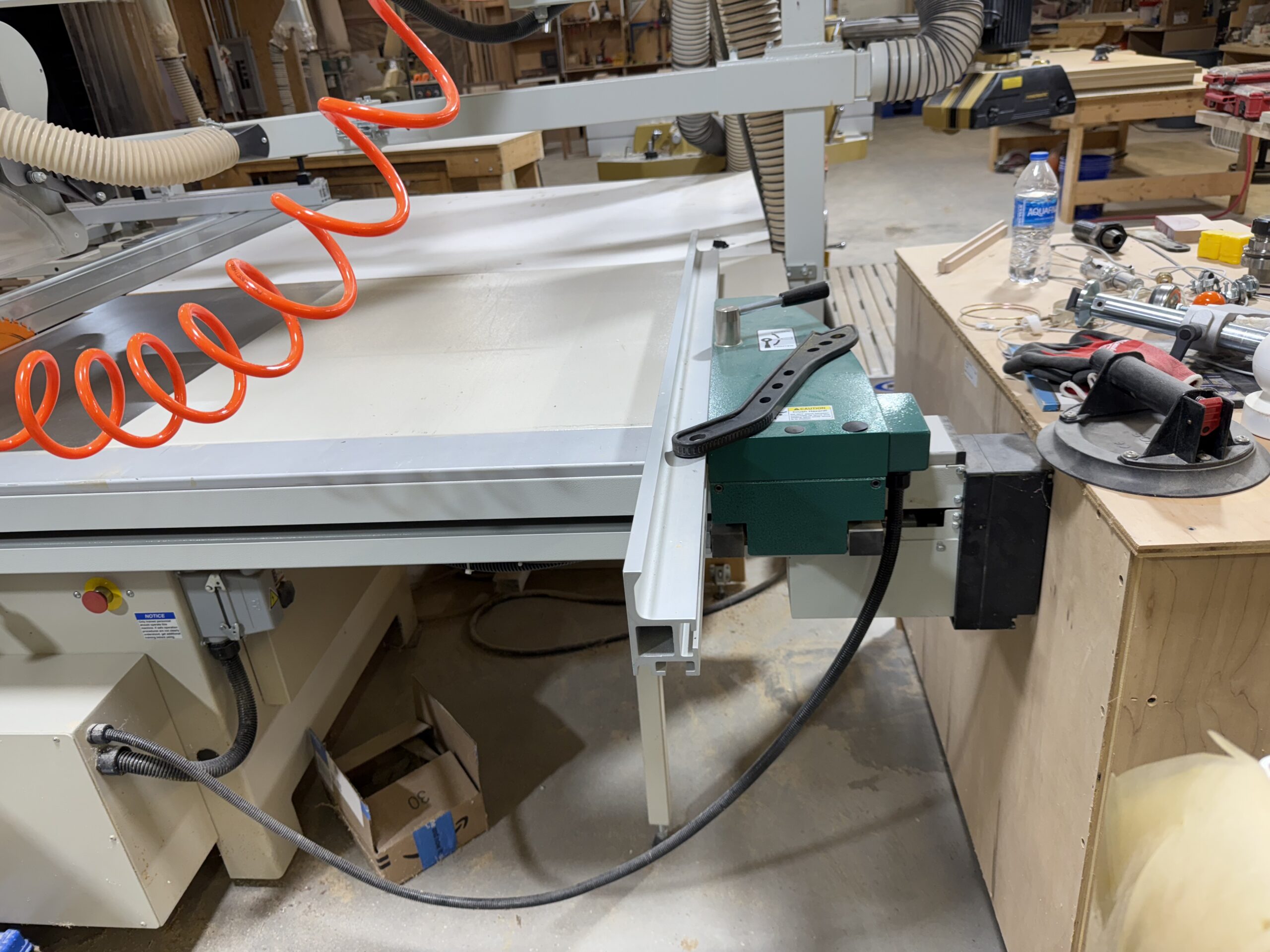

Programmable CNC rip fence
Accepts 12″ and 14″ blades
Cross-slide table with locking clamp and hard chrome-plated slideway
Adjustable blade guard with built-in dust hood
Miter fence adjustable 30° left and 45° right
Scoring blade virtually eliminates tear-out
Sliding table on vertical guide system with precision bearing rollers
