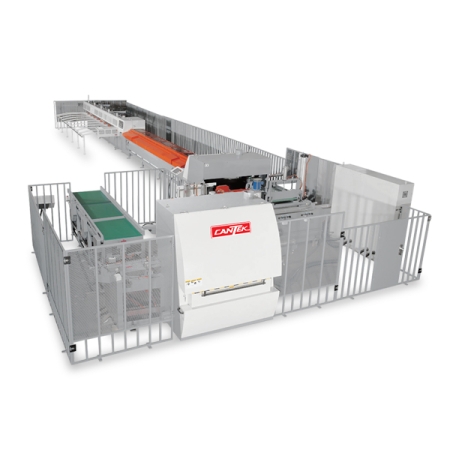

    It is time to stop losing untapped revenue by turning your wood waste into valuable material. The Cantek FL03 is a cutting-edge fully automatic finger jointing production line, designed to efficiently convert wood waste into valuable materials while maintaining an excellent performance-to-cost ratio. With its innovative technology, this system offers remarkable value in terms of both performance and price, the entire machining procedures from workpiece in-feed, left and right shaping to jointing is fast, smooth and accurate. The whole production line is carefully designed and built for maximum dependability year after year, making it a continuous game-changer in the wood industry.
    Key Advantages
    Three initial infeed tables lead to a fully automatic operation from feed to pre-press assembly stand

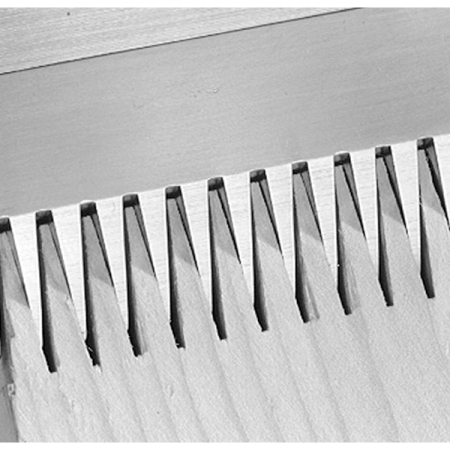

    F-C05 and F-C06 finger shapers perform automatic scoring, trimming, shaping, and gluing
    F-D01 enables automated workpiece feeding, aided by a steel brush roller that gently flips materials one by one into the pre-press assembly stand
    With the choice of 10 feet or 20 feet in length the F-T03/F-T05 chain type pre-press ensures accurate vertical and horizontal alignment before workpiece is cut to length
    Synchronized jointing and cutting is performed in a 2-step process within the F-A03 assembly press by employing two hydraulic cylinders at the front and rear to provide an extremely consistent joint

  • Specs

    Includes the following:

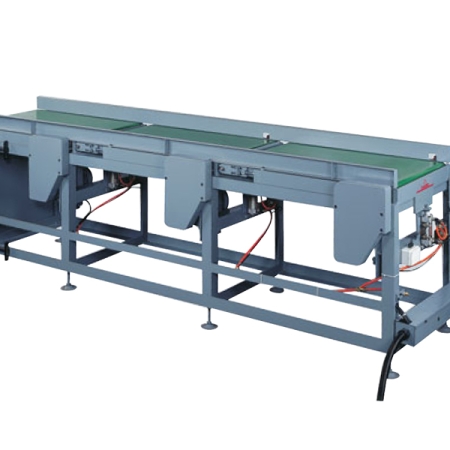

    F-I01 Multi-Stage (Three) Initial Conveyor Tables
    Auto Feeding Table
    650 mm (25.6“)
    Brush Wheel Drive Motor
    1 HP x3
    Machine Dimension (L x W x H)
    3190 x 870 x 970 mm (126 x 35 x 39”)
    Packing Dimension (L x W x H)
    3300 x 970 x 1070 mm (130 x 35 x 43”)

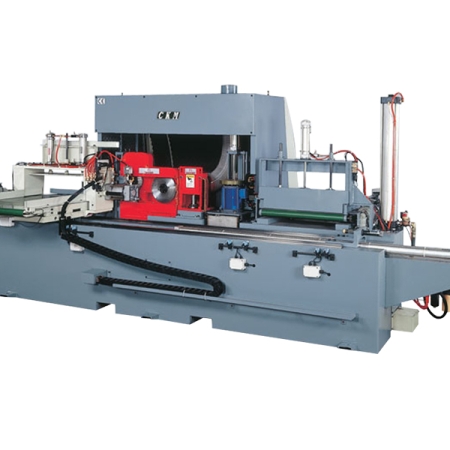

    F-C05 Automatic Finger Shaper – Right End
    Max. available width working table
    650 mm (25.6”)
    Range of workpiece length
    150~1000 mm (5.9~39.4”)
    Range of workpiece height
    30~160 mm (1.2~6.3”)
    Table moving speed
    66 FPM
    Trimming saw speed
    2800 RPM, 3400 RPM
    Finger cutter speed
    5000 RPM
    Scoring saw speed
    2800 RPM, 3400 RPM
    POWER REQUIRED
    Table-drive motor
    1/2 HP
    For conveyor motor
    1/2 HP
    Scoring saw motor
    1 HP
    Trim saw motor
    10 HP
    Shaper cutter motor
    20 HP
    Dia of Cutter (in/out)
    ø70 / ø160 mm (ø2.8 / ø6.3)
    Dust hood outlet diameter
    6” x 2”
    Machine dimensions (L x W x H)
    3670 x 2155 x 1905 mm (145 x 85 x 75”)
    Noise Value
    88.2 Db
    Packing dimensions (L x W x H)
    3810 x 2270 x 2120 mm (150 x 90 x 84”)

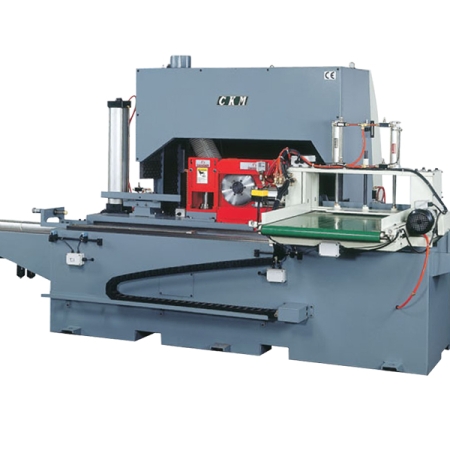

    F-C06 Automatic Finger Shaper – Left End
    Max. available width working table
    650 mm (25.6”)
    Range of workpiece length
    150~1000 mm (5.9~39.4”)
    Range of workpiece height
    30~160 mm (1.2~6.3”)
    Table moving speed
    66 FPM
    Trimming saw speed
    2800 RPM, 3400 RPM
    Finger cutter speed
    5000 RPM
    Scoring saw speed
    2800 RPM, 3400 RPM
    POWER REQUIRED
    Table-drive motor
    1/2 HP x2
    For conveyor motor
    1/2 HP
    Scoring saw motor
    1 HP x 2
    Trim saw motor
    10 HP
    Shaper cutter motor
    20 HP
    Dia of Cutter (in/out)
    ø70 / ø160 mm (ø2.8 / ø6.3)
    Dust hood outlet diameter
    6″ x 2”
    Machine dimensions (L x W x H)
    4160 × 2155 × 1905 mm (164 x 85 x 75”)
    Noise Value
    88.2 Db
    Packing Dimensions (L x W x H)
    4855 x 2270 x 2120 mm (192 x 90 x 84”)
    *1: The standard gluing device is roller TYPE; the tenon depth is 12 mm
    *2: Inject/spray type gluing system can be installed upon request
    *3: Device options for glues other than standard PVAc glue (PU, MUF, EPI, etc.) upon request
    SPECIFICATIONS:
    With 20 HP for Main Spindle
    With 10 HP for Trimming Saw
    With Top and Bottom Scoring Saw, 1 HP x 2
    With 1/2HP (3Ph) for Feeding Conveyor
    *Additional units to expand the system are available upon request.

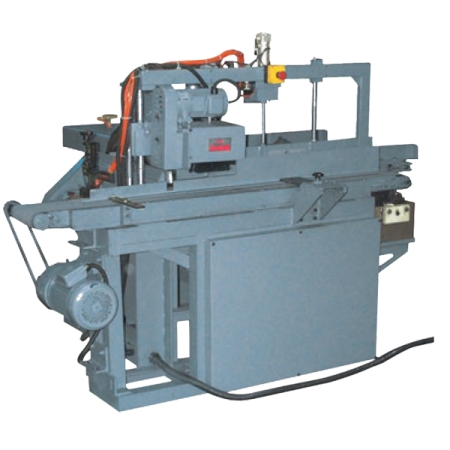

    F-D01 Automatic Feeding Table
    Auto Feeding Table
    650 mm (25.6”)
    Table Height
    860 mm
    Range of Material Length
    100~1000 mm (3.9~39.4”)
    Range of Material Width
    30~160 mm (1.2~6.3”)
    POWER REQUIRED
    Feed Drive Motor
    1 HP
    Outfeed Drive Motor
    2 HP
    Brush Wheel Drive Motor
    1/8 HP
    Overall Length
    1540 mm (61”)
    Overall Width
    1545 mm (61”)
    Overall Height
    2450 mm (97”)

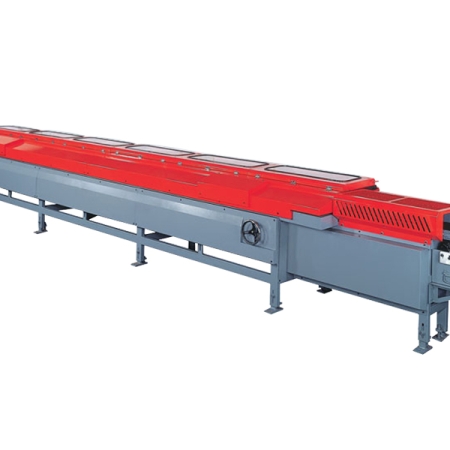

    F-T03 Chain drive pre-press assembly stand
    Available length of workpiece
    6000 mm (237”)
    Available width of workpiece
    15~200 mm (0.60~7.9”)
    Available height of workpiece
    15~100 mm (0.60~4”)
    Feeding speed
    263 FPM
    Capacity length product
    Max. 4 – 5 PCS/min
    POWER REQUIREMENT
    Feed motor
    2 HP
    Machine dimensions (L x W x H)
    6035 x 1000 x 1060 mm (238 x 40 x 42“)
    Noise level
    70 Db
    Packing dimensions (L x W x H)
    6070 x 1120 x 1275 mm (239 x 44 x 51“)

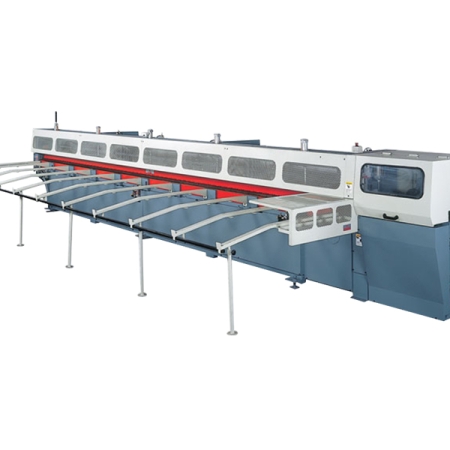

    F-A03 Assembly Press
    6 m (20 ft)
    6.8 m (22 ft)
    Available Length of Workpiece
    6200 mm (20 ft)
    6800 mm (22 ft)
    Available Width of Workpiece
    15~160 mm (0.6~6.1”)
    15~160 mm (0.6~6.1”)
    Available Height of Workpiece
    15~60 mm (0.6~2.4”)
    15~60 mm (0.6~2.4”)
    Finger Assembly Pressure
    0~331 lbs/cm²
    0~331 lbs/cm²
    Feeding Speed
    263 FPM
    263 FPM
    Capacity Length Product
    5 PCS/min
    5 PCS/min
    POWER REQUIRED
    Hydraulic Power Unit
    7 ½ HP
    7 ½ HP
    For Feeding
    2 HP
    2 HP
    For Sizing Saw
    5 HP
    5 HP
    Saw Arbor Diameter
    ø1″ (ø25.4mm)
    ø1″ (ø25.4mm)
    Dust Outlet Diameter
    101.6 mm (4”)
    101.6 mm (4”)
    Machine Dimension (L x W x H)
    7670 x 1510 x 1370 mm
    (302 x 60 x 54”)
    8270 x 1510 x 1370 mm
    (326 x 60 x 54”)
    Noise Level
    84 Db
    84 Db
    Packing Dimension (L x W x H)
    7745 x 1150 x 1585 mm
    (305 x 46 x 63”)
    8345 x 1150 x 1585 mm
    (329 x 46 x 63”)
