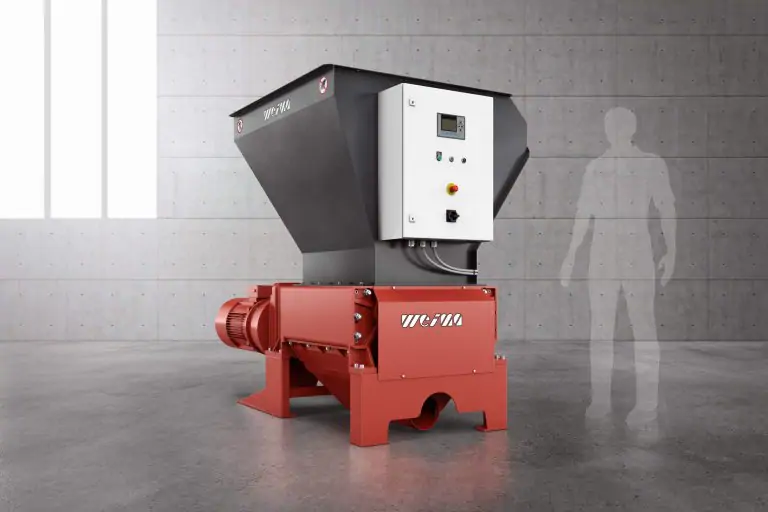

ZM 30-40-50 | Weima | Shredders

  • Description

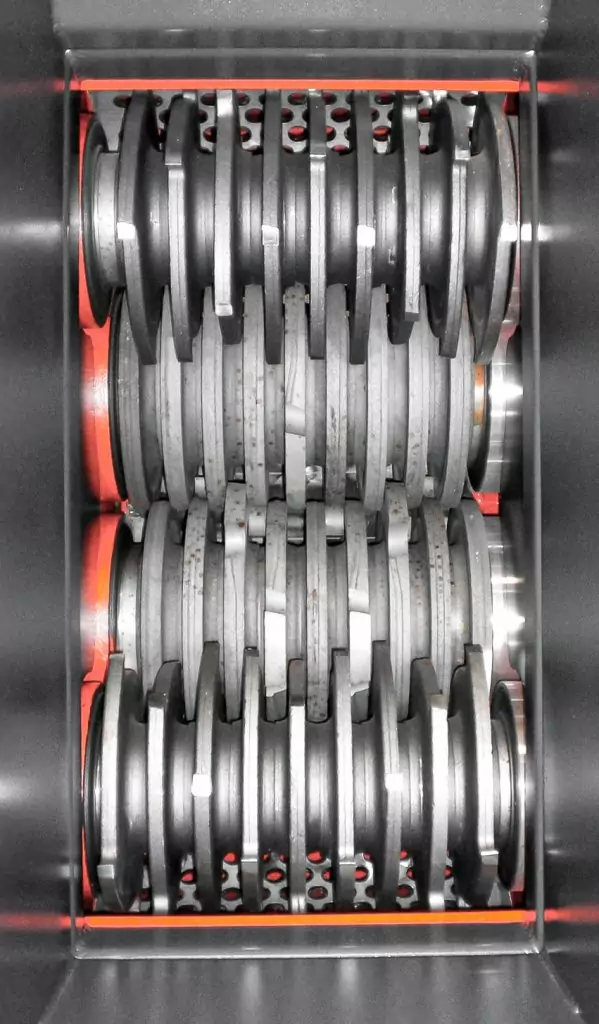

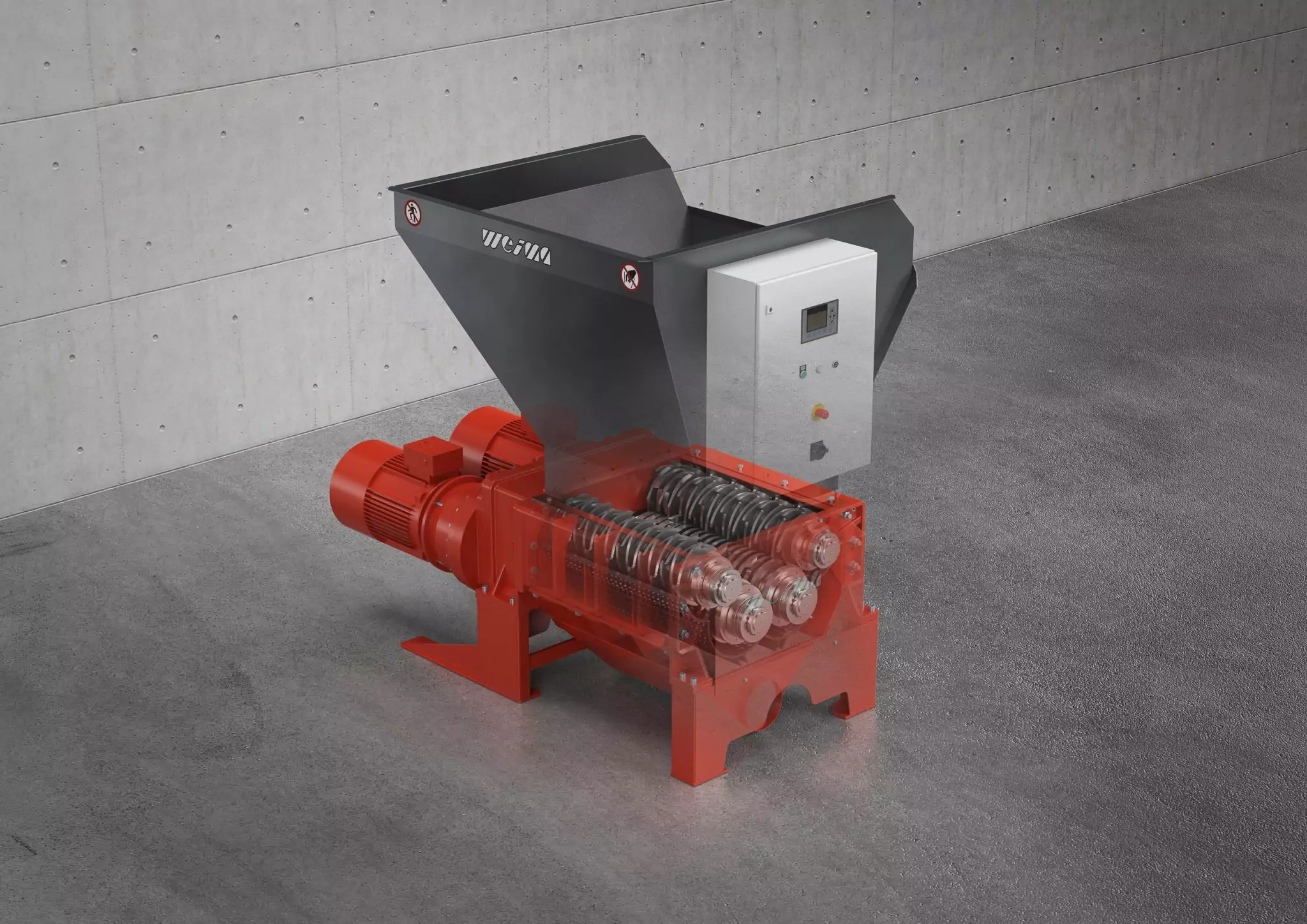

    Wherever the volume reduction of bulky and long wood and plastic waste as well as packaging, cardboard or metal waste of all kinds is required, there is no way around the machines of the ZM series. The proven shredder with four shafts mounted in parallel is designed for medium throughput volumes. With a generous hopper, two cutting and two clearing shafts, and a screen insert that can be individually adapted to your application, the shredders in this series reduce your waste materials to homogeneous particle sizes – whether as a stand-alone solution or as part of a multi-stage system.

  • Specs

    ZM 30|ZM 40|ZM 50 Rotor Diameter (mm)235|280|280

    Rotor length (mm)460|760|960

    Rotor Speed (rpm)25|25|25

    Power (hp)2×7.5/2×11|2×15/18.5/22|2×15/18.5/22/30

    Rotor Knives23|38|47

    Connection diameter (mm)200|200|200

    Weight (approx. kg)1300|2500|3000
