Description

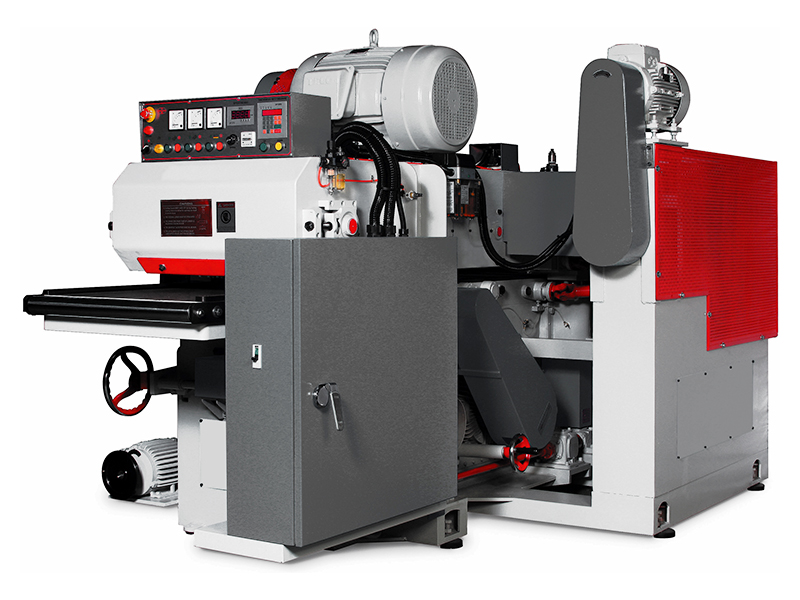

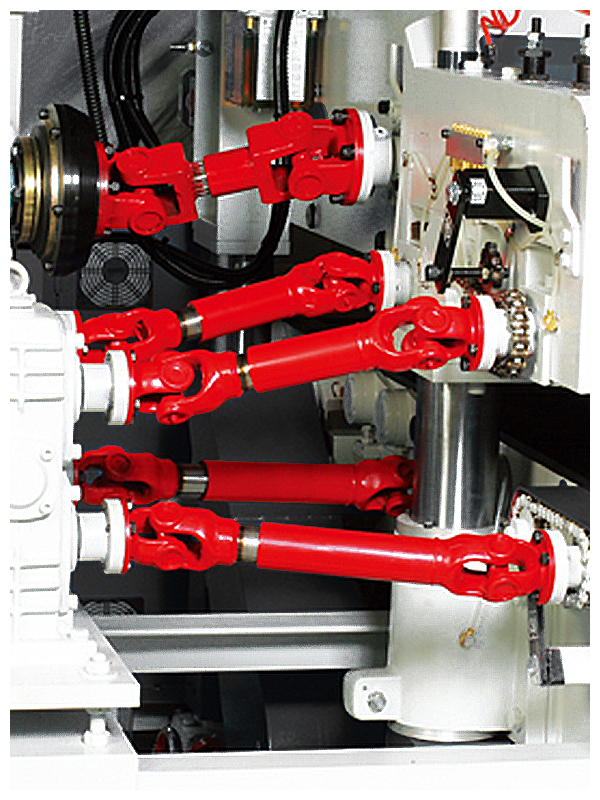

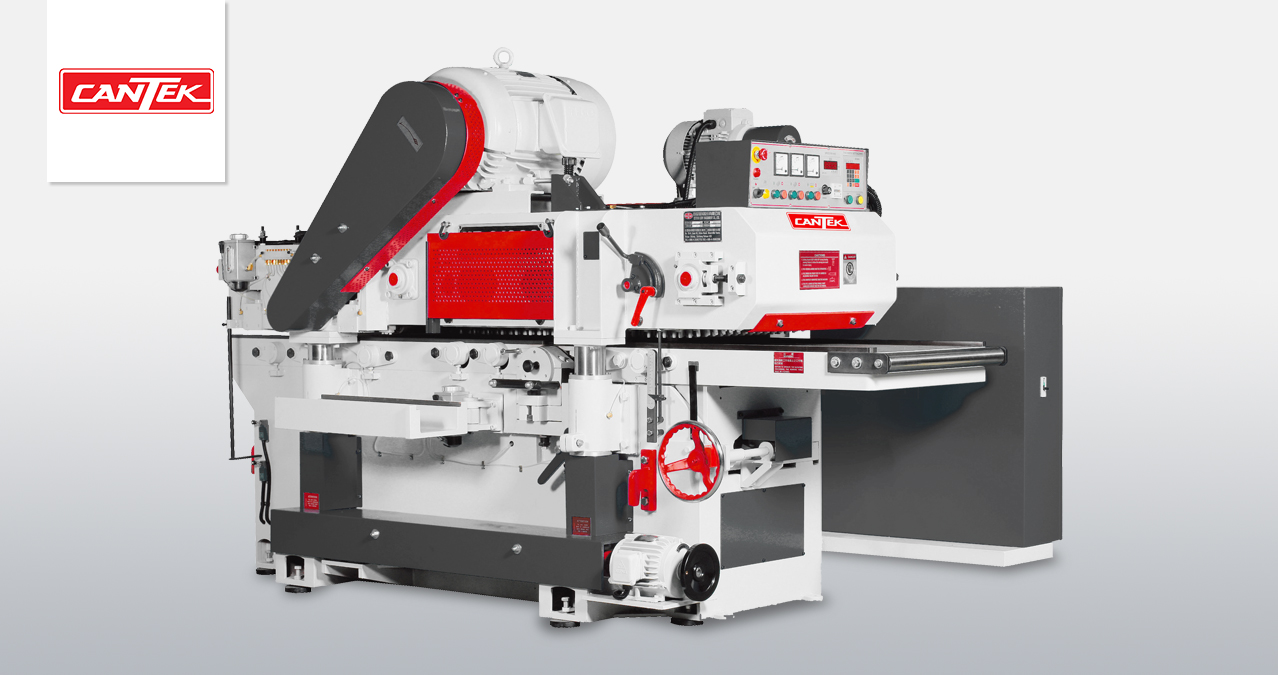

High speed production double surface planer for the most demanding planning applications. The Cantek GT-HD Series Extra Heavy Duty Double Surface Planers are suitable for the most demanding planing applications. The HD series are capable of high feed speeds with maximum stock removal capabilities. They feature a robust cast-iron body & industrial cardan drive system ensure high production planing day in and day out. The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The spring loaded feed system passes the material over the bottom head allowing it to act like a jointer to flatten the board prior and then a sectional infeed roller feeds the material through the top head for accurate dimensioning.
-
Specs
GT610SSHD|GT820HD|GT1000HD|GT1320HD
Maximum working width
24″|32″|39″|52″
Maximum working thickness (standard)
8″|8″|7″|7″
Minimum working thickness
0.47″ all Models
Feed speed (variable)
32 ~ 130 FPM|32 ~ 82 FPM|32 ~ 82 FPM|32 ~ 82 FPM
Cutterhead diameter
6″|6″|6.9″|6.9″
Cutterhead speed
4200 RPM all Models
Bottom cutterhead motor
30HP (40 opt.)|40HP (50 opt.)|40HP (50/60 opt.)|50HP (60 opt.)
Top cutterhead motor
40HP (50 opt.)|50HP (60 opt.)|50HP (60/75 opt.)|60HP (75 opt.)
Feed drive motor
7.5 HP|10 HP|15 HP|15 HP
Elevation motor
2 HP all Models
Machine dimensions (LxWxH)
118″ x 67″ x 67″|120″ x 77″ x 69″|
120″ x 85″ x 67″|120″ x 97.2″ x 67″
Shipping dimensions (LxWxH)
122″ x 73″ x 72″|124″ x 81″ x 77″|
124″ x 91″ x 72″|124″ x 106″ x 72″
Machine weight
13640 Lbs.|18700 Lbs.|20900 Lbs.|23100 Lbs
Shipping weight
14080 Lbs.|19140 Lbs.|
21340 Lbs.|23980 Lbs.
CFM dust requirement
4200 CFM|4750 CFM|
5200 CFM|5800 CFM -
