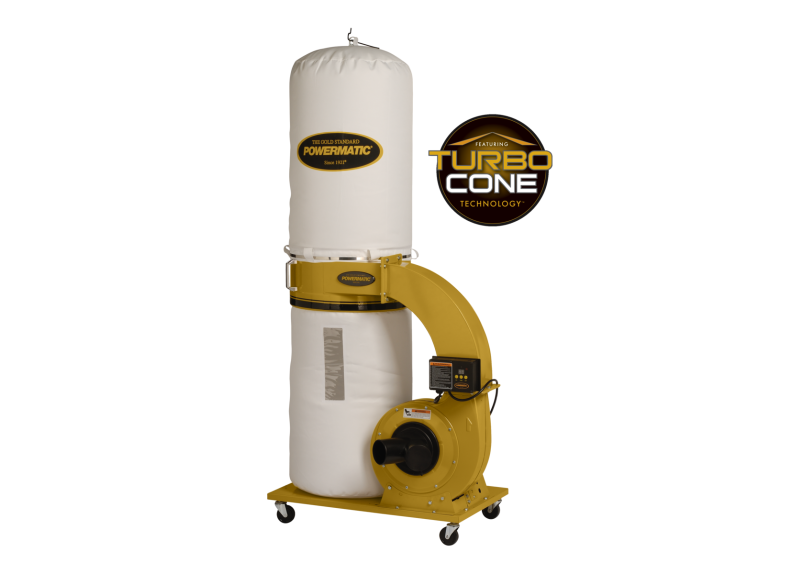

PM1300TX-BK | Powermatic | Dust Collectors

  • Power:
    1.75HP 1PH 115/230V
  • Description

    The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.

  • Specs

    1-Hose Connection Diameter (In.)|6
    2-Hoses Connection Diameter (In.)|4
    Bag Diameter (In.)|20
    Collection Bag Length (In.)|30
    Efficiency (Micron)|30
    Filter Bag/Canister Length (In.)|48
    Gross Weight (Lbs)|150
    Impeller Diameter (In.)|12
    Impeller Fins|6
    Impeller Material|Steel
    Motor Amps|18/9
    Motor Power (HP)|1-3/4
    Motor Voltage (V.)|115/230
    Net Weight (Lbs.)|140
    Overall Dimensions(L x W x H) (In.)|37 x 29 x 79
    Prewired Voltage (V.)|115
    Prop 65|Cancer and Reproductive Harm
    Sound Rating (Db.)|75-90
    Static Pressure (Wc.)|11.31
