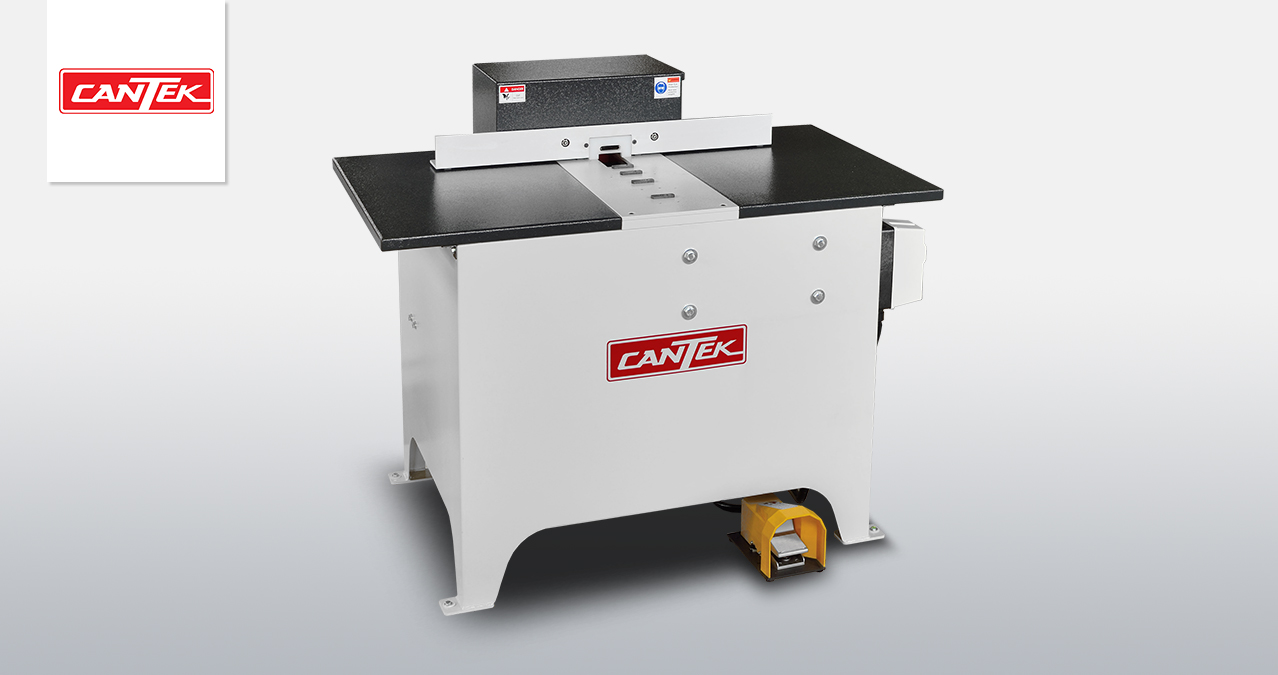

JEN60 | Cantek | Drawer Notchers

  • Power:
    230/460V 3PH 3HP 9.60/4.80AMPS
  • Description

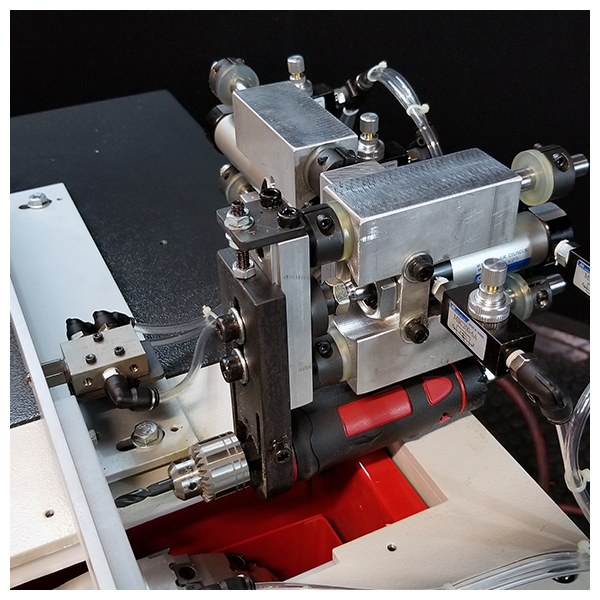

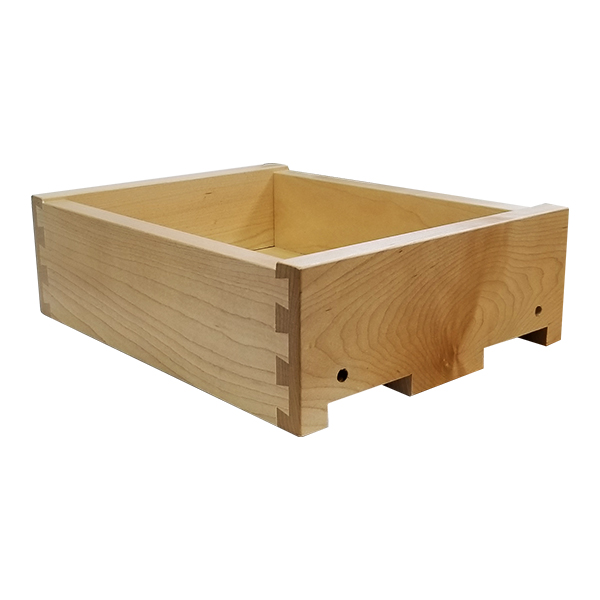

    The Cantek JEN60 Drawer Notcher is designed to both notch and drill drawer boxes to install undermount soft-close drawer slides.  The operation of the machine is simple with a self-indexing drilling unit that’s determined by the position of the drawer for either left or right notching.  With a cycle time of approximately 10 seconds per drawer, you can achieve a high throughput and save time for other important tasks.

  • Specs

    Main cutter motor|3 HP (230/3/60 or 460/3/60) | 2HP (230/1/60)

    Notch dimensions|2 ¼” (57mm) x 0.5” high

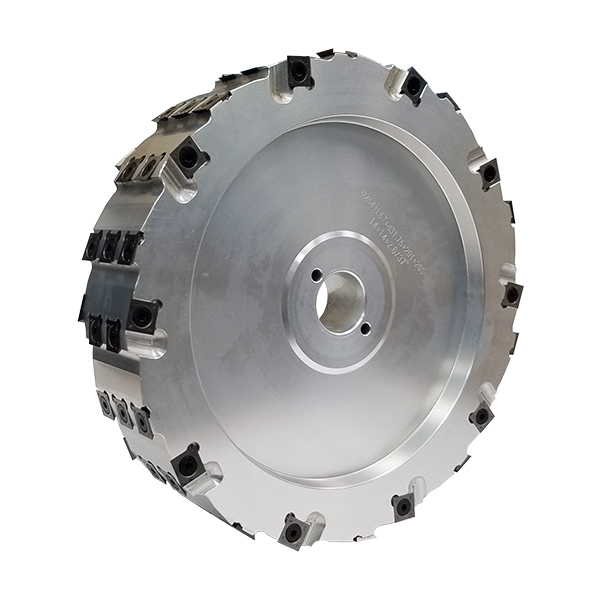

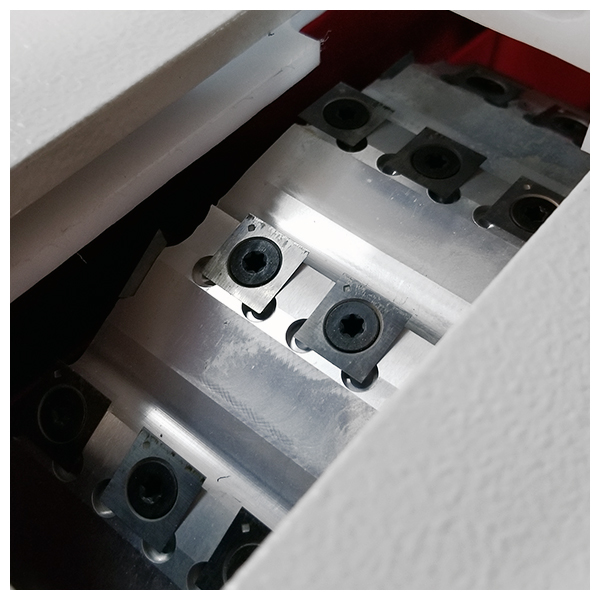

    Cutterhead diameter|10″

    Drill diameter|¼”

    Table size|49″ x 22″

    Table height from floor|32″

    Dust port|2 x 4″ (1,340 CFM requirement)

    Compressed air required|90 – 100 PSI

    Machine dimensions|48” x 37 ¾” x 39 ¾”

    Machine weight|506 lbs.

    Shipping dimensions|53″ x 42″ x 44″

    Shipping weight|612 lbs.

    Electrical requirements|230/3/60 = 9 amps|460/3/60 = 4.8 amps|230/1/60 = 10 amps
