Description

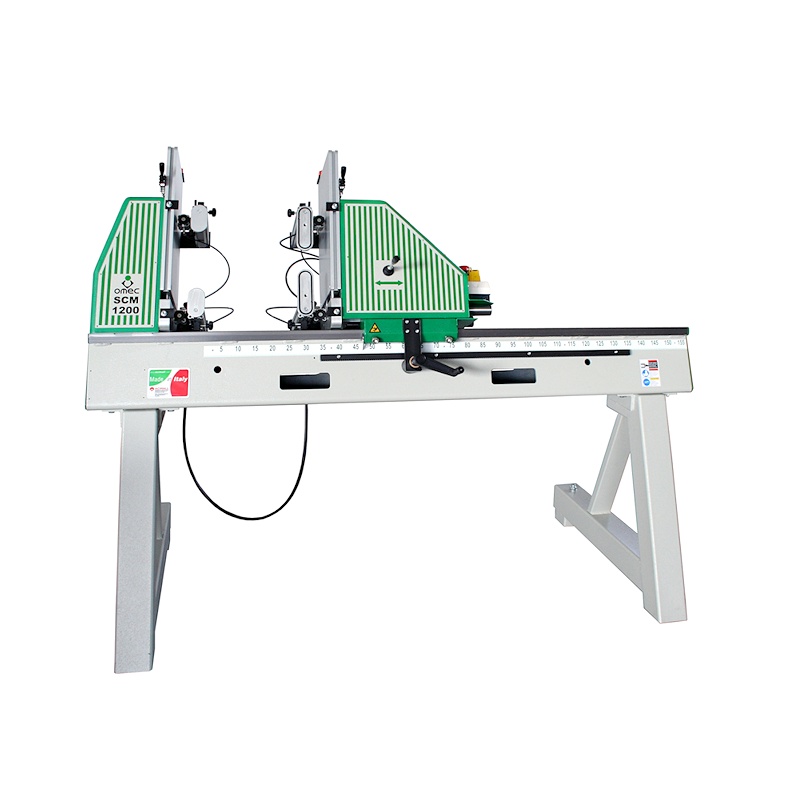

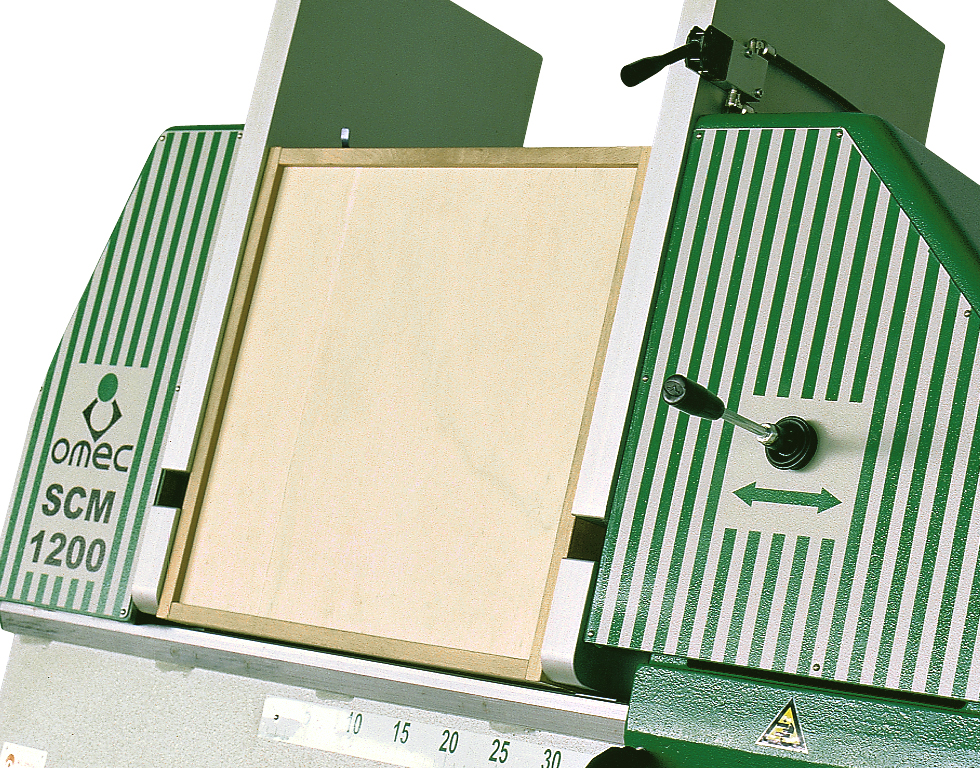

This drawer box clamp is unique in that the operator assembles the loose box parts in the clamp itself not prior to introducing to the clamp. Pneumatic cylinders lock in the drawer sides and spring guides the fronts and backs. A pneumatic vacuum holds the drawer bottom in place when the hydraulic cylinder compresses the box. Total time from loose parts to completed box is less than one minute.
-
Specs
On board machine installed power|0.5 HP
Working pressure|Mpascal 0.7
Drawers’ production output|Up to 60 boxes/hour
Machine weight|660 lbs(300kg)
Packed machine weight|836 lbs (380kg)
Overall dimensions|31.5” x 74.8” x 59.06” (80cm x 190cm x 150cm)
Packing dimensions|39.37” x 78.74” x 66.93” (100cm x 200cm x 170cm)
DIMENSIONAL LIMITS OF WORKPIECES
Minimum|Maximum
Drawer Length|9.45”(240mm)|25.98”(660mm)
Drawer Width|11.02”(280mm)|43.31”(1100mm)
Side Height|2.36”(60mm)|9.84”(250mm)
Front Height|2.36”(60mm)9.84”(250mm)
Front Projection|0”|1.18”(30mm) -
