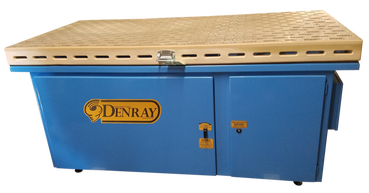

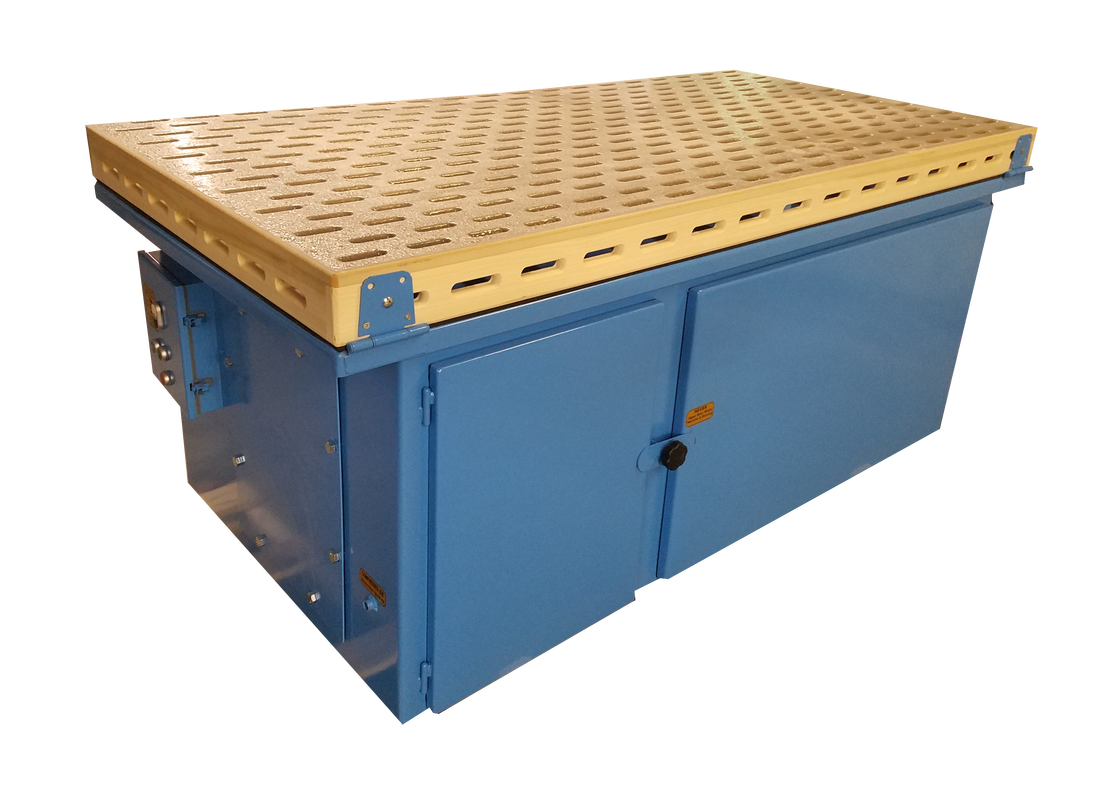

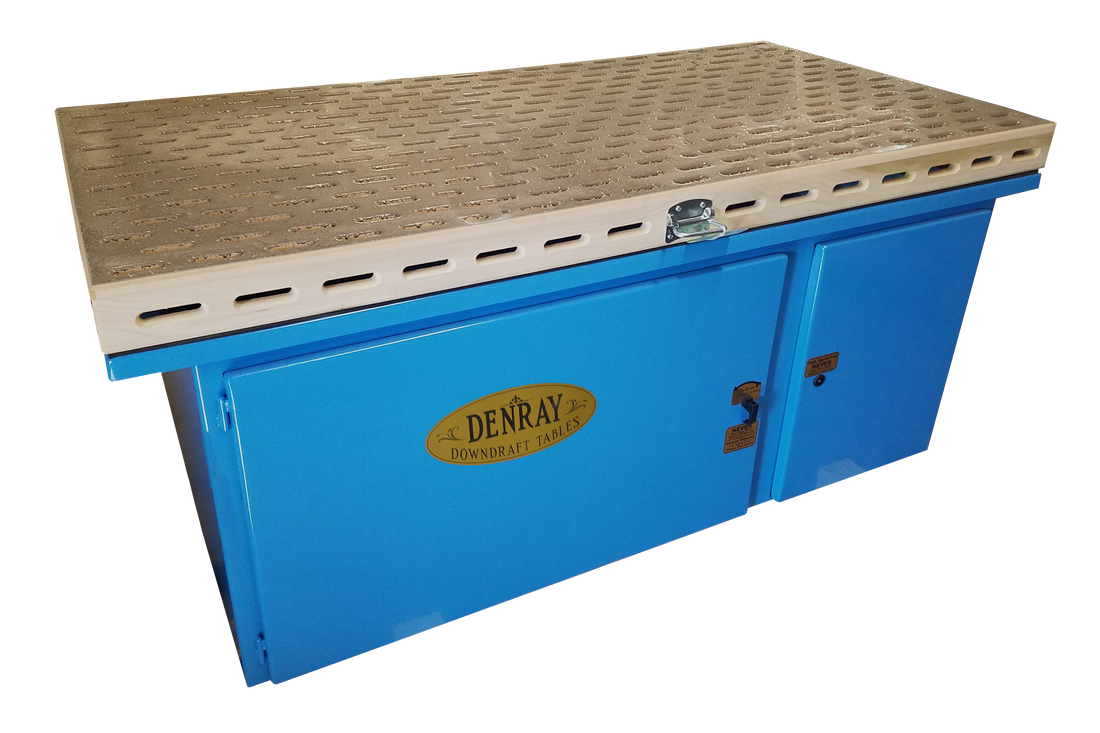

3672B | Denray | Downdraft Tables

  • Power:
    2HP 115/220V 1PH- 230/460V 3PH
Request a Quote

  • Description

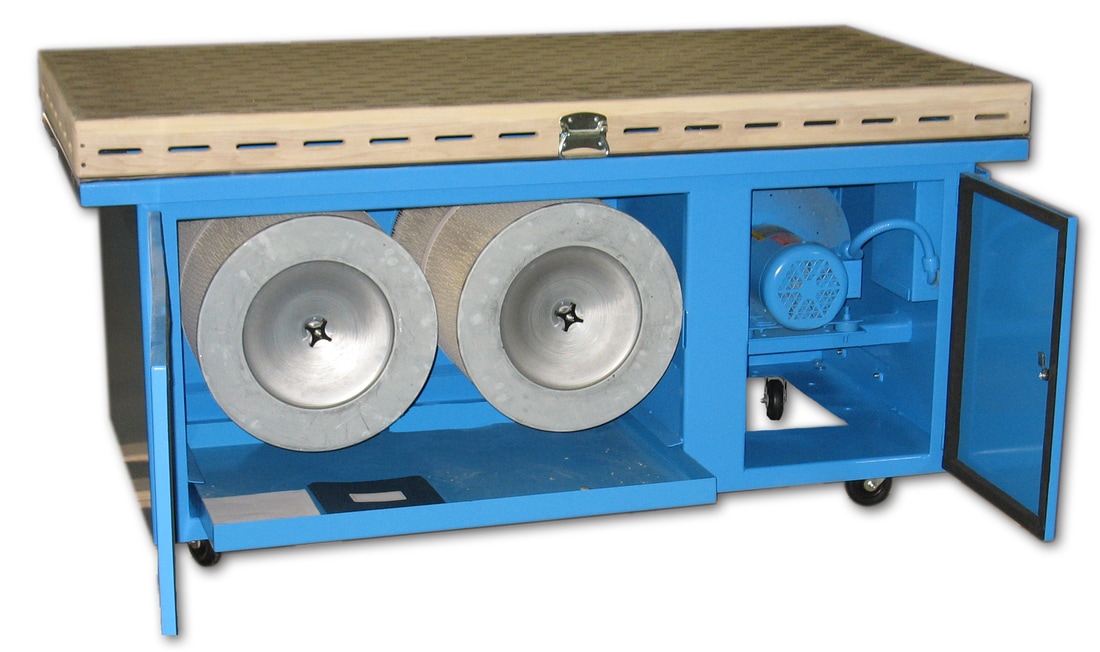

    This model is great for medium sized jobs, and can be used while sanding plastics, woods, and finishing materials. This is a popular model for cabinet shops, with two operators using the same table. The 3672B also comes with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron. This model comes standard with Denray’s “Jet Pulse” push-button cleaning, rubber coated top, and a magnetic starter.

  • Specs

    •36″ x 72″

    •36″ HEIGHT

    ​•650 LBS

    •2 HP MOTOR

    •16.5″ FAN

    •3400 CFM

    ​•84 DECIBELS SOUND LEVEL

    •MAG. GAUGE PHASE/VOLTAGE OPTIONS

    SINGLE-PHASE

    115 VOLTAGE (18.8 AMPS)

    220 VOLTAGE (9.4 AMPS)

    THREE-PHASE

    230 VOLTAGE (5.8 AMPS)

    460 VOLTAGE (2.9 AMPS)

    575 VOLTAGE (2.4 AMPS)
