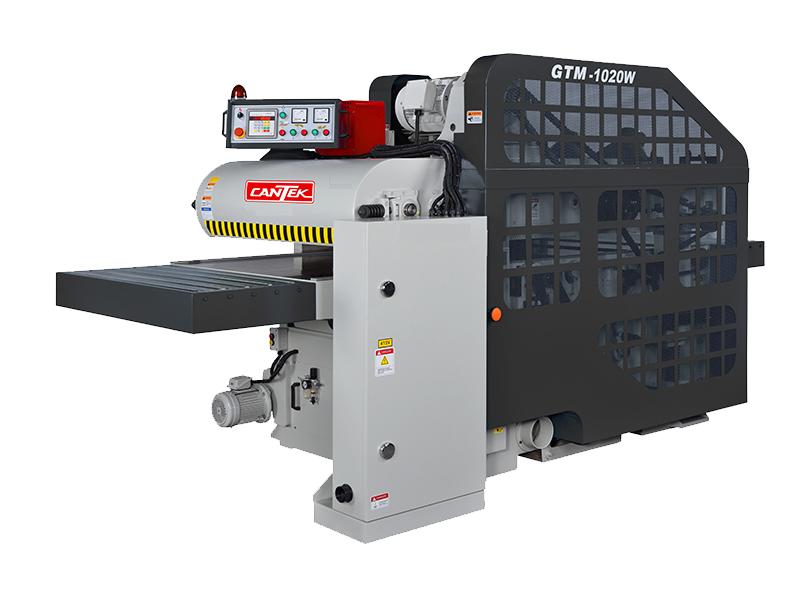

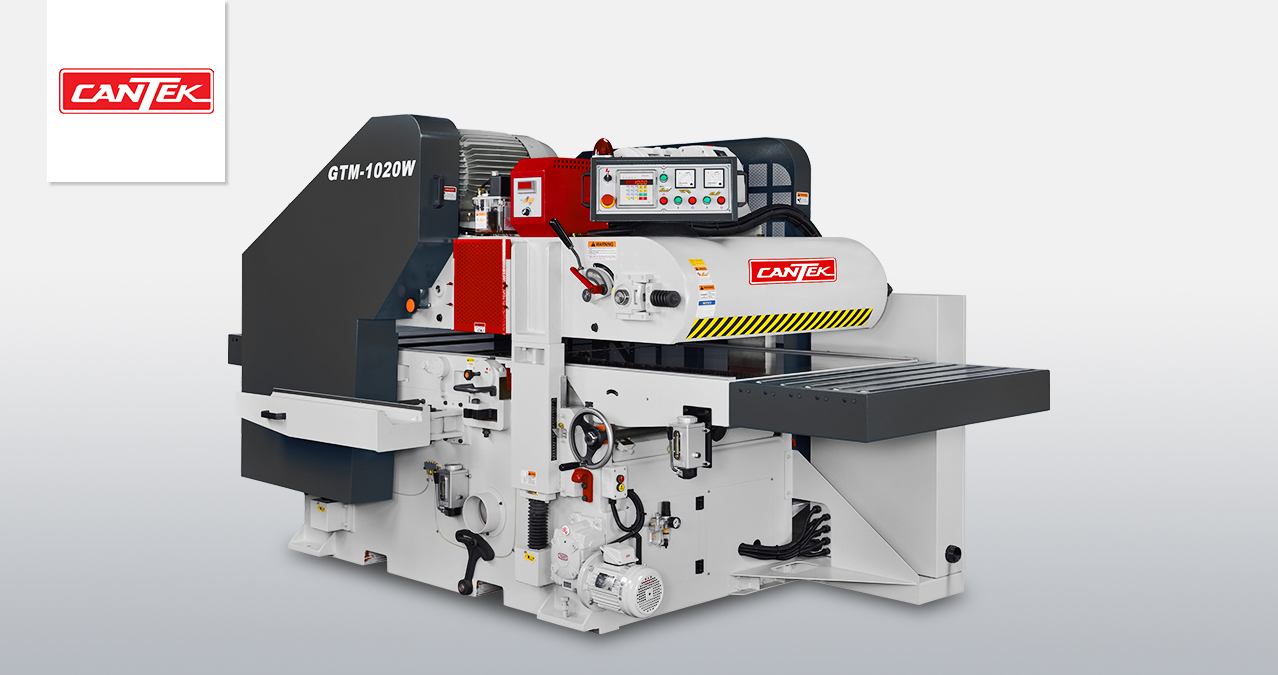

GTM1020W | Cantek | Planers

  • Power:
    460V 3PH 78HP
  • Description

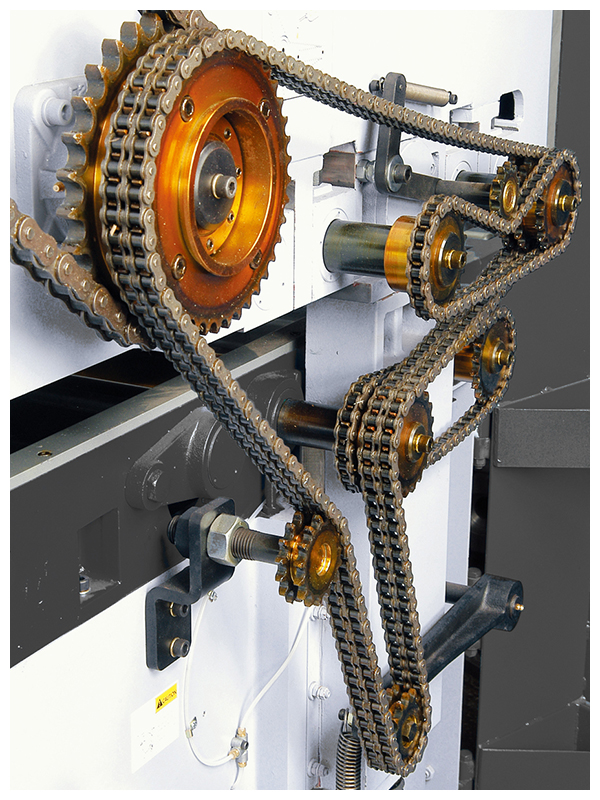

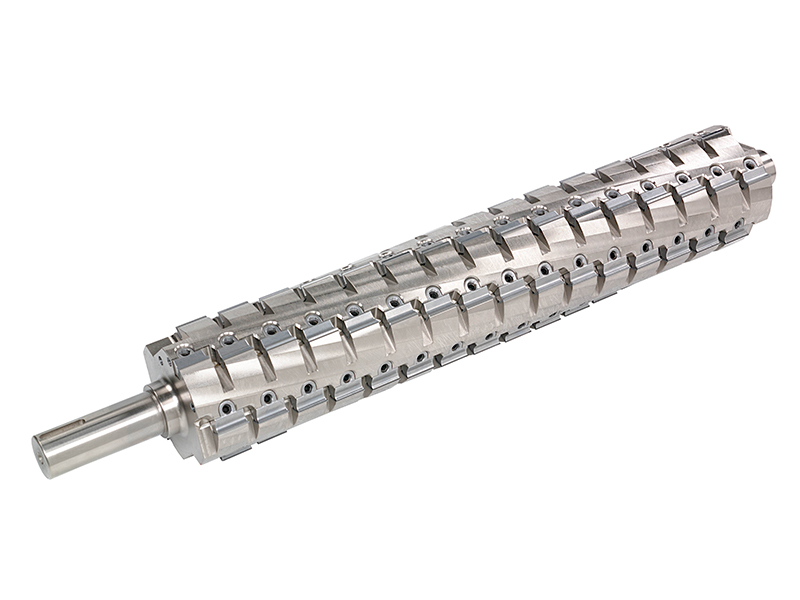

    Wide double-sided planer with big capacity. The Cantek GTM1020W 40” Double Surface Planer has a robust cast-iron body for industrial planing day in and day out. The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal. The material is passed over the bottom head with a spring-loaded pin feed system allowing it to act like a jointer to flatten the board prior to being planed to an accurate thickness with the top head. This wide planer is ideal for increasing production on narrow boards and capable of planning live edge slabs, countertops, table tops, door panels, and more.

  • Specs

    Maximum workiMaximum working Width 40”
    Maximum working Thickness 11.8”
    Minimum workpiece length 12.2”
    Bottom Cutterhead motor 30 HP (Standard) – Optional 40HP
    Top Cutterhead motor 40 HP (Standard) – Optional 50HP
    Feed motor 7.5 HP
    Table elevation motor 1 HP
    Cutterhead diameter 5.16”
    Knife information 30mm x 12mm x 1.5mm
    Cutterhead speed 4000 RPM
    Feed speed (variable) 23-65 FPM
    Dust collection 4 @ 6” diameter
    Table size 40” x 103” high
    Machine dimensions (LxWxH) 108 ¼” x 76 ¾” x 74.8”
    Net weight 12,125 lbs. (5511 kgs.)
    Packaging dimensions 112.2” x 80.7” x 80.7”
    Gross weight 12,787 lbs. (5812 kgs.)
