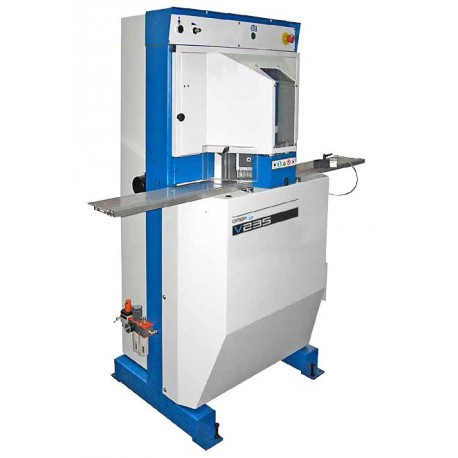

V 235 | OMGA | Miter Saws

  • Power:
    2-2hP MOTORS 230/460V3PH
  • Description

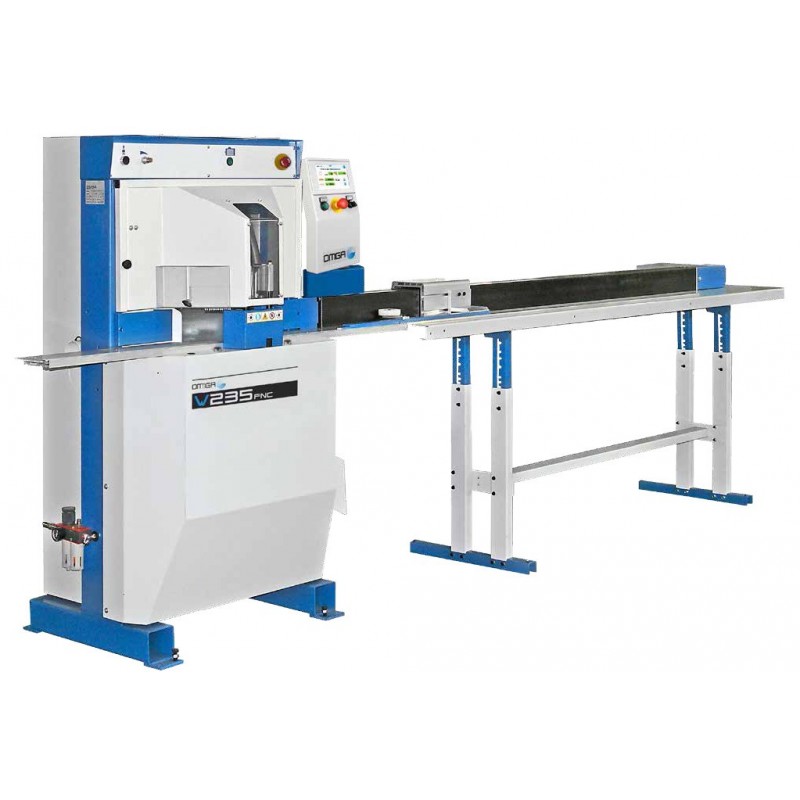

    Last generation vertical Double Mitre Saw from OMGA, the V 235 is the result of 30 years of experience in this field. This compact and powerful system counts with all features and patented devices that OMGA designed throughout the years, such as the ProfilBlock clamping system or the popular patented Scaled Tables to name a few. The vertical travel system along with its 2 powerful 2 HP motors, make of the V 235 the perfect choice for accuracy and toughness in a variety of application for the picture frame, cabinet and millwork industries. Because of its versatility the V 235 is well suited to be connected with our OMGA Stop TM creating a truly integrated system which can be configured in a variety of levels of automation to fulfill the most demanding mitering tasks. Optional equipment such as Scaled Table Extensions, Dust collecting Systems, additional Moveable Stops, Aluminum version Kit and others, can be added to further complete the standard machine.

  • Specs

    Motor power|2 X 2 HP

    Arbor speed RPM|3200

    Dust Chute|2 X 3″

    Saw blade bore|30 mm

    Auto mitre position|N/A

    Max cutting height|3″

    Max cutting width|3 9/16″

    Mitre positioning stops|45

    Overall dimensions|59″ x 30″ x 63″

    Saw blades Diameter|350 mm

    Crated Dimensions|62″ x 35″ x 67″
