F9TS | Omec | Dovetailers

  • Description

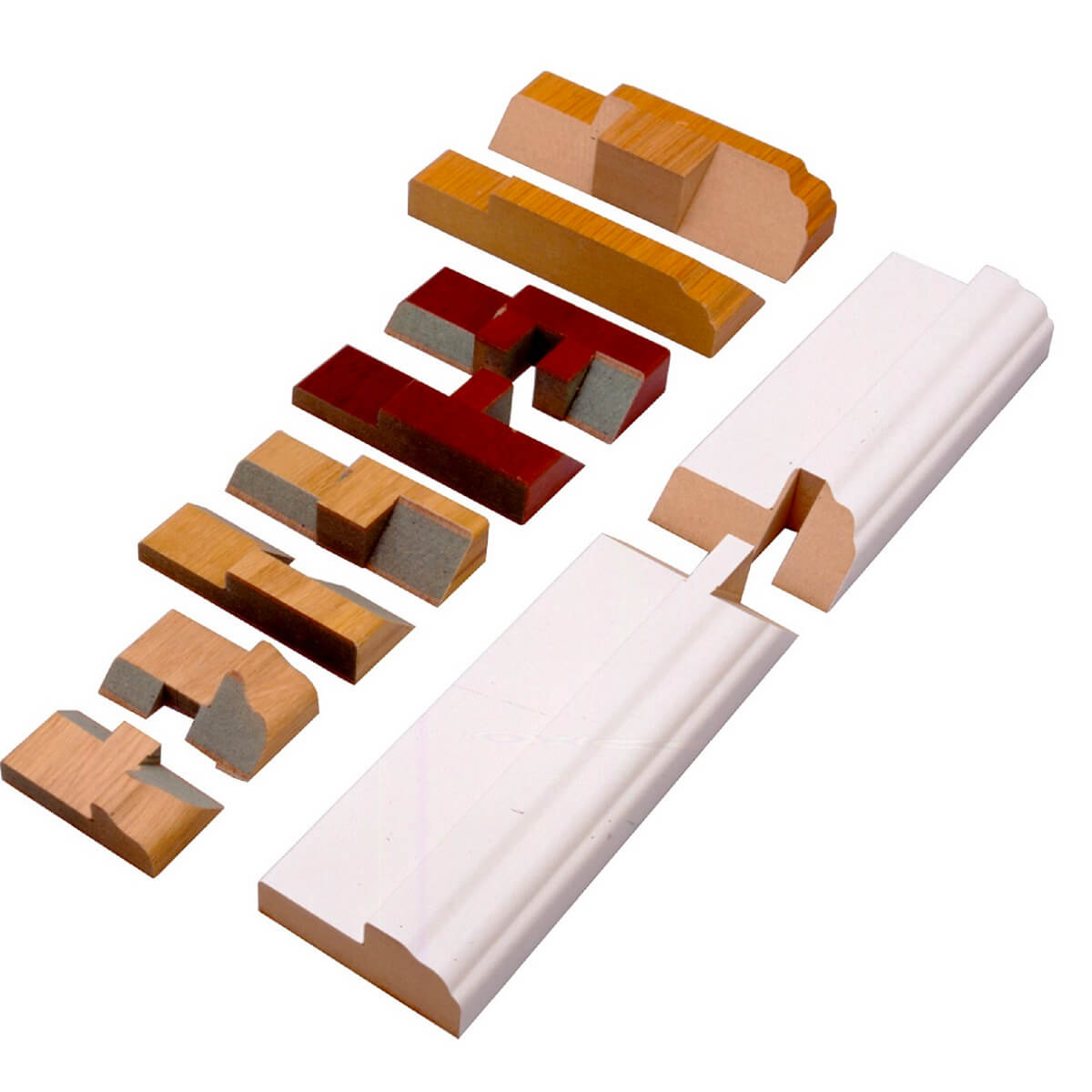

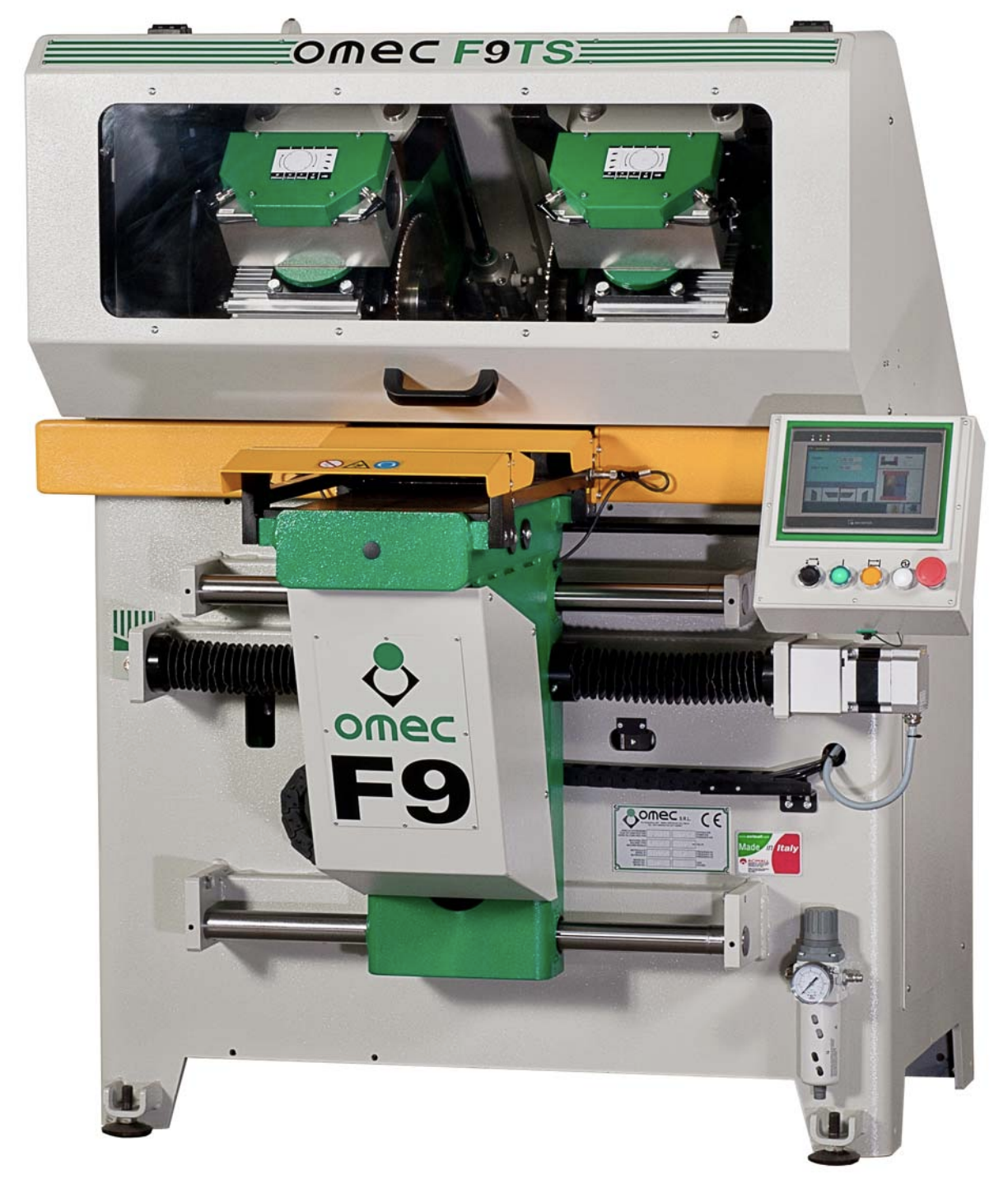

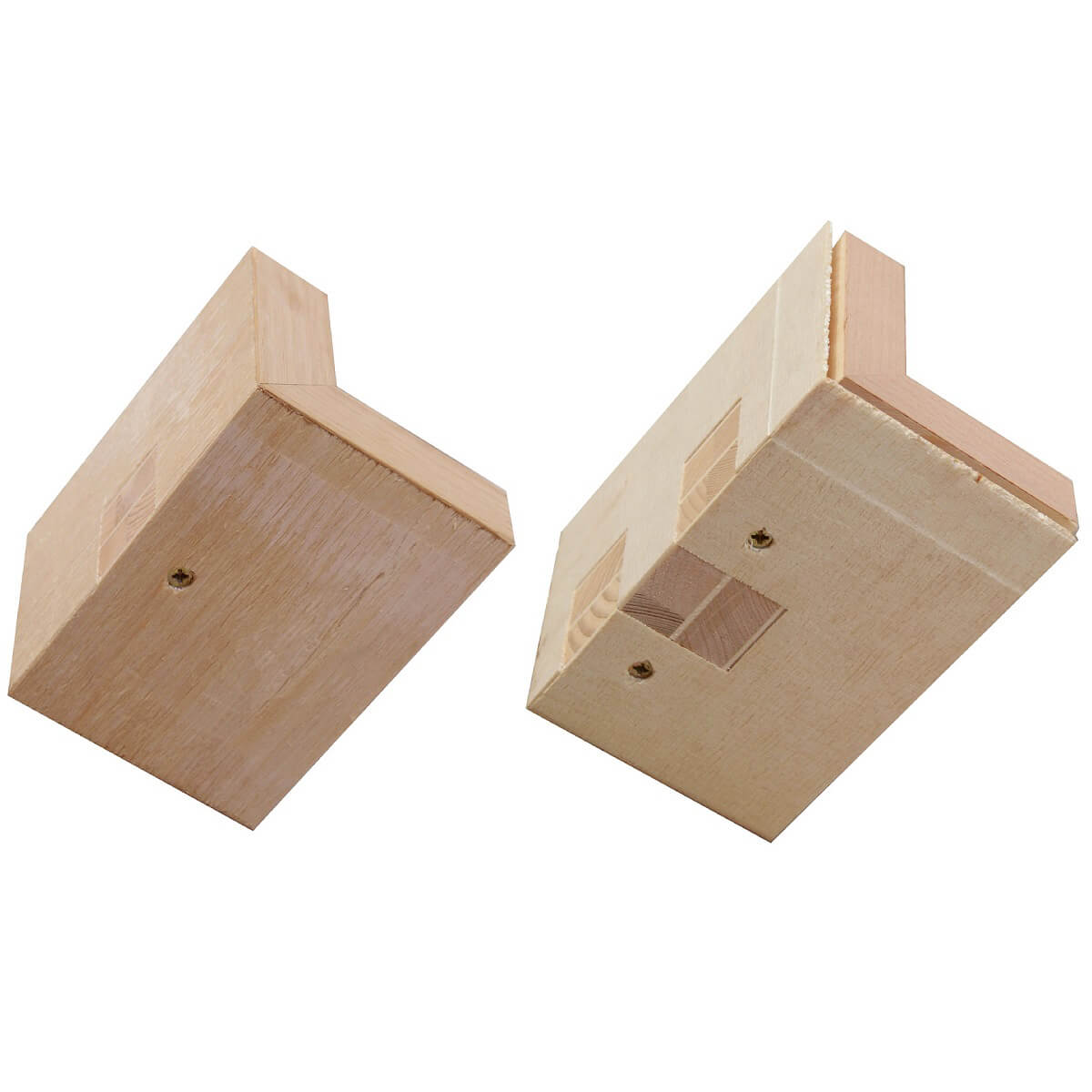

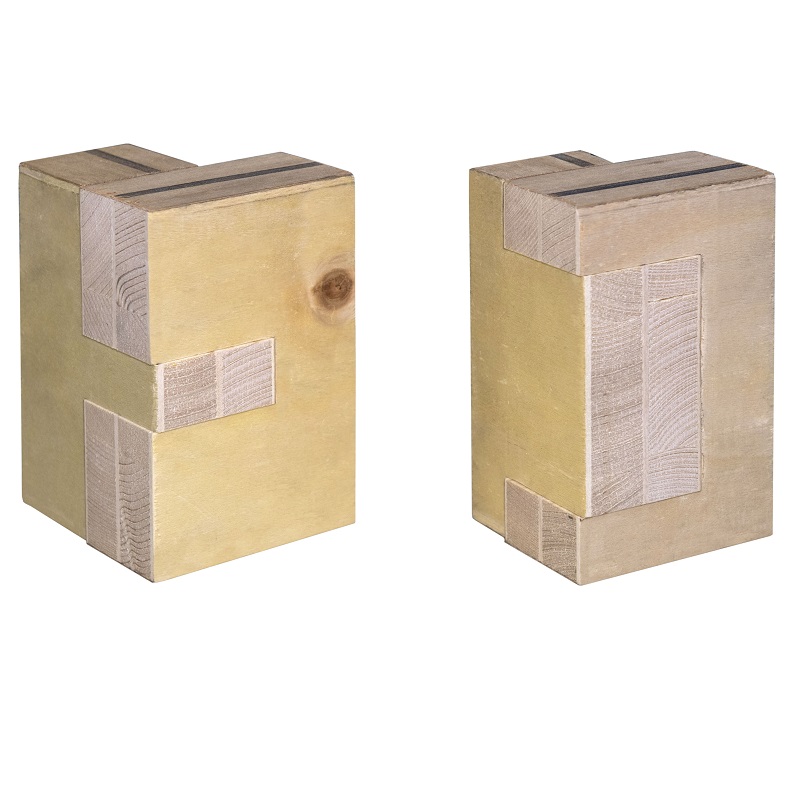

    Omec F9 is designed to mill joints on door frames. This machine is extremely easy to use with high precision and fast work process. Utilizing two milling and two saws produces 45 degree cuts and joints. Automatically mills the jamb and casing as one unit, saving labor needed to assemble the pieces. Having left and right tooling the F9 completes one joint at a time. Built in touchscreen brings all the controls to the operator. Numeric Control runs the work cycle.

  • Specs

    On board machine installed power|10.5Kw
    Working pressure|0.7MPascal
    Mill cutter|1
    Mill cutter revolutions|5,600rpm
    Blades revolutions|2,800rpm
    Drill bit (optional)|1
    Drill revolutions|2,800rpm
    Average production of cases|60/hr
    Average production of crosspieces|30/hr
    Average production of a full door frame|25/hr
    Weight of the machine|750kg
    Weight of the machine with package|850kg
    Overall dimensions|150cm x 160cm x 150cm
    Package dimensions|155cm x 170cm x 175cm
