R450V | Ritter | Face Frame Assembly

  • Power:
  • Description

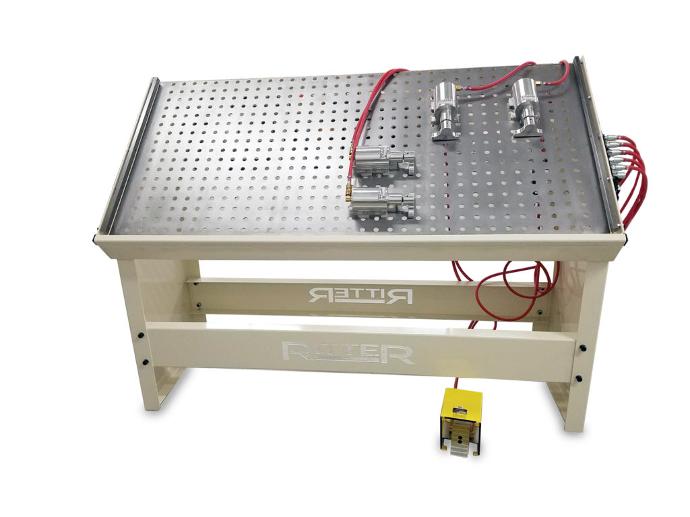

    The Ritter R450V is designed for high and low volume production requirements. The R450V is the smallest version of our heavy duty cabinet door clamping tables. In this system the operator is freed from the task of managing individual bar or pipe clamps, and instead, uses pneumatic clamp cylinders to apply pressure to the glue line. Each cylinder is easily operated by a slide toggle, and the entire system is activated by a foot pedal. The vertical easel allows for fast and square assembly. The multiple pneumatic clamps ensure high clamping pressures on the piece.

  • Specs

    •3′ X 6′ Vertical Assembly Easel

    •40° Easel Angle

    •(4) Universal Clamping Cylinders & Manifold

    •Squaring Bar and Fence

    •2″ Cylinder Position Grid Pattern

    •3″ Bore Clamp Cylinder Housing

    •Heavy Duty Steel Frame

    •Perforated Steel Table

    •6 port Manifold with 1/4″ NPT Regulator/Gage

    •Adjustable pressure from 20 to 130 PSI

    •Foot Treadle

    Technical Data and Specifications:

    Work Height: 31″

    Footprint: 74″ x 30″

    Electrical: N/A

    Air: 80-100 PSI Shipping Weight: 529 LBS

    Shipping Dimensions: 77” X 39” X 24”

    Additional options:

    U300E05 – Additional AC-20 Universal Clamp Cylinder

    U37515 – Additional Manifold Assembly

    U300E16 – Additional Foot Treadle Assembly

    R450H – Horizontal Table
