PROSTOP LB | Accurate Technology | Digital Measuring & Control

  • Description

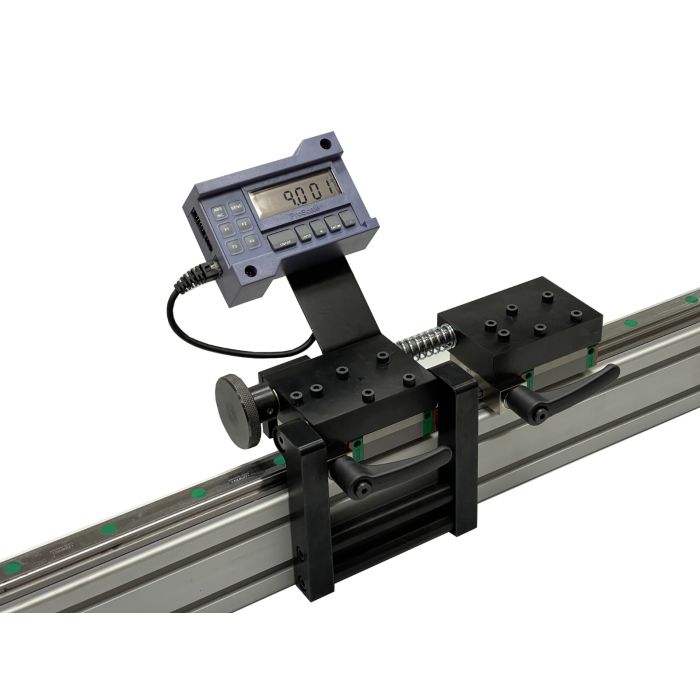

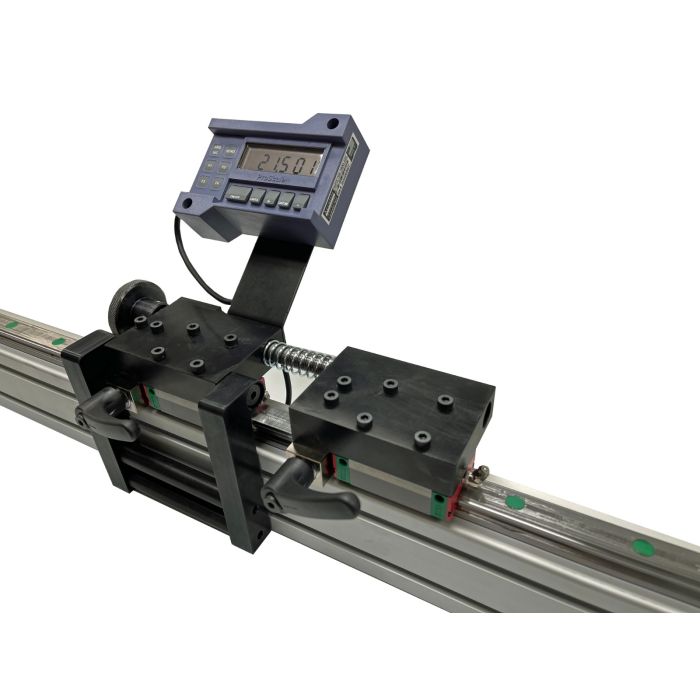

    ProStop LB is a complete digital stop and fence system for chop saws, radial arm saws, and miter saws. Can be used on nearly any existing table, conveyor, or machine. Also works on band saws, shears, sliding saws, and more. This system is similar to our Version 2 and Version 3 systems, but is built with a linear bearing for ultimate accuracy, rigidity, and repeatability. An selection of optional stop plates are also available that attach to the Flip Stop with 2 included bolts. These optional stop plates adapt the Flip Stop for a variety of uses such as gang cutting or for cutting very short products.

    ProStop systems use our Inductive Series II Measuring Technology for the utmost in performance and reliability in almost all working environments. Note: ProStop is not compatible with full stream cutting fluid contact. *Available in 24″,48″,72″,96″,120″and 144″ capacitys *Repeatable to .001 inch or 0.01mm.

    *Configurable for use on the left or right of the saw.

    *You can position your system in absolute mode, switch to incremental mode for repetitive cuts, and return to the absolute mode with no loss of measurement or accuracy.

    *Multiple stop assemblies may be installed on the same fence rail.

    *Front panel user programming with Zero, Plus & Minus and display Mode keys.

    *The Digital Readout displays Millimeters, Centimeters, Decimal inches or Fractions (16ths, 32nds, or 64ths).

    *1 CR123 Lithium lasts approximately 6-8 months

    *NOTE: ProStop is configured for RIGHT SIDE OF THE SAW installation by default. If you will use on the left side, please note this in SPECIAL INSTRUCTIONS box when placing order. If you forget, it is a 5 minute conversion on-site.

  • Specs

    Accuracy: +/- 003 inch (.08mm)

    Repeatability: +/- 001in (.01mm)

    Power: One CR123 Battery (included)

    Range vs. Length: The positioning range is shorter than overall length. Overall product length is 11 inches longer (allowing for the width of the sliding stop).
