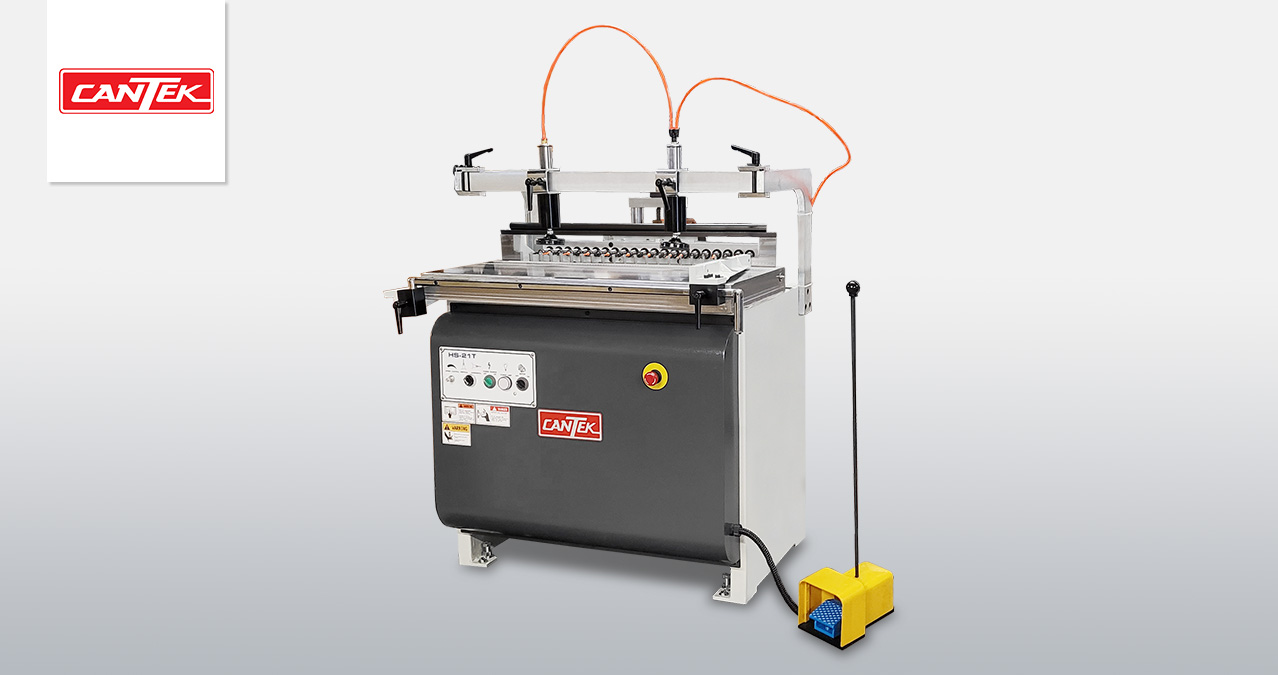

HS21T | Cantek | Boring Machines

  • Power:
    2.5HP 230V 1or3PH
  • Description

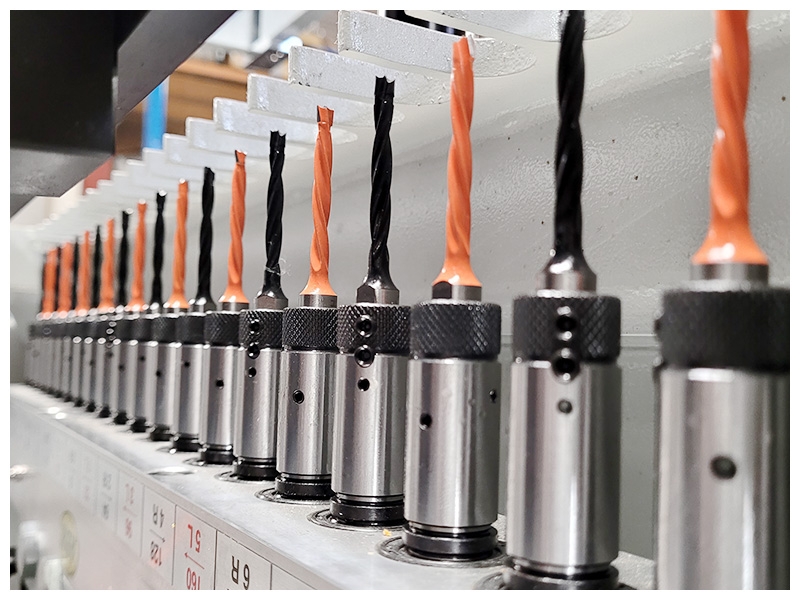

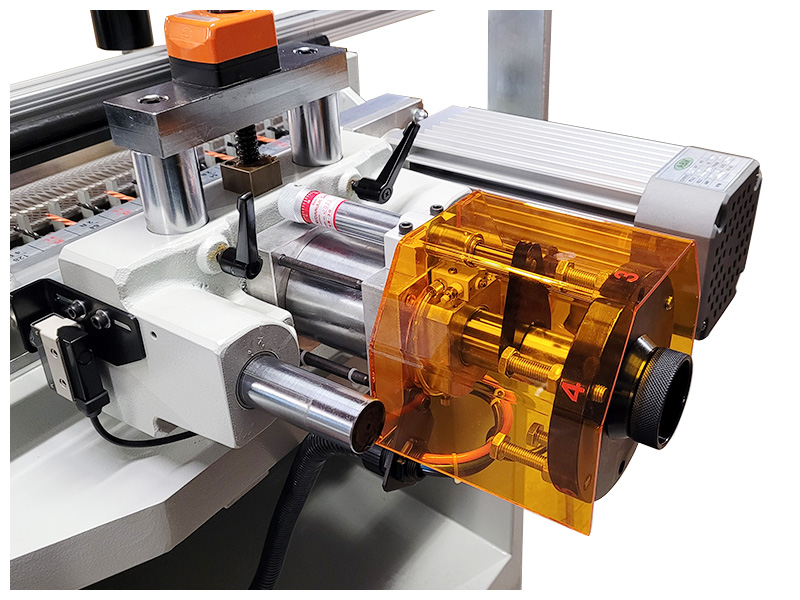

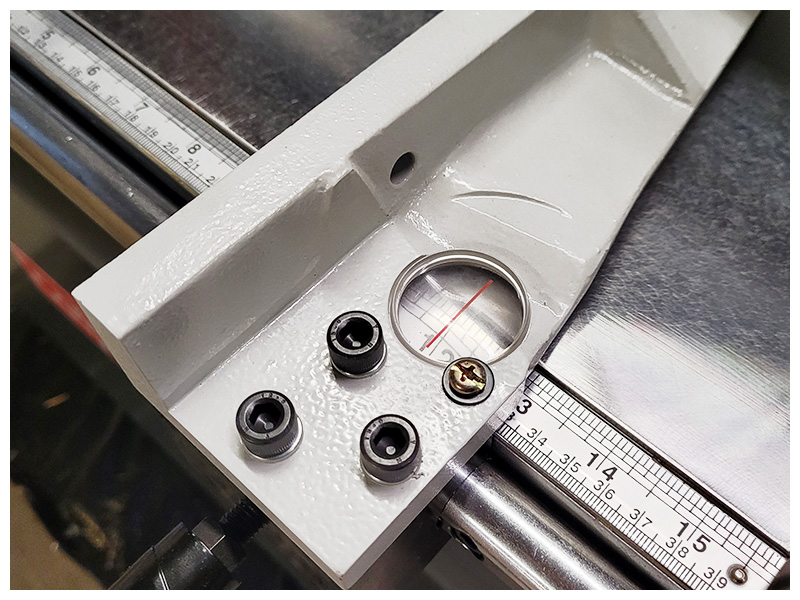

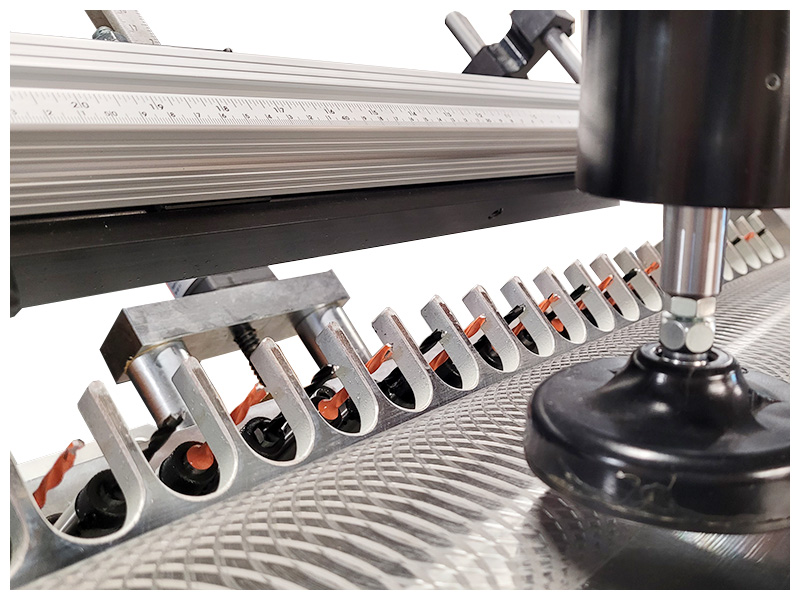

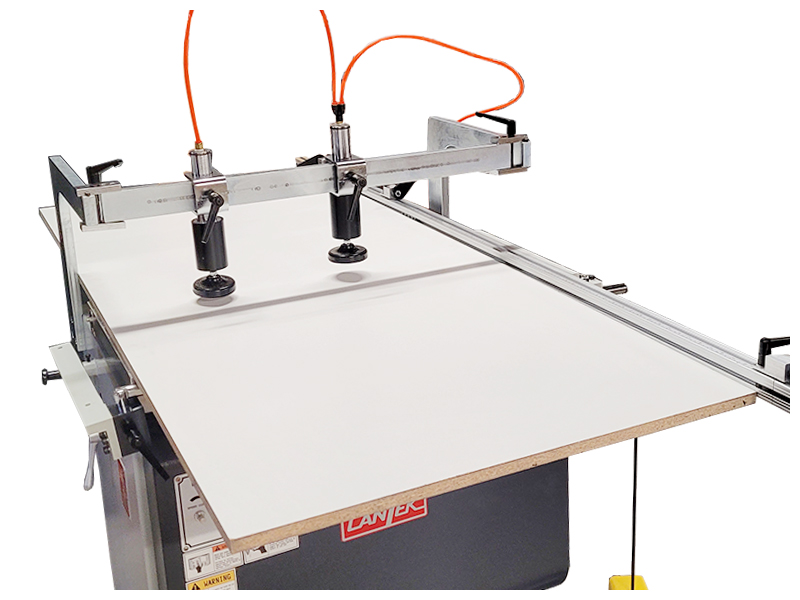

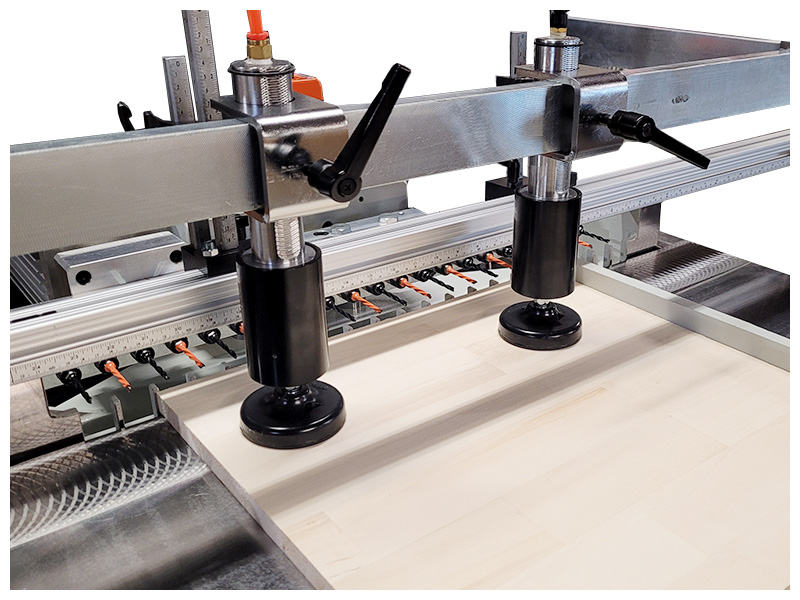

    The Cantek HS21T 21-Spindle Construction Boring Machine is a versatile construction drilling machine which is capable of line boring, end drilling, & construction drilling functions.  The HS21T has a robust fabricated steel construction with precision machined cast iron table.  The boring head is cycled pneumatically and runs on precision linear guide rails for smooth drilling cycles. A 2 ½ HP motor powers the boring head with 21 gear driven drill bits and operates at 2800 RPM.  Each spindle is equipped with a quick-change chuck to facilitate fast changeovers between drilling operations.  The machine comes equipped with fold away side fences which are positioned using a linear scale.  The 118” (3 meter) back fence is equipped with (4) flip tops which is ideal for positioning panels during line boring applications and more.  The boring head is effortlessly tilted from 0-90o by a pneumatic cylinder.  It can also be locked in any position between 0° and 90° for angle drilling operations.  Boring depth is quickly and precisely adjusted using a 6-position turret system.  Workpieces are held firmly in place by (2) pneumatic clamps.

  • Specs

    Distance between center|32mm

    Number of spindles|21

    Max. drilling depth|3” (75mm)

    Boring head adjustment|0°~90°

    Table size|34.33” x 19.3″ (872 x 490mm)

    Spindle speed|2800 RPM


    Electrics|230/3/60= 9 Full Load Amps|230/1/60 = 16.9 Full Load Amps

    Machine weight|770 lbs (350kgs)

    Shipping weight|946 lbs (430kgs)

    Machine dimensions|38.11”x32 ¼” x 48”

    Shipping dimensions|45”x35”x54”
  • Download

Videos of Construction Boring Machine

Cantek HS21T 21-Spindle Construction Drilling Machine
