Description

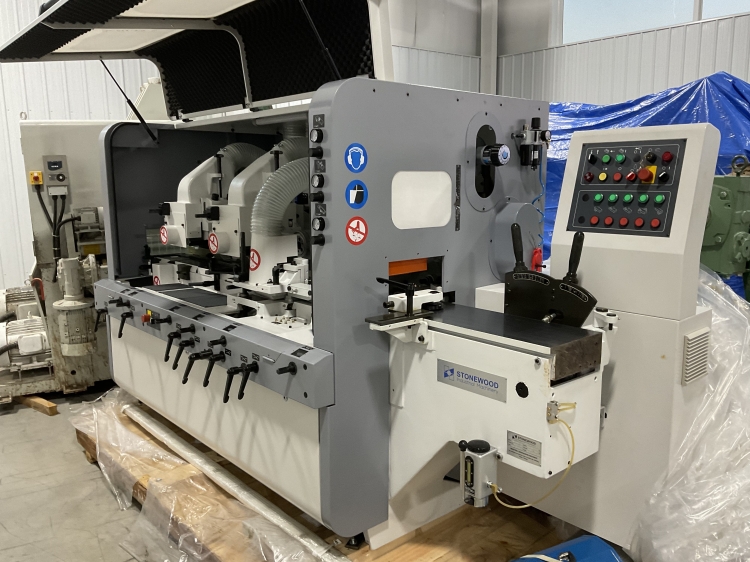

The Economical Choice for Dependable Moulding Performance! Many millwork owners and operators have searched for a 4-sided moulder that is economically priced without sacrificing machining efficiency and quality. Stonewood Industrial Machinery’s new GS series 4 side moulder is the machine that meets these objectives. The massive machine frame is manufactured from cast iron, scientifically rib reinforced to provide maximum rigidity and stability. All control levers for the spindle are located on the front of the machine for convenient adjustment. Variable feed speed makes this machine ideal for cutting all types of wood material. A side front pressure plate on the left vertical spindle assures smooth feeding for short or narrow workpieces. The entire machine is designed to integrate many features normally expected only from bigger machines. The Stonewood GS series is available in 5 and 6 head configurations.
-
Specs
GS-523/GS-623 CAPACITY
Planing width|10-230MM/10-230MM
Planing thickness|7-125MM/7-125MM
Min. working length|230MM/230MM
Feed speed|6-25M/MIN/6-25M/MIN
SPINDLE
Spindle speed|6000RPM/6000RPM
Spindle diameter|Φ40MM/Φ40MM
Vertical spindle adjustment (axial)|30MM/30MM
Horizontal spindle adjustment (axial)|20MM/20MM
CUTTER DIAMETER 1st bottom spindle|Φ100-150MM/Φ100-150MM
Vertical spindle|Φ100-180MM/Φ100-180MM Topspindle|Φ100-180MM/Φ100-180MM
Last bottom spindle|Φ100-205MM/Φ100-205MM
MOTOR
1st bottom spindle|7.5HP/7.5HP
Vertical spindle (1 motor)|10HP/15HP
Top spindle|7.5HP/7.5HP
Last bottom spindle|7.5HP/7.5HP
Feeding motor|3HP/5HP
Elevation motor|1/3HP/1/3HP
OTHERS
Table adjustment|12MM/12MM
Infeed table length|2000MM/2000MM
Machine dimensions(LxWxH)|3345x1300x1710MM/3895x1300x1710MM
Packing dimensions (LxWxH)|2320x1450x1960MM/3030x1450x1960MM
Net weight|2800KGS/3000KGS -
