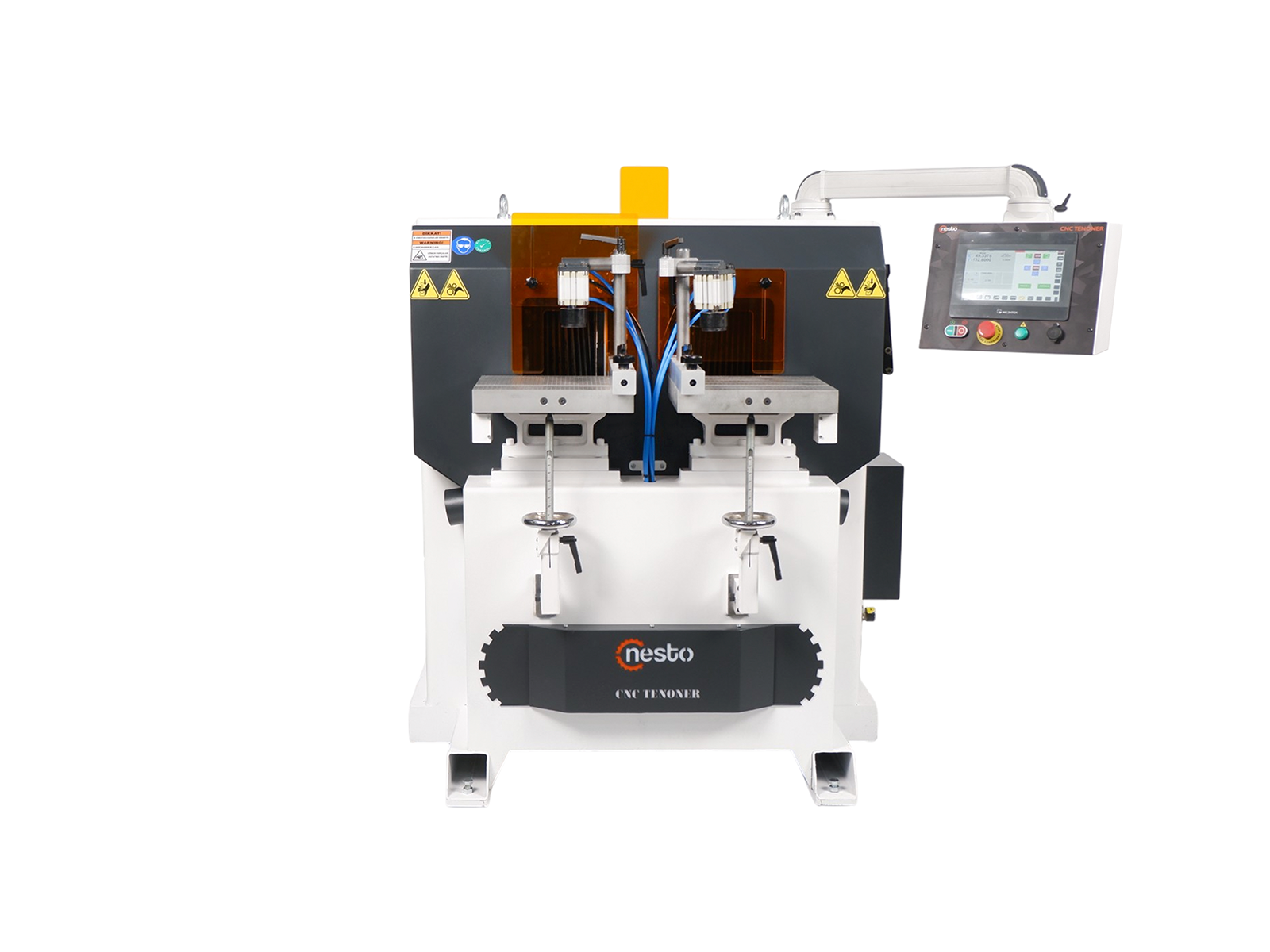

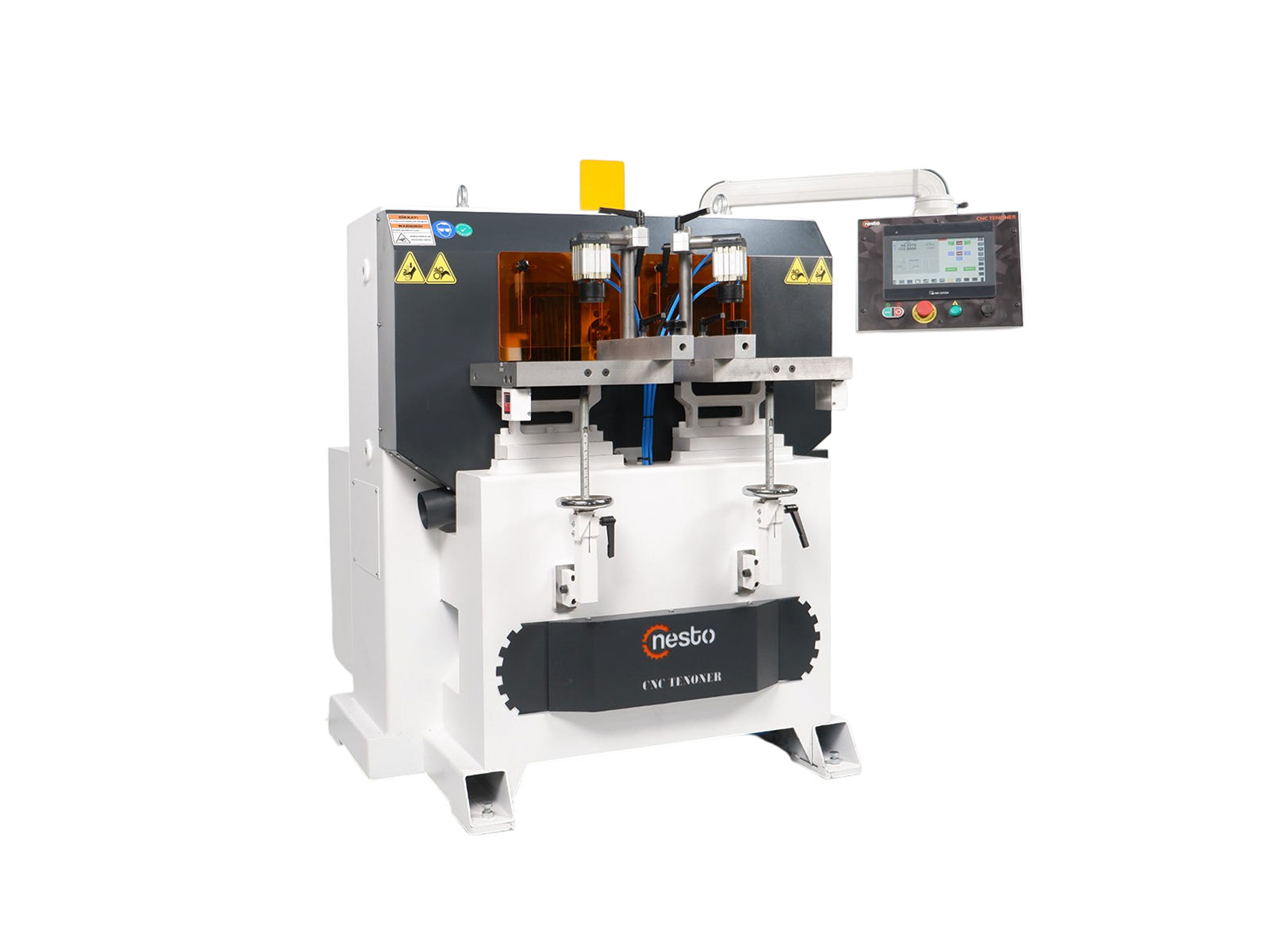

    CNC male-tenon production for solid-wood joints

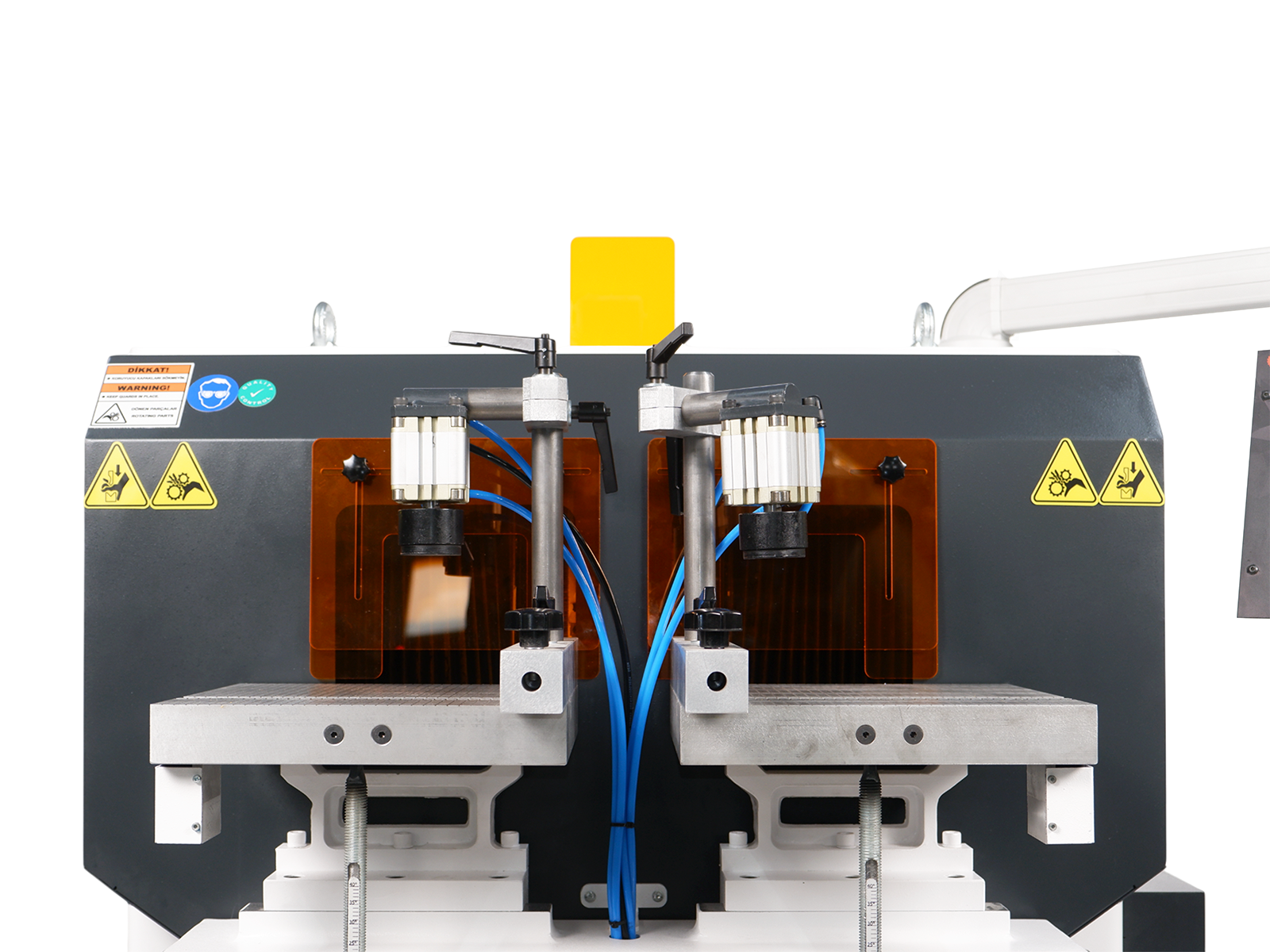

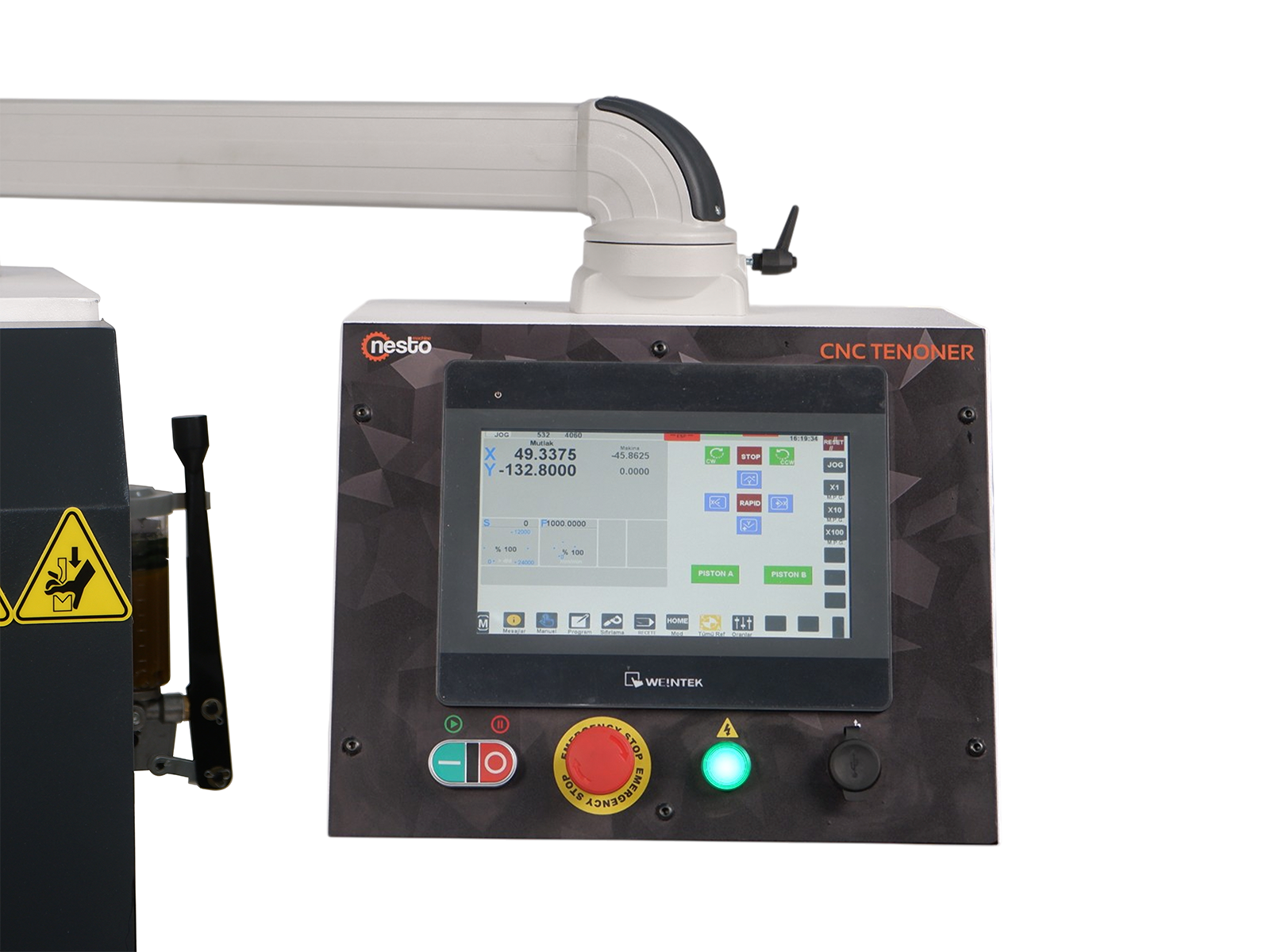

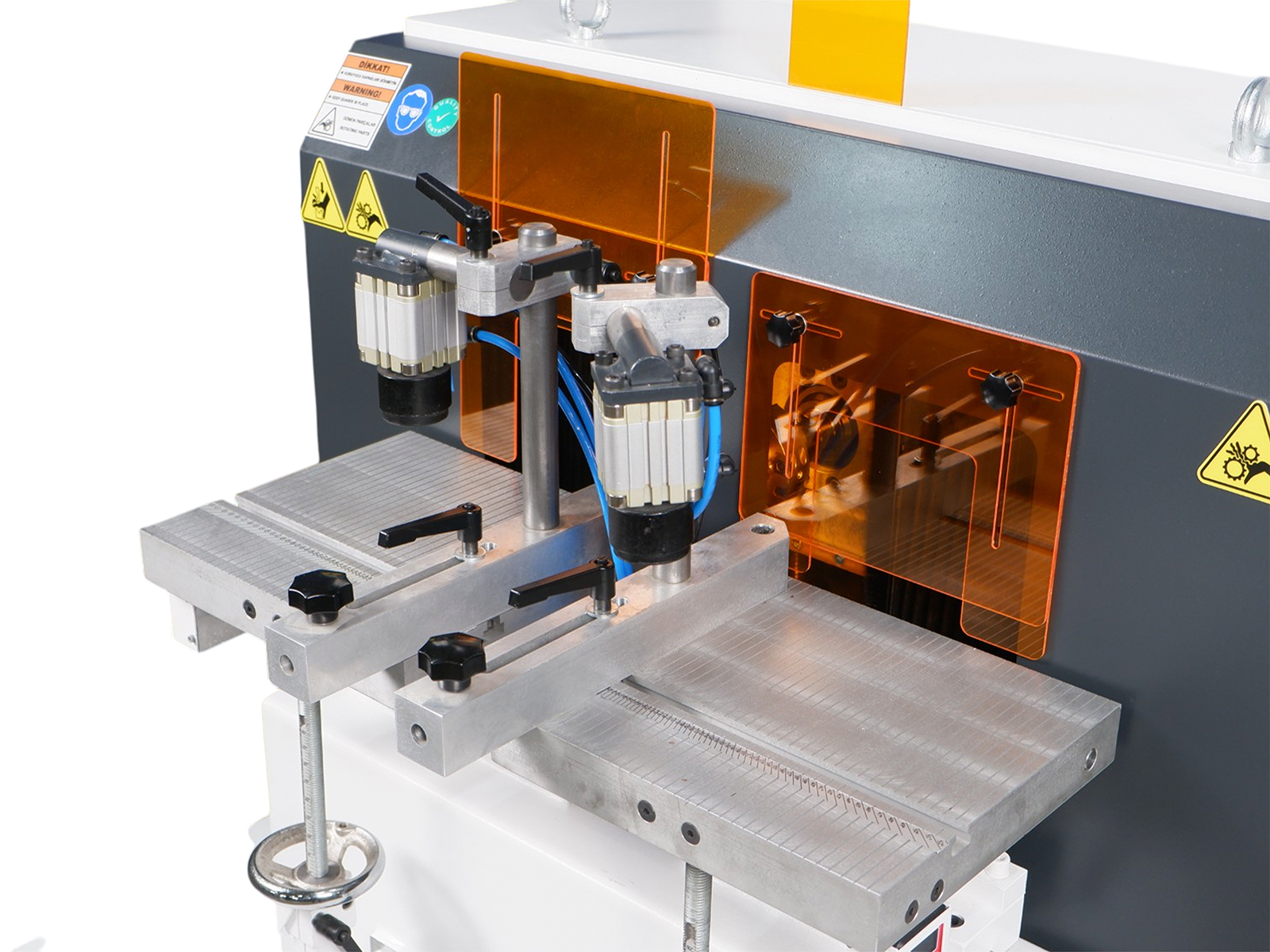

    The CNC Tenoner forms the projecting male side of mortise-and-tenon joints for furniture and joinery parts. Controlled geometry, two worktables and stored part programs support repeatable production of rails, frames, legs and similar solid-wood components.

    Technical Specifications

    SpecificationStandard machine
    Maximum straight cutting size130 × 100 mm5.12 × 3.94 in
    Maximum horizontal tenon length130 mm5.12 in
    Maximum vertical tenon length90 mm3.54 in
    Tenon depth range0–50 mm0.00–1.97 in
    Tenon angle range0–90°
    Reference production capacity700 tenons/hour
    Machine dimensions (L × W × H)1,230 × 1,220 × 1,520 mm48.43 × 48.03 × 59.84 in
    Machine weight700 kg
    Total installed power5 kW

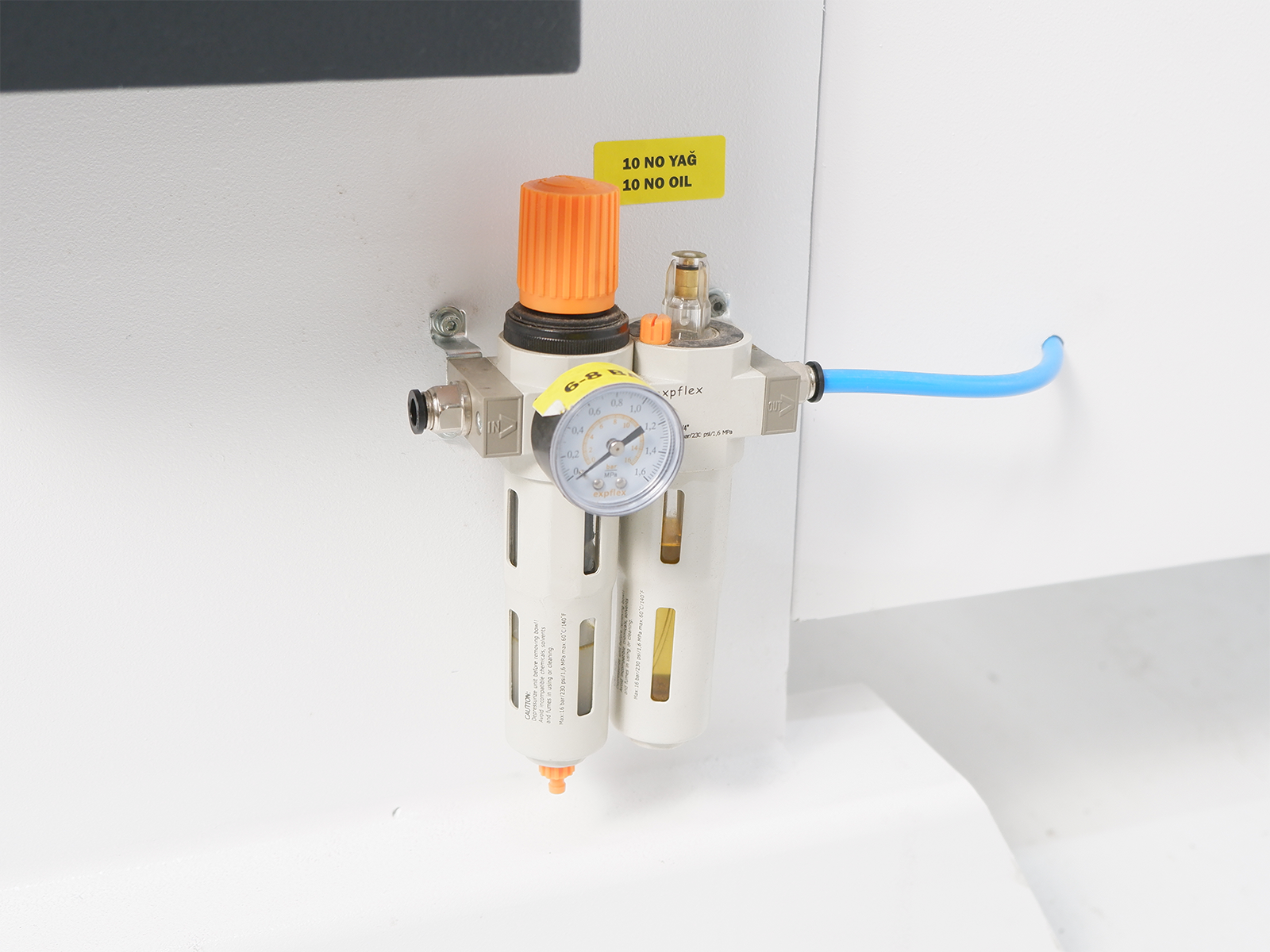

    Compressed-air requirement6 bar
