AF04 | Stonewood Industrial Machinery | Power Feeders

  • Power:
    1HP 220V 1or3PH
  • Description

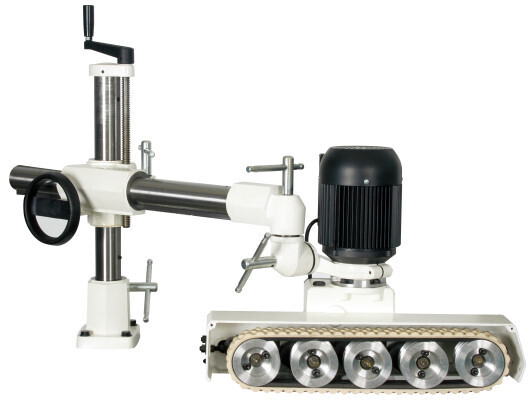

    The AF04 Track Feeder is specially designed to feed smaller parts that tend to wobble or chatter with standard 3 and 4 roller feeders. It can be used on a variety of woodworking machines, the most common of which are shapers and table saws.  *Heavy Duty Model

    *Made for Feeding Short Workpieces

    *The belts are designed to feed shorter parts while maintaining secure hold-down. Rollers are all spring loaded to maintain a constant pressure, with roller suspension up to 20mm (3/4″).

    *By simply rearranging the drive gears, the AF04 provides speed options and continuous feed speed. Reverse feed is available via a selection switch.

    *A continuous 1 horsepower motor provides the feed, ensuring that your feed rate is consistent and reliable. Actual feed rates are subject to blade sharpness, cutter rotational direction, and work piece characteristics.

    *The belts that come with the AF04 can be replaced when needed. *Replacement belts can be purchased separately, with replacement times dependent on rate of use and work piece material.

    *The AF04 Track Feeder comes equipped with sturdy cast-iron universal stand, ensuring more flexibility and compatibility for a wide variety of applications.

  • Specs

    Horsepower & Rotation|1 HP (0.75 KW), 1 or 3 phase; Forward / Reverse

    Range of Speeds|(13/26/33/66 FPM)

    Optional Speeds (w/extra gear set)| (10/20/46/92 FPM)

    Belts**|1118 x 12.7 mm x 3 pcs

    (44” x 1/2” x 3 pcs) / Synthetic Rubber

    Rollers Suspension|20mm (3/4”)

    Net Weight|30 + 34 kg (66 + 75 lb)

    Gross Weight|32 + 36 kg (70 + 79 lb)

    Carton for Body|770 x 560 x 290 mm (30-3/8″ x 22″ x 11-1/2″)

    Carton for Stand|770 x 320 x 290 mm (30-3/8″ x 12-5/8″ x 11-1/2″)
