Description

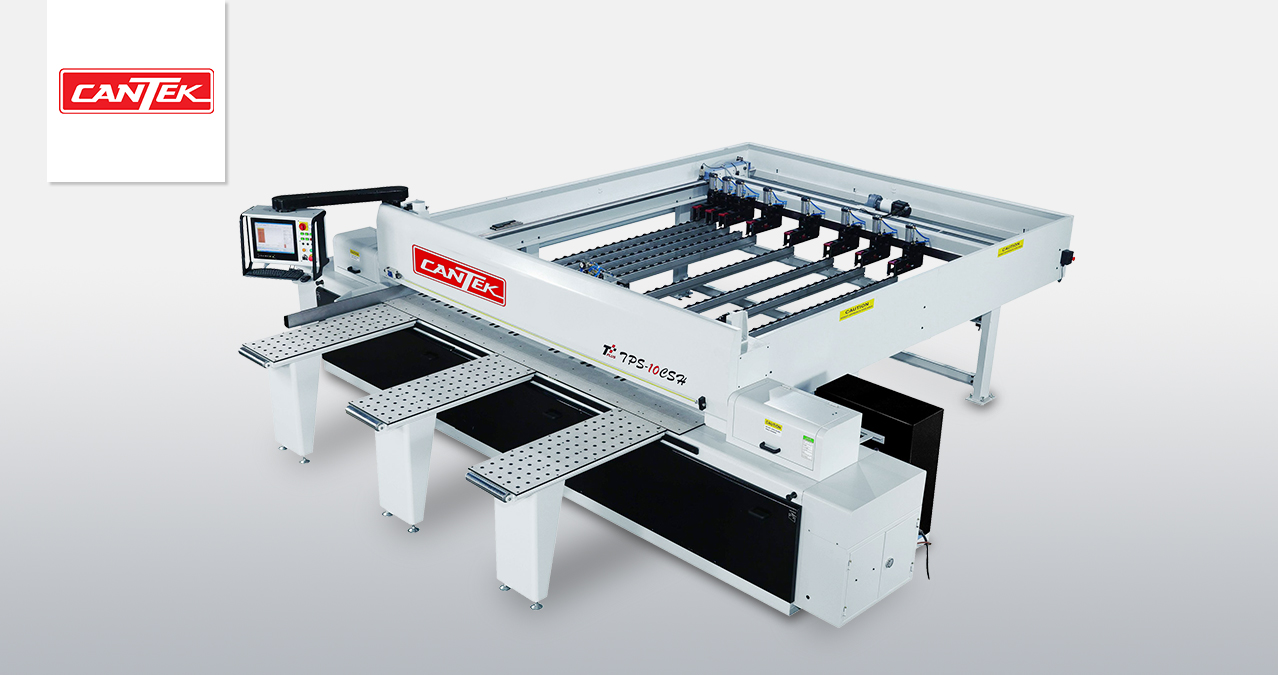

The Cantek TPS-SH Series Beam Panel Saws are a production panel sizing solution for the small to mid-sized manufacturer. The industrial machine design combined with user friendly PC control interface ensure accurately dimensions sheet components with a chip free finish. Available in 8’, 10’, 12’ with front loading. The powerful 18HP saw motor and carriage runs on two round hardened guide rails on (8) copper wheels. The saw carriage cutting speed is variably adjusted according to your cutting height requirement. A double side aligner ensures panels are squarely cut during crosscutting operations. The onboard PC control allows the operator to program right at the machine or import a cutting list which can be run though the standard optimization software.
-
Specs
MODEL: TPS-8SH|TPS-10SH|TPS-12SH
CAPACITY
Max. cutting length|2600|3200 mm|3800mm
Max. cutting width (depth)|2600mm / 3200 mm / 3800mm
Max. cutting height|100 mm
Max. gripper opening|110 mm
Max. saw blade projection|105 mm
MAIN SAWBLADE
Main sawblade motor|18HP (11.2KW)
Main sawblade diameter|Ø405 mm
Spindle diameter|Ø1” (25.4mm)
Main sawblade speed|4,400 R.P.M.
SCORING SAWBLADE
Scoring sawblade diameter|Ø180 mm
Spindle diameter|Ø1” (25.4mm)
Scoring sawblade speed|7,000 R.P.M.
SAW CARRIAGE
Saw carriage drive motor|2HP with inverter (1.5KW)
Forward Speed (adjustable)|1~45 M/min
Return Speed|70 M/min
PUSHER
Pusher system drive motor|1KW
Pusher system pull speed|1~70 M/min
Pusher system push speed|1~60 M/min
OTHERS
High pressure blower motor|3HP (2.2KW)
Side aligner motor|90W
Working air pressure|5~6 kg/cm2
Table height from floor|850 mm
Grippers:|7 units|8 units|9 units
Floating table 1520mm x 500mm|3 units|3 units|4 units
Voltage|220V / 440V / 575V
Net weight|4200Kg/4500kg/4700kg
Gross weight|4700Kg/5100kg/5300kg
