Description

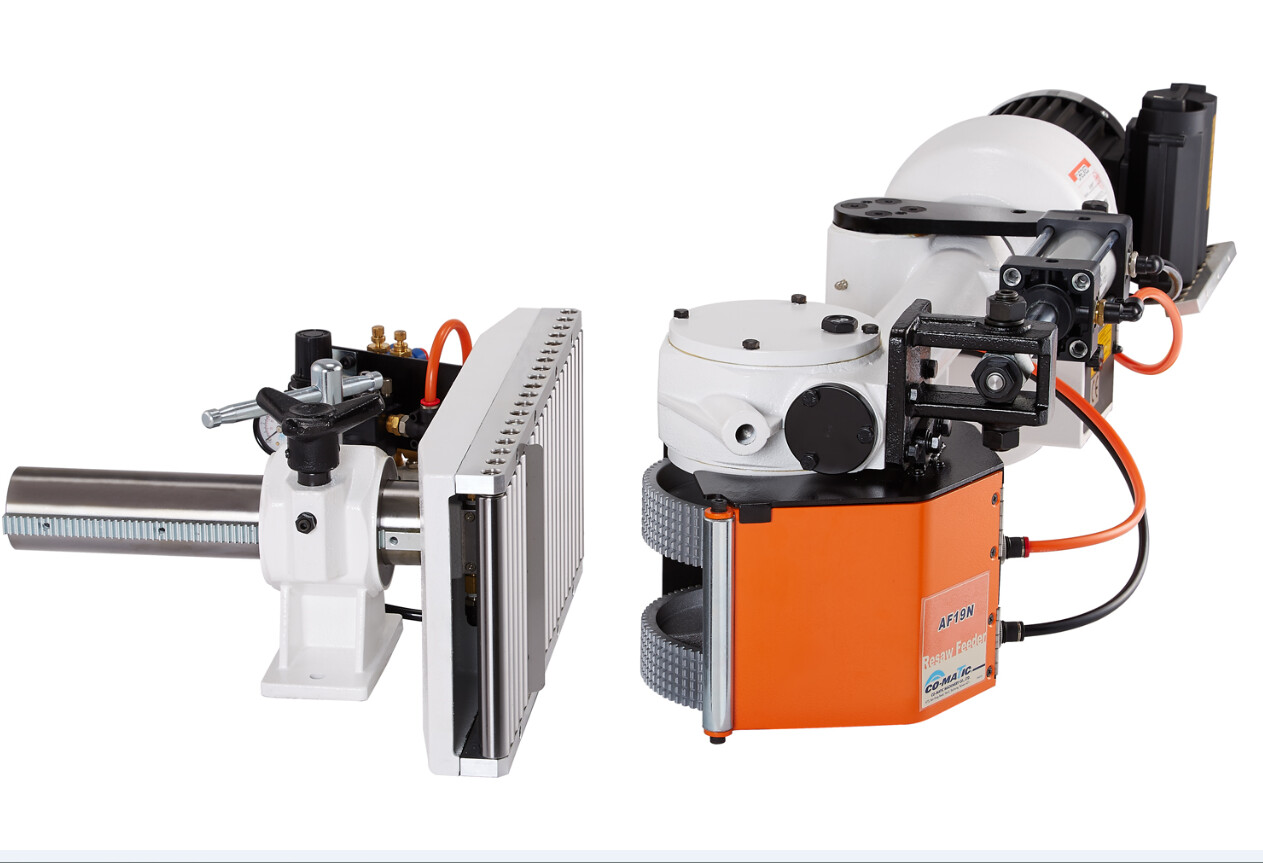

Built specifically for resawing on a bandsaw The Co-Matic AF19N Pneumatic Bandsaw/Resaw Feeder is built for quick, safe, and even feeding through a bandsaw. This feeder automatically adjusts to the thickness of the workpiece thanks to the pneumatic system where the spring loaded version has to be manually adjusted.
-
Specs
Your bandsaw table needs the following amount of space to mount the feeder on the front right (outfeed) corner of the table without adding an extension bracket:
1. 9.3″ is required from the tip of the blade to the end of the table on the outfeed side.
2. 11.25″ is required from the tip of the blade to the end of the table (opposite the fence).
This feeder can fit on smaller bandsaw tables, but may require an extension off the side of your bandsaw table where the feeder is mounted.
1/2 HP motor
10 Speeds ranging from 4 – 60 fpm
2 Serrated Rollers: 6-7/8″ X 1-9/16″
Pneumatic sensor automatically adjusts to width of workpiece
Scaled roller fence included
Height (w/Handle)|12-1/4″
Width|13″
Length Fully Extended|43″
Net Weight|176 lbs
Gross Weight|209 lbs
Max. Height of Rollers|5-1/2″
Swing Rotation|30°
Max. Roller-Blade Clearance|8-1/4″
Fence Size|15-3/4″L x 7-7/8″
Max. Fence-Blade Clearance|8-1/4″
