AF19 | Comatic | Power Feeders

  • Power:
    220V 1PH or 230V 3PH
  • Description

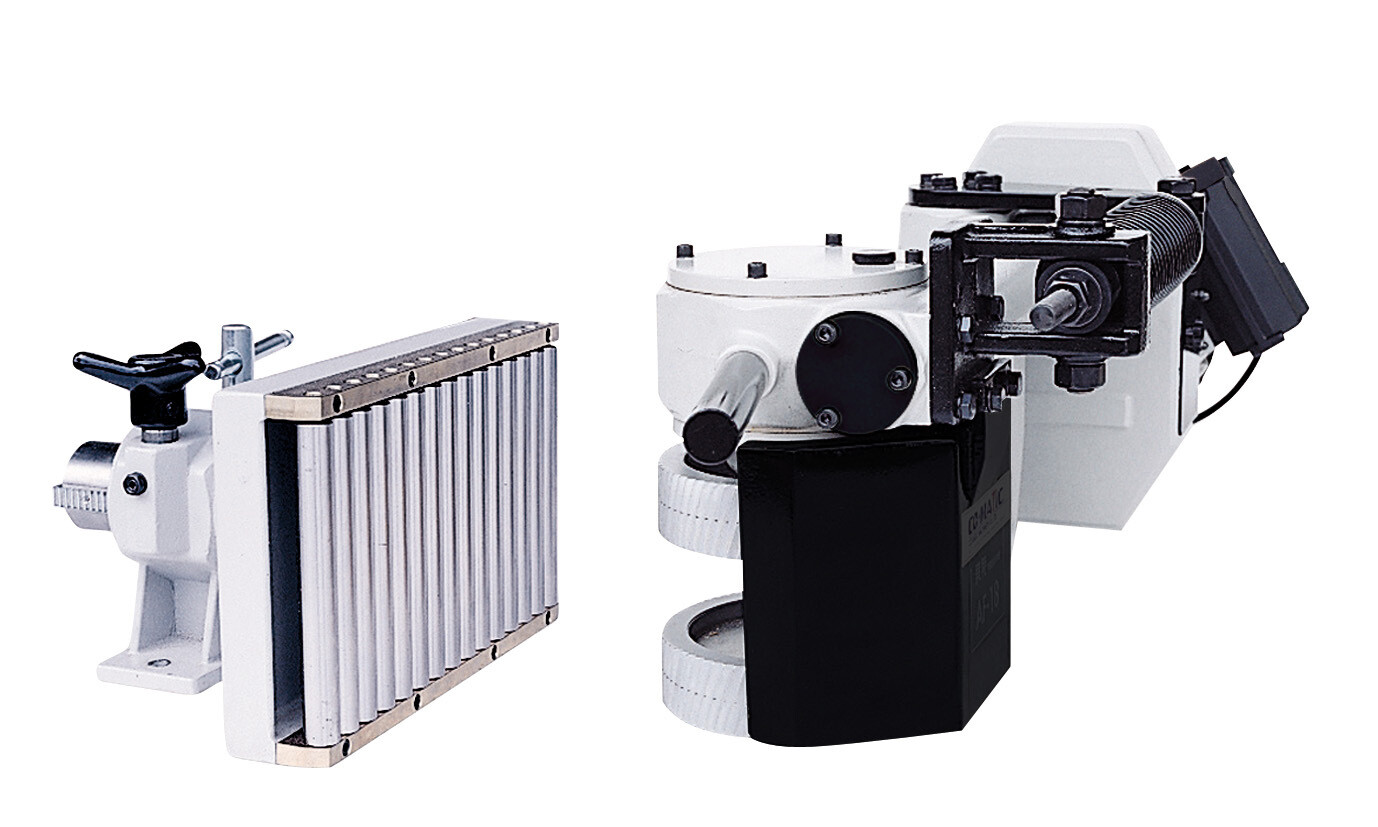

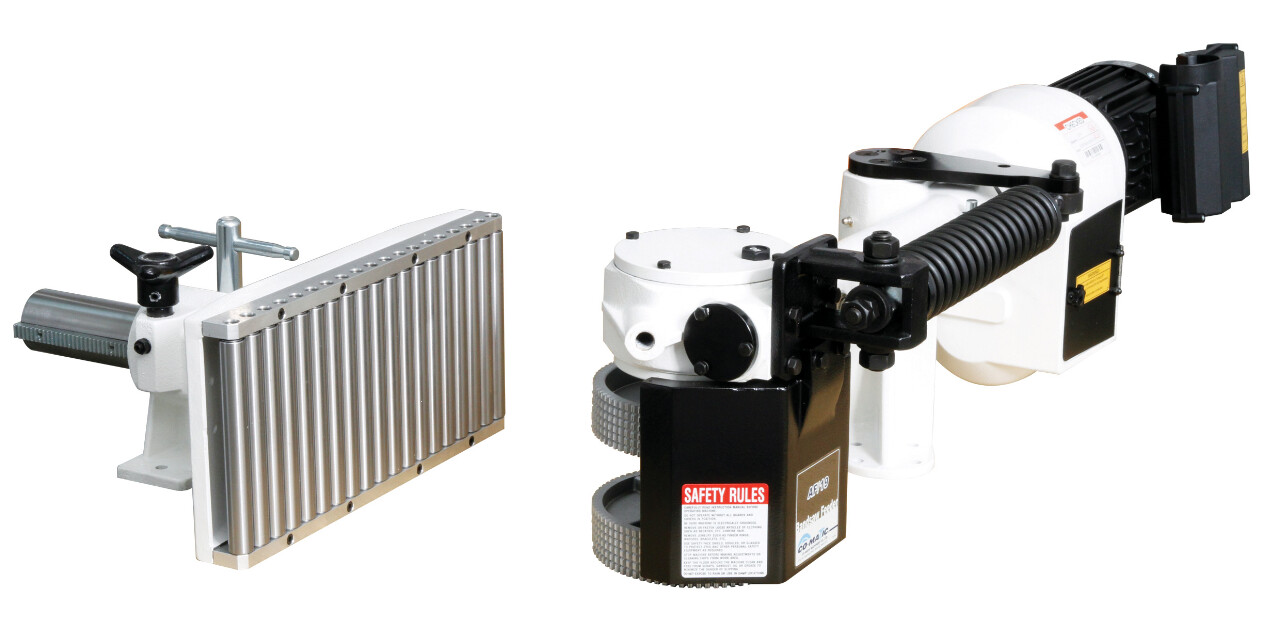

    Heavy-Duty Power Feeder Designed for use on Bandsaws The Co-Matic AF19 Bandsaw Power Feeder is spring loaded and includes a roller fence for smooth and even feeding through a bandsaw and is capable of heavy-duty workloads. The spring tension is adjustable.

    Optional: 180 x 40mm RU18 Polyurethane Roller Assembly – Recommended if the face of the workpiece where the rollers make contact is finished and cannot have any marring.

  • Specs

    1/2 HP motor

    10 Speeds ranging from 4 – 60 fpm

    2 Serrated Rollers: 6-7/8″ X 1-9/16″

    Manual Adjustment (Spring-loaded) for Various Thicknesses

    Scaled Roller Fence included

    Height (w/Handle)|12-1/4″


    Length Fully Extended|43″

    Net Weight|176 lbs

    Gross Weight|254 lbs

    Max. Height of Rollers|5-1/2″

    Swing Rotation|30°

    Max. Roller-Blade Clearance|8-1/4″

    Fence Size|15-3/4″L x 7-7/8″

    Max. Fence-Blade Clearance|8-1/4″

Videos of Bandsaw power feeder

Co Matic AF 19 Bandsaw Feeder
