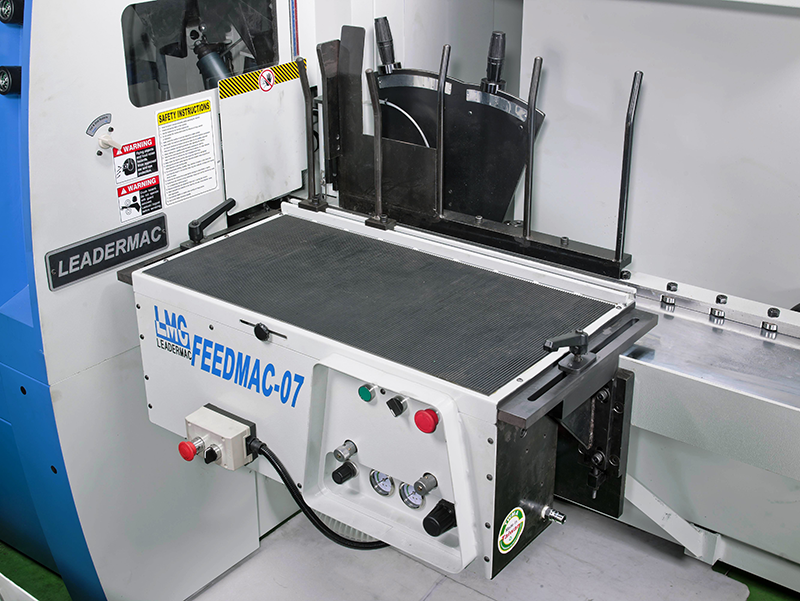

FEEDMAC 07 | Leadermac | Moulders

  • Description


    • Standard Version with: insertion mechanism attached to the infeed table (i.e. using moulder infeed table)

    • Infinitely adjustable in widths from 1” – 9.5”,

    • Special Feed Shoe which is pneumatically pressured against the piece of wood to be fed in is mounted on 2 HD shafts that are parallel to the moulder Infeed Table – The shoe is pressed against the material and then is pushed by Air Cylinder towards the Moulder or other Infeed

    • Pressure and Infeed Speed are regulated by pneumatic cylinders and controlled by Regulators & Pressure Gauges,

    • Loading magazine is approx. 20” high, easily adjustable in width according to the workpieces being run

    • Electrics are 230/460 or 575/3/60 including control to allow connection to moulder infeed


    Work Piece Sizes:


    Length from 8” – 5 ft**

    Width

    from 1” – 9.5” (12” optional)

    Thickness from .375” – 5”

    **Note: This machine is designed to handle lumber up to 5’ in length. Lumber condition and/or Green lumber may Limit the max. length that can be handled. Stack height in the hopper may have to be reduced to accommodate for various product conditions and longer lengths.


    – Also shorter material can be fed but it will have to butt feed
