Description

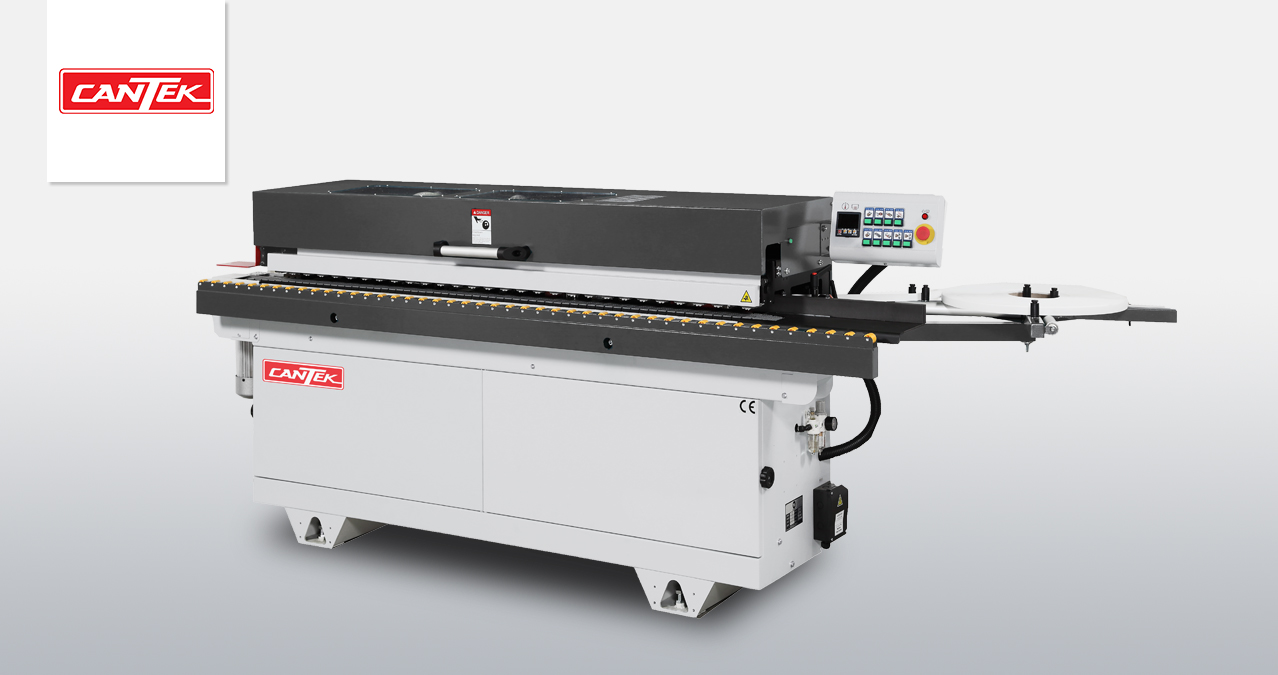

The Cantek MX350M Automatic Edgebander is an entry level edgebander with pre-milling that is the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX350M can output high quality edges on cabinet parts and more. The pre-milling diamond cutterheads machine the panel just prior to applying the glue to ensure optimum edge quality prior to applying the edge tape. Additionally, the machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.
-
Specs
Feeding speed|23 FPM
Panel thickness|0.472~1.77″
Edge thickness|0.0158”~0.118”|0.4 ~ 3 mm
Minimum panel width|3.54″
Minimum panel length|8 3/4″
Working table height|33.7″
Extraction connection|4”
Air consumption|8.83 CFM
Premilling spindle speed|9000 RPM
Top & bottom trimmer RPM|10500 RPM
Max. machine dimensions (LxWXH)|126” x 47 ¼” x 47 ¼”
Machine weight|1162 lbs
Shipping dimensions(LxWxH)|111”x28.4”x52”
Shipping weight|1452 lbs
Electrical requirements|230/1/60 = 35 amps| 230/3/60 = 19 amps WORKING UNITS: PRE-MILLING

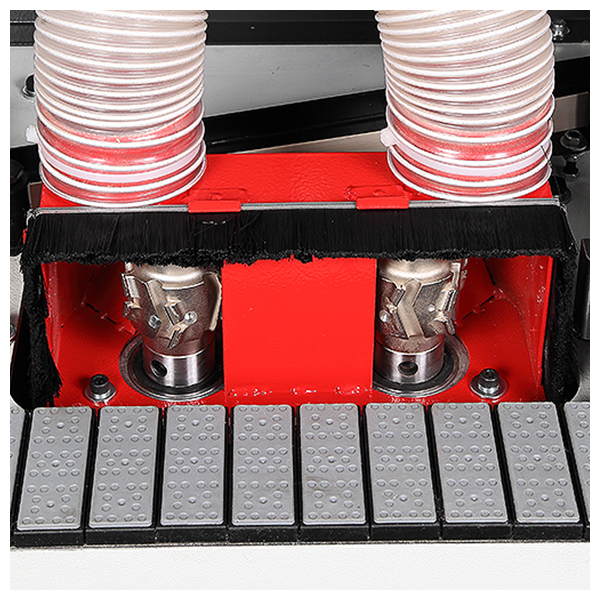

Pre-milling unit with (2) counter rotating diamond cutterheads for precise edge quality.

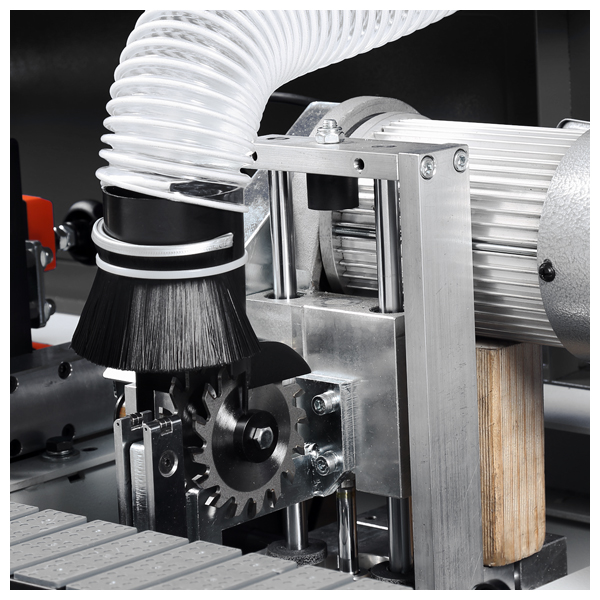

END TRIM
8800 RPM dual saw blade (80mm / 3.15″) end trimming unit

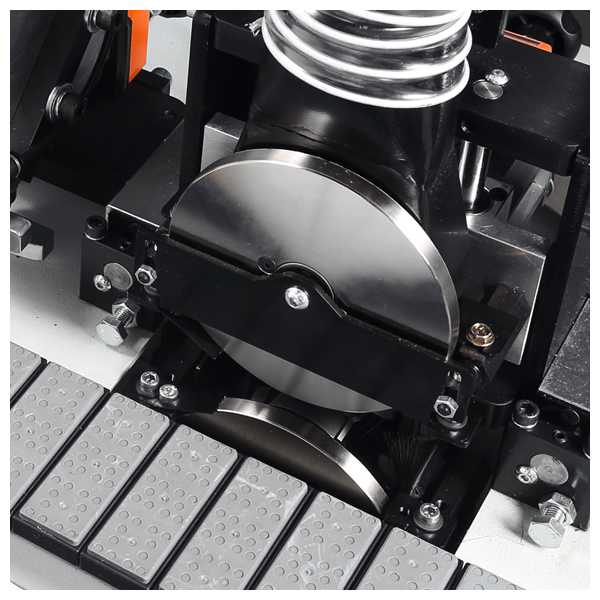

TOP & BOTTOM TRIM
10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming

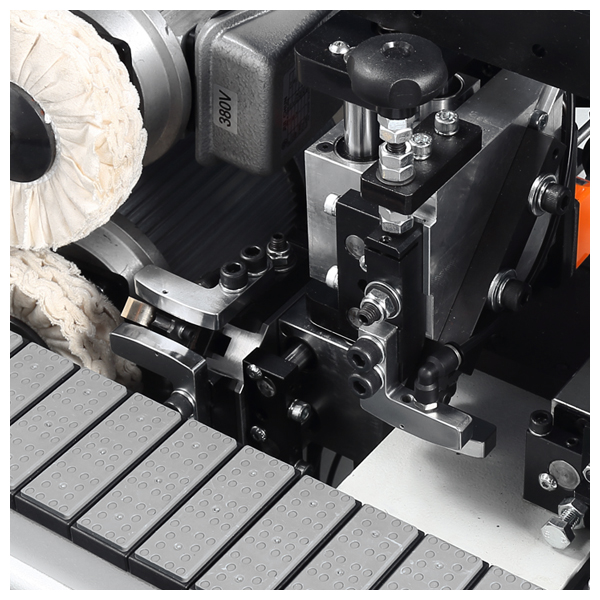

RADIUS SCRAPING
Radius scraper with 2mm radius knives can be easily excluded when not required
BUFFING
2800 RPM top & bottom buffing units to polish the machined edge MOTOR POWER: Feed motor|1 HP
Pre-milling motor|2 HP
End trim motor|1/3 HP
Top & bottom trimming motor|¾ HP
Buffing motor (1 phase)|0.16 HP x 2
Buffing motor (3 phase)|¼ HP x 2
Heated infeed fence|½ HP
Glue pot|1 ¾ HP
Total connected power|8 HP -
