MX340 | Cantek | Edgebanders

  • Power:
    230V 3PH 7.4HP 30amps
  • Description

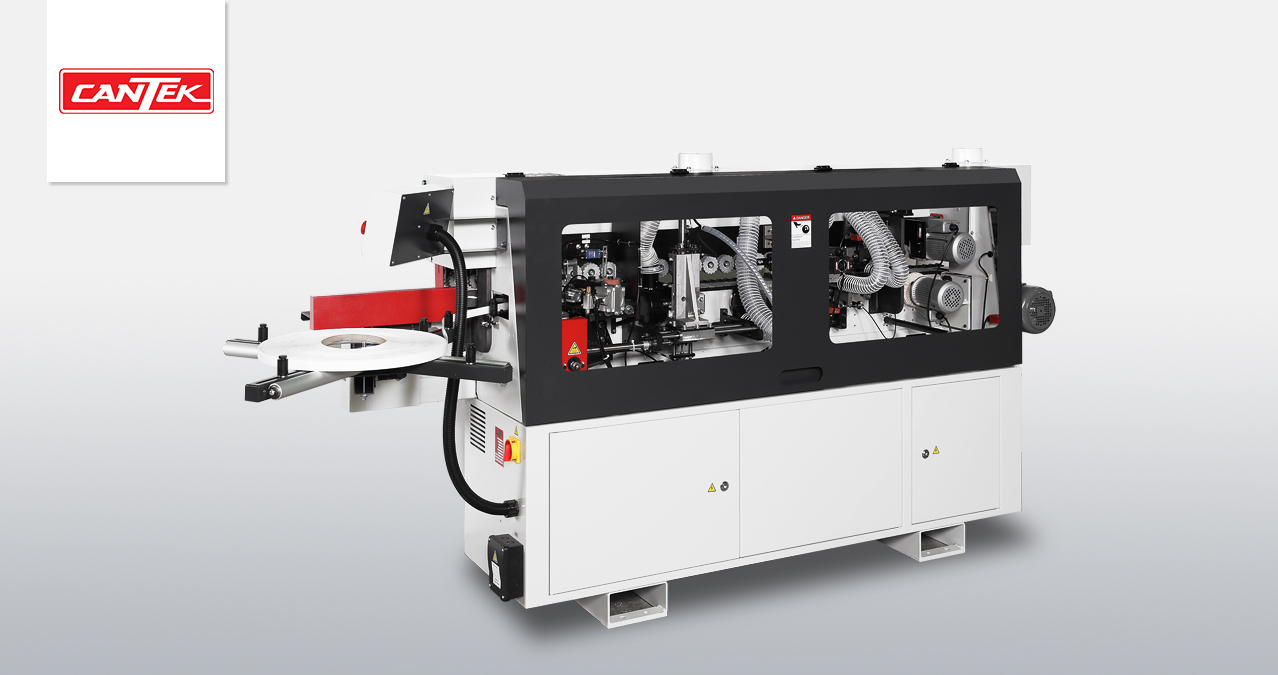

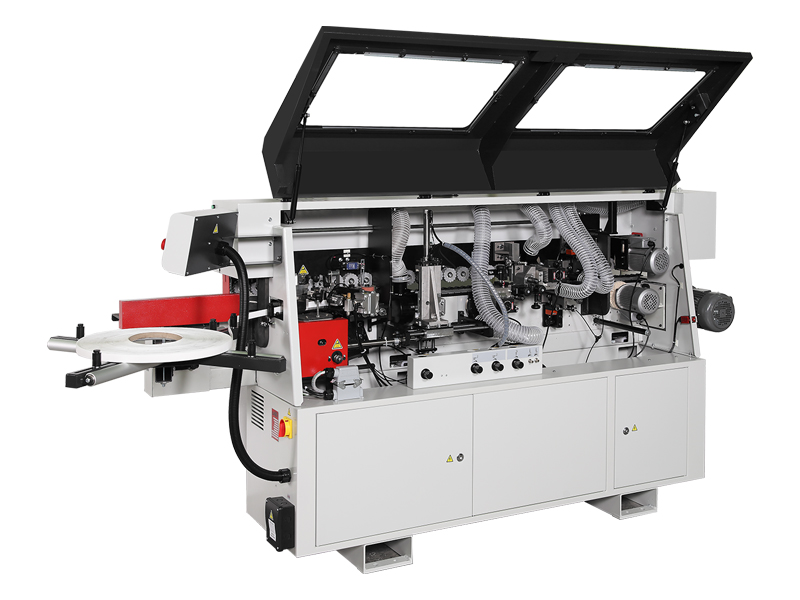

    The Cantek MX340 Automatic Edgebander is a compact edgebander capable of applying up to 3mm thick edge tape on cabinet parts and more.  It comes equipped with high frequency motors on both the end trim and top & bottom trim.  In addition it is equipped with PVC radius scraping and buffing units.  It’s compact design and affordable price point make it the ideal edge banding solution for the small cabinet shop who does not require pre-milling.

  • Specs

    Feeding speed|29 FPM

    Panel thickness|0.315”~1.77”

    Edge thickness|0.0158”~0.118”|0.4 ~ 3 mm

    Min. panel width|4”

    Min. panel length|6.7″

    Working table height|33.5″

    Dust collection outlet|Ø 5” x 2

    Total connected power|7.4 HP

    Machine dimensions (LxWxH)|116” x 44” x 55”

    Machine weight|1144 lbs

    Shipping dimensions (LxWxH)|89” x 28 ½” x 65 ¾”

    Shipping weight|1294 lbs

    Electrical requirement|230/3/60: 30 amps|230/1/60: 37 amps WORKING UNITS: END TRIM

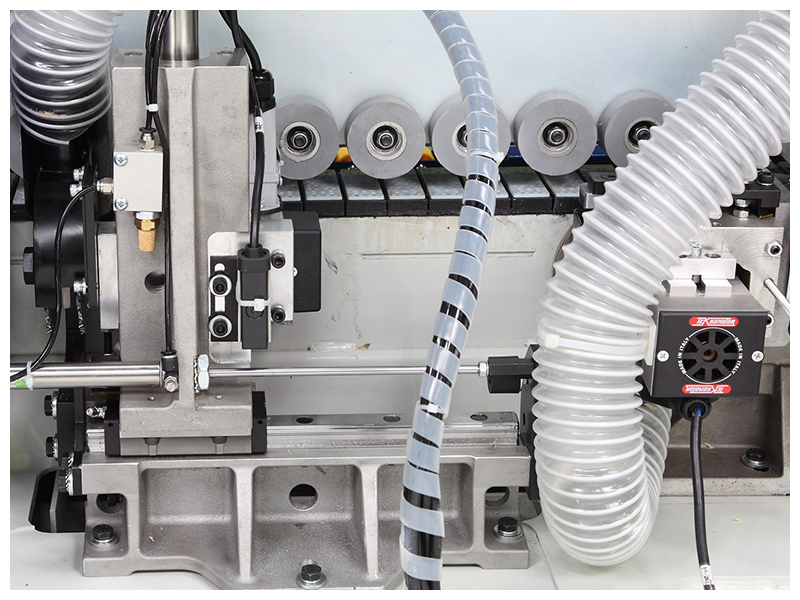

    High frequency 12000 RPM end trimming unit, with Ø100mm (4”) TC-Saw blades

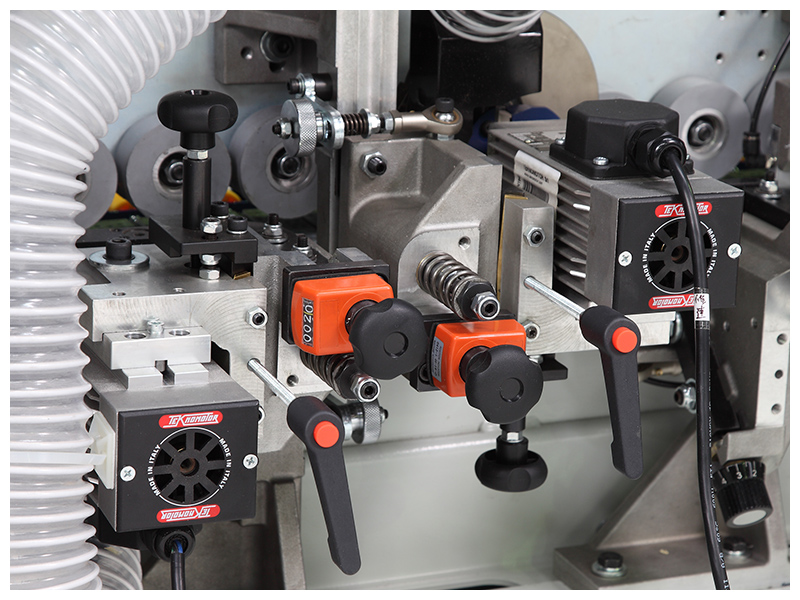

    TOP & BOTTOM TRIM

    High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming

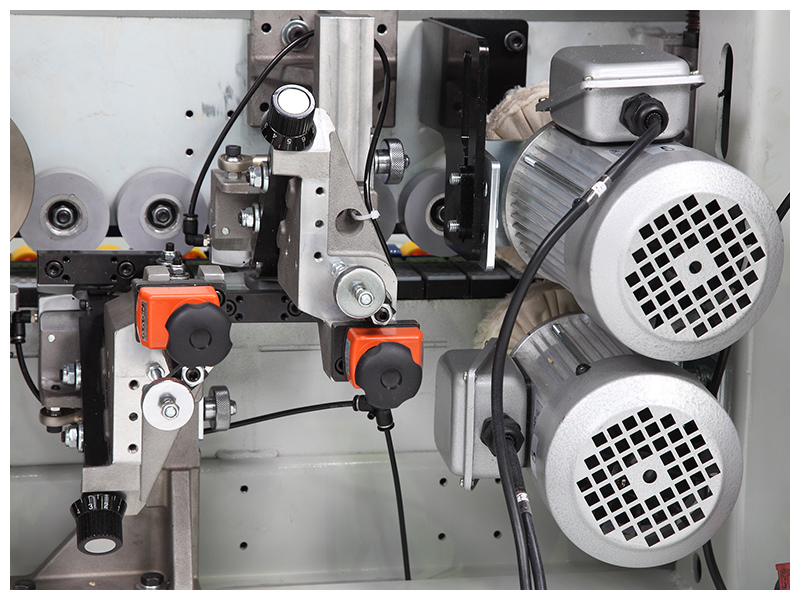

    RADIUS SCRAPING

    Radius scraper with 2mm radius

    BUFFING

    3000 RPM top & bottom buffing units to polish the machined edge MOTOR POWER: Feeding motor|1 HP

    Glue spindle motor|¼ HP

    Front/rear trimming motor|0.3 HP

    Upper trimming motor|½ HP

    Lower trimming motor|½ HP

    Upper buffing motor|0.16 H

    Lower buffing motor|0.16 HP

    Pre-heating|½ HP

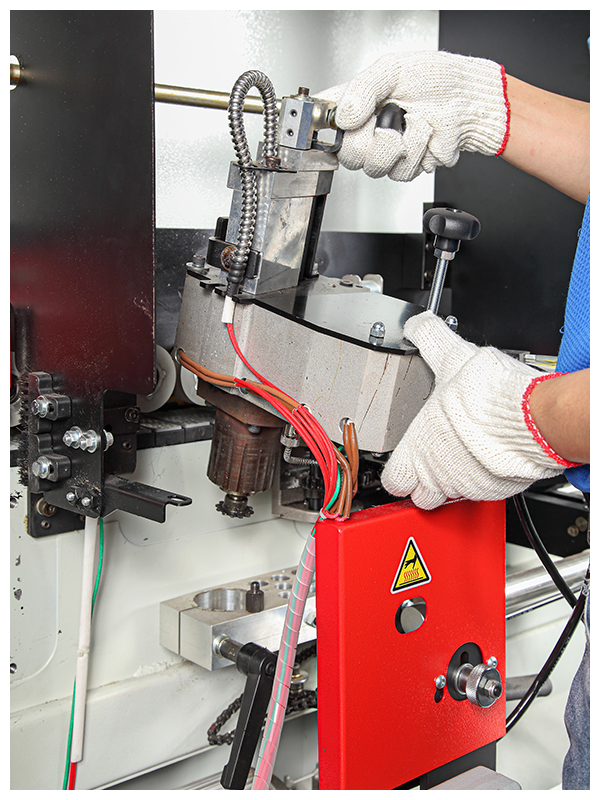

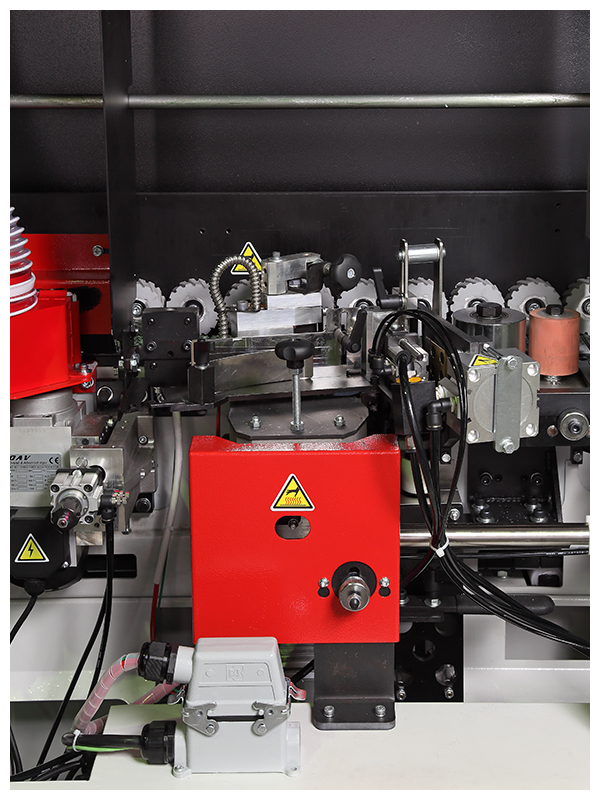

    Glue pot|1 ¾ HP
