MX350 | Cantek | Edgebanders

  • Power:
    230V 3PH 10HP 40AMPS
  • Description

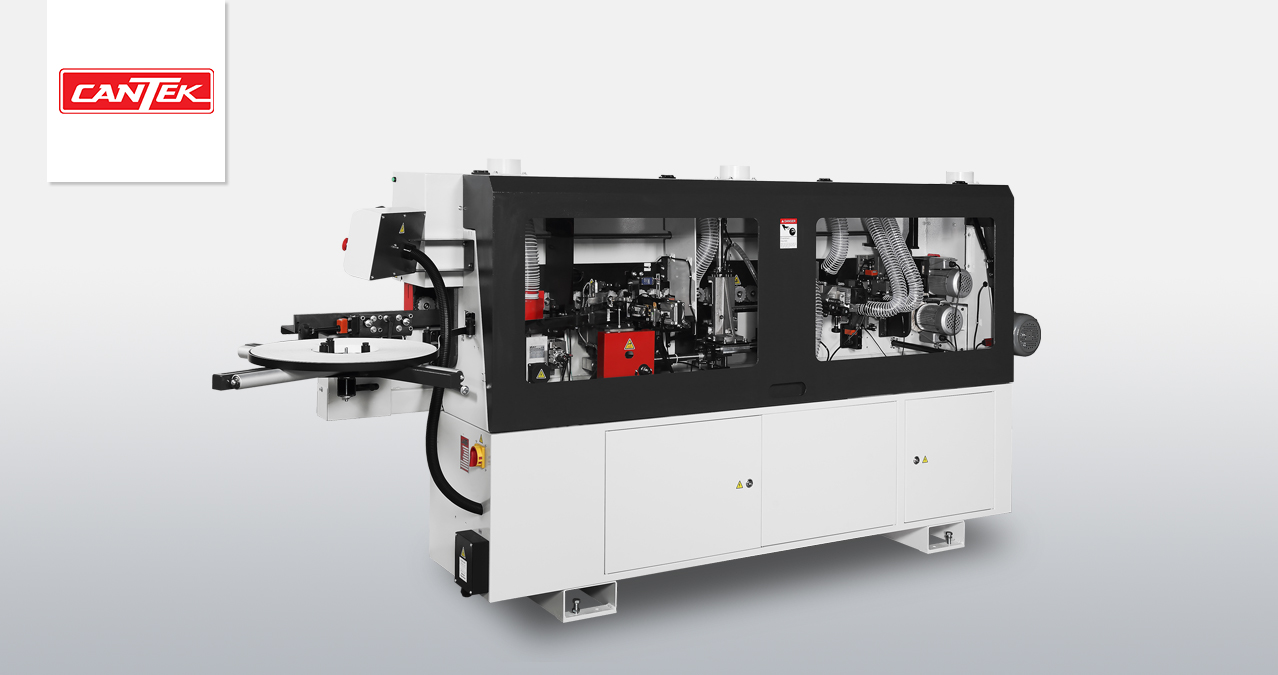

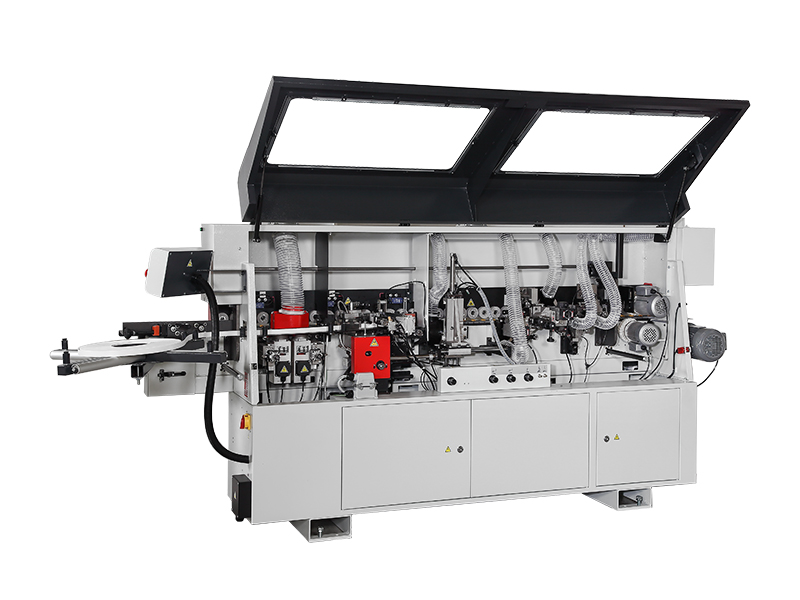

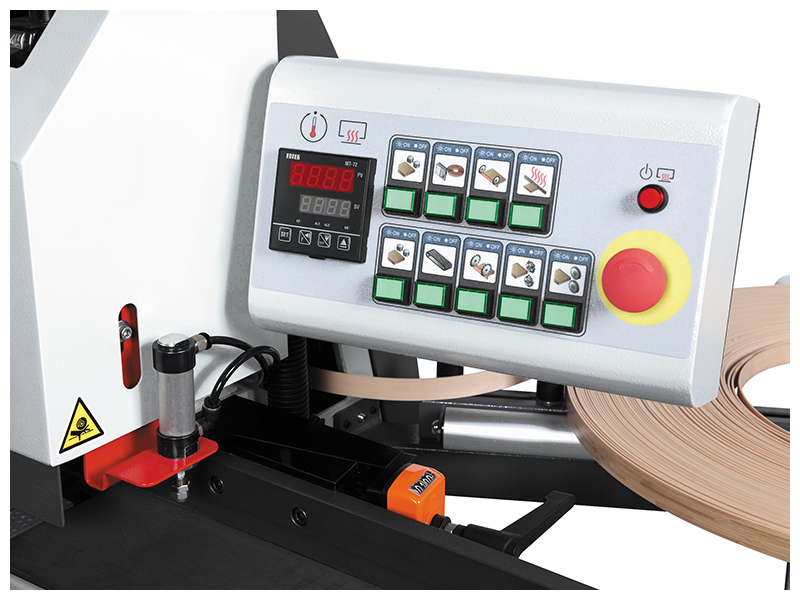

    The Cantek MX350 Automatic Edgebander is a compact edgebander capable of applying up to 3mm thick edge tape on cabinet parts and more.  The counter rotating pre-milling cutters ensure optimum panel edge quality and squareness which result in a less visible glue joint.  It comes equipped with high frequency motors on both the end trim and top & bottom trim.  In addition it is equipped with PVC radius scraping and buffing units.  User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm. It’s compact design and affordable price point make it the ideal edge banding solution for the small cabinet shop who requires pre-milling.

  • Specs

    Feeding speed|29 FPM

    Panel thickness|0.315”~1.77″

    Max. pre-milling thickness|1.77″

    Edge thickness|0.0158”~0.118”

    Min. panel width|4”

    Min. panel length|6.7”

    Working table height|33.5”

    Dust collection outlet|Ø 5” x 3

    Total connected power|10 HP

    Machine dimensions (LxWxH)|147” x 52” x 54”

    Machine weight|1452 lbs

    Shipping dimensions (LxWxH)|91” x 29” x 54”

    Shipping weight|1558 lbs

    Electrical requirement|230/3/60: 40 amps WORKING UNITS: PREMILLING UNIT

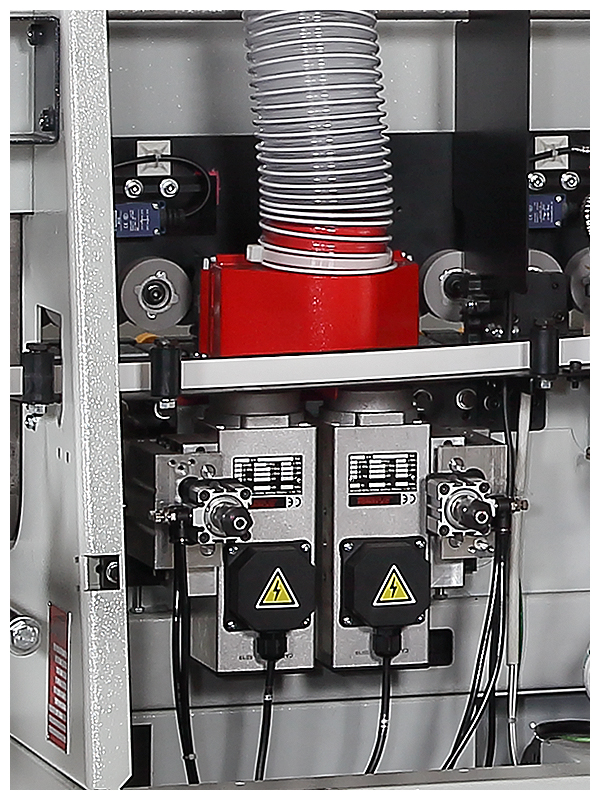

    High-frequency pre-milling units can remove up to 3mm and is designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels

    (2) counter-rotating diamond cutterheads for optimum results and longevity

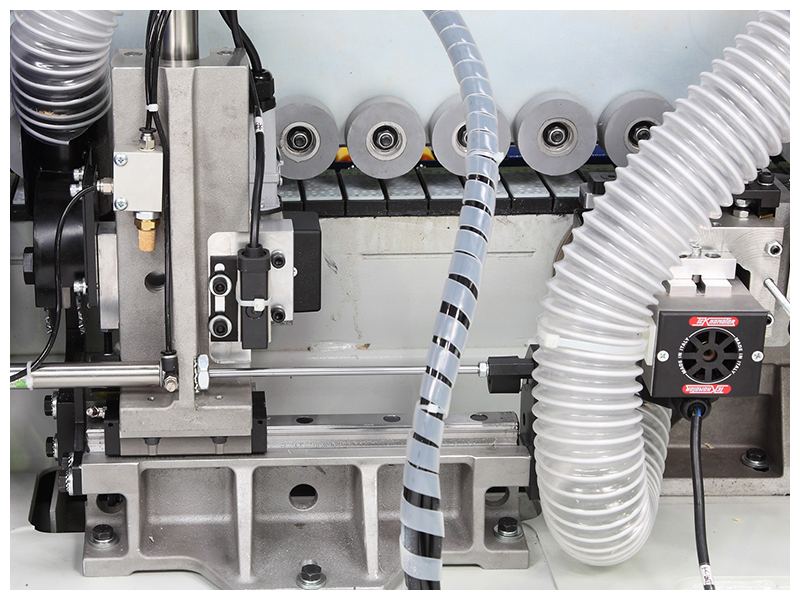

    High frequency 12000 RPM end trimming unit, with Ø100mm (4”) TC-Saw blades

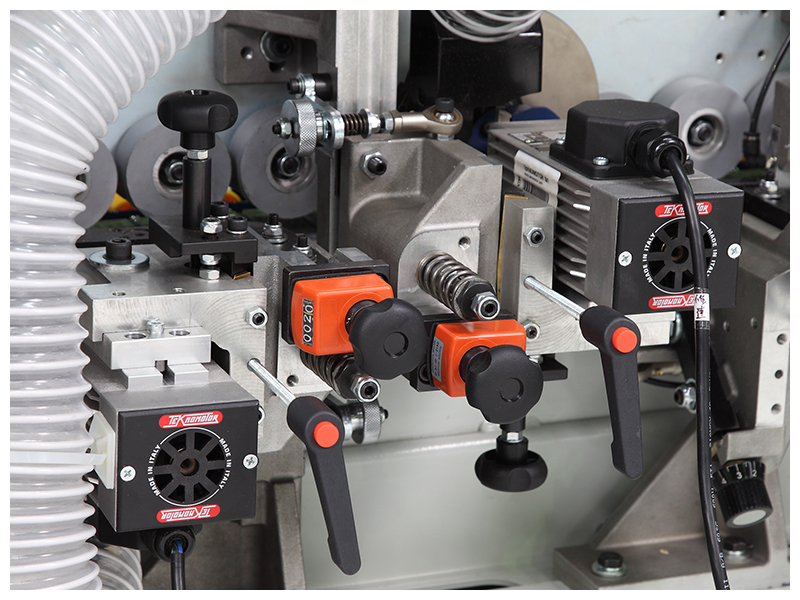

    High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming

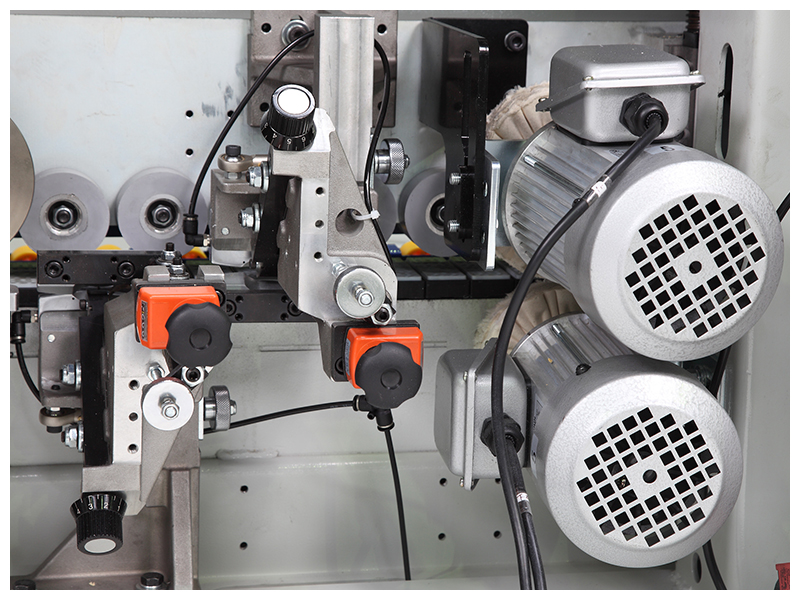

    Radius scraper with 2mm radius

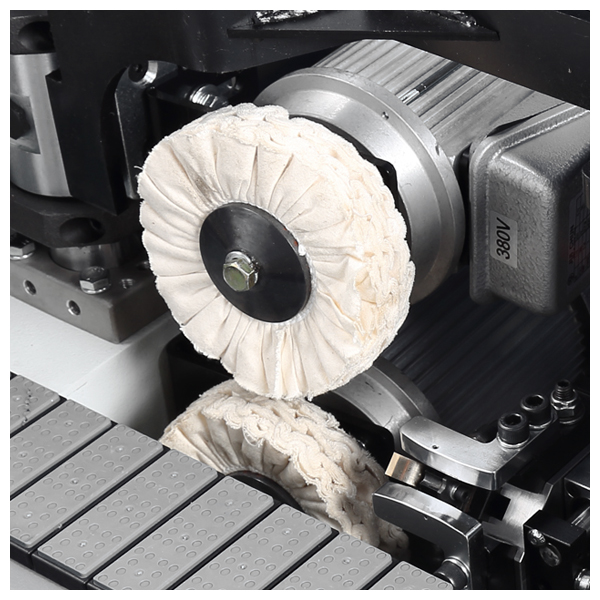

    3000 RPM top & bottom buffing units to polish the machined edge MOTOR POWER: Feeding motor|1 HP

    Pre-milling motors (2)|1 ½ HP x 2

    Glue spindle motor|¼ HP

    Front/rear trimming motor|0.3 HP

    Upper trimming motor|½ HP

    Lower trimming motor|½ HP

    Upper buffing motor|0.16 HP

    Lower buffing motor|0.16 HP

    Pre-heating|½ HP

    Glue pot|1 ¾ HP
