Description

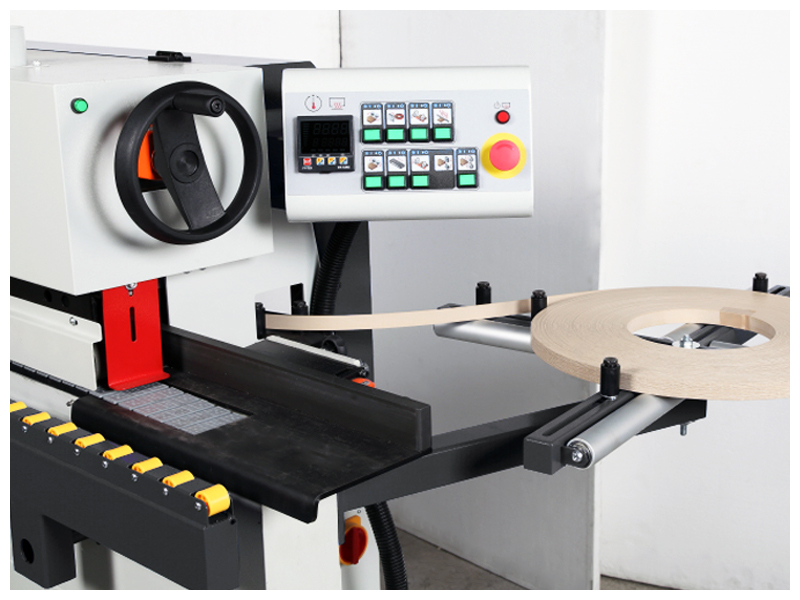

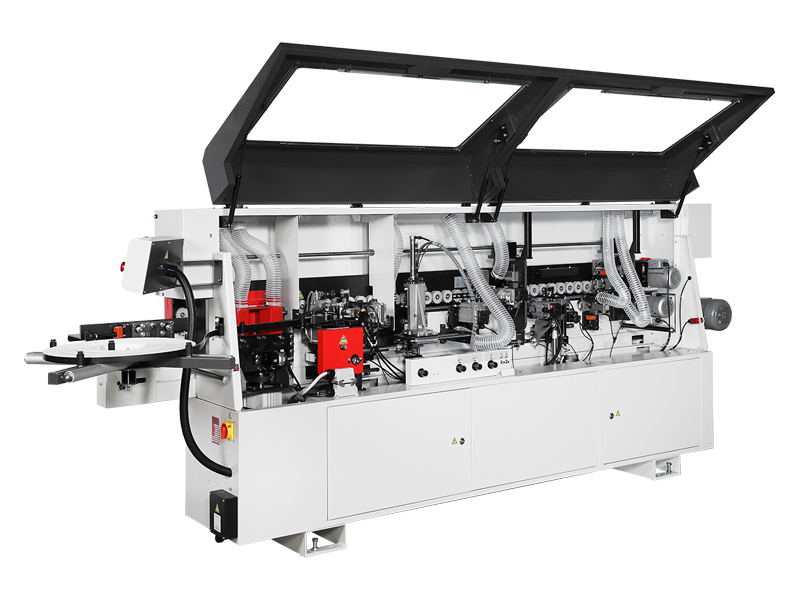

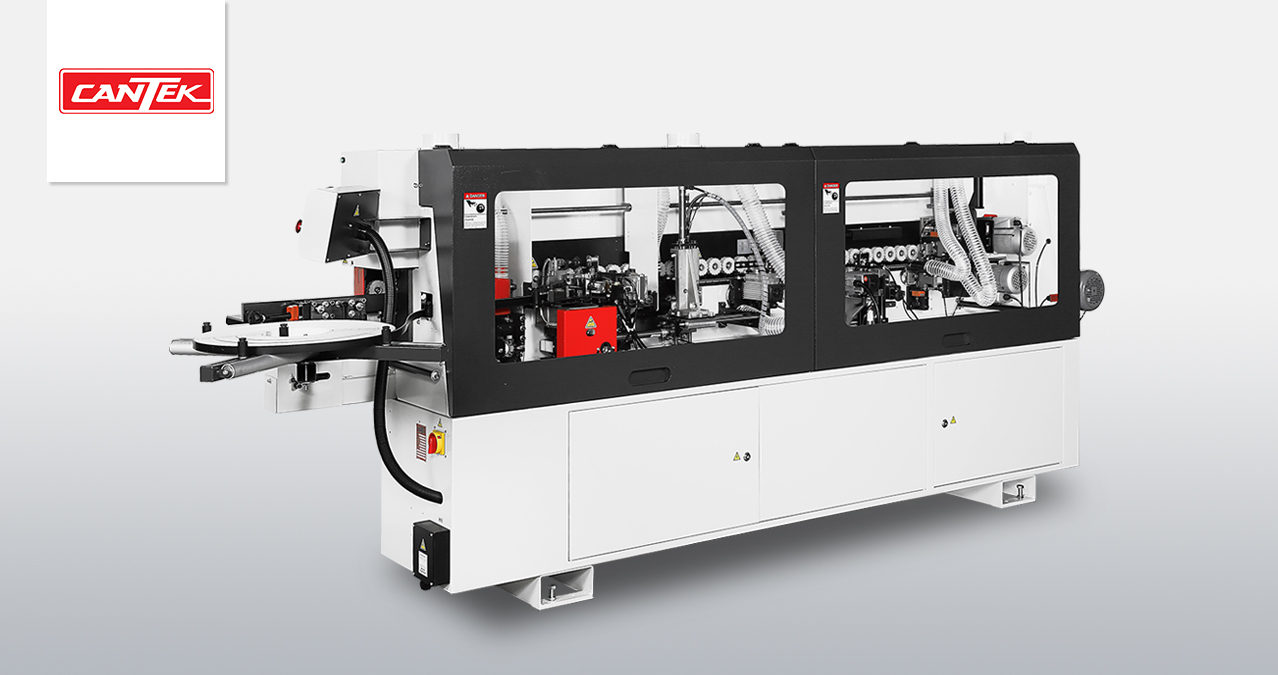

The Cantek MX370PW Edgebander with Premilling and Corner Rounding is designed to be a compact and durable edgebander offered at an affordable price. This machine is equipped with premilling, end trimming, flush trimming, corner rounding, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm. It comes equipped with a strip feed magazine for automatically feeding of strips including wood, laminate etc.
-
Specs
Feeding speed|29 FPM
Panel thickness|0.315″ ~2.36″ (coil)|0.315”~2” (strip)
Edge thickness– coil|0.0158”~0.118”|0.4 ~ 3mm
Edge thickness – strips|to 0.24”|to 6 mm
Min. panel width|3 ¾”
Min. panel length|6.7″
Working table height|38″
Extension support width|22″
Dust collection outlet|Ø 5″ x3″
Air consumption12.36 CFM
Electrical consumption|10.9 HP
Electrical requirement|230/3/60|26 Full load amps
Machine weight|2160 lbs
Machine dimensions|156” x 29” x 69”
MOTOR SPECIFICATIONS
Feeding motor|0.75 kW
Pre-milling motors (2 pcs) 1.5 kW
Glue spindle motor|0.25 kW
Front/rear trimming motor|0.37 kW (12000 RPM)
Upper trimming motor|0.37 kW (12000 RPM)
Lower trimming motor|0.37 kW (12000 RPM)
Corner rounding motor|0.35 kW (12000 RPM)
Upper buffing motor|0.12 kW (3000 RPM)
Lower buffing motor|0.12 kW (3000 RPM)
Pre-heating|0.125 kW
Gluepot|1.315 kW WORKING UNITS: PREMILLING UNIT

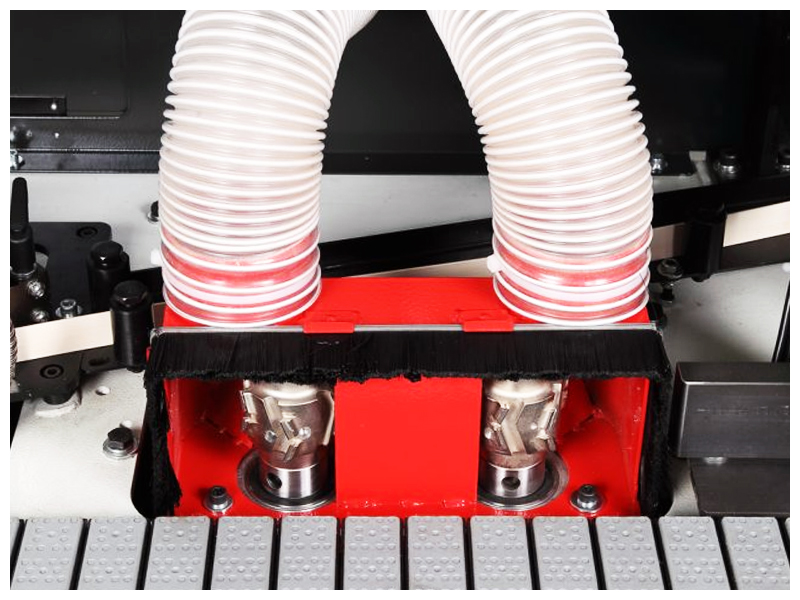

High-frequency pre-milling units can remove up to 3mm and are designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels.
(2) counter-rotating diamond cutterheads for optimum results and longevity.

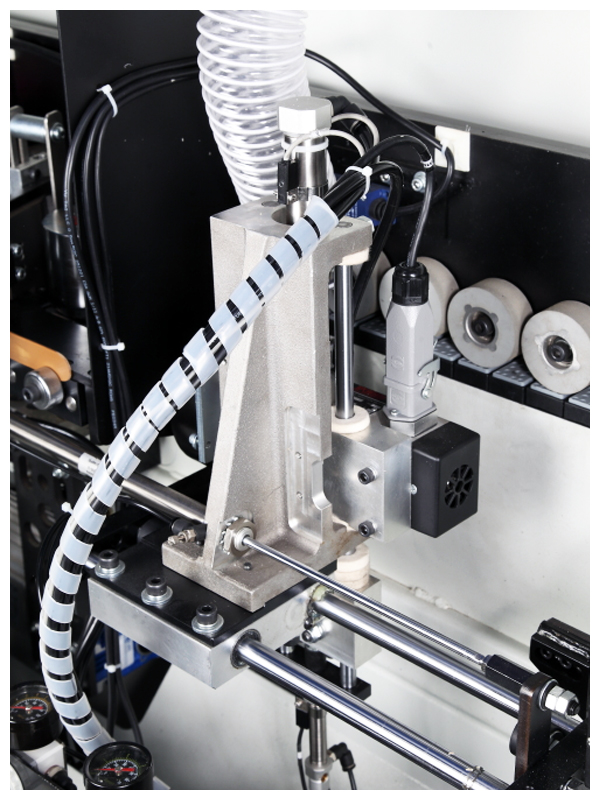

END TRIM
High frequency 12000 RPM end trimming unit, with Ø100mm (4”) TC-Saw blades.

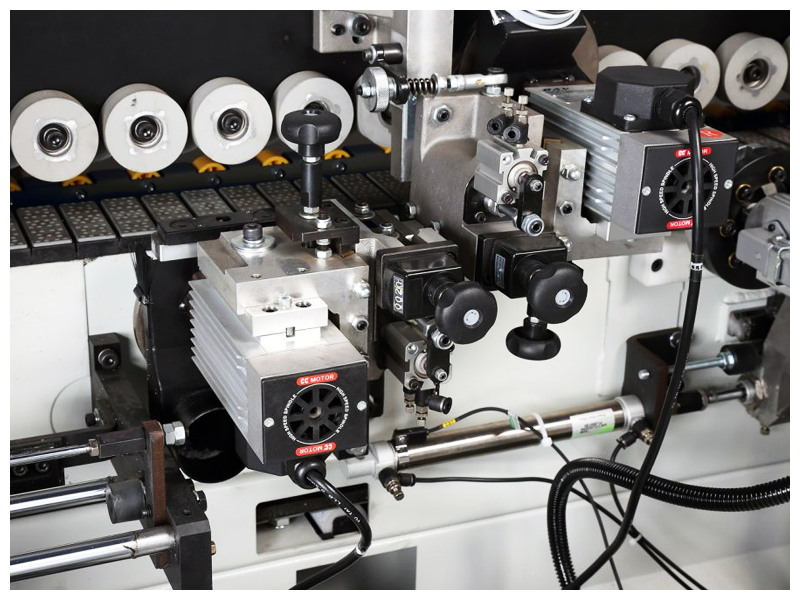

TOP & BOTTOM TRIM
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming.

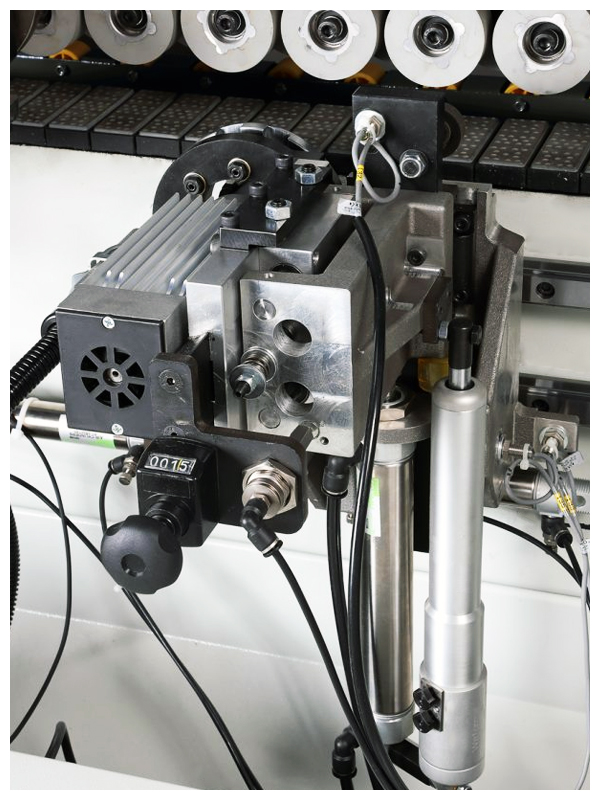

CORNER ROUNDING
High-frequency corner rounding unit can process 0.4-3mm thick edgebanding by tracing the shape of the panel.

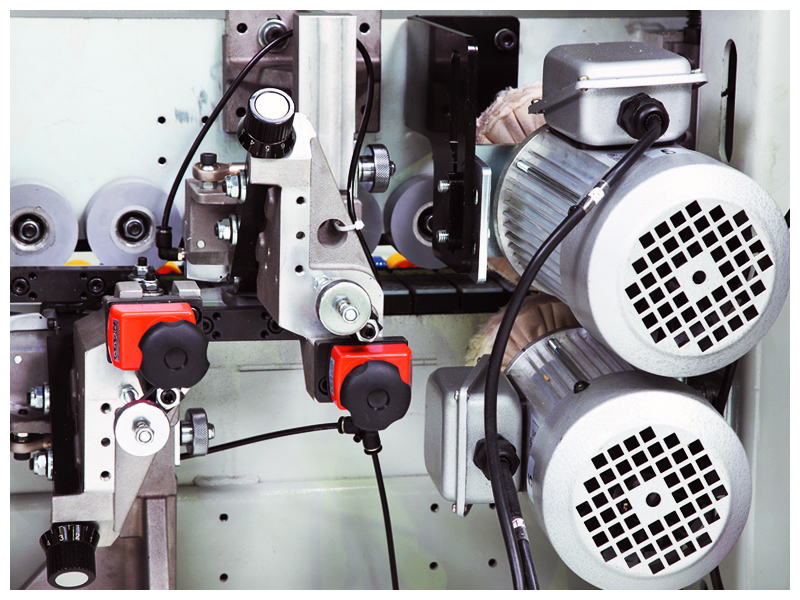

RADIUS SCRAPING
Radius scraper with 2mm radius.
BUFFING
3000 RPM top & bottom buffing units to polish the machined edge. -
