Description

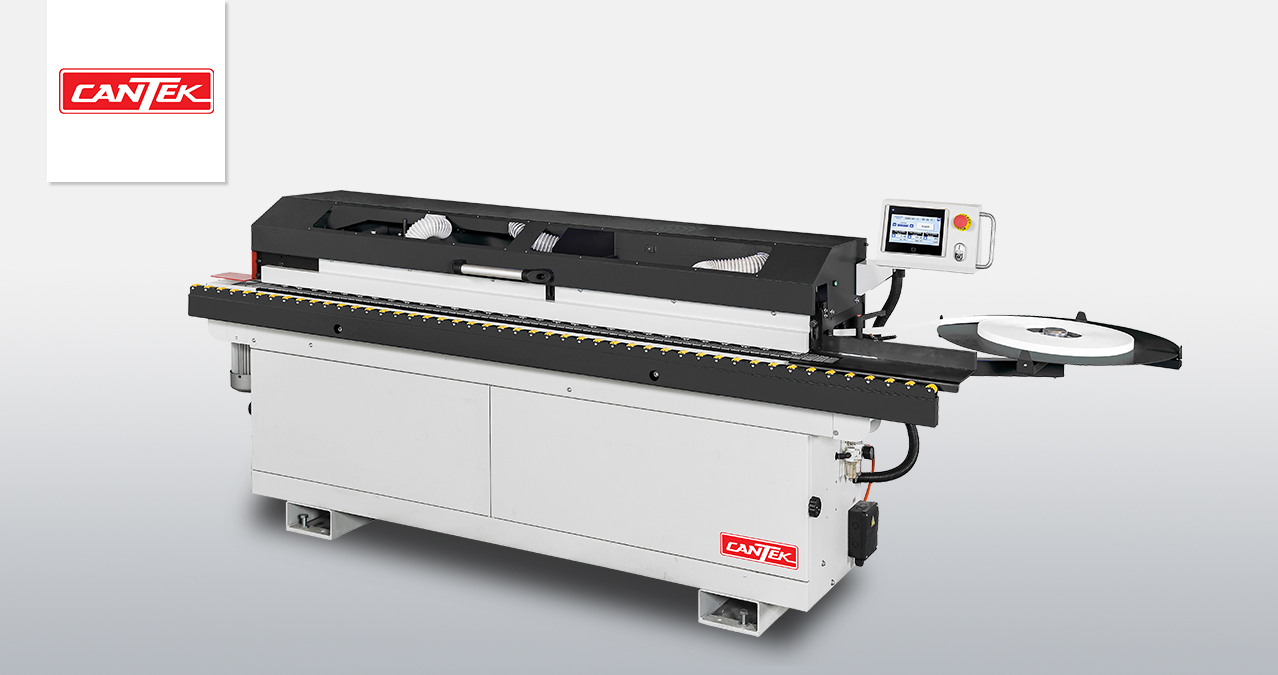

The Cantek MX370M Edgebander is designed to be a compact & durable entry level edgebander with pre-milling & corner rounding functions offered at an affordable price. This machine is equipped with pre-milling, combination end trimming & corner rounding unit, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm
-
Specs
Feeding speed|23 FPM
Panel thickness|0.472~1.77″
Edge thickness|0.0158”~0.118”
Minimum panel width|3.54″
Minimum panel length|6.7″
Min panel length w/ corner rounding:|6.7″
With panel height 12-45mm|8.67″
Working table height|33.7″
Extensible support width|22″
Extraction connection|4” x 3
Air consumption|8.83 CFM
Pre-milling spindle speed|12000 RPM
Top & bottom trimmer RPM|10500 RPM
End trim/corner rounding RPM|12000 RPM
Buffing RPM|2800 RPM
Max. machine dimensions (LxWXH)|130” x 47 ¼” x 47 ¼”
Machine weight|1067 lbs
Shipping dimensions (LxWxH)|109”x28 ½”x54”
Shipping weight|1507 lbs

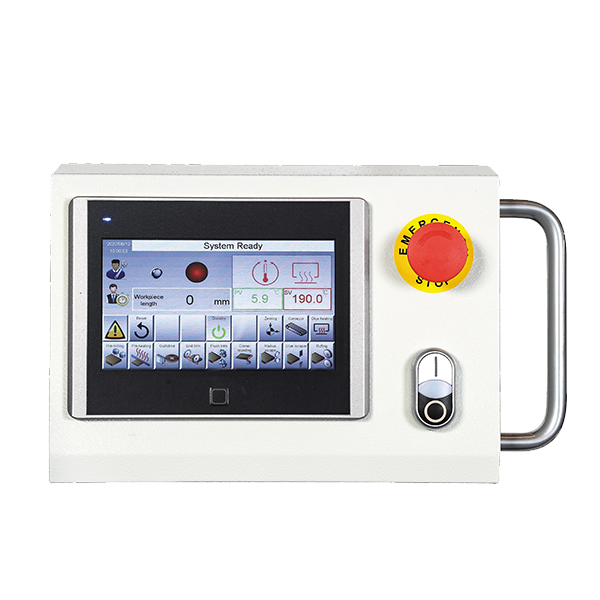

Electrical requirements|230/3/60 = 19 amps WORKING UNITS: TOUCH SCREEN INTERFACE

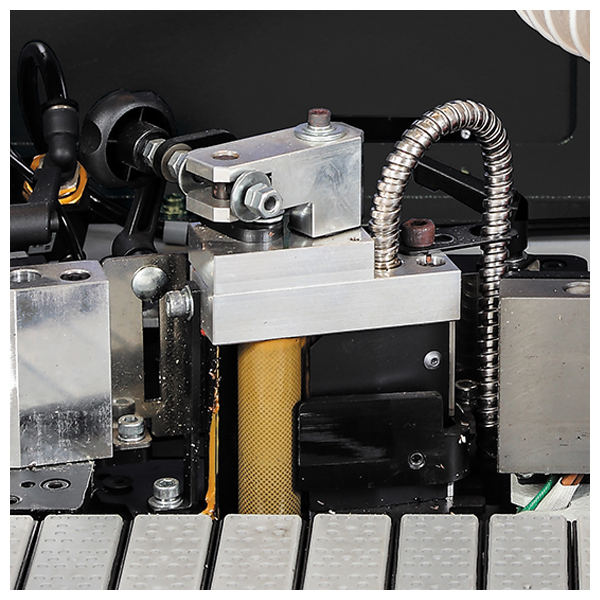

Glue temperature settings
Units can be selected and disengaged individually
Heated fence is standard
Keeps track of workpiece length, number or work pieces and hours.

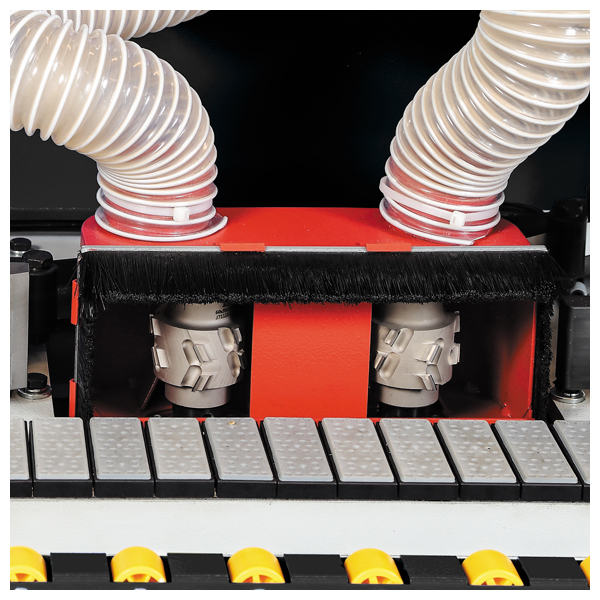

PREMILLING UNIT
(2) diamond milling heads which are counter rotating mill the edge of the panel prior to applying the edgebanding for precise squareness and optimum edge results. Maximum removal of 3mm.

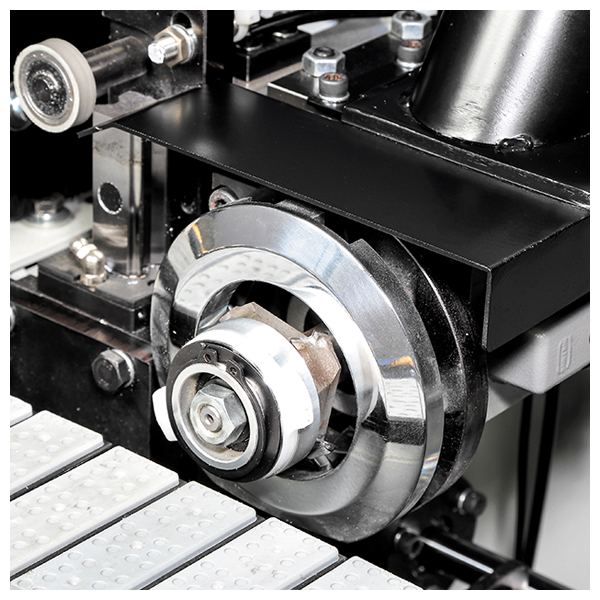

END TRIM / CORNER ROUNDING UNIT
Dual purpose unit for performing end trimming and corner rounding functions in one.
Can flush trim or radius trim depending on the work piece being machined.

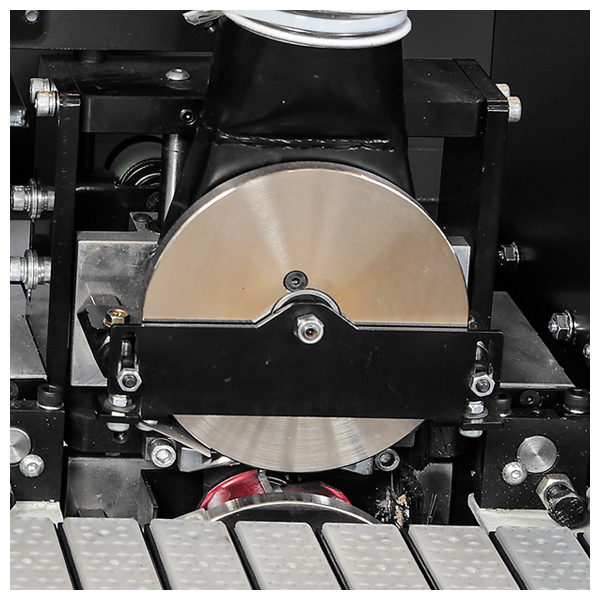

FLUSH TRIMMING UNIT
The standard copy roller disc for flush trimming unit is accurate, does not damage the work piece, and produces an optimum finish.
Adjust cutter position with mechanical digital readout for straight or radius profile

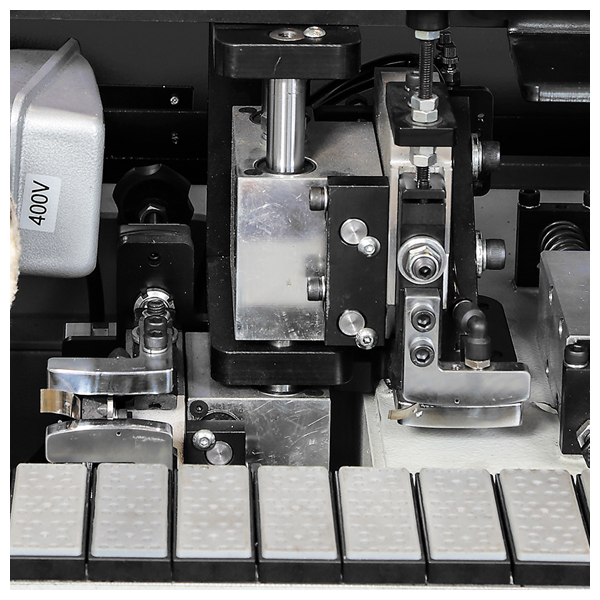

RADIUS SCRAPING
Radius scraper with 2mm radius.

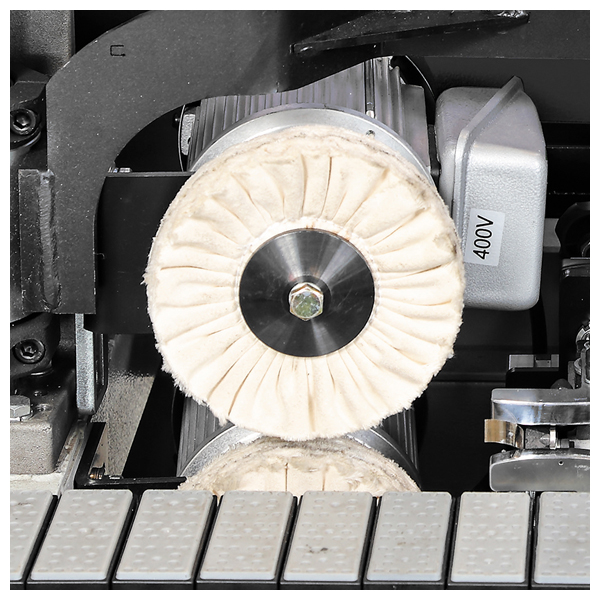

BUFFING
The buffing unit leaves a super finish on ABS and PVC edging, and removes any discoloration on the edges, which is especially noticeable when working with dark edge material. -
