750CN | Omec | Dovetailers

  • Description

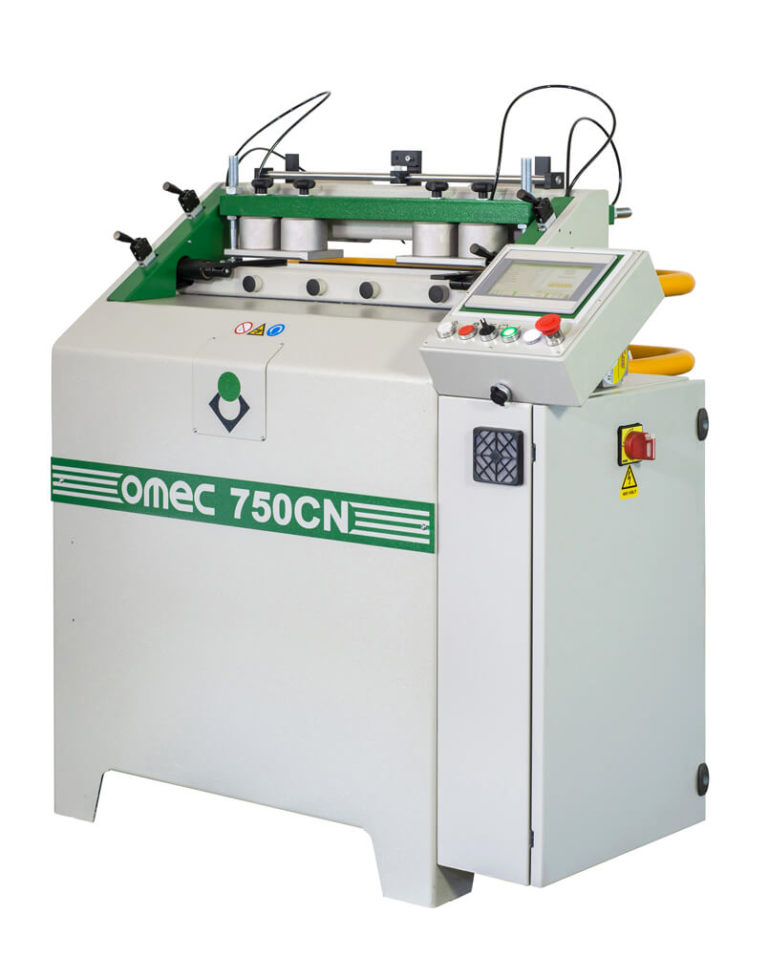

    Automatic dovetailer Omec 750CN  is a smaller version of our well received Omec F11TS CNC model. The 750CN utilizes pneumatic clamps, has a 20” capacity, 18,000 rpm spindle, and is 50% faster than the conventional Omec 750. Utilizing the CNC technology well proven in the F11CN, the Omec 750CN asks the operator to input the dimensions of the parts to be machined and designs the dovetail pattern to best suit the material dimension and the desired effect of the operator. Working on one inch centers is no longer a requirement as the CNC technology spaces the centers to meet your needs. Blowout is minimized as the speed of cut can be adjusted to both accommodate the material and the size of the joint. Once programs are set on the 7″ touchscreen, up to 600 can be saved for later recall. This is an excellent machine for the high end dovetail drawer maker who wants to offer the best dovetail drawer possible and appreciates the flexibility of CNC.

  • Specs

    On board machine installed power|3.2 Kw

    Working pressure|0.7 MPascal

    Spindles|1 n˚

    Spindle revolutions|21,000 rpm

    Center to center of indents|variable or fixed

    Drawers production|60 n/h

    Machine weight|360 kg

    Packed machine weight|410 kg

    Overall dimensions |(l x w x h)118x80x122 cm

    Packing dimensions|126x88x145 cm

    Machine Memory (# of programs savable)|40 DIMENSIONAL LIMITS OF WORKPIECES




    Indent Height|6mm|25mm

    Front Thickness|8mm|30mm

    Side Thickness|8mm|20mm
