650A | Omec | Dovetailers

  • Power:
  • Description

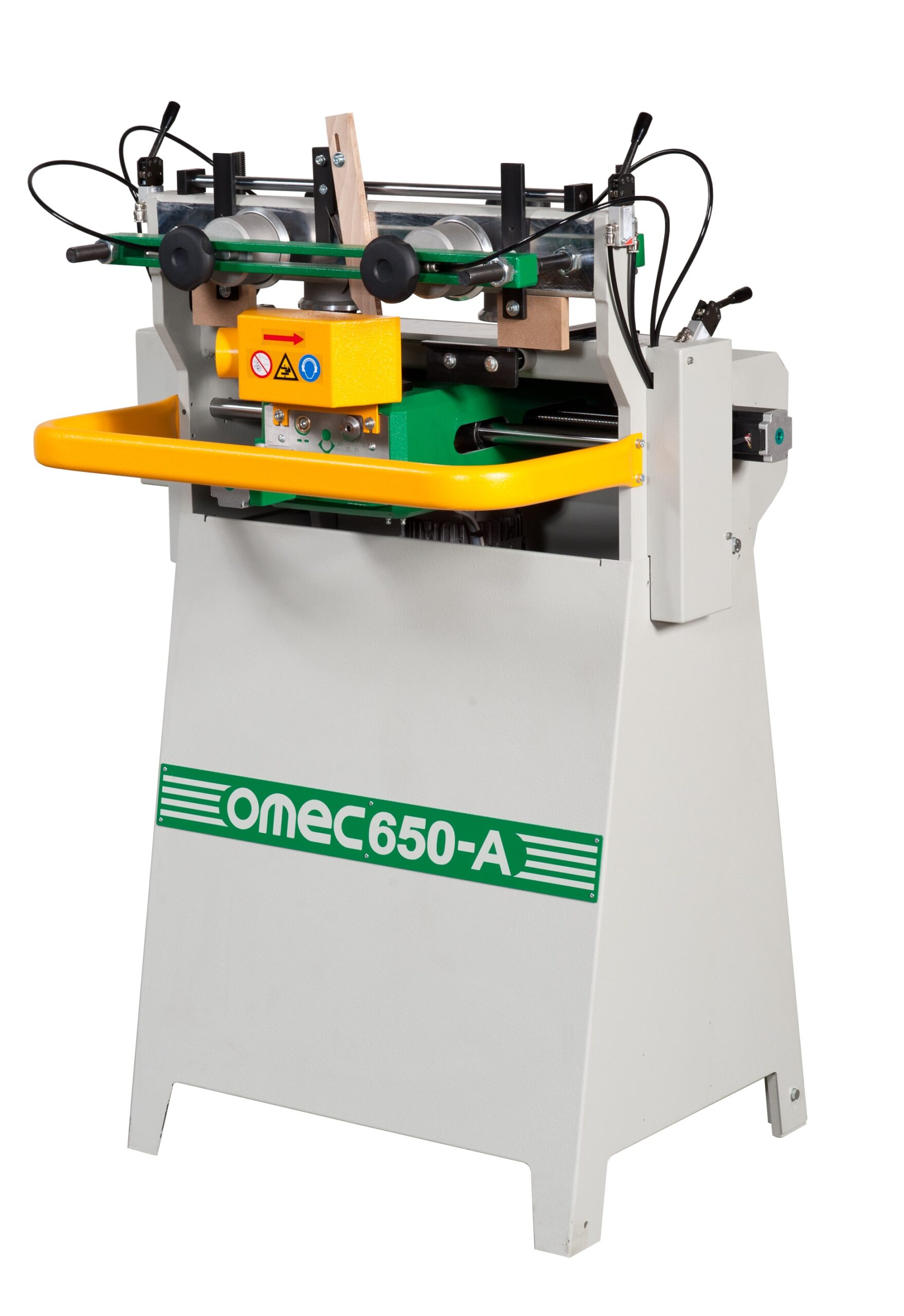

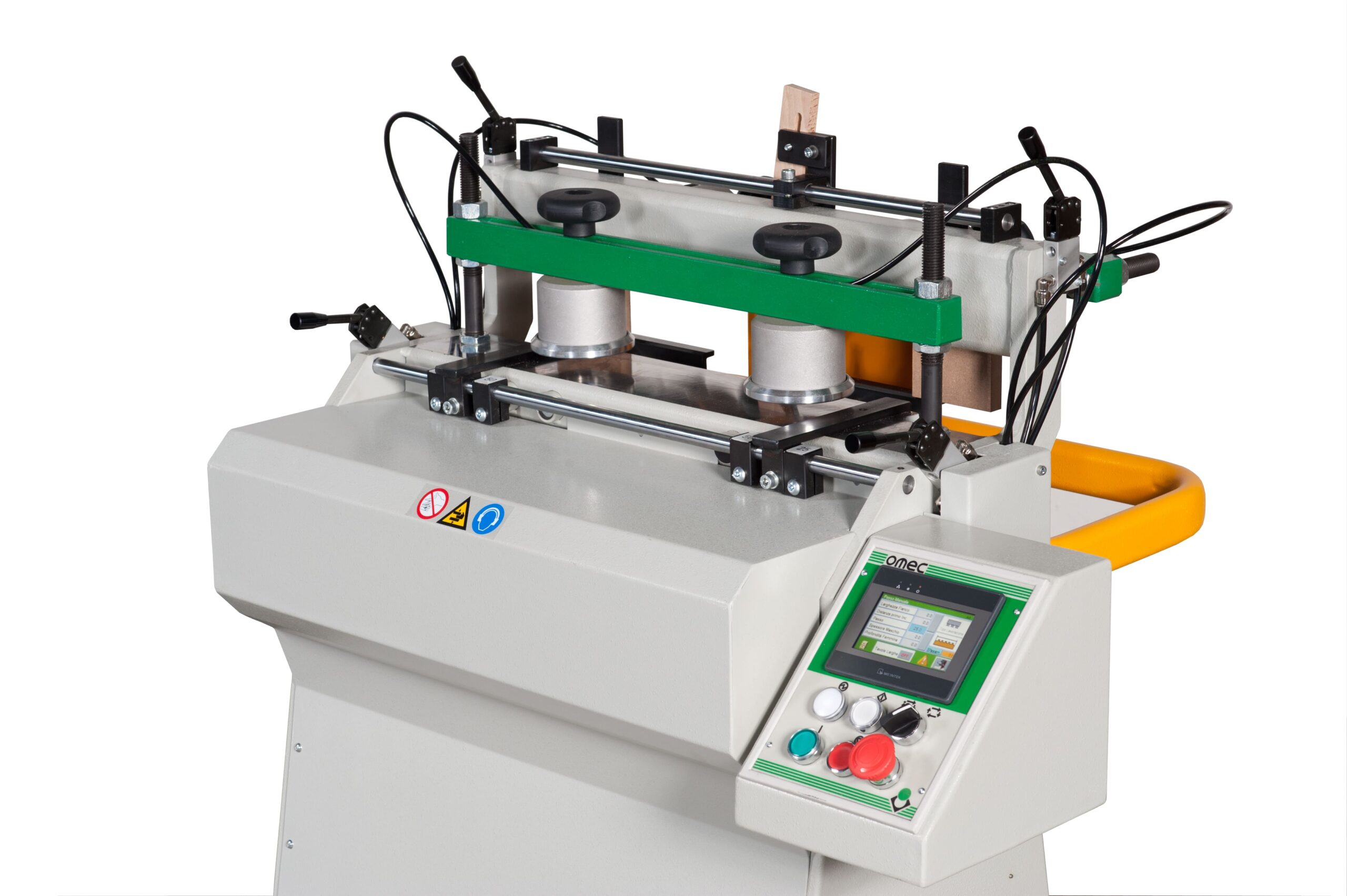

    Omec’s newest model in an automatic CNC dovetail machine. Although it shares the same frame as the our 650M manual dovetailer, it is now equipped a programmable TouchScreen CNC control to regulate the number of joints, depth of grooves, height of pins, speed of cut, tool compensation, as well as placement of the joint. These adjustments permit the fine tuning of the fit to be saved for later recall. Unlike some dovetail machine, all parts are loaded from the front without the need of accessing the back of the dovetailer with the exception of maintenance. Standard features include pneumatic clamps, servo/ballscrew driven X & Y axis movement, dual zone machining areas, dust collection port, and solid carbide tooling.

  • Specs

    On board machine installed power|2.33 HP

    Working pressure|Mpascal 0.7

    Number of spindles|1

    Spindle revolutions|16,500 rpm

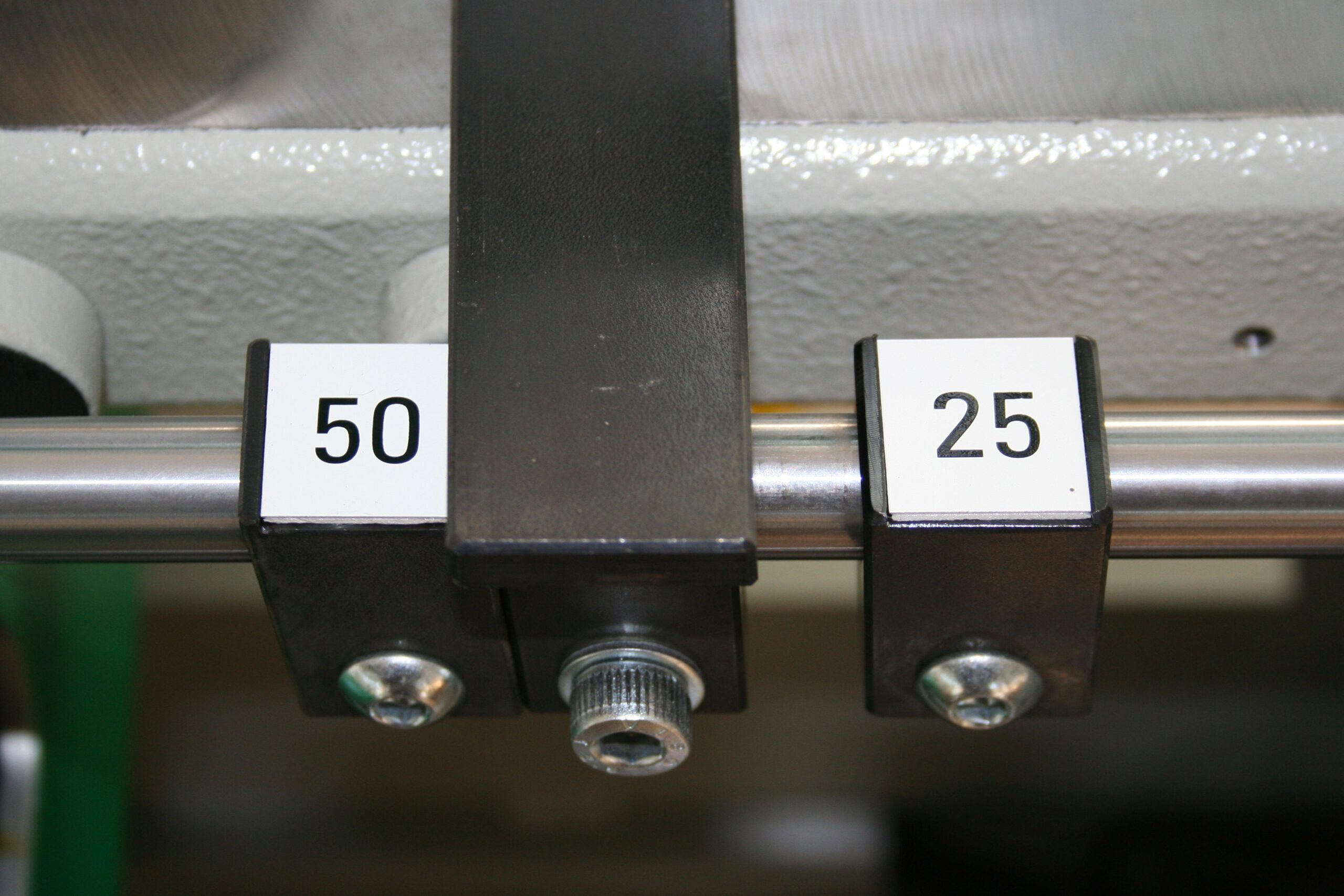

    Center to center of indents|25mm & 50 mm

    Dovetail production:

    Speed, variable 0-2000 mm/minute|40 boxes per hour

    Machine weight|308 lbs/140 kg

    Packed machine weight|352 lbs/160 kg

    Overall dimensions|31.5″ x 28.35″ x 52″ (80cm x 72cm x 132cm)

    Packing dimensions|34.65″ x 29.13″ x 55.12″ (88cm x 74cm x 140cm) DIMENSIONAL LIMITS OF WORKPIECES




    Indent Height|0.33″(8.5mm)|0.63″(16mm)

    Front Thickness|0.31″(8mm)2.36″(60mm)

    Side Thickness|0.31″(8mm)|0.78″(20mm)
  • Download

Videos of Automatic Dovetailer

Automatic Dovetailer Omec 650 A – Imported by Macoser
