SW-K6 | Cantek | Mortisers & Tenoners

  • Power:
    5HP 230V 3PH
  • Description

    Ideal solution for furniture or frame production.

    The Cantek SW-K6 Automatic Round End Tenoner produces round or oval tenons. Paired with the Cantek SW-02 oscillating horizontal slot mortiser make these the ideal solution for furniture or frame production. The dual table setup allows for continuous production as you can machine on one table while unloading and loading on the other. The tenon size is adjustable and can product tenons up to 3.94” wide x 1.18” high x 1.97” deep. The work piece is held firmly in place by a pneumatic clamp. The tables can be tilted from 0-20o to allow for angular tenons. The climb cutting toolpath greatly reduces the change at tear out. The insert knife cutterhead products a pristine finish and the speed can be adjusted to obtain the results you desire no in a wide range of wood species.

    Why Cantek SW-K6 Automatic Round End Tenoner?

    • Dual table configuration permits machining & work piece loading simultaneously for higher efficiency.

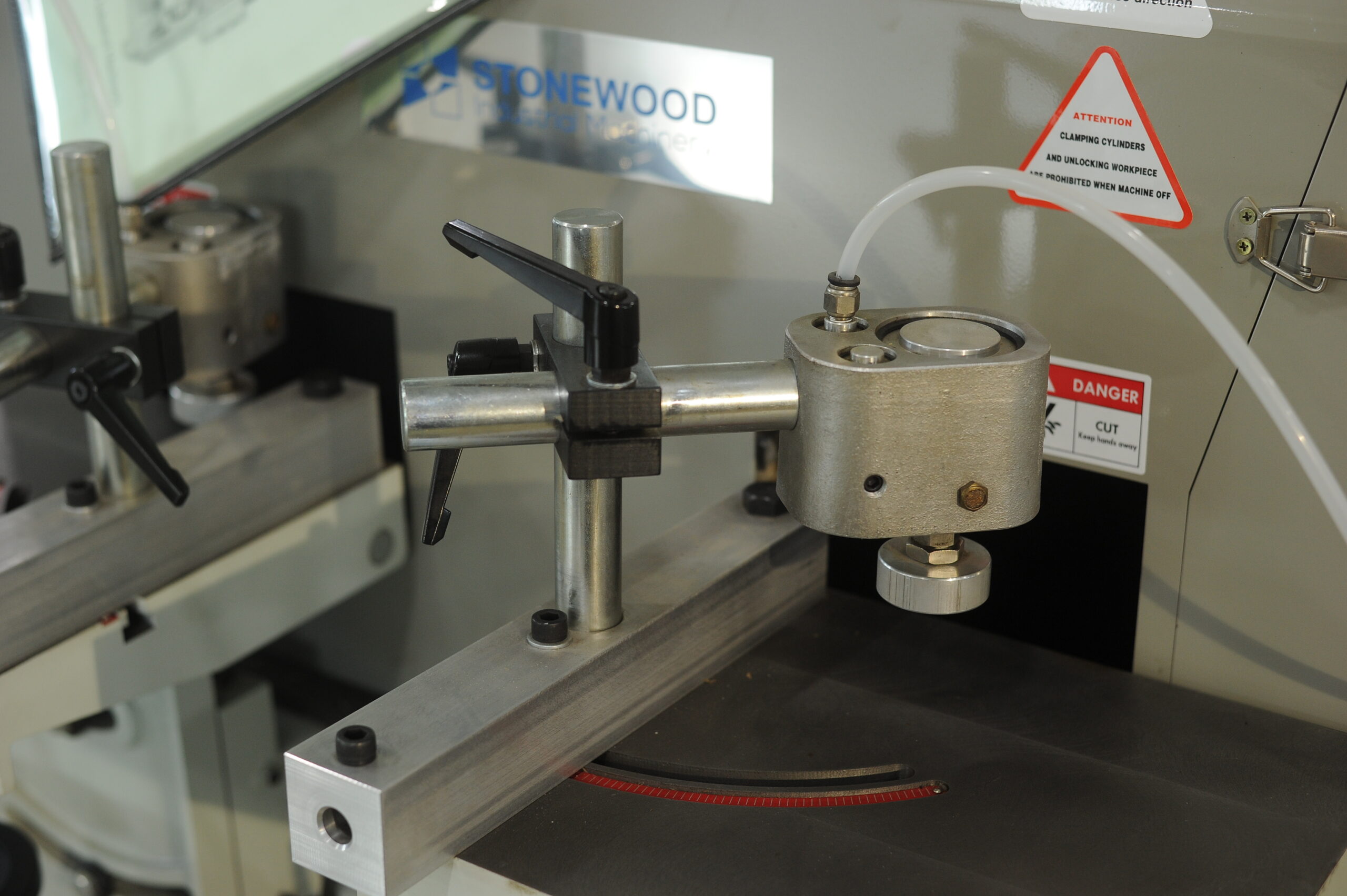

    • Pneumatic work piece clamping ensures pieces are held firmly during operation.
    • Cutting operations are inside the machine behind a protection guard for safe operation.
    • Tenon machining is performed by a travelling cutter with stationary table, ensuring high machining accuracy.
    • The tenon can be adjusted conveniently without the need to open the door.
    • Convenient setup of tenons for horizontal, vertical, and 45o

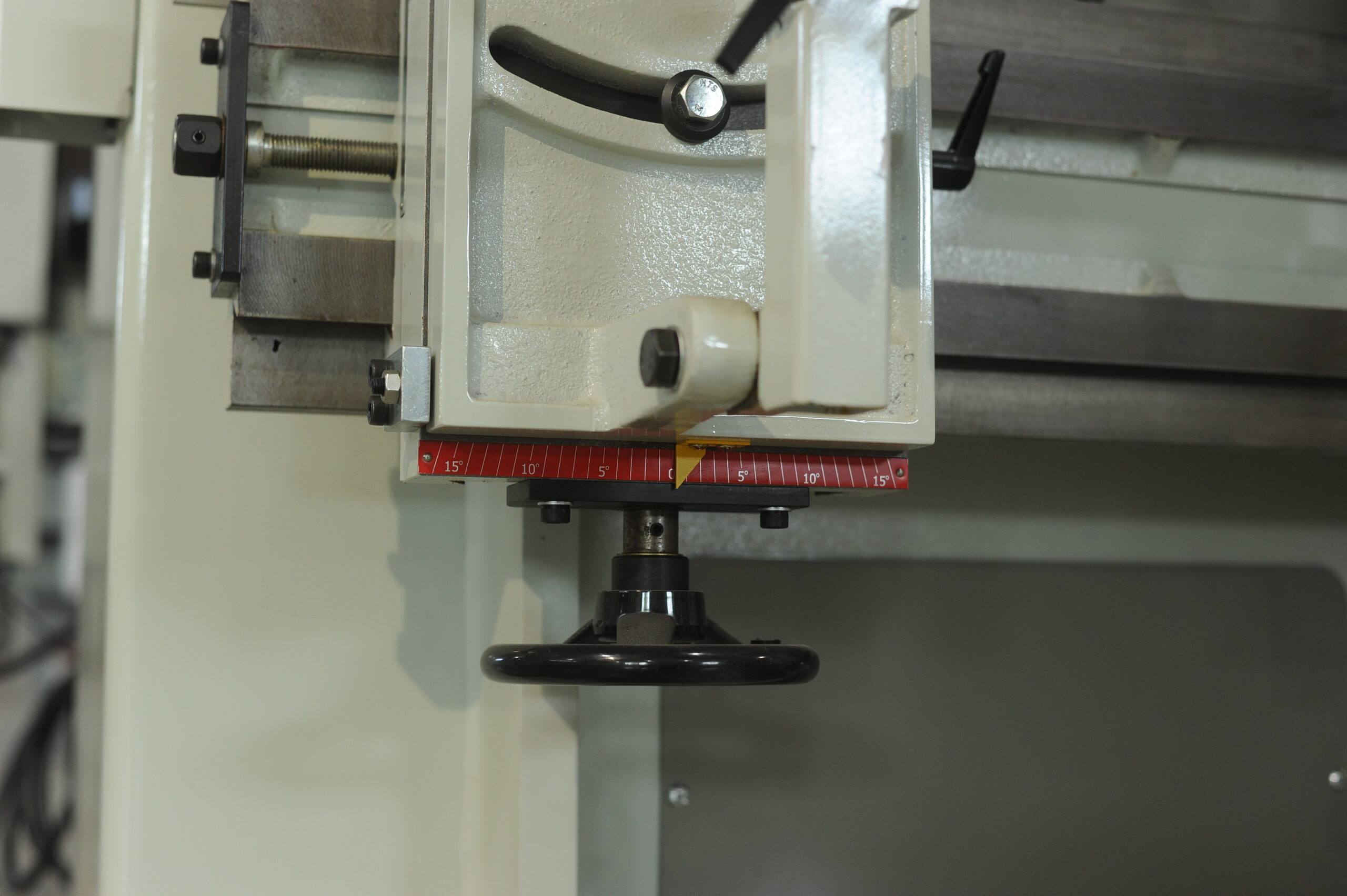

    • Table tilts from +5o to -20making this machine capable of producing various tenons such as straight, miter, dovetail, beveled, round, and T-shape tenons.
    • Centralized control panel provides convenient operations.
    • Fast production cycle speeds capable of producing up to 800 tenons per hour.
    • Variable cutter feed speed for optimal machining results in various wood species.
    • Automatic cutter brake for added safety when emergency push button is pressed.
    • Comprehensive cutter guard for operator safety.
    • The cutting area is equipped with a rubber dust guard and rubber bellow to prevent dust from entering into the machine.
    • Equipped with a safety switch and a pressure switch for safety protection.
  • Specs

    Tenon width|Max. 100mm+Thickness

    Tenon Thickness|Max. 30mm

    Tenon Depth|Max. 50mm

    Hourly Production|600~800 Tenons

    Table Area|314mm×358mm

    Table Tilt(Forward|+5˚~-20˚

    Table Tilt(Lateral|15˚

    Workpiece Fence Swivelling|45˚

    Cutter rotation|9000R.P.M.

    Cutter Motor|5HP(3.7KW)

    Cycling Motor|0.5HP/(0.4KW)

    Machine Dimensions(L×W×H)|1250×1370×1350mm

    Net Weight|720KGS
