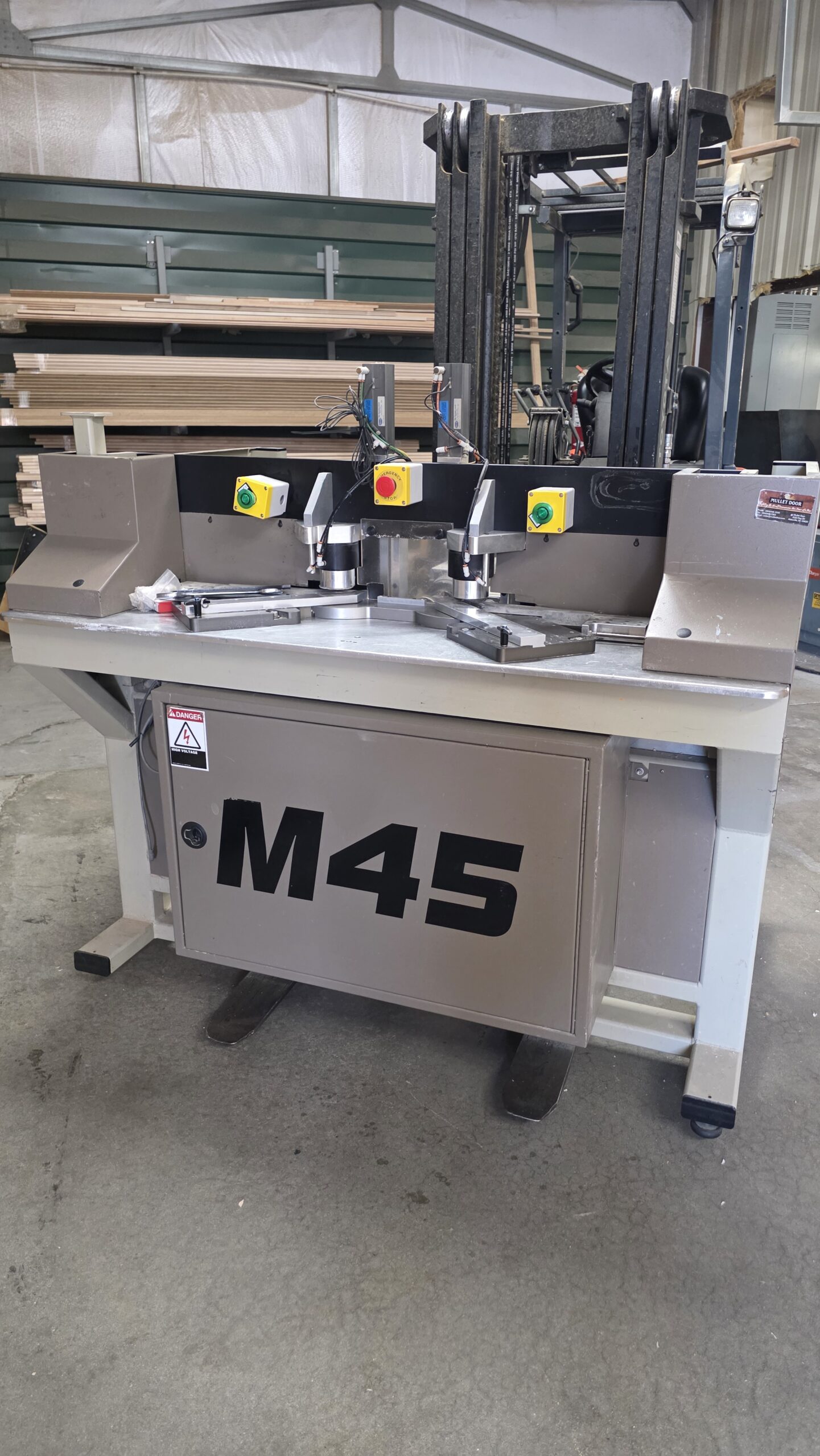

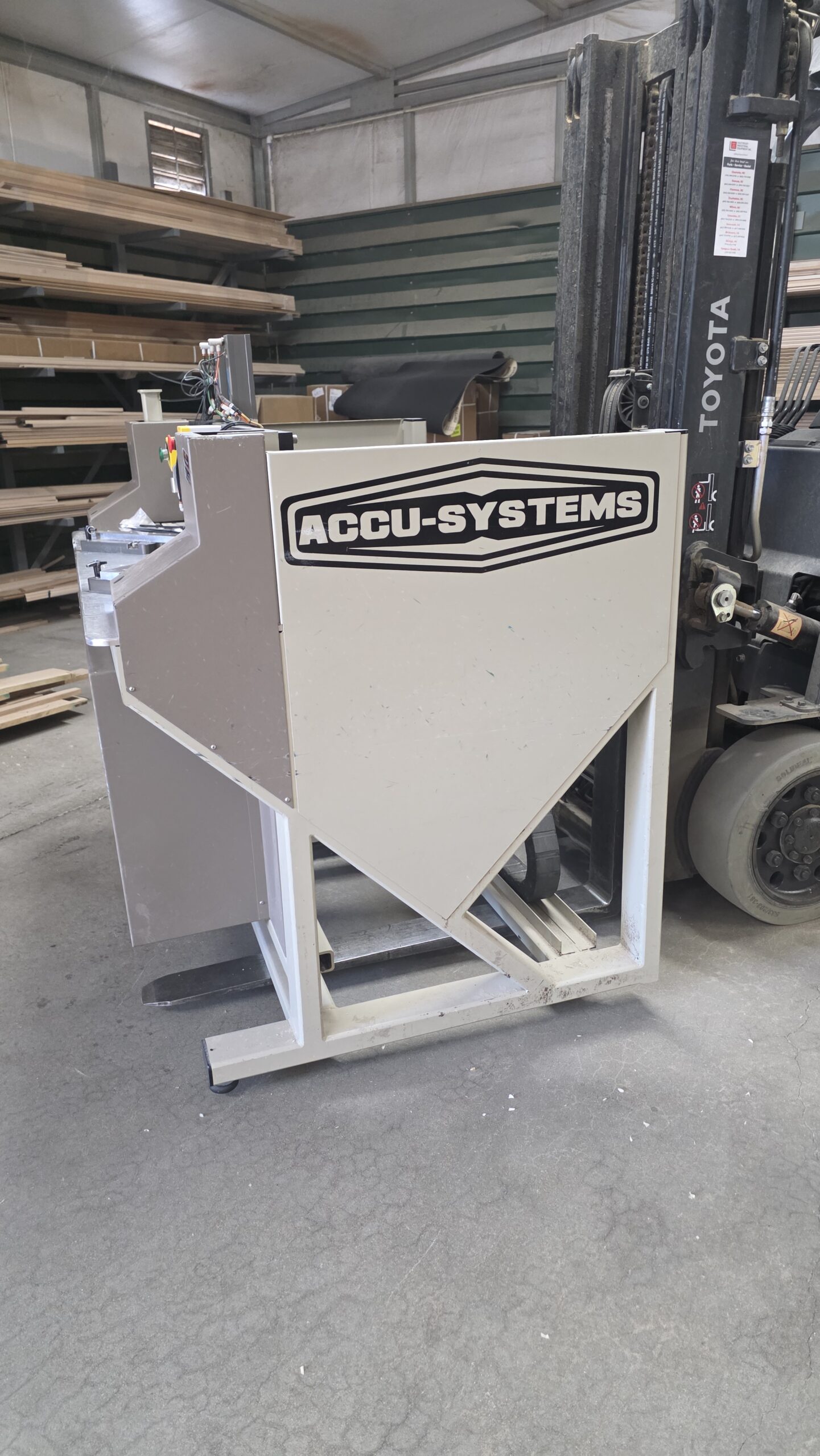

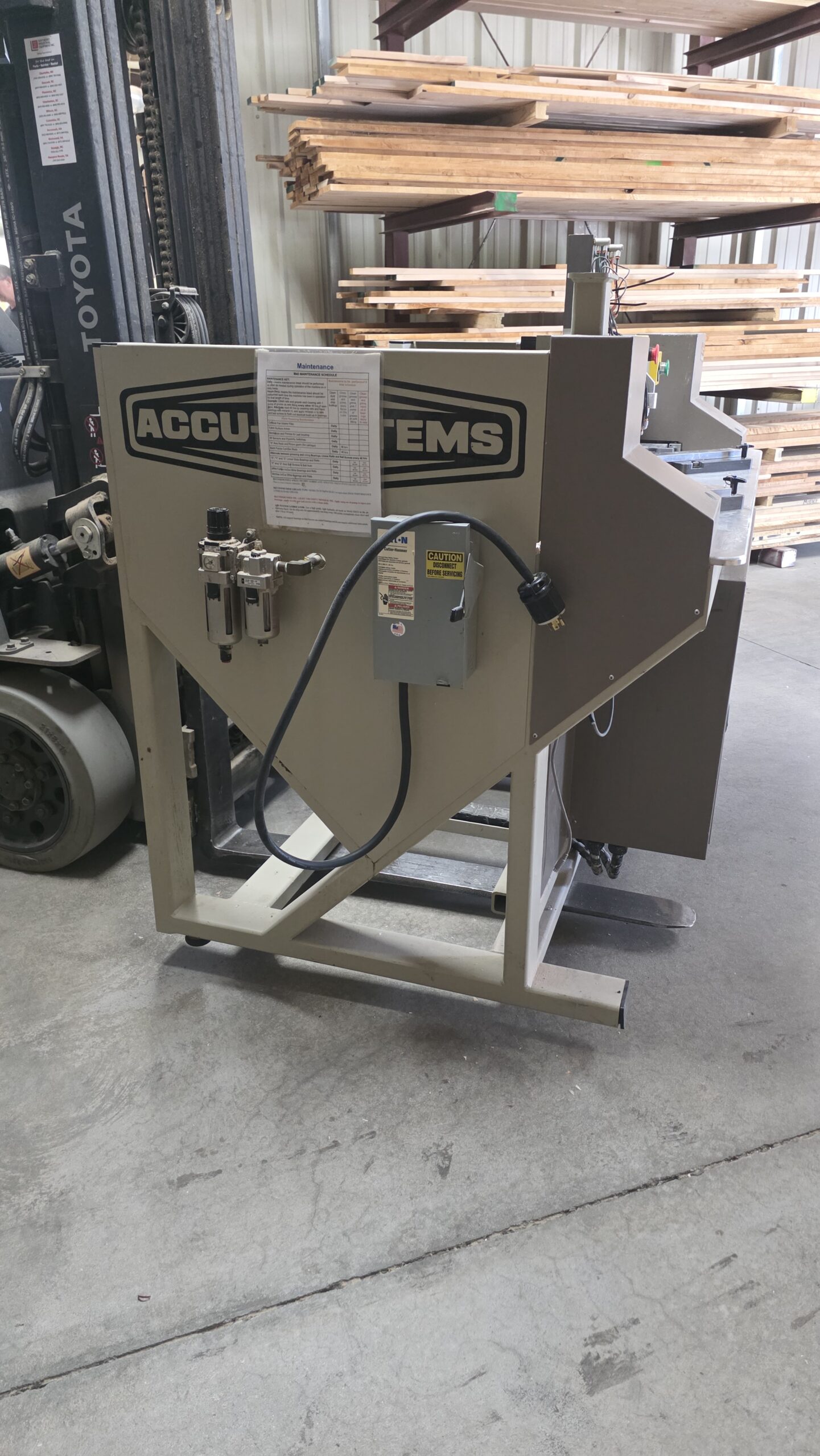

M 45 | Accu-Systems | Mortisers & Tenoners

Elimination of complicated machine setups climb cut of both tenon and mortise cuts for a “tear out” free cut.
The ability to cut MDF paper or vinyl wrapped profiles.
Eliminates the need for applying inlays.
Reduces the maintenance and cost associated with the tooling by more than 50% by eliminating end coping.
Eliminates the need for outside profiling or sanding the edges of doors
Eliminates the need for sanding the face of the doors
Both stiles and rails are run face down for consistency of machining.
Self aligning joints
There is a more durable and aesthetically pleasing blind joint (no visible joint on edge of board)
Multiple tool paths to choose from in tenon and miter (on the mortise side) to accommodate all profiles.

3-axis control for high quality joints and flexibility in machining various sizes of profiles (X, Y and Z)

1.5″ x 3.5″ Wide Machining Capability
4.5″ to Unlimited Length Capability
5/8″ to 1″ thickness capability

Two (2) working zones

45 & 90-degree reference fences

Two (2) pneumatic clamps
