#911A | Taylor | Return Conveyors

  • Power:
    230V 3PH
  • Description

    Features:



    • (4) machine lengths return material up to 60″, 96″, 112″ long, or 132″ Long

    • Heavy duty frame and component construction for long life (Heavier than the competition)

    • Fixed Catch Area

    • 24″ or 36″ Rollers on return conveyors can handle up to 36″ or 50″ wide material.

    • Optional 48″ Catch Rollers

    • Minimum material size 1″ x 6″

    • Roller Spacing 3″ center to center

    • All rollers are powered and individually clutched for long belt life.

    • Any Length Return (in one foot increments, measured from tail end of shaper/sander) composed of modular sections.

    • Return is 2 1/2″ lower than receiving conveyor, allowing for over/under return.

    • Variable Speed AC drive matches conveyor feed rate to edge bander feed rate.

    • Adjustable Height to match pass line height of the Shaper/Sander

    • Compatible with many brands of Shaper/Sander

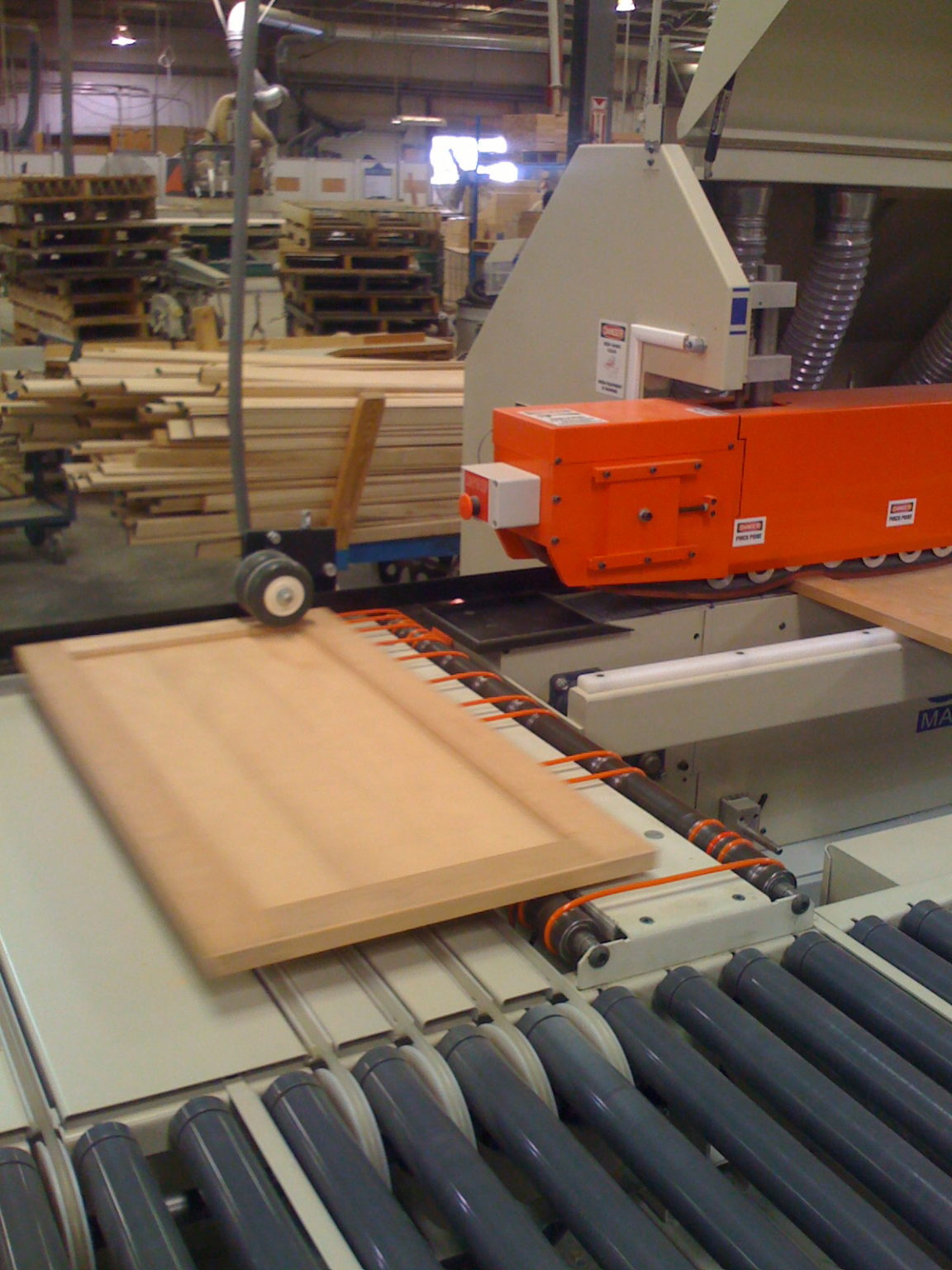

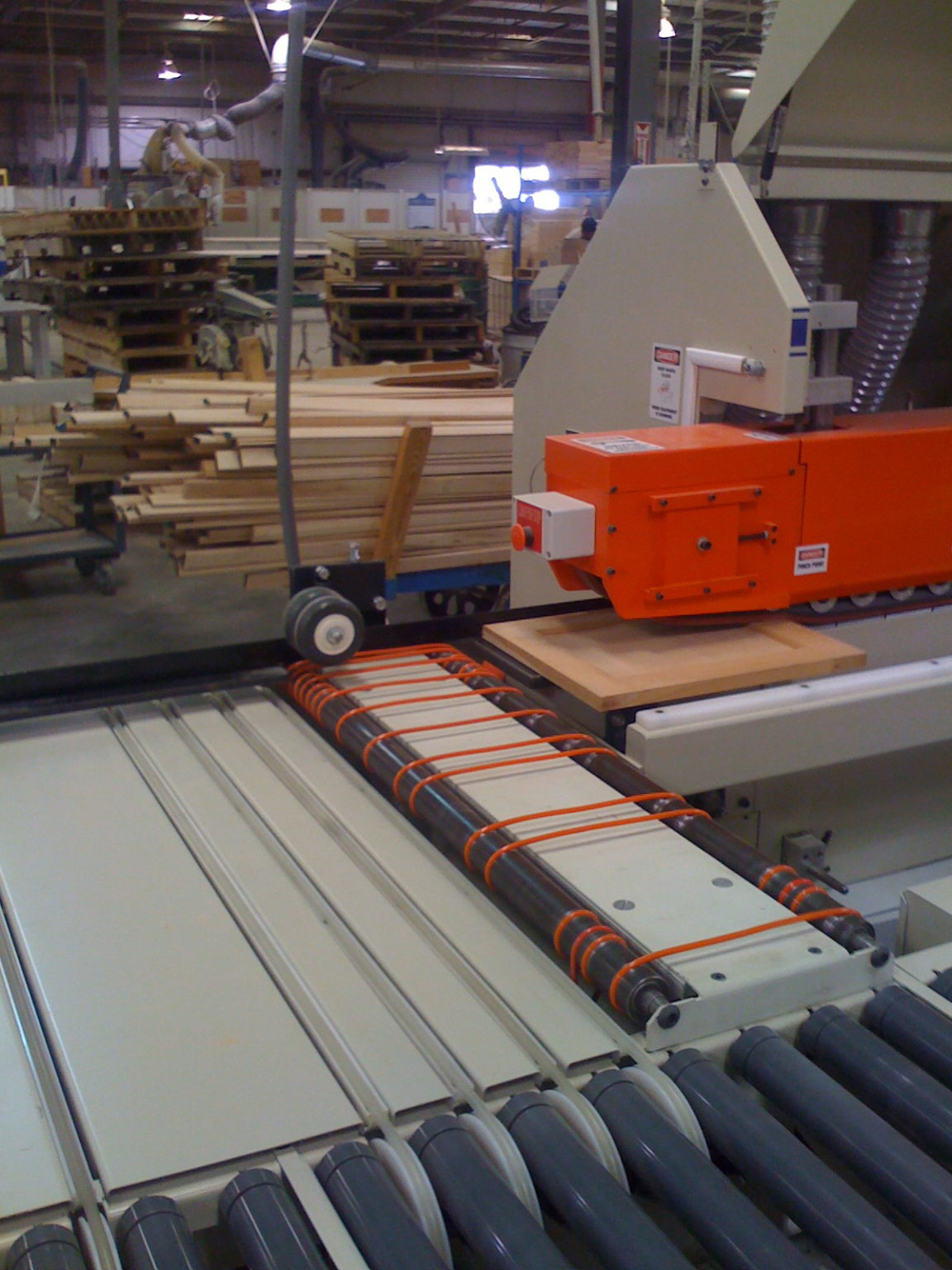

    • Return Conveyors on a Shaper/Sander have a fast payback. Most doors or panels need at least 2 passes, if not 4, through the machine to be fully machined. This normally would require (2) Operators, one to feed, and one to catch. With a Taylor Return, productivity is increased by 100% or more because it makes a (2) operator job into a (1) operator job.
