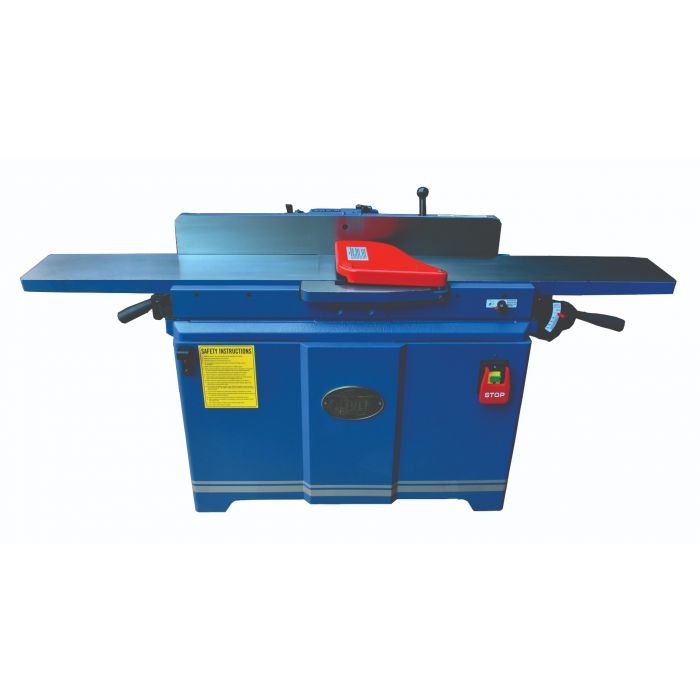

4235 | Oliver | Jointers

  • Power:
    230V 1PH 2HP 8AMPS
  • Description

    •Extra-long precision ground tables provide a stable work surface.                                                                                                                                                         •Parallelogram design provides smooth accurate cuts.

    •Cast iron frame offers stable table support.

    •Fully enclosed cabinet with 4″ port for superior dust management.

    •Built-in mobile base with lockable wheels.

    •Cabinet includes push pad storage.

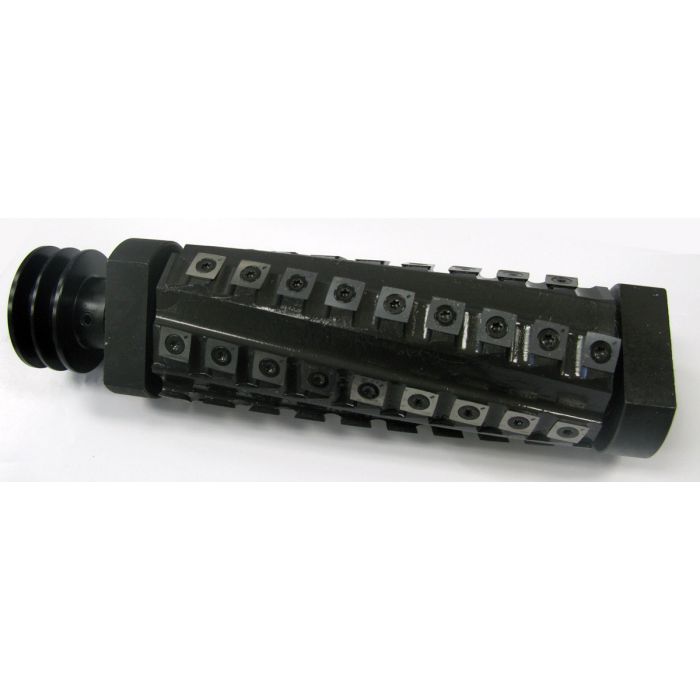

    •Helical cutter head includes premium carbide inserts.

    •4-sided cutting inserts are indexed and easy to replace.

    •Lever controlled infeed and outfeed table adjustment allows quick set-up.

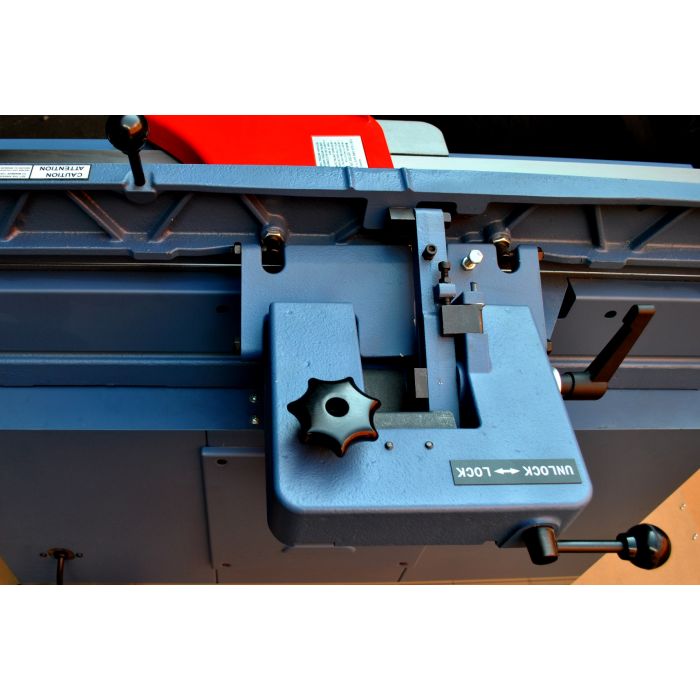

    •Long precision ground fence tilts up to 135° with positive stops at 45° and 90°.

    •Easy to read depth of cut gauge.

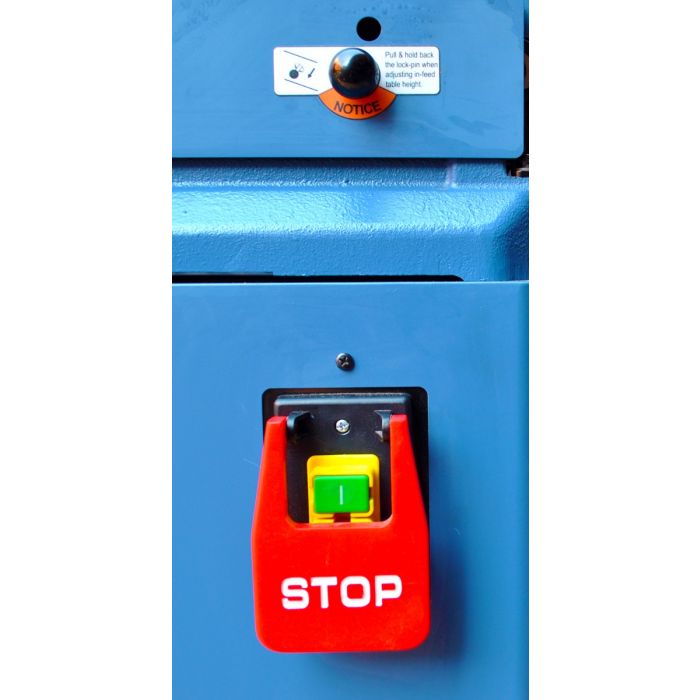

    •Large lockable paddle switch for added safety.

    •Powerful TEFC 2HP single-phase motor.

    •Poly V-belt drive efficiently delivers power to the cutter head.

  • Specs

    Stock Number|4235.201 (2HP, 1Ph, Helical)

    Infeed Table Travel|1/2″

    Cutterhead Speed|5,500 RPM

    Number of Knives (helical)|36 Inserts

    Maximum Depth of Cut |1/8″

    Rabbeting Capacity|1/2″

    Dust Port Diameter|4″

    Table Dimensions|72” L x 8” W

    Table Height|31-1/2″

    Fence Dimensions|38″ x 5″

    Fence Tilts|90°, 45°, 135°

    Positive Stops|90° and 45°

    Motor 1Ph|2HP, 230V Only (1Ph, 8 Amp)

    Net Weight|352 lbs.

    Gross Weight|490 lbs.
