R76 | Ritter | Boring Machines

  • Power:
    230/460V 3PH
  • Description

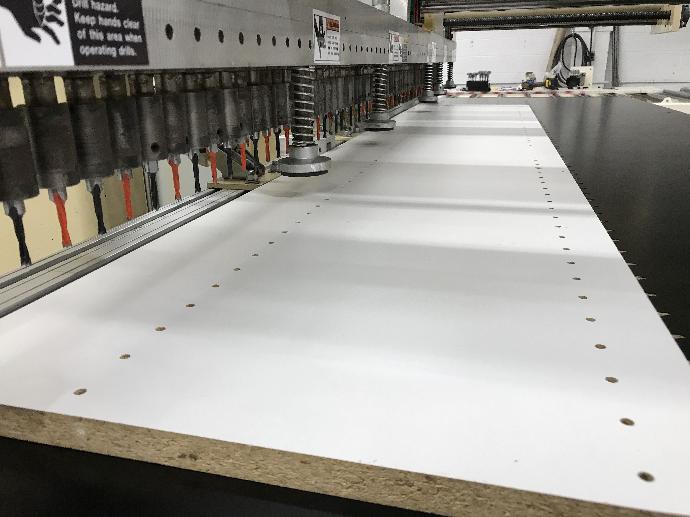

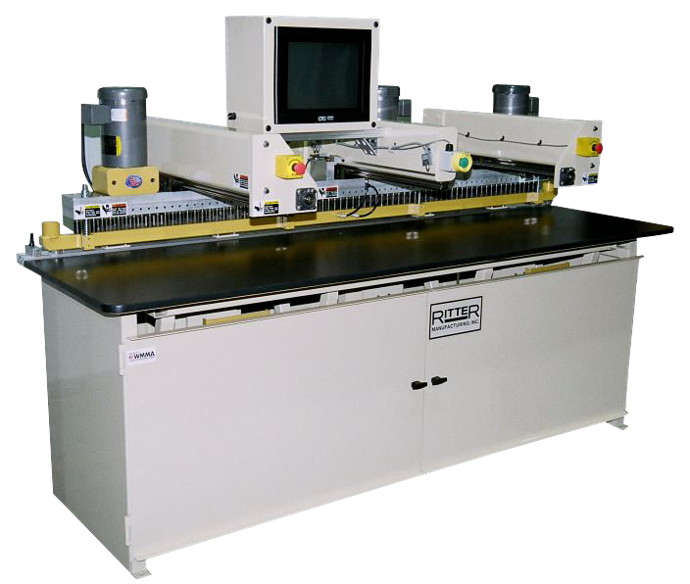

    The Ritter R76 a closet system drill part of the panel master series. The R76 is a CNC single row system drill with programmable drill row location and boring depth. The R76 is used for drilling full length closet panels in a single process. The drill row ball screws and linear rails provide for precision drill row location. The servo driven ball screw table feed control allows for precision drill depth control and through feed boring.

  • Specs

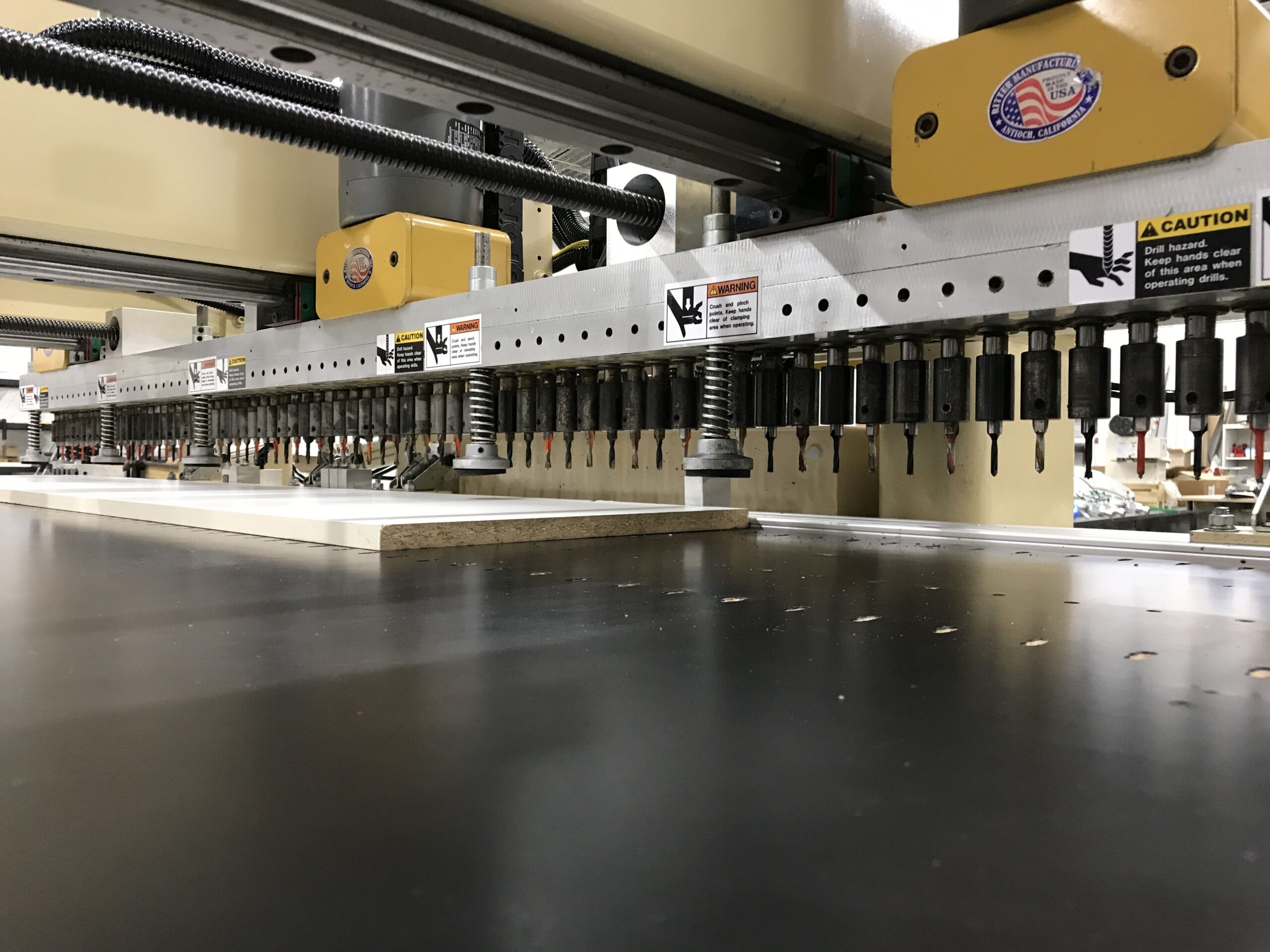

    •76-Spindle Gear Driven Drill Head

    •(39) Right Hand, (36) Left Hand

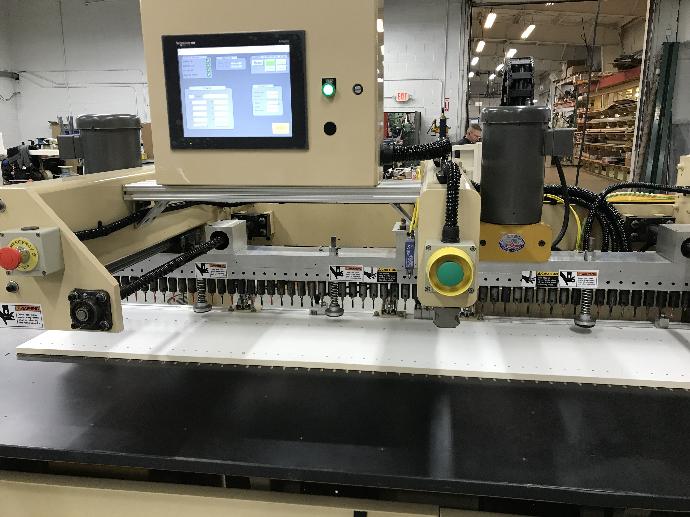

    •Touch Screen HMI

    •Twin Ball Screw Drill Row Positioning

    •Triple Precision Table Guide Rails

    •Twin Ball Screw Boring Stroke Control

    •Programmable Boring Depth, Servo Driven

    •108″ Back Fence with (4) Adjustable Material Stops

    •Right and Left Hand Work Stations

    •(4) Pneumatic Material Clamps

    •(4) Spring Operated Material Clamps

    •Center Beam Mounted Cycle Start Button

    •(2) Emergency Stop Buttons

    •Tooling Not Included

    Technical Data and Specifications:

    Drive Motors: 3 HP

    Spindle Centers: 32mm

    Collet Size: 10mm

    Throat Capacity: 24″

    First to Last Spindle: 2,400mm (94.488″)

    Maximum Material Thickness: 1.25″

    Electrical: 230V, 3Ø, 60Hz, 60A or 460V, 3Ø, 60Hz, 30A

    Air: 2 CFM at 80 – 100 PSI

    Work height: 36″

    Footprint: 56″ x 110″

    Table Area: 30″ x 108″

    Shipping Weight: 4,432 LBS

    Shipping Dimensions: 120″ L x 63″ W x 83″ H
