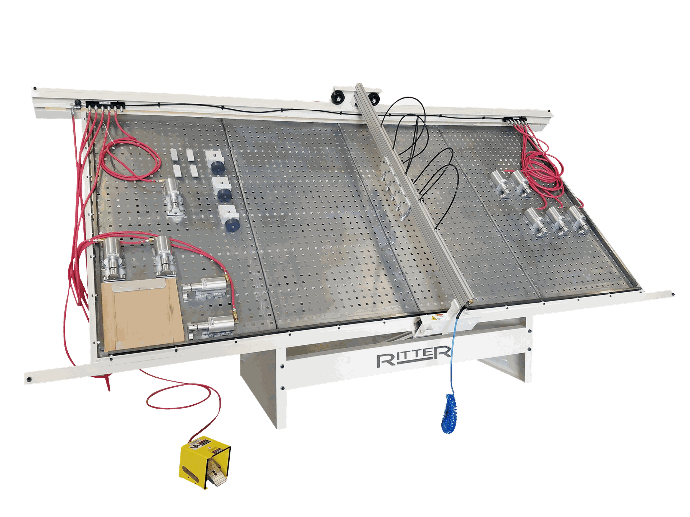

R250EA | Ritter | Face Frame Assembly

  • Power:
  • Description

    The R250EA is designed for all types of frame and door construction. Joinery such as screw pockets, glue and dowel, mortise and tennon, nails, staples and biscuit are all easily utilized by the system. The large assembly easel allows for assembly of cabinet and furniture face frames, cabinet and architectural doors, skylight frames, wainscoting and any other type of frames. Multiple workstations are provided to allow for the simultaneous assembly of different types of joinery. The R250EA is a table for both the assembly of 5 piece doors, and the assembly of wooden cabinet face frames. This heavy duty table insures a flat surface, with squaring corners, and a set of pneumatic clamps to secure the components during assembly. Used in conjunction with a pocket hole cutter, such as the R200T, or the R220T, to create the face frame screw pocket.

  • Specs

    •6’x12′ Assembly Table

    •45° Vertical Easel

    •Hold Down Beam with (5) Adjustable Hold Down Cylinders

    •1-5/16″ Clearance Under Vertical Cylinders

    •Squaring Bars on Left, Right and Bottom Sides

    •(10) Universal Clamping Cylinders & Manifold

    •706.8 LBS of force at 100 PSI

    •(4) Material Hold Down Dogs

    •(3) Adjustable Material Positioning Stops

    •2″ Cylinder Position Grid Pattern

    •3″ Bore Clamp Cylinder Housing

    •Heavy Duty Steel Frame

    •Perforated Steel Table

    •Open Back Design

    •6 port Manifold with 1/4″ NPT Regulator/Gage

    •Adjustable pressure from 20 to 130 PSI

    •Foot Treadle

    •Heavy Duty Steel Frame

    •(1) Coilhose for Pneumatic Screw Gun

    •Screw Gun Not Included

    Technical Data and Specifications:

    Usable Table Area: 72″ x 138″

    Work Height: 25″

    Footprint: 165″ L x 66″ D x 86″ H

    Electrical: N/A

    Air: 100 PSI
