Description

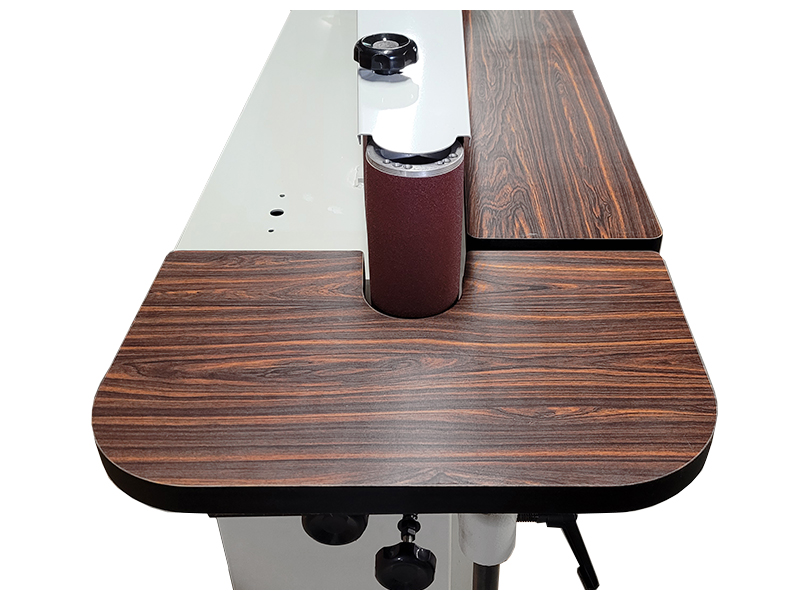

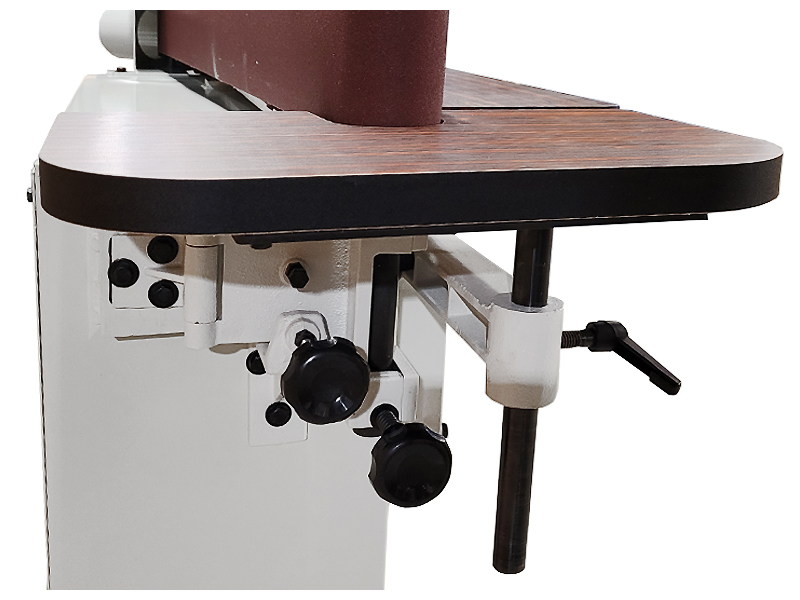

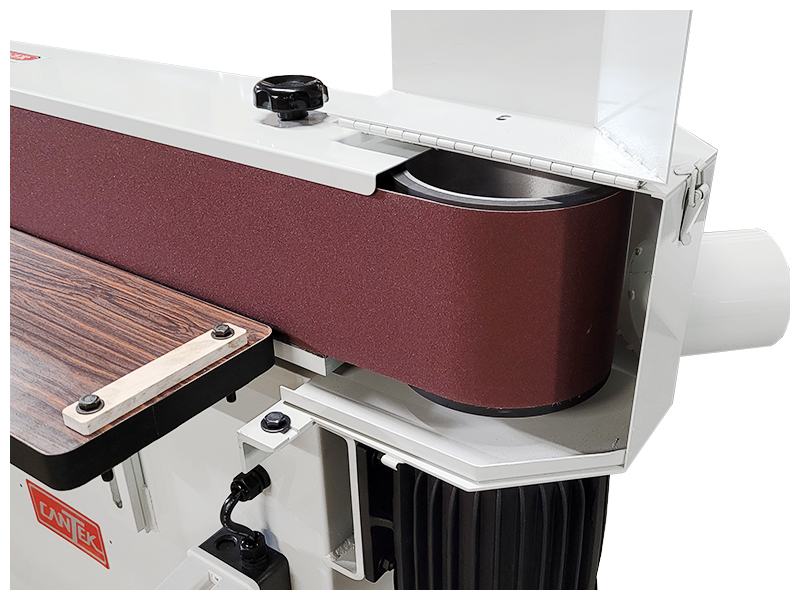

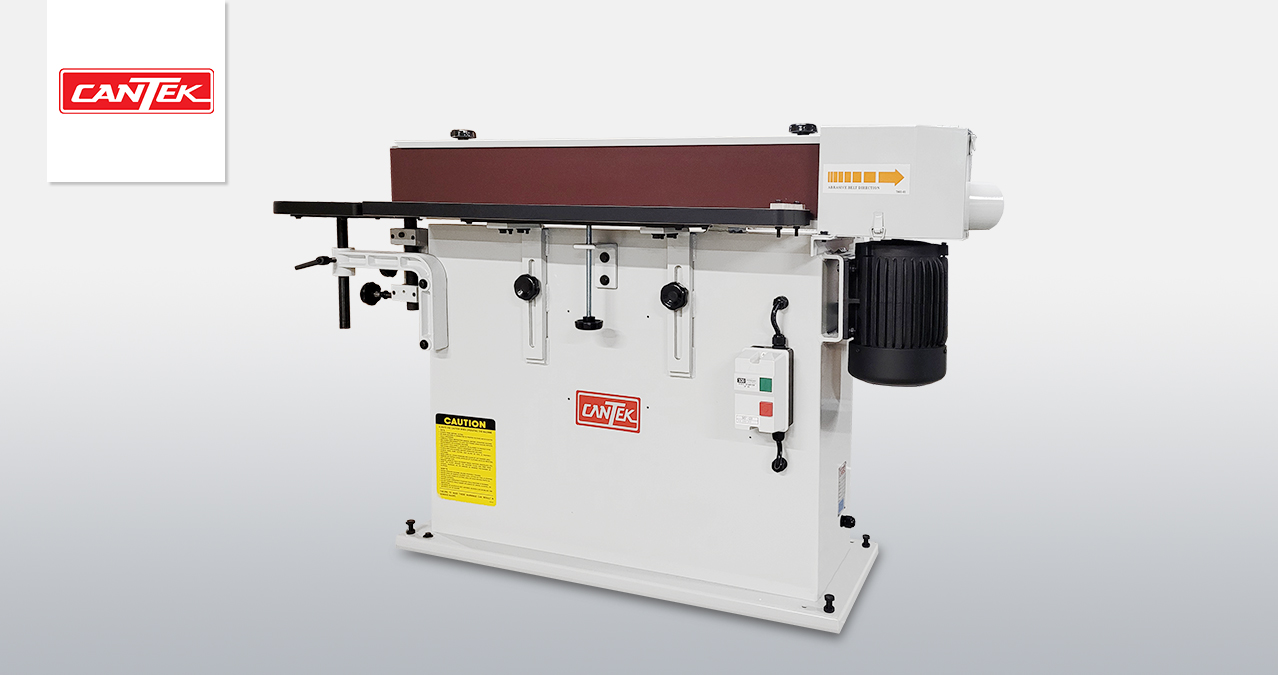

The Cantek CT108 Edge Sander has a 6” x 108” long belt with 39” wide platen for straight edge sanding and 3” drum for curve sanding. Table are adjustable up and down and can be angled for full belt utilization. This is the ideal edge sander for sanding cabinet door edges, furniture components, and more.
-
Specs
Sanding belt size 6″ x 108″
Belt speed 3150 FPM
Motor (230/1/60) or 1 ½ HP
Motor (230/3/60) 2 HP
Front table 37″ x 7 ¾”
Side table 19″ x 12″
Platen size 6 7/8″ x 39″
Dust outlet 4″
Machine weight 364 lbs.
Machine dimensions 64 ½” x 22 ½” x 44″
Shipping weight 463 lbs.
Shipping dimensions 60″ x 22.4″ x 43.7″
Machine electrics 230/1/60 = 10 amps
230/3/60 = 6.8 amps -
