54HH | Powermatic | Jointers

  • Power:
    1HP 1PH 115/230V
  • Description

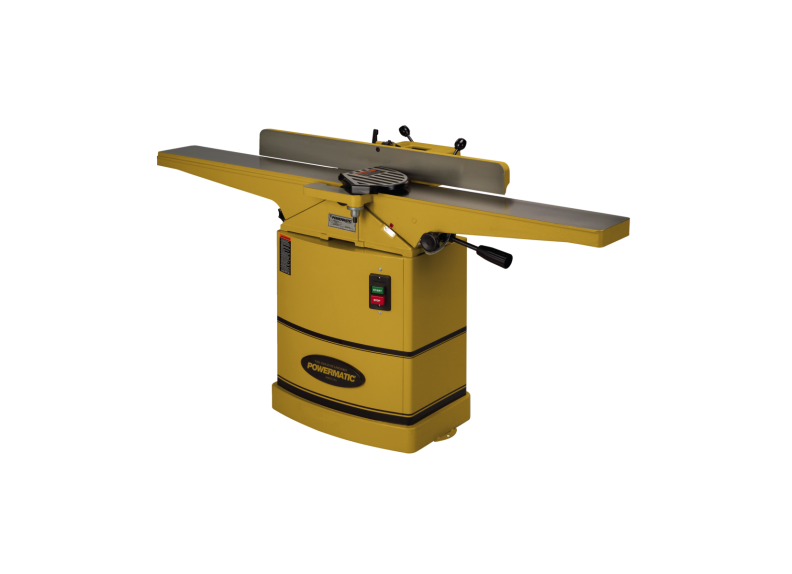

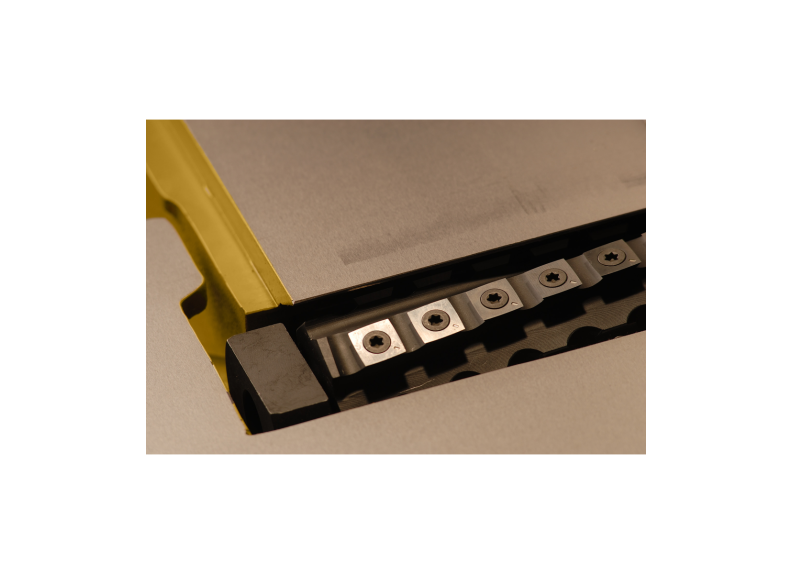

    This 6″ Jointer features a helical cutterhead with 40 four-sided indexable carbide knife inserts – this design provides a superior finish and quieter operation compared to conventional cutterheads, and the inserts require no adjustment once they are installed. If a knife insert becomes nicked, simply rotate it for a fresh edge and continue working. Oversized infeed/outfeed tables are mounted on dovetailed ways. The fence is 38″ in length, with positive stops at 90° and 45° right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a 1 HP motor with a non-slip v-belt drive for maximum performance. The 4″ dust port offers easy connection to any dust collection system.

  • Specs

    Cutterhead Diameter (In.)|2-1/2

    Cutterhead Speed (RPM)|6000.0000

    Cutting Capacity (W x D) (In.)|6 x 1/2

    Dust Collection Minimum CFM Required (CFM)|450

    Dust Port Outside Diameter (In.)|4

    Infeed Table Length (In.)|32-1/2

    Motor Amps|13/6.5

    Motor Power (HP)|1

    Motor Voltage (V.)|115/230

    Number of Knives|40

    Prewired Voltage (V.)|115

    Prop 65|Cancer and Reproductive Harm

    Type of Cutterhead|HELICAL
