  • Description

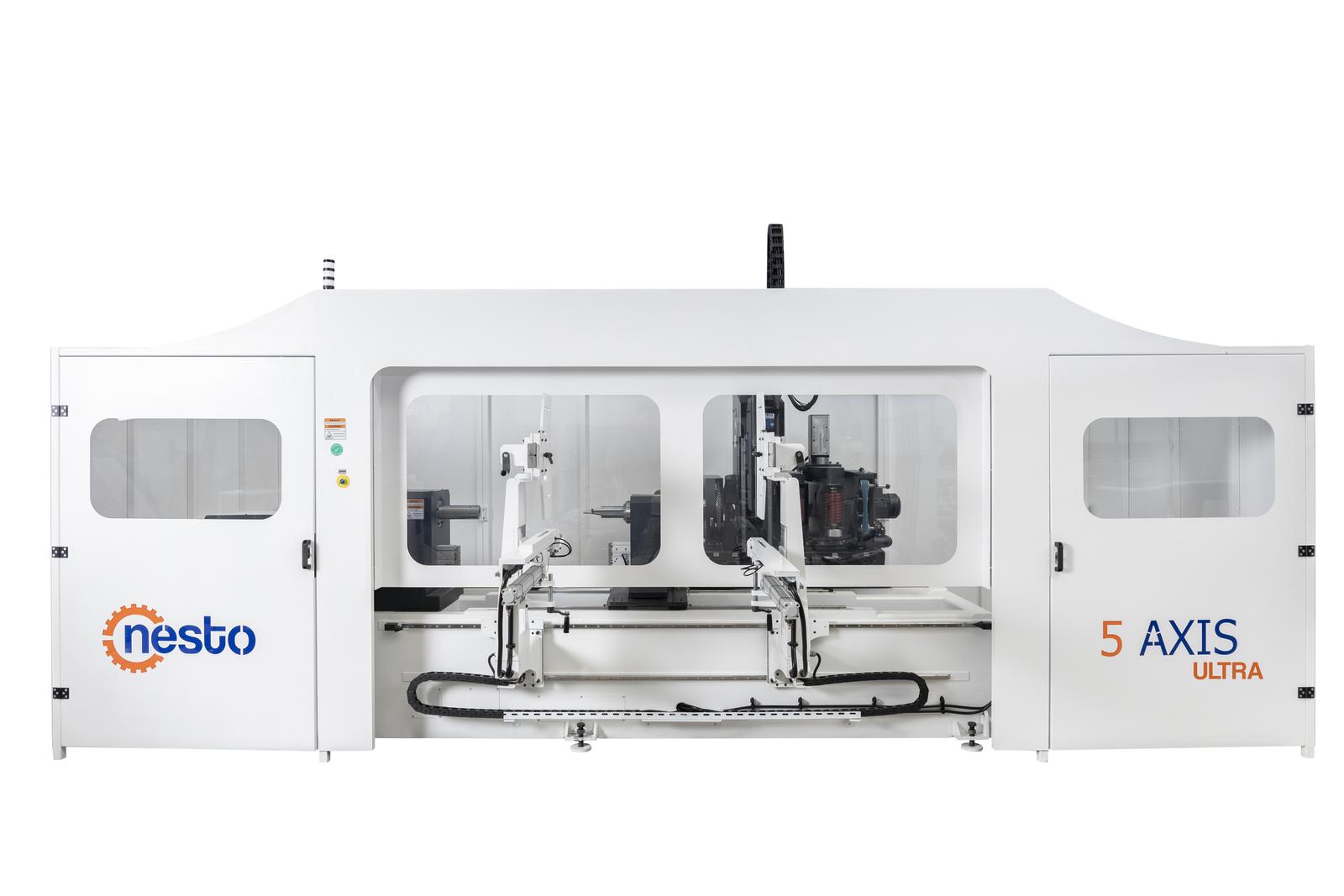

    Five-axis production for complex furniture components

    Turning, indexed machining, angular milling, drilling and shaping can be combined for chair, table, sofa and armchair legs, balusters, columns and decorative solid-wood parts.

    Technical Specifications

    SpecificationStandard machine
    Maximum workpiece diameter and length400 × 1,200 mm15.75 × 47.24 in
    Control unitTPA industrial control · EtherCAT · remote connection · 3D preview
    Z-axis travel1,200 mm47.24 in
    X-axis travel225 mm8.86 in
    Z-axis rapid speed70 m/min
    X-axis rapid speed30 m/min
    Y-axis rapid speed20 m/min
    A-axis angular travel-90–90°
    Workpiece rotation3,000 rpm · 5 kW direct-drive servo axis
    Total installed power33 kW
    Machine weight4,600 kg
    Machine dimensions (L × W × H)3,950 × 3,720 × 3,900 mm155.51 × 146.46 × 153.54 in
    Lubrication unitILC central automatic lubrication

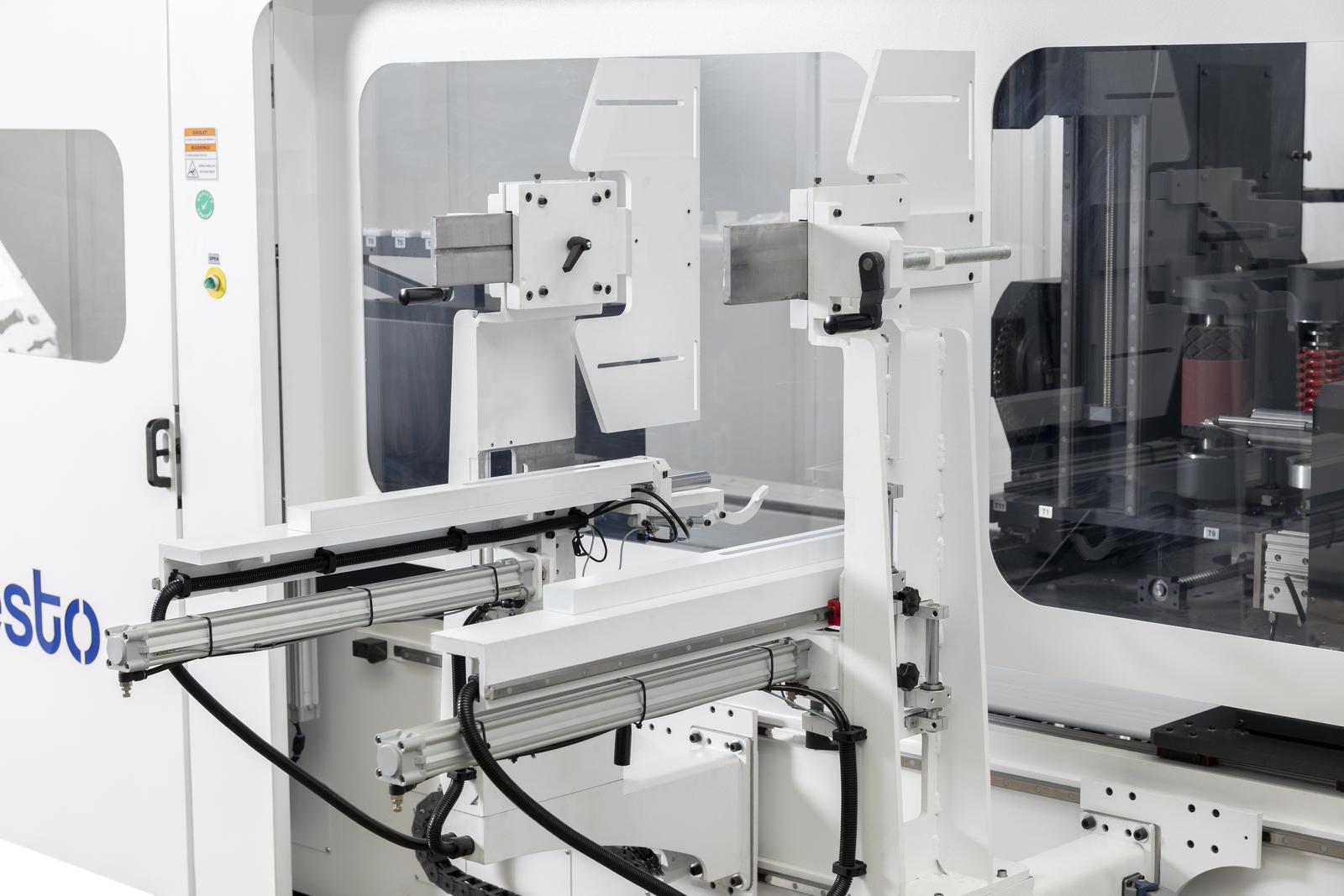

    Workpiece clampingPneumatic piston · 7 bar
    Workpiece-length adjustmentControl-panel adjustment · keyless and screwless
    Standard cutting unitsHardened triangular, cup and top blades
    High-speed machining spindle5.5–6 kW Hertz · 24,000 rpm · automatic tool change
    Tool magazineFive tool positions
    Drawing and production softwarePegasus 5-Axis CAD/CAM for the machine
    Standard safety systemPerimeter safety fence
