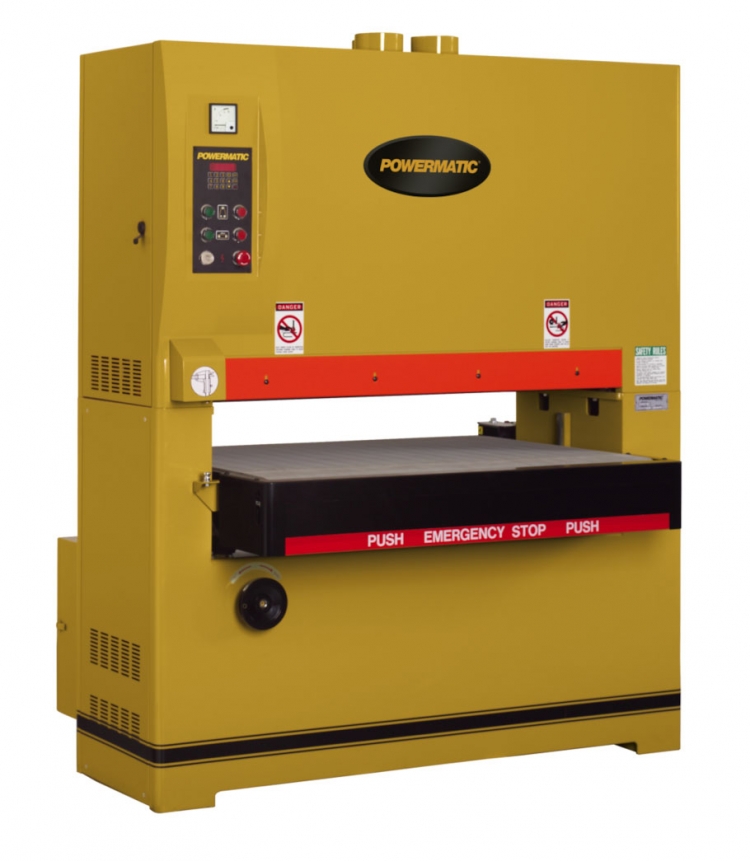

WB43 | Powermatic | Wide Belt Sanders

  • Description

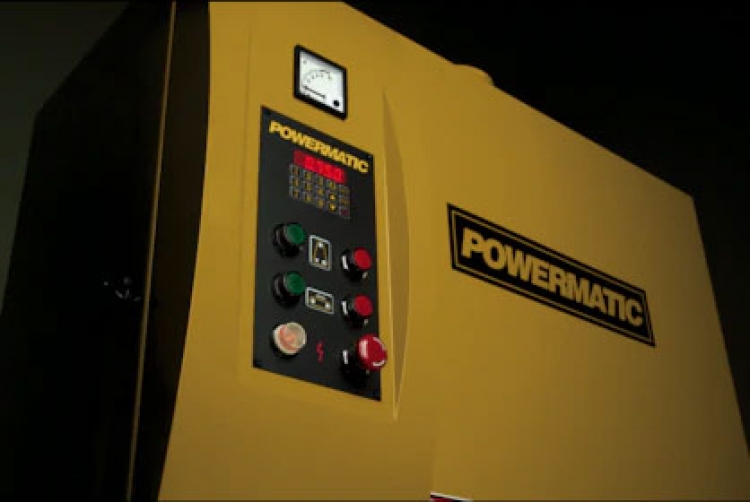

    Centralized controls allow you to access all the needed buttons on one simple panel Digital readout will show the user the exact thickness of the finished piece, or will allow you to preset exactly the thickness you prefer for the finished piece

    Includes 2 Sanding belts, 100 and 180 Grit

    The auto thicknesser will capture the piece of wood to give the user the exact starting thickness

    Disc brake slows the machine quickly and will activate immediately to stop machine in an emergency

    The pneumatic sensor system controls the sanding belt oscillation to prevent the belt from running off the ends of the drums, as well as use the sanding surface more uniformly without leaving sanding lines on the workpiece

    The three motor system allows for maximum horsepower to independently power the sanding drums, the variable speed feed, and the feed table movement.

    The variable speed feed belt allows you to accurately dial in the exact feed speed to best suit your project

  • Specs

    Air Required|75 – 80

    Dust Collection Minimum CFM Required (CFM)|1,900

    Dust Port Outside Diameter (In.)|5

    Feed Motor Power (HP)|2

    Maximum Board Thickness (In.)|6

    Maximum Board Width (In.)|43

    Minimum Board Length (In.)|12

    Minimum Board Thickness (In.) |1/8

    Motor Power (HP)|25

    Motor Voltage (V.)|230/460

    Prewired Voltage (V.)|230

    Prop 65|Cancer and Reproductive Harm

    Sanding Belt Speed (FPM)|2,625

    Style (Type)|Wide Belt Sander
