4375 | Safety Speed | Wide Belt Sanders

  • Description

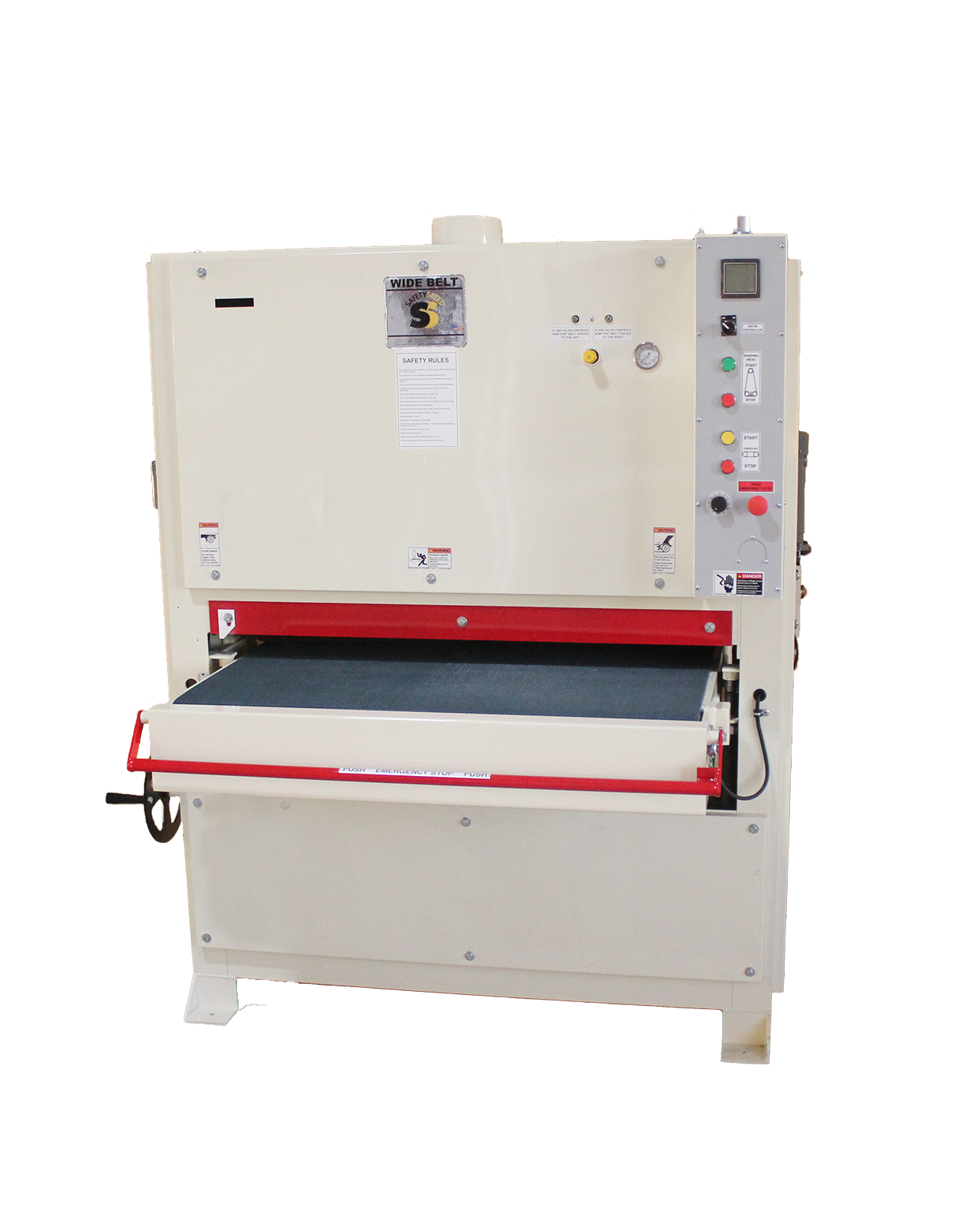

    The 43″ Wide Belt Sander features a 75” belt, providing 25% more abrasive surface than the smaller 60” belt machines. The larger belt translates to increased capacity, less heat accumulation, less maintenance and fewer belt replacements. With a fully adjustable platen these sanders will deliver a perfect smooth finish every time. Standard Equipment:

    *Photo electric belt tracking.

    *Pneumatic belt tension.

    *2 ½” graphite covered felt pad and adjustable platen.

    *2 rubber-covered pinch rollers 2 ½” OD.

    *2 machined idler rollers 4 ¼” OD with 1″ bearings.

    *Rubber-covered contact roller 5 ¼” OD with 1” drive bearing.

    *Conveyor table set on four 1″ acme thread jackscrews.

    *2 height adjustment indicators.

    *6″ internal dust chute.

    *5 emergency stops

  • Specs

    Weight|1946 lbs

    Dimensions|60 × 62 × 71 in

    Max. Working Length|Unlimited

    Min. Working Length|12″/305mm

    Main Motor Options|10 Hp, Single Phase (1~), 220 Volt, 20 Hp, 3 Phase (3~), 208 Volt / 230 Volt, 30 Hp, 3 Phase (3~), 208 Volt / 230 Volt

    Max. Working Width|42″/1070mm

    Max. Working Thickness|7 1/4″/184mm

    Min. Working Thickness|1/8″/3mm

    Vacuum Requirement|1000 CFM

    Conveyor Speed|0-18 FPM

    Durometer of Contact Roller|60

    Sanding Belt Size|43″ x 75″

    Sanding Belt Width|43″

    Sanding Belt Length|75″
