M412 | Cantek | Planers

  • Power:
    230V 3PH 17.5HP 48AMPS
  • Description

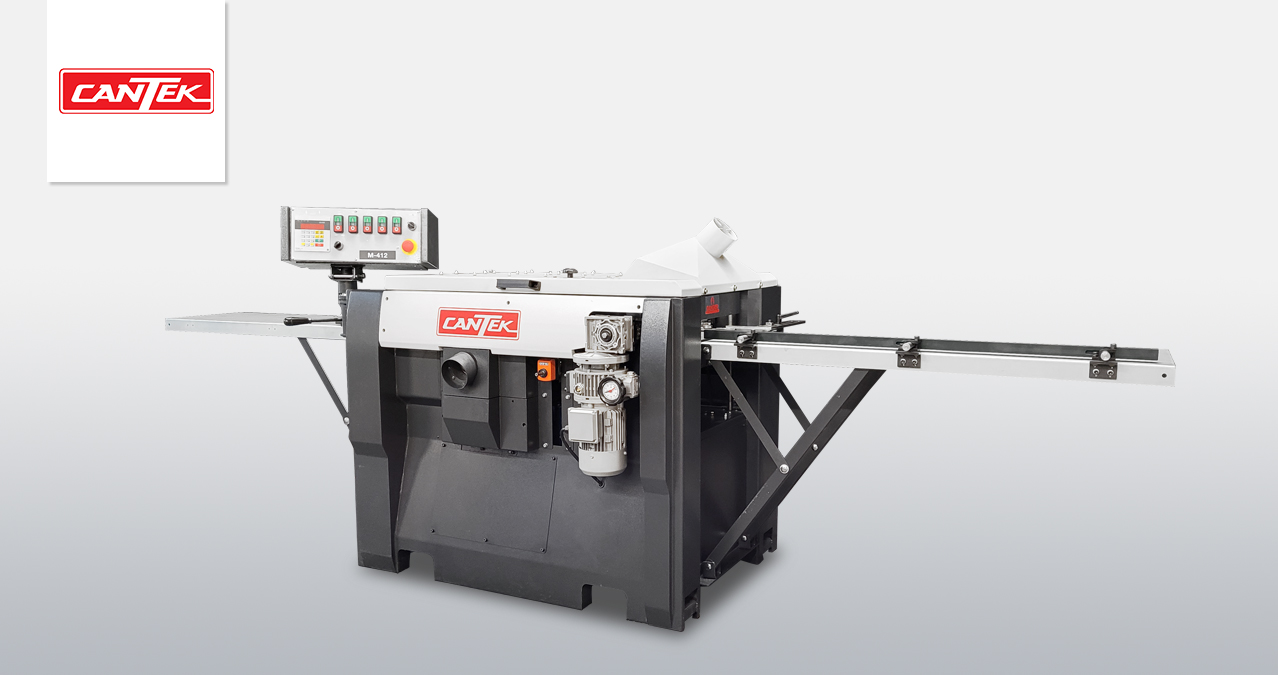

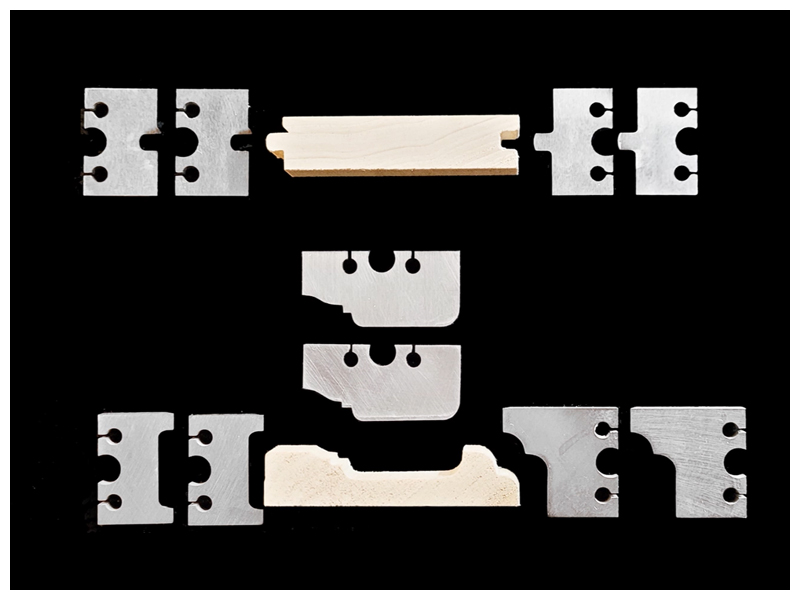

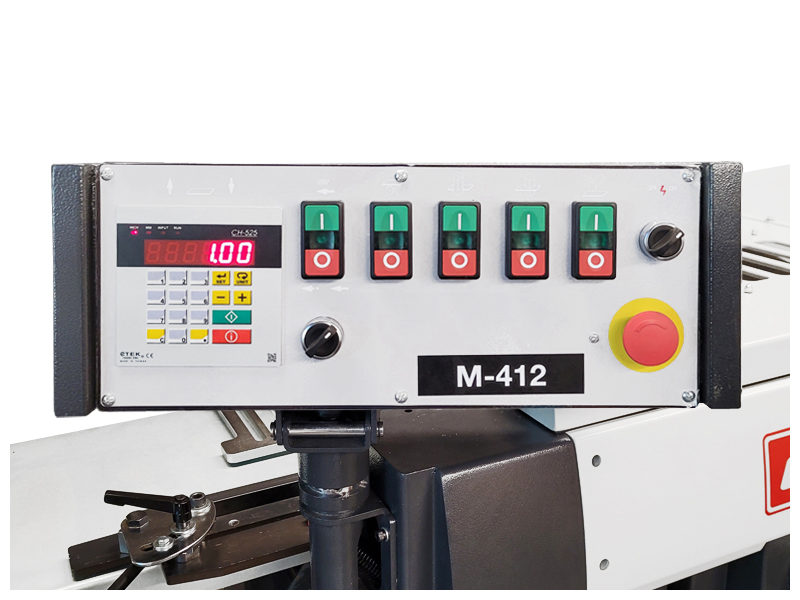

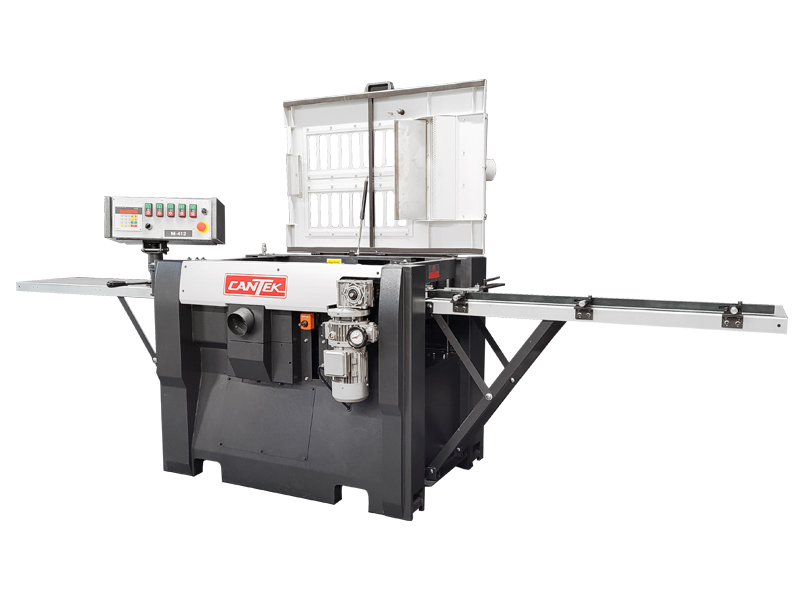

    The Cantek M412 4-Sided Planer Moulder is an economical and compact machine designed for professional woodworkers looking to produce a wide range of mouldings or S4S.  With individual motors to each spindle you can comfortably produce a wide range of products including flooring, crown moulding, paneling, door & furniture components, S4S, and more.  The electronic digital thickness control and mechanical readouts allow for fast and accurate adjustment of the spindles to produce the desired result.  Equipped as standard with both infeed and outfeed tables the material is well supported during cutting operations.  Its small footprint makes it the ideal solution for the small custom shop who wants to produce their own mouldings.

  • Specs

    Planing|Width: 13” (330MM)|Depth: 7/16” – 9” (12 – 230mm)

    2-Side Planing/Moulding|Width: 13-5/8″” (346mm)|Depth: 7/16” – 9” (12 – 230mm)

    4-Side Planing/Moulding|Width: 0 – 12” (0 – 305mm)|Depth: 7/16” – 4” (12 – 100mm)

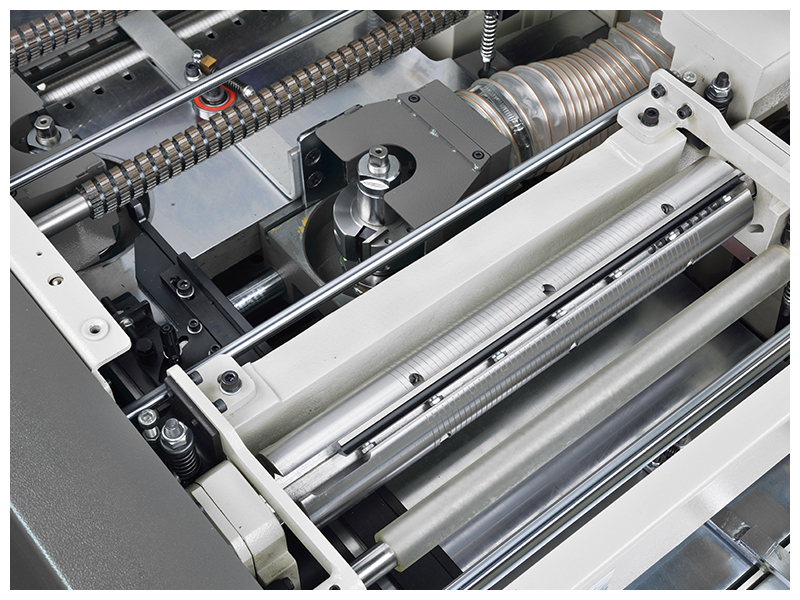

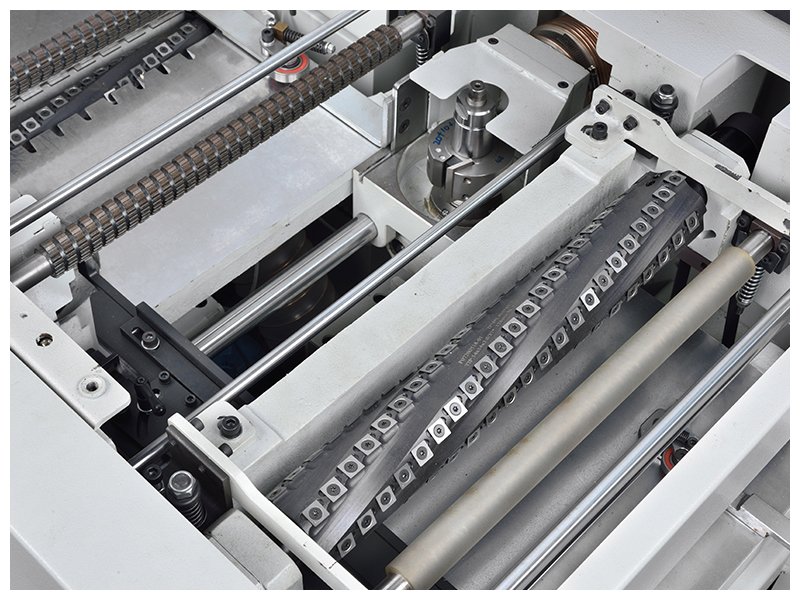

    Top Horizontal Spindle|Width: 17-15/16” (455mm)|Max. planing depth: 5/16” (8mm)|Max. moulding depth: 3/4” (19mm|Speed: 7000 RPM|Cutterhead diameter: 2-7/8” (72mm)|Motor: 7-1/2HP (5.5Kw)

    Bottom Horizontal Spindle:|Width: 13-5/8” (346mm)|Max. planing depth: 1/4” (6mm)|Max. moulding depth: 3/16″ (5mm)|Speed: 7000 RPM|Cutterhead diameter: 2-7/8” (72mm)|Motor: 5HP (3.7Kw)

    Right & Left Vertical Spindles|Max. cutting height: 4” (100mm)|Max. cutting depth: 13/16” (21mm)|Spindle diameter: 1-1/4″ (31.75mm)

    |Speed: 7000 RPM|Max. cutterhead diameter: 3-1/2” (90mm)|Motor: 4.1HP (3Kw) x 2

    Table|Area: 1125 x 685 mm|Elevation: 230mm|

    Power Table (Raise): 120w Dust Hood Outlet|4 – 100mm (3.95″)

    Minimum width|0-306mm

    Minimum thickness|12-230mm

    Feed System|Speed (Variable): 11-52 ft/min.

    Motor:| 1HP (0.745Kw)

    Machine Dimensions (LxWxH)|1485 x 1265 x 1216 mm

    Packing Dimensions (LxWxH)|1350 x 1140 x 1130 mm

    New Weight|635kgs (1400bs)

    Gross Weight|730kgs (1610lbs)

    Electrics|230/3/60 – 48 Full Load Amps
  • Download

Videos of 4-Sided Planer Moulder

Cantek M412 4-Sided Planer Moulder
